SPECIFICATIONS

Brand Name: hot rc

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: 2.5W VTX

Hign-concerned Chemical: None

Material: Metal

Model Number: BLITZ Whoop 5.8GHz 2.5W VTX

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Motor

Recommend Age: 14+y

Remote Control Peripherals/Devices: RECEIVERS

Size: 5.8G 3W VTX

Tool Supplies: VTX 48CH 3000mW

Upgrade Parts/Accessories: Speed Controllers

Use: Vehicles & Remote Control Toys

1. 48CH 5.8G frequency range: (A.B.E.F.R.L; 5362MHz-5945MHz);

2. Max power: 3W (25mW/1000mW/2000mW/3000mW adjustable);

3. Input voltage: DC 7V-36V, supporting 2-8S battery input

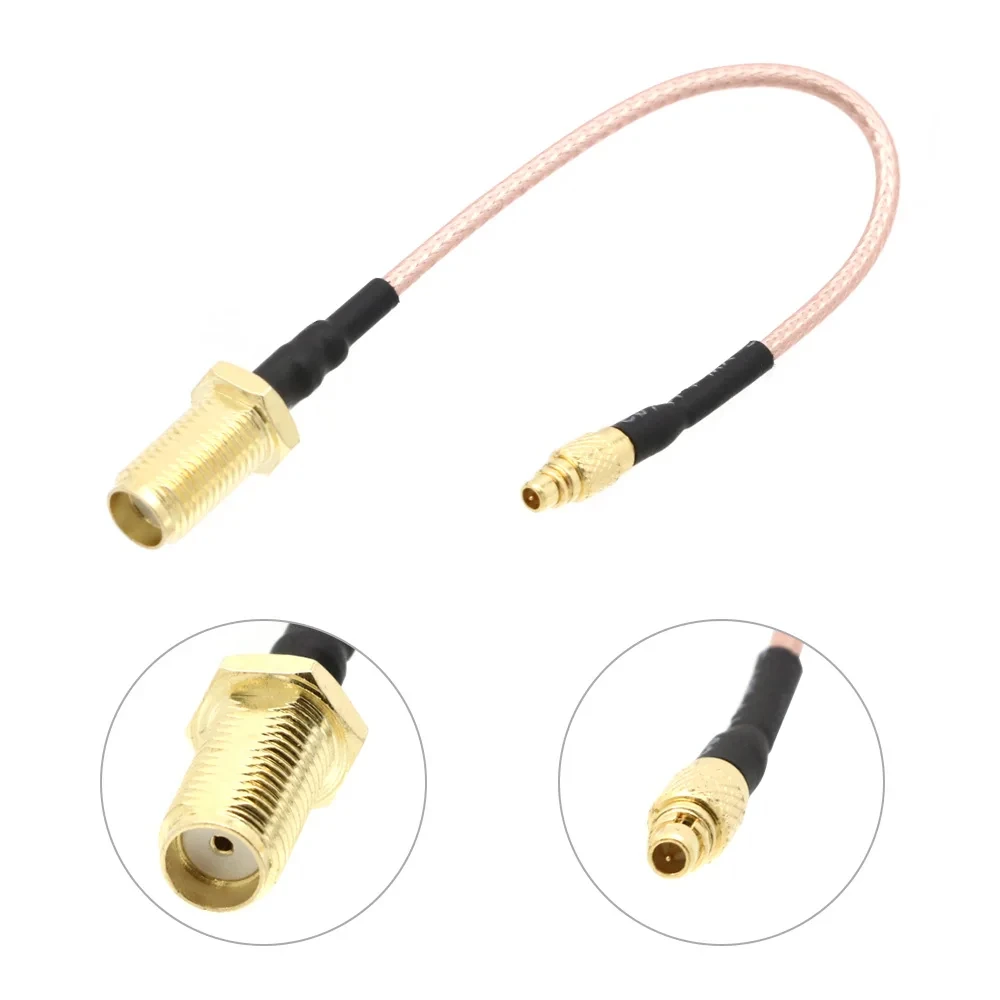

4. Antenna connector: MMCX

5. Smart audio: IRC Tramp

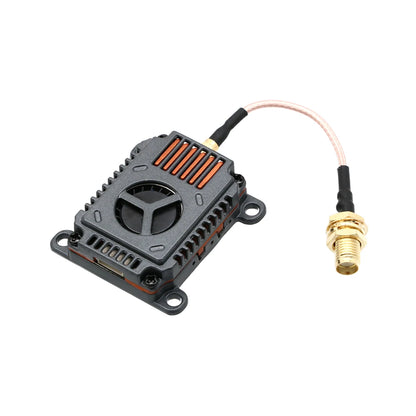

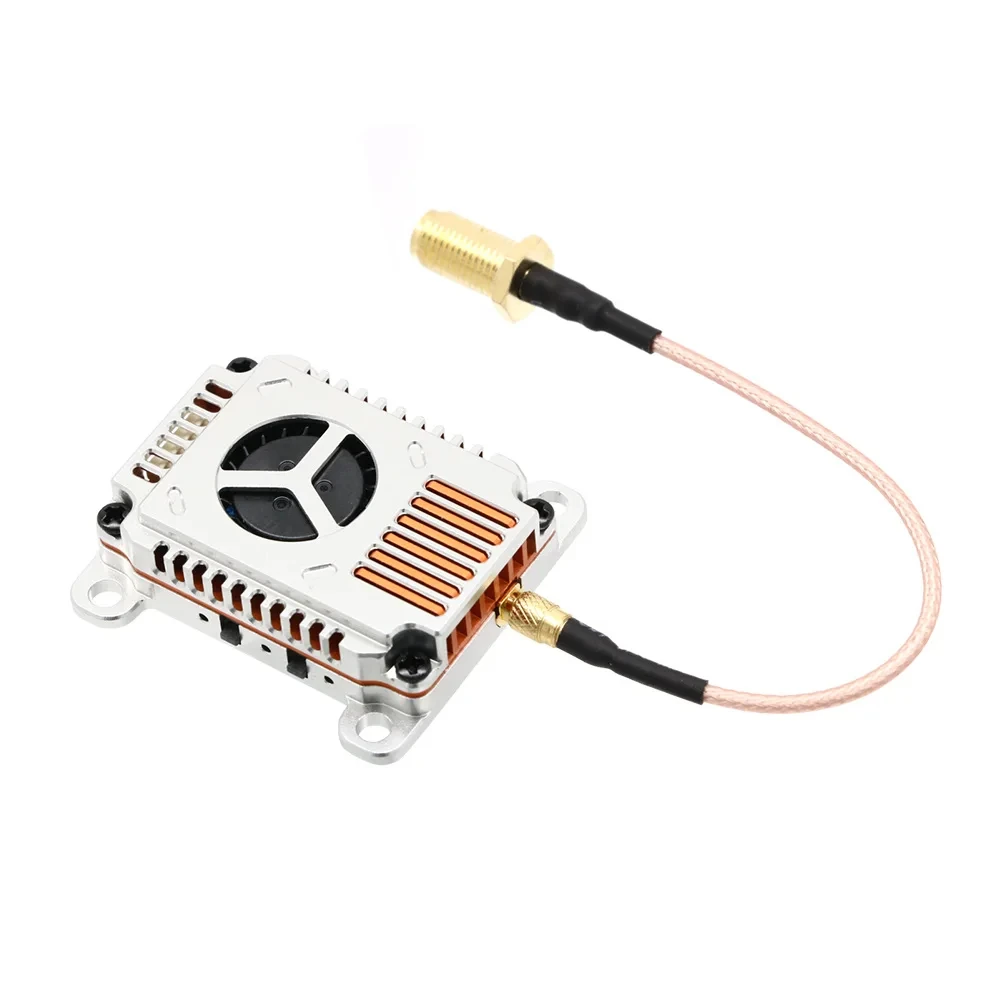

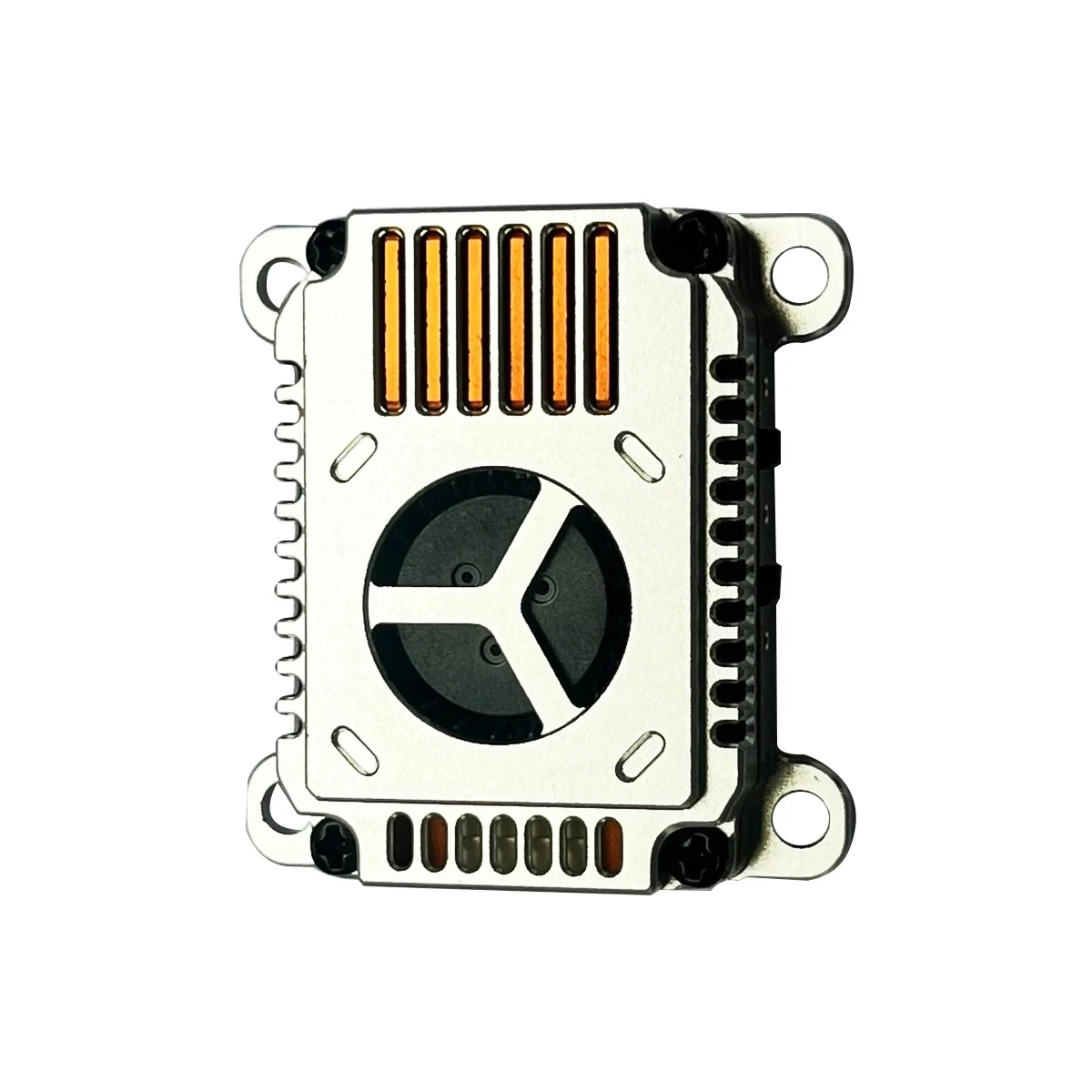

6. Heat-dissipating method: aluminum alloy heat sink&fan

7. Hole spacing: 30.5mm*30.5mm /ø3.15mm

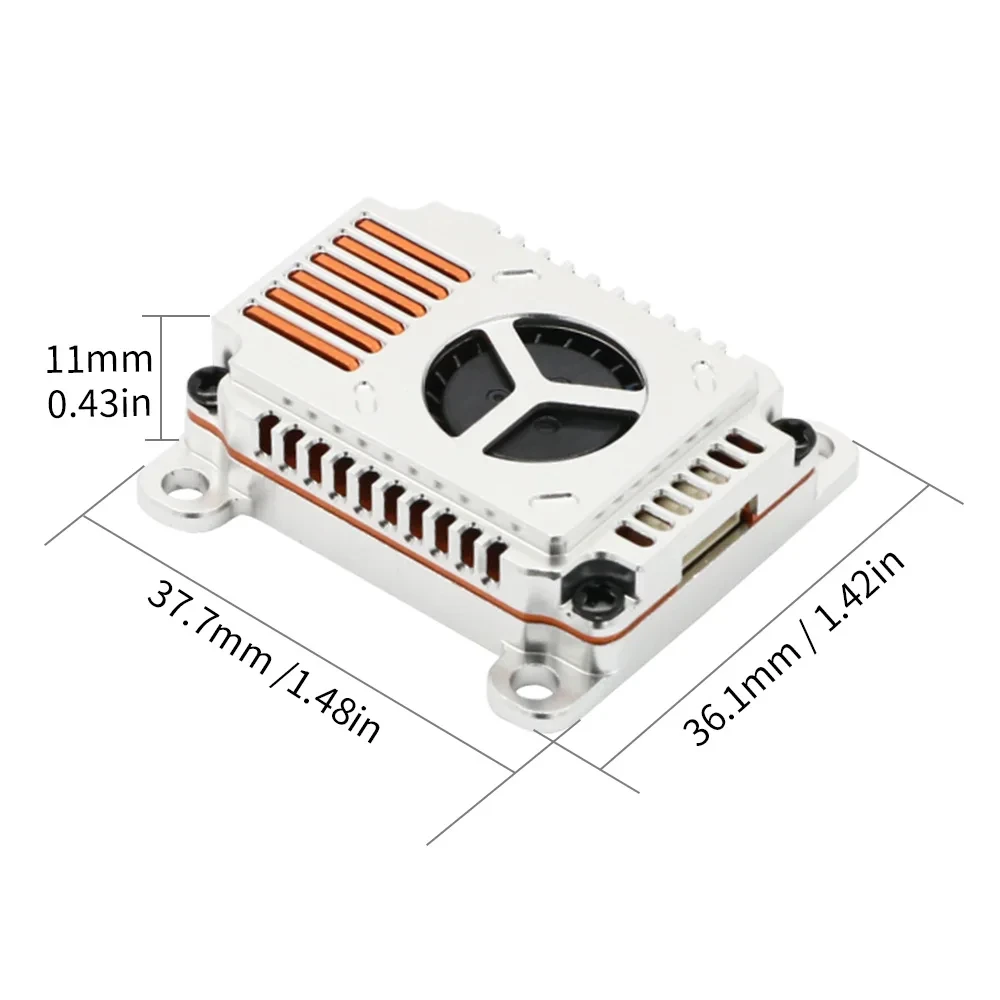

8. Dimension: 37.7mm*36.1mm*11mm

9. Weight: 16g

Function introduction:

1. Channel indicator: Red LED

2. Band indicator: Blue LED

3. Power level indicator: Green LED

4. Band and channel changer button

5. Power changer button

6. 1.0 6P Power connector

7. MMCX antenna connector



Notice: The transmitter is equipped with temperature protection function. When the temperature of transmitter is higher than 100℃, the RF power of the Transmitter will be lowered for one level. If the temperature is still greater than 100℃, the power can be lowered for another level until the lowest power (25mW) is reached; at this time, the temperature of the Transmitter module will drop. When the temperature is lower than 95℃, the Transmitter power will return to the originally power level.
