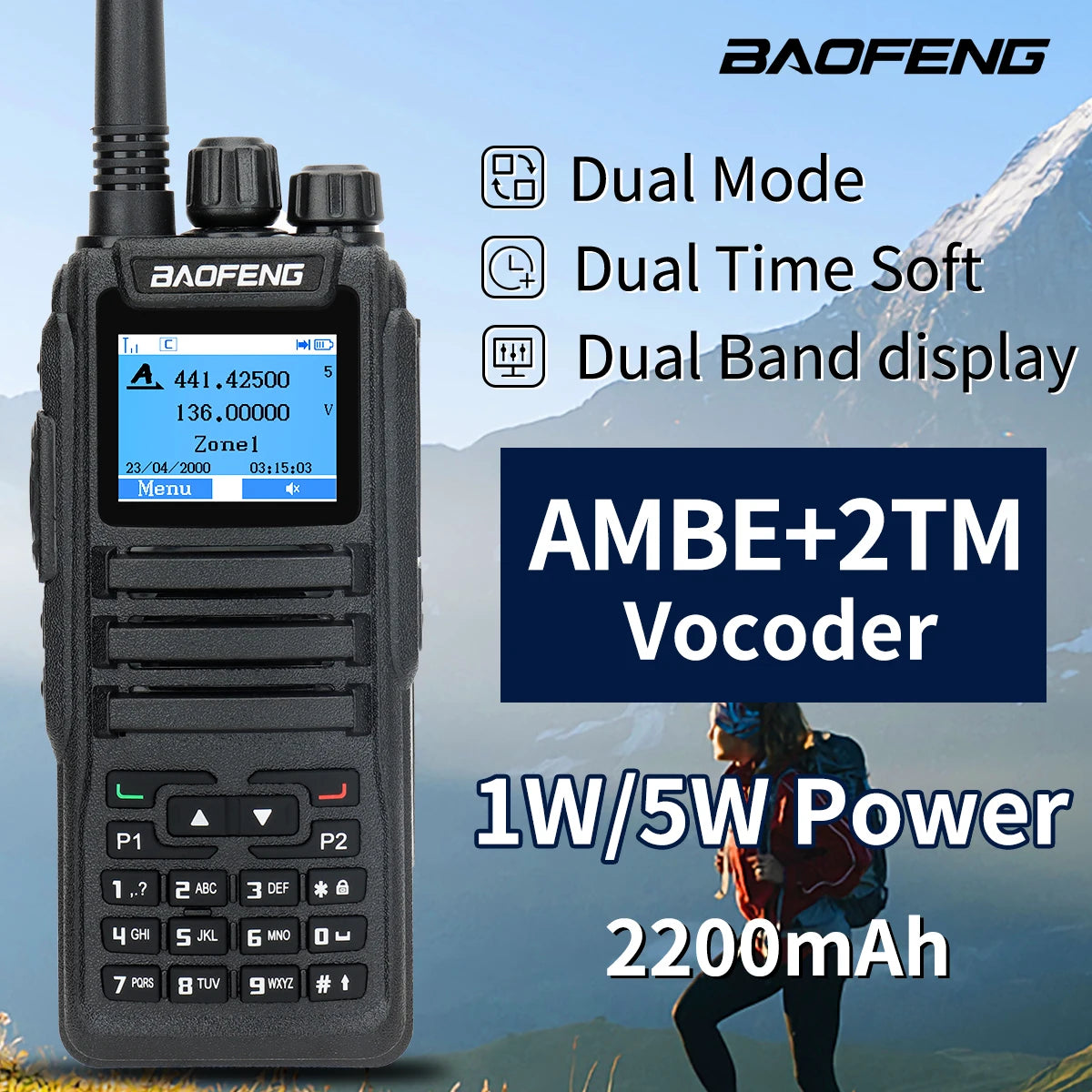

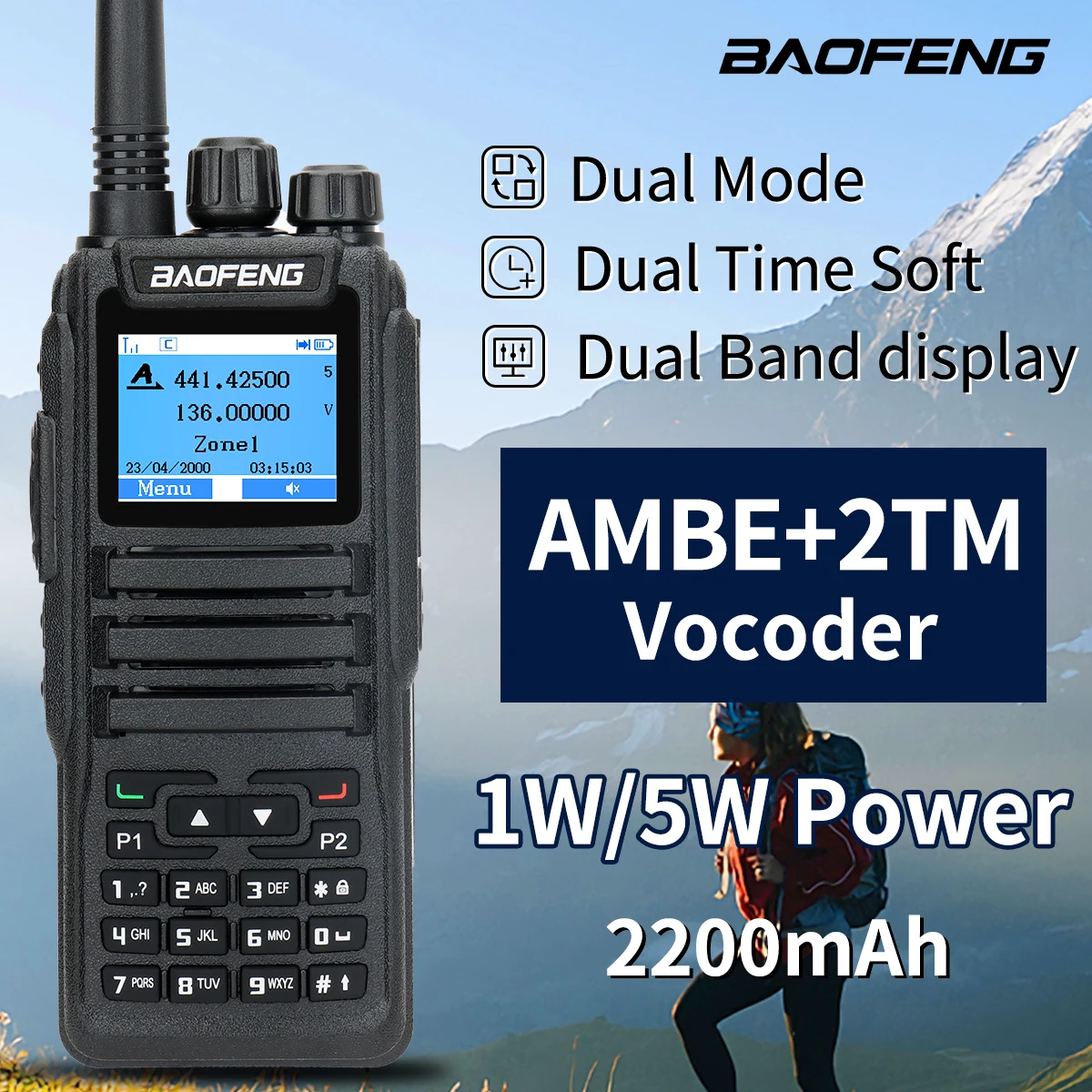

Baofeng DMR DM 1701 Digital Walkie Talkie Dual Time Slot Ham Radio DR 1801

Baofeng DMR DM 1701 Digital Walkie Talkie Dual Time Slot Ham Radio DR 1801

Regular price £72.80 GBP
Regular price £145.80 GBP Sale price £72.80 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

SPECIFICATIONS

Brand Name: BAOFENG

Battery Capacity(mAh): High Capacity

Origin: Mainland China

Waterproof / Water-Resistant: IP45

Maximum Range: 3km-5km

Model Number: DM-1701

Is_Display: Yes

Walkie Talkie Type: Portable

Hign-concerned Chemical: None

Output Power(w): 3w-5w

Material: plastic

Storage Channel: 3000CH

Frequency Range: 136-174MHz & 400-520MHz

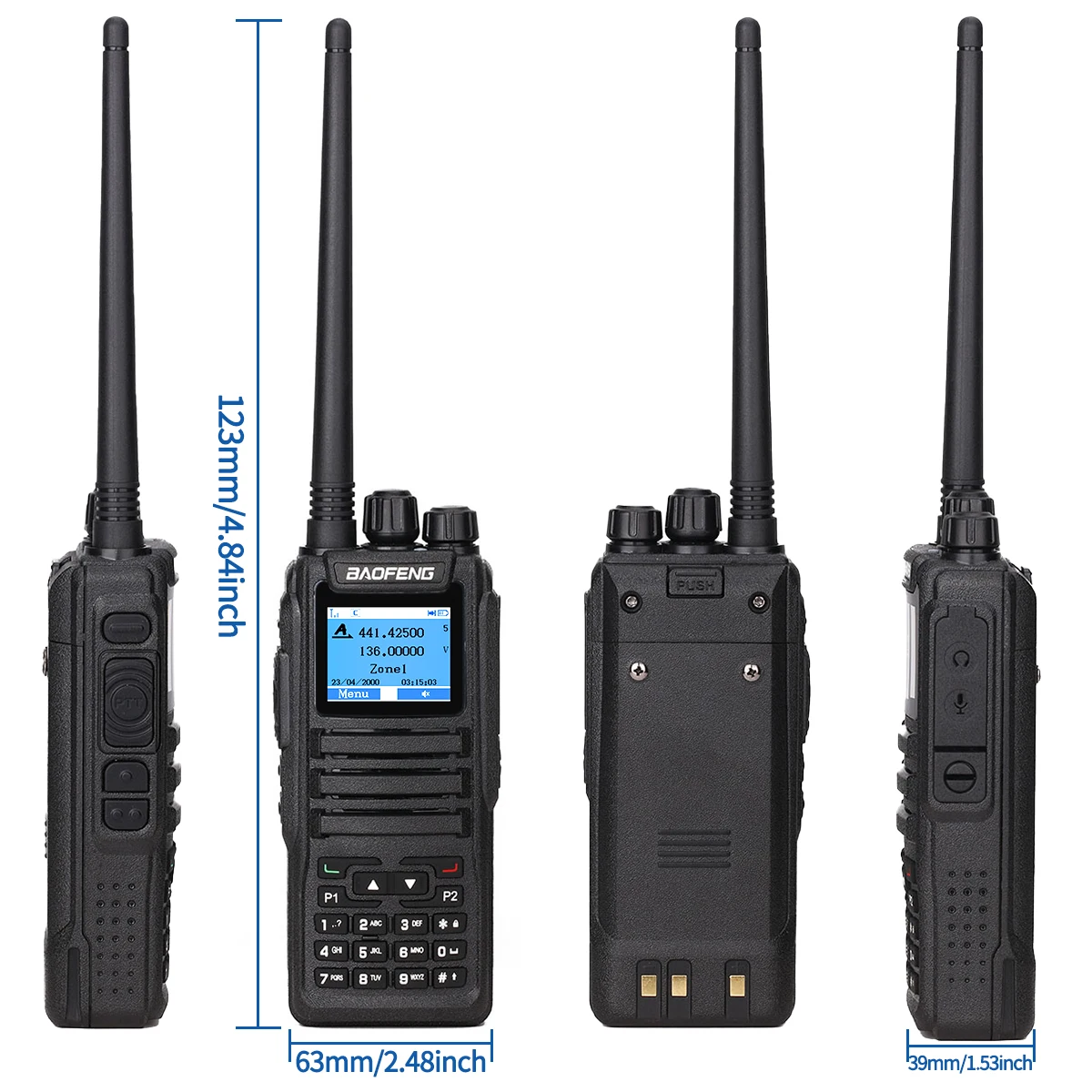

Dimensions: 123*63 * 39mm

Choice: yes

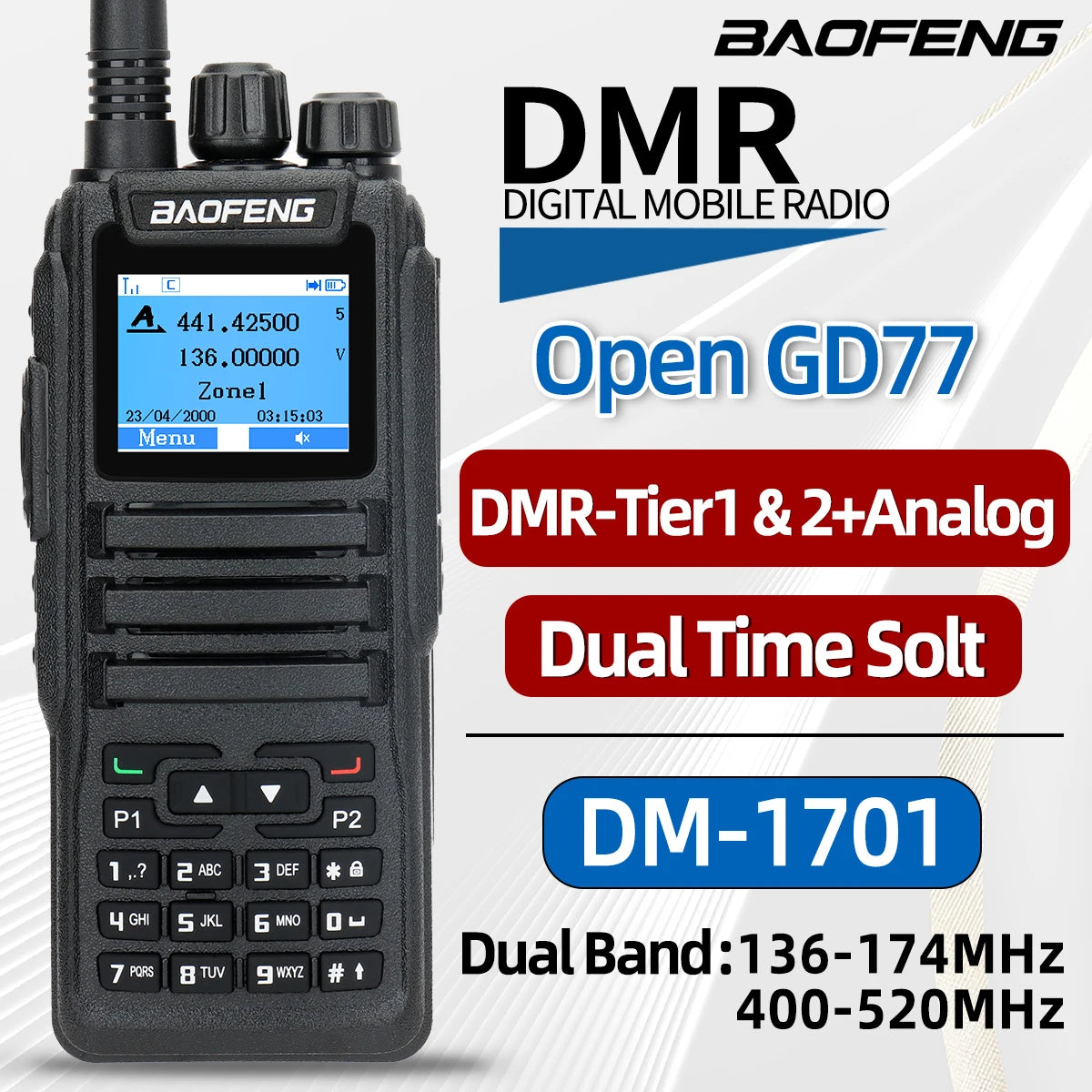

[Digital & Analog Compatible]The DM-1701 is compatible with digital and analog modes, including dual band VHF/UHF coverage of 136-174 MHz and 400-520 MHz. It has up to 3,000 Channels, 10,000 Digital Talk Groups and 120,000 Contacts.

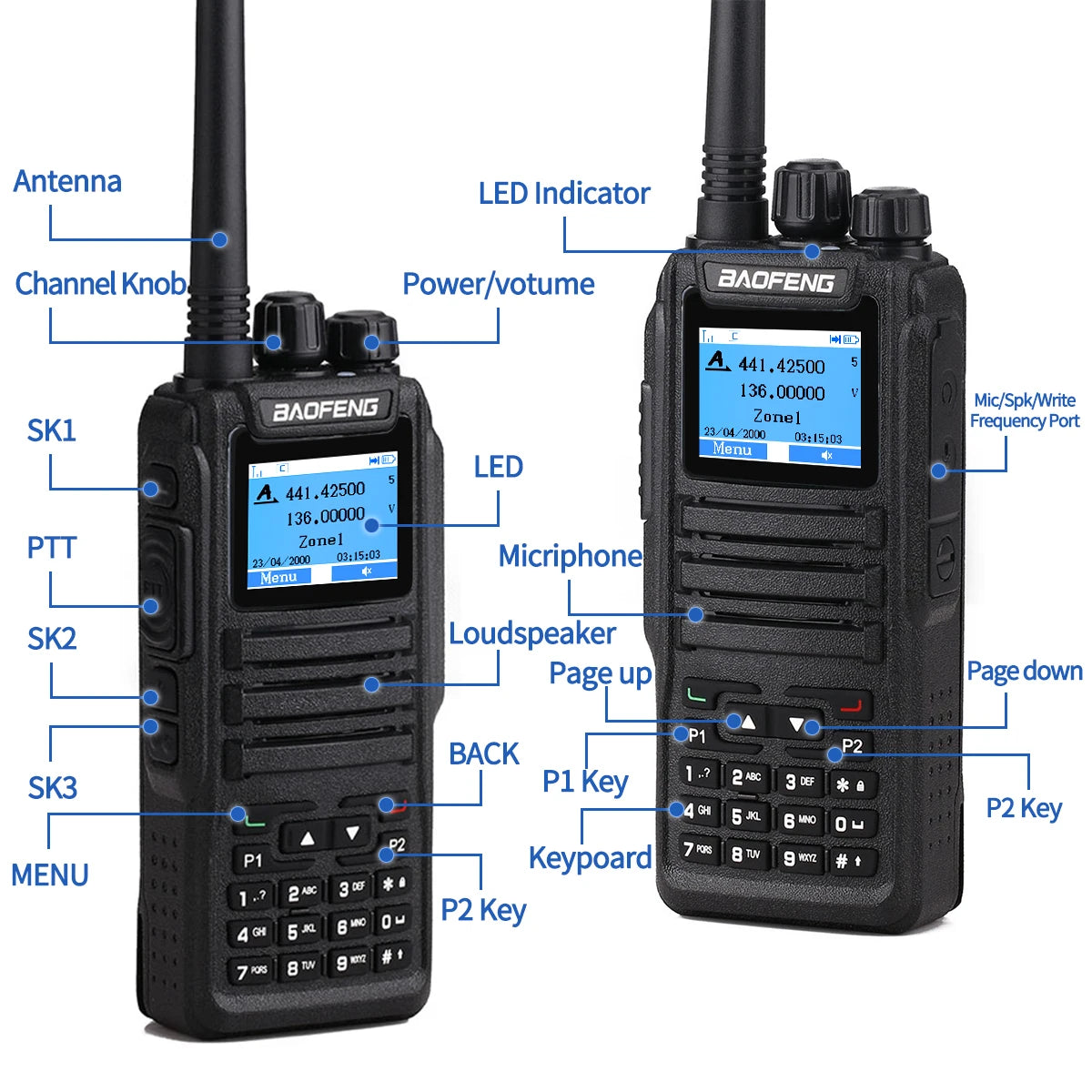

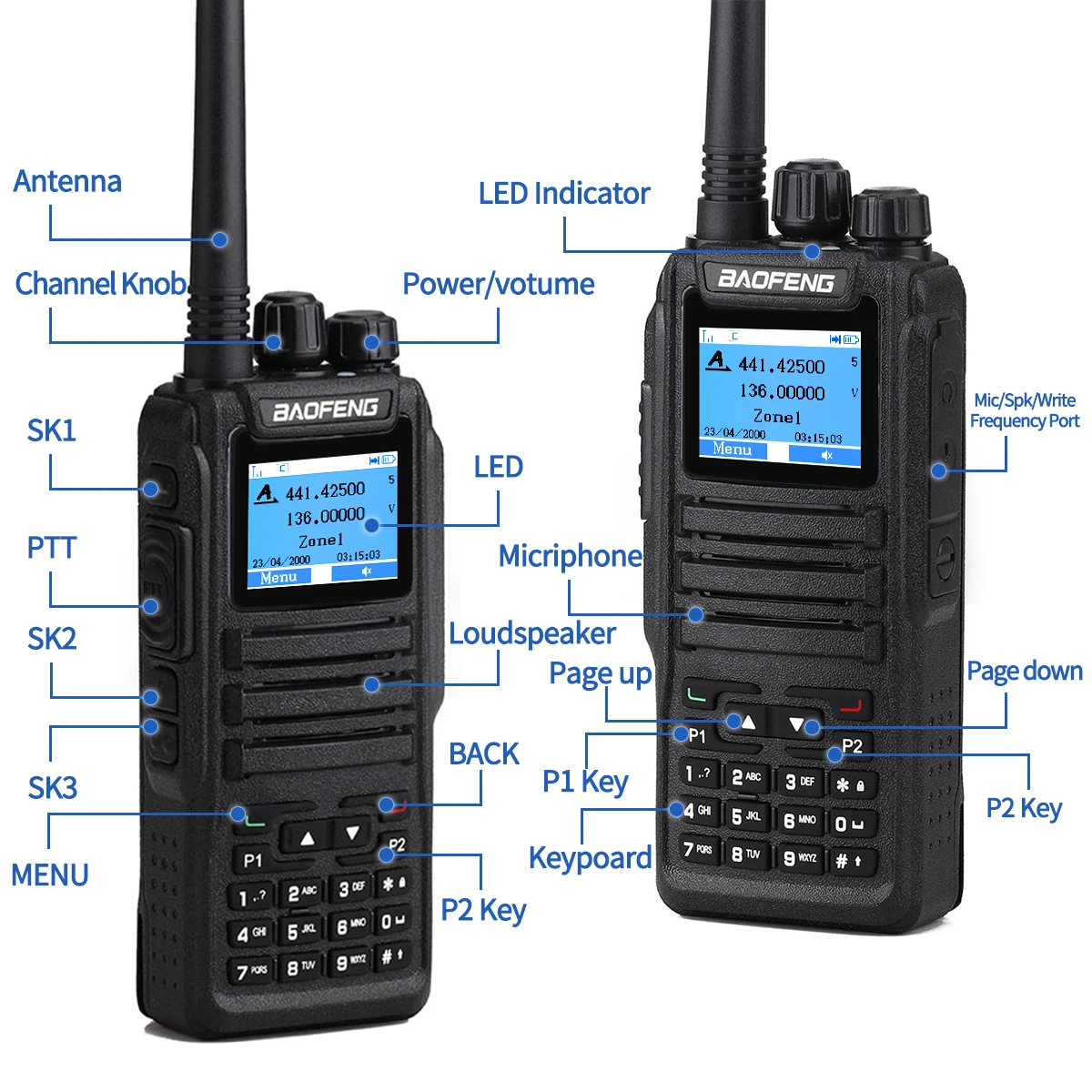

[Multi-Function & 1.77 "color TFT Display]- The DM-1701 offers to scan analog and digital channels, manual programming, DTMF, VFO, SMS, emergency alarm, digital monitor mode, CTCSS and CDCSS, color codes and DMR encryption. There are 5 customized keys for faster access to those features.

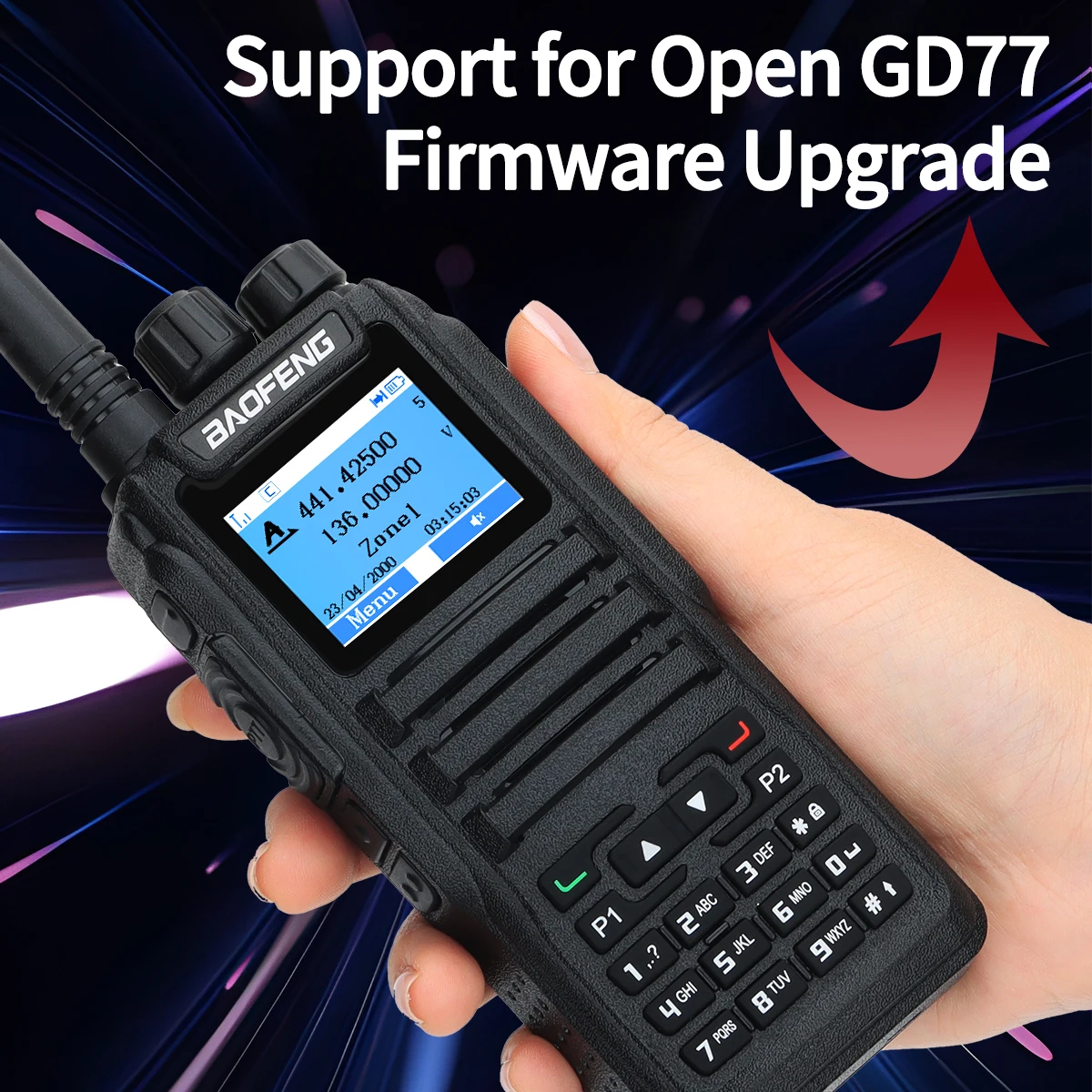

[Updated Software & Firmware Support]- The DM-1701 CPS supports mass editing, users can make complex application requirements, which makes it easier to write codeplugs. Firmware and software upgrading for new functions are life-time-free.

[DMO True 2 time slot]- Direct mode dual slot communication achieves two groups of calls at a frequency point at the same time so that the communication efficiency is doubled and frequency resources are saved. Compatible with MOTOTRBO Tier I & II and other DMR radios.

Specifications:

General


Frequency Range

Dual Band VHF 136-174MHz & UHF 400-470MHz


Storage channel

128groups


Maximum deviation

≤ Wont be 5 kHz/≤ wont be 2.5 kHz (W/n)


Operating Voltage

DC 7.4V


Frequency Stability

±2.5ppm


Operating Temperature

-20~+60℃


Channel Spacing

25KHz(Wide),12.5K(Narrow)


Antenna Impedance

50Ω


Battery Capacity

2200mAh


Dimensions

133 ×62 ×32mm(Antenna Not included)


Transmitting


Output Power

1W/5W


Modulation (wide band/ Narrow band)

Analog:16K Φ F3E/11K Φ F3E



Maximum frequency Deviation (wide band/ Narrow band)

≤ Wont be 5 kHz/≤ wont be 2.5 kHz (W/n)


Stray Power

≤7.5W


Adjacent channel power

≤-65dB/≤-60dB


QT/DQT Deviatio(wide/narrow)

0.7±0.1KHz/0.4±0.1KHz


Signal to noise radio

≥-45dB/≥-40dB


Modulation sensitivity

8-12mV


Transmitting Current

≤1.5A


Receiving


Receiver Sensitivity

≤ 0.25uV(12dB SINAD)


Stray Suppression

≥-65dB


Audio Power

1W


Audio Distortion

<10%


Intermoulation

≥-65dB/≥-60dB


Adjacent channel selectivity (Wideband/narrow band)

≥-65dB/≥-60dB


Receiving current

≤380mA

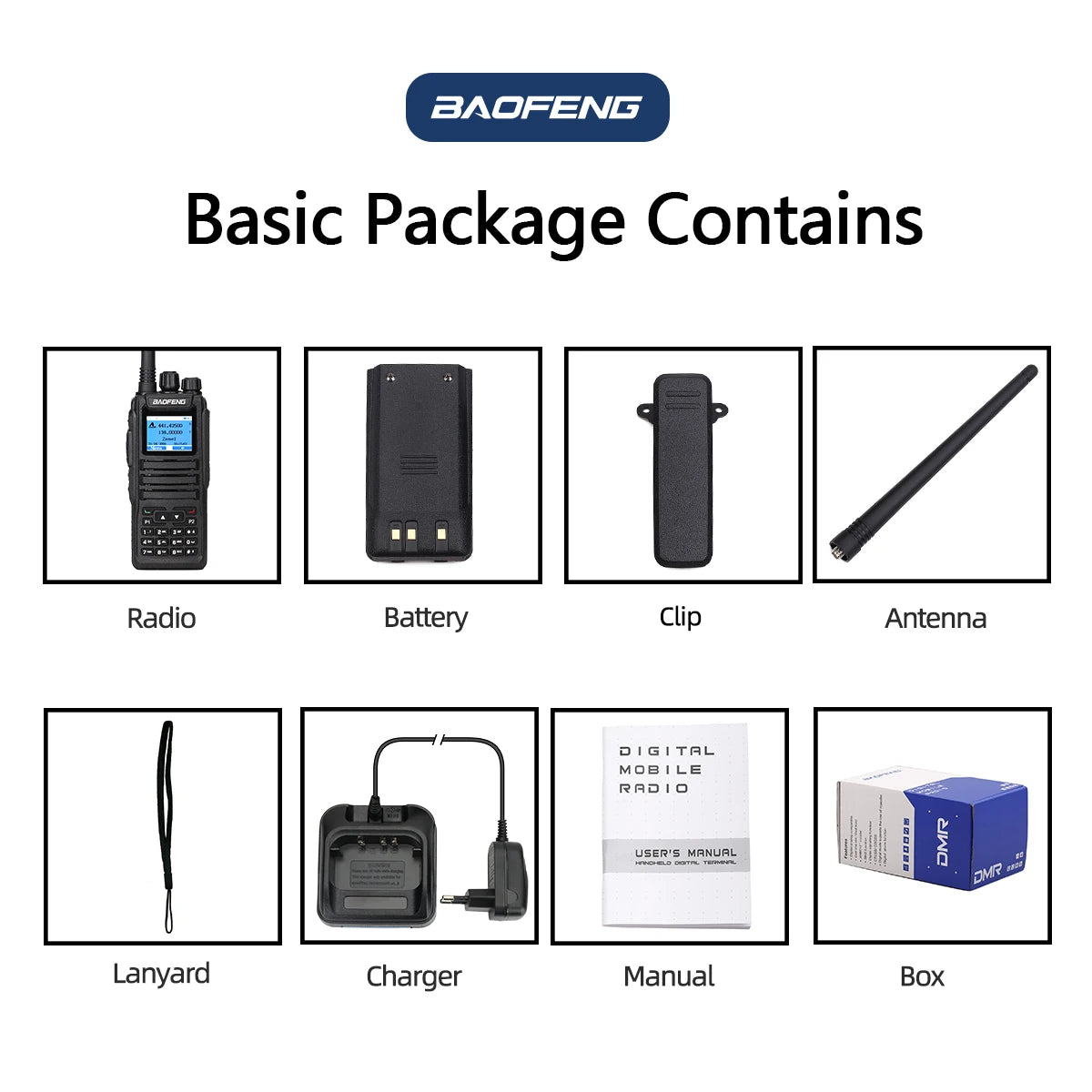

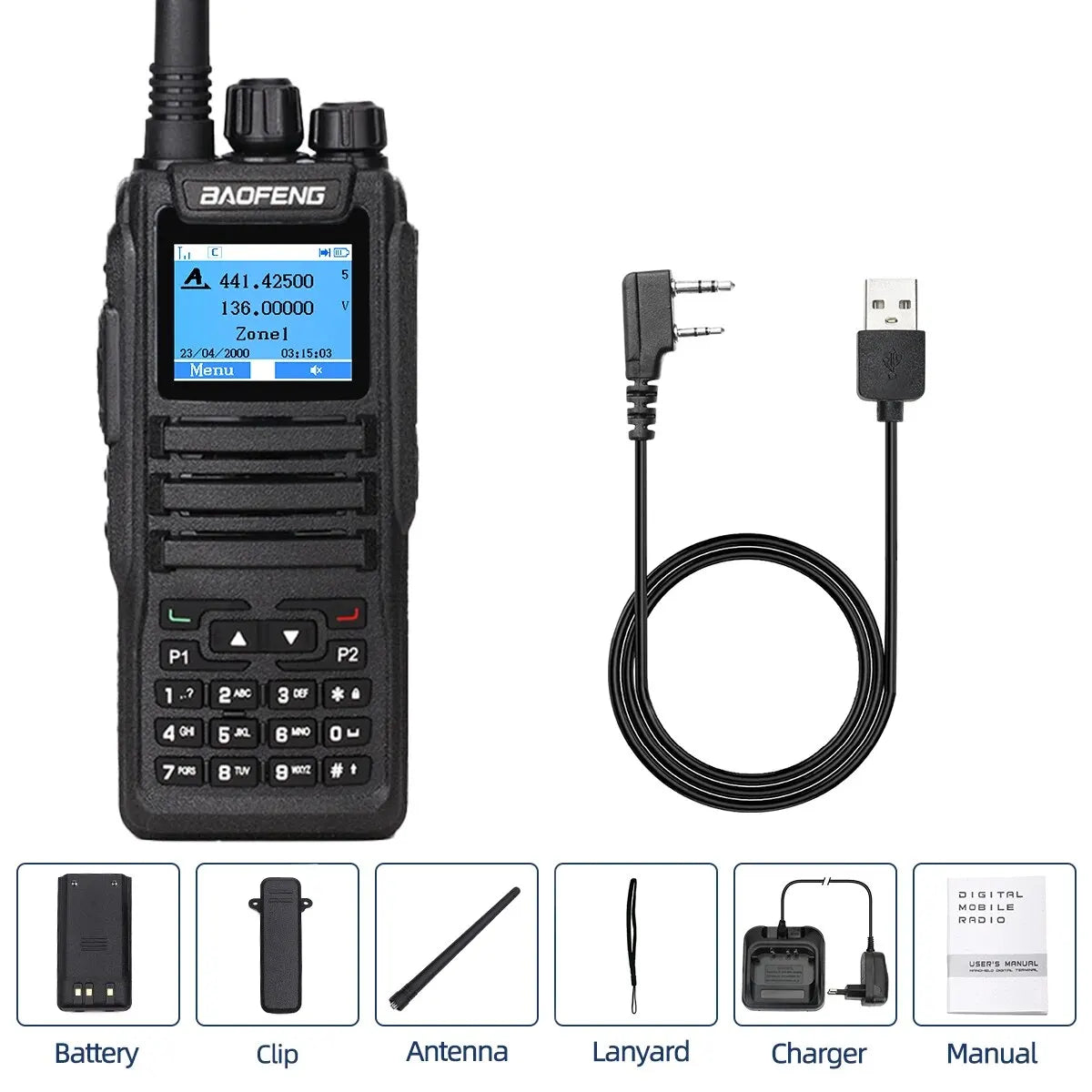

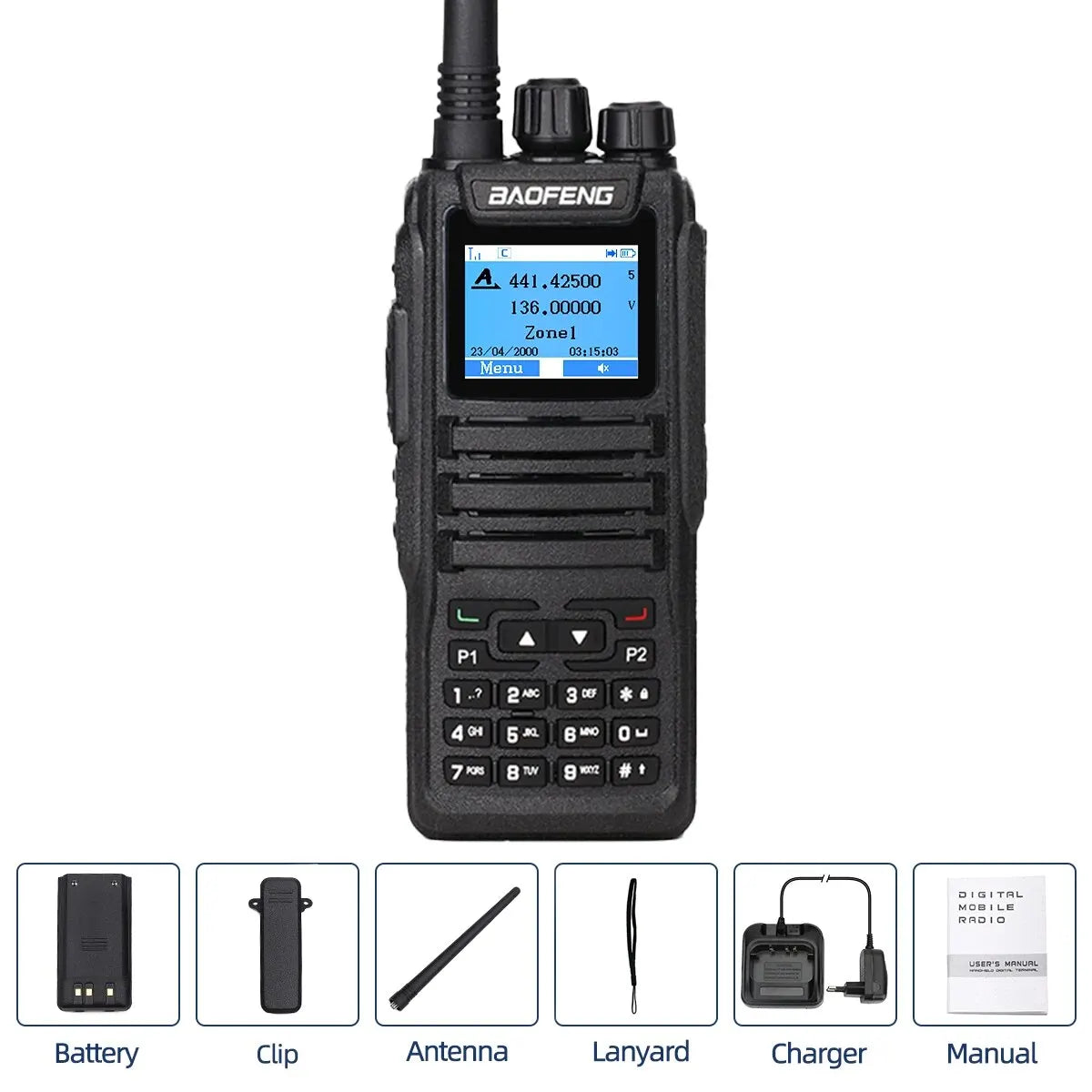

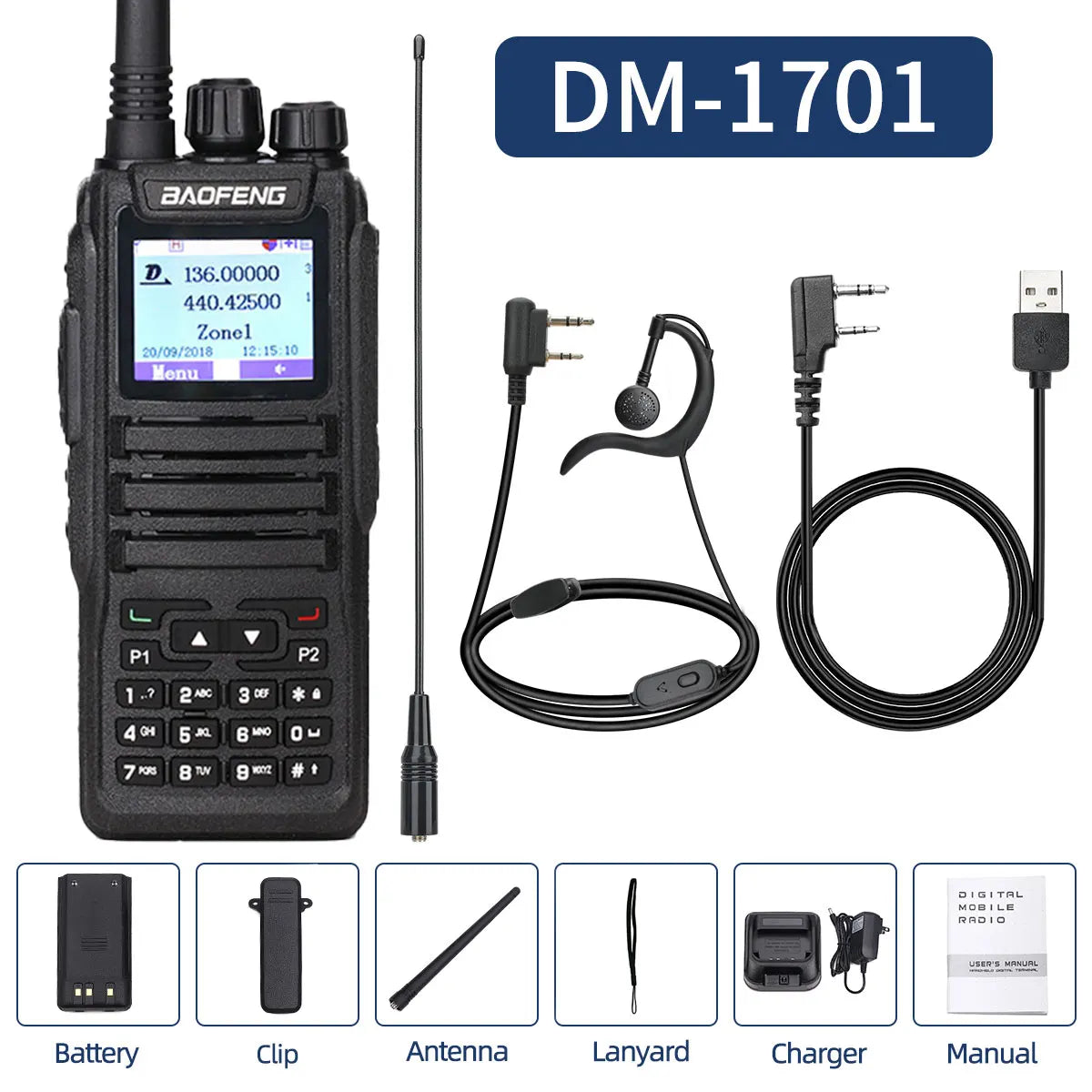

Package Include:

1 X Portable radio

1 X Antenna

1 X Li-ion battery pack

1 x Li-Ion Charger

1 X Belt clip

1 X The sling

1 X User's manual
