✨  Features:

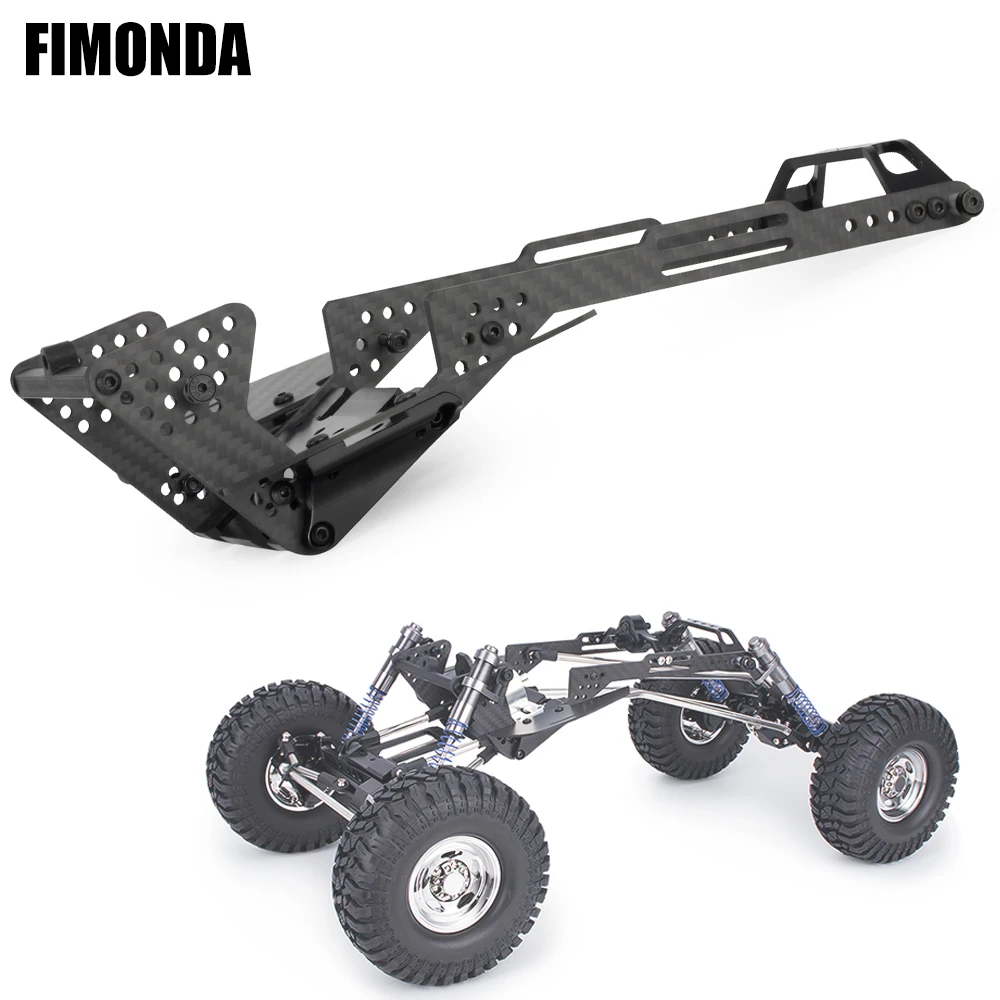

1.3mm Laser-Cut Carbon Fiber Frame Rails: Delivers an exceptional balance of strength, durability, and lightweight performance.
2.Extremely Robust & Lightweight: The complete chassis kit weighs only 132g for superior agility.

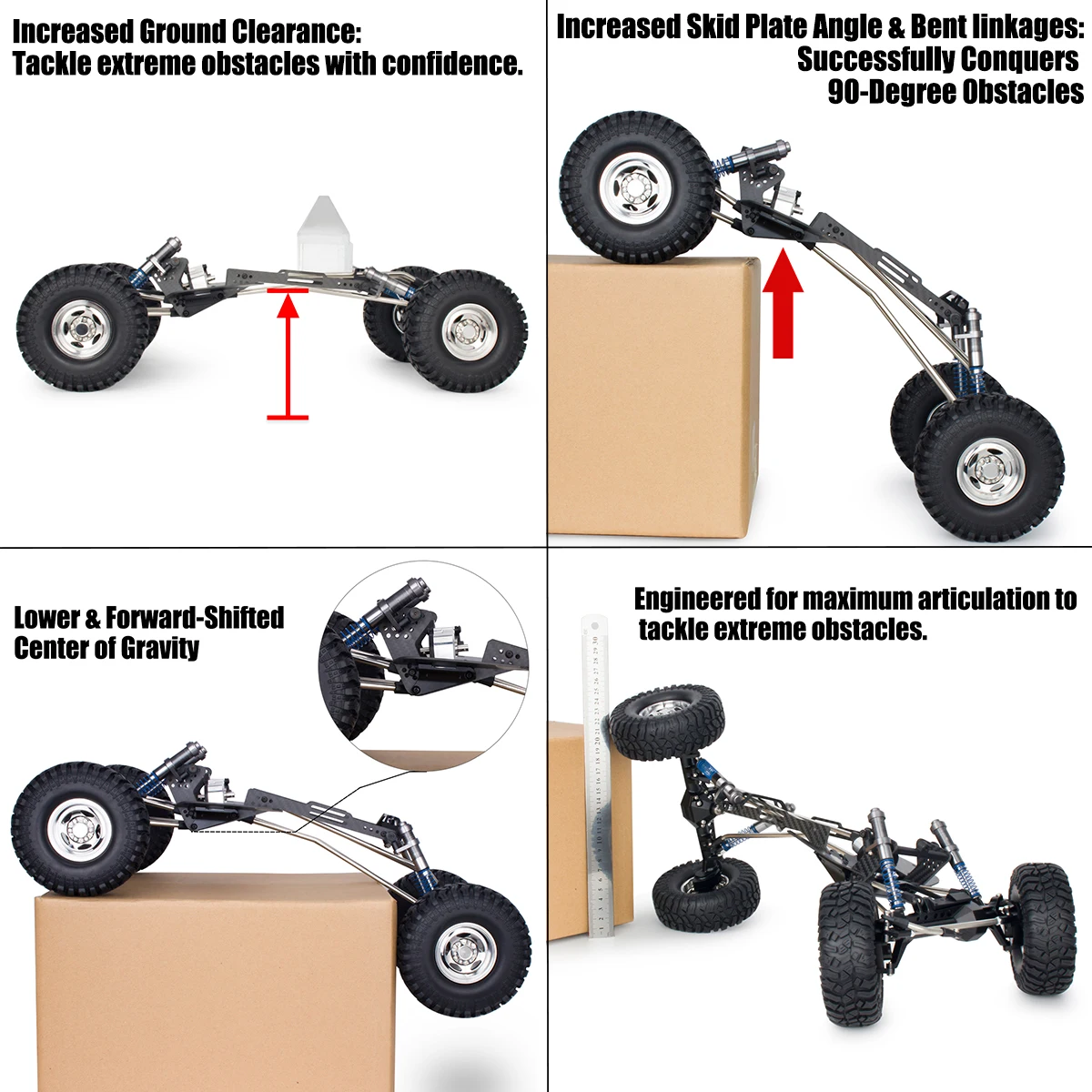

3.Increased Skid Plate Angle & Bent Linkages: Conquers 90-degree obstacles with ease and provides massive torque to tackle the toughest terrain.
4.High-Performance Gearbox: Offers a robust solution with enhanced strength and a precise, seamless fit.
5.Unmatched Breakover & Climbing Ability: Compactness is the core design philosophy—keeping it light, simple, and highly capable.

🏗 Materials:
Carbon Fiber+ - For rails and side plates (strong & light)
Aluminum Alloy - For mounts (light & sturdy).
Stainless Steel - For links (durable & strong).
POM Skid Plate - Highly wear-resistant.
3D Printed PLA+ - For tough, impact-resistant parts.

📦 Specifications:

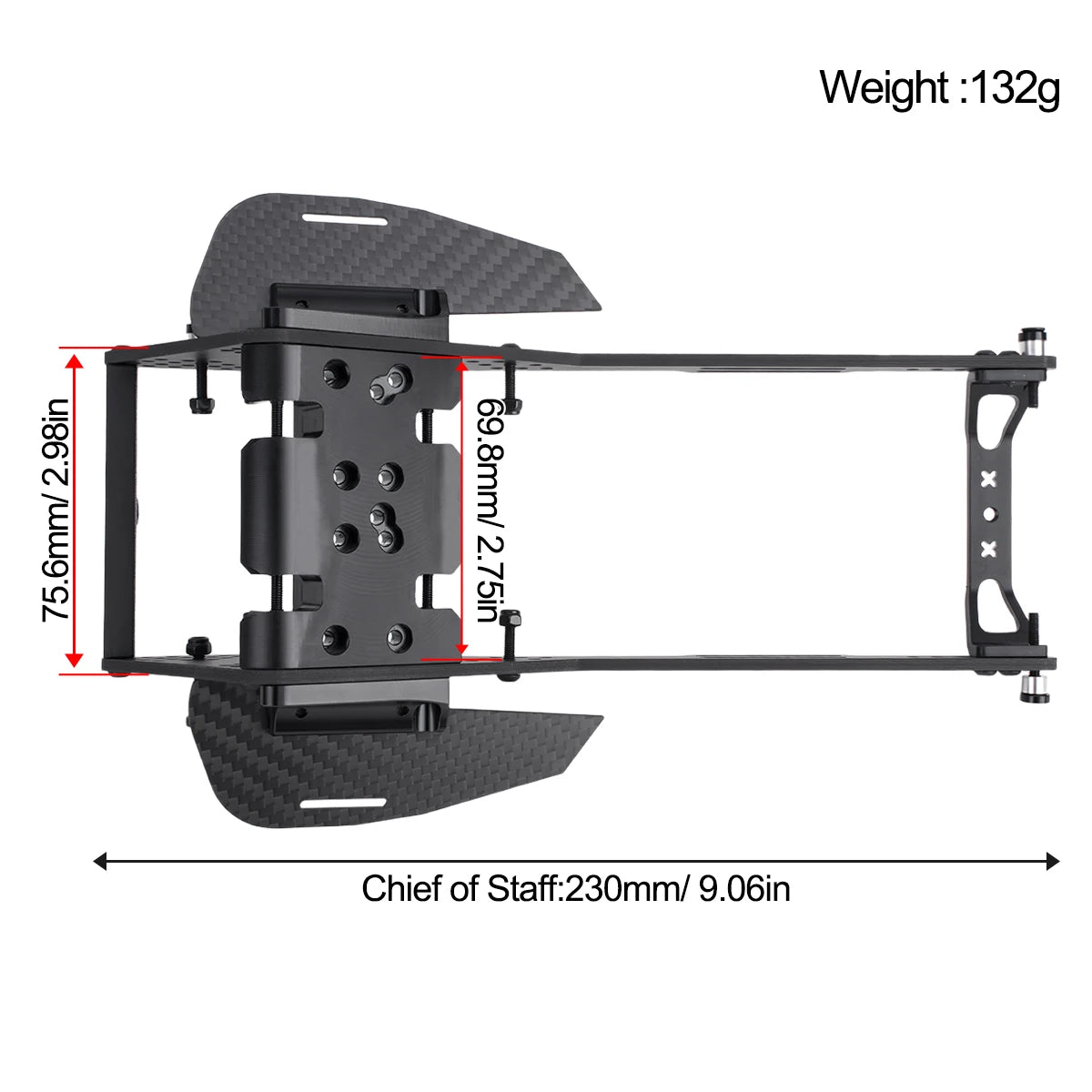

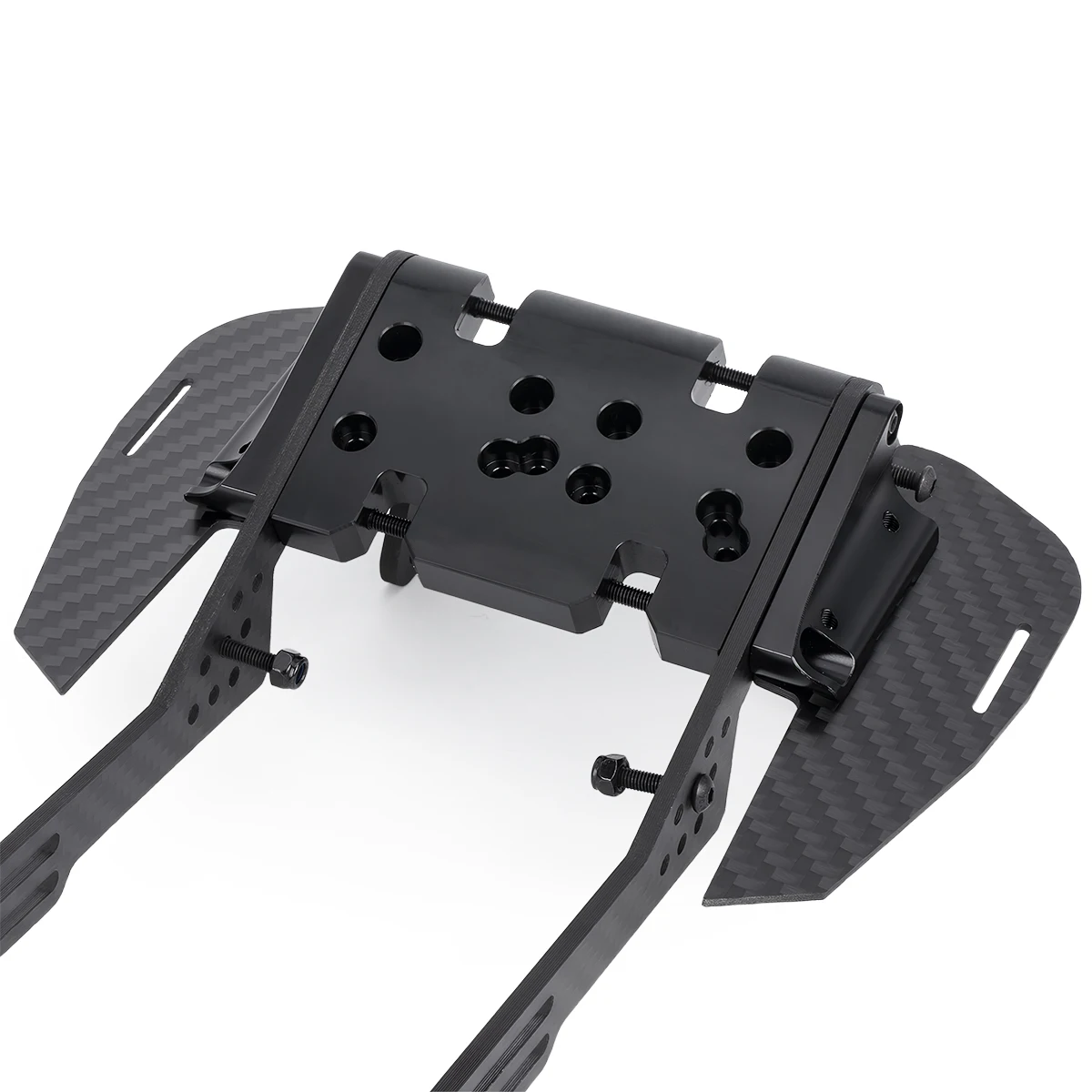

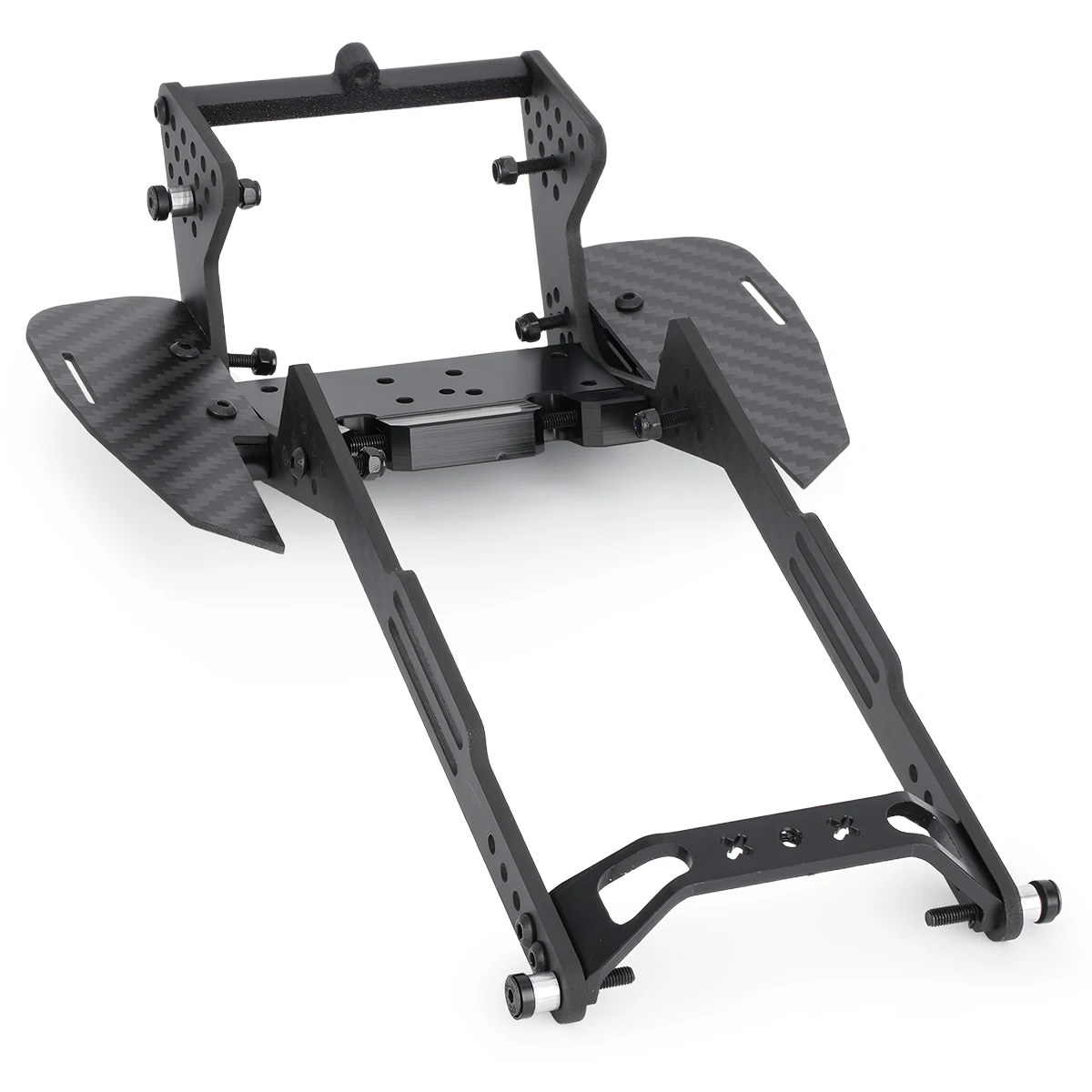

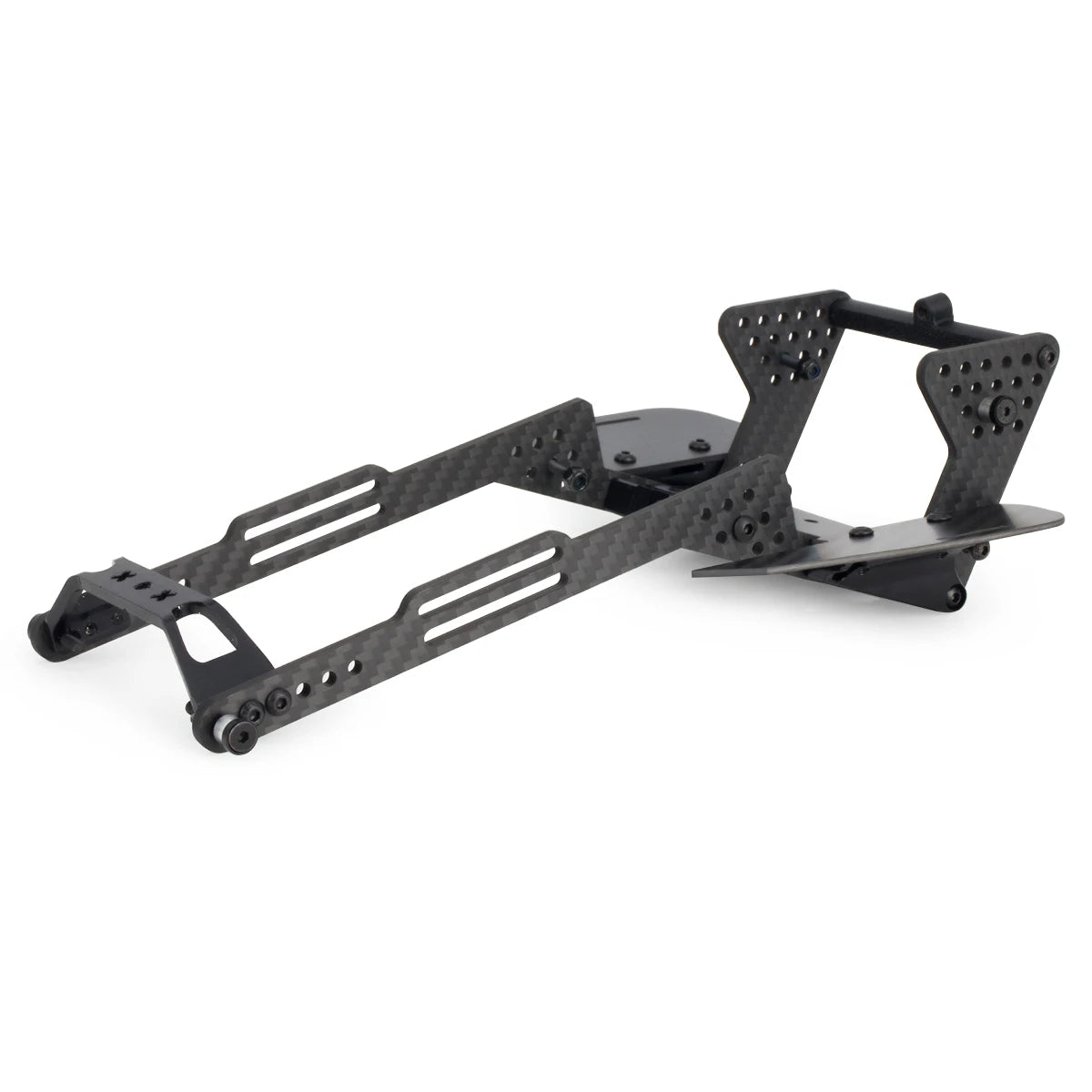

1. Chassis Kit
Weight: 132g
Dimensions: As shown in the pictures

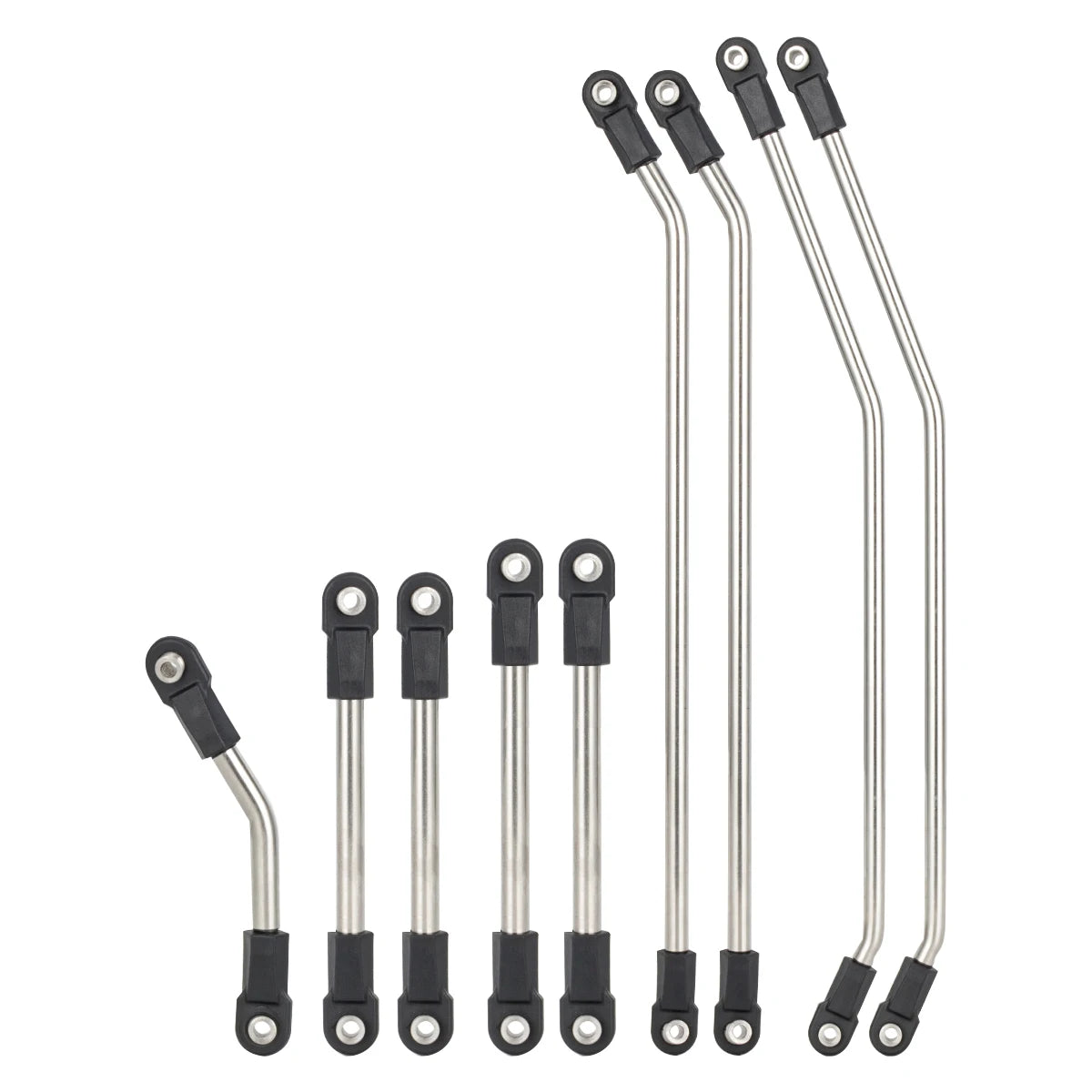

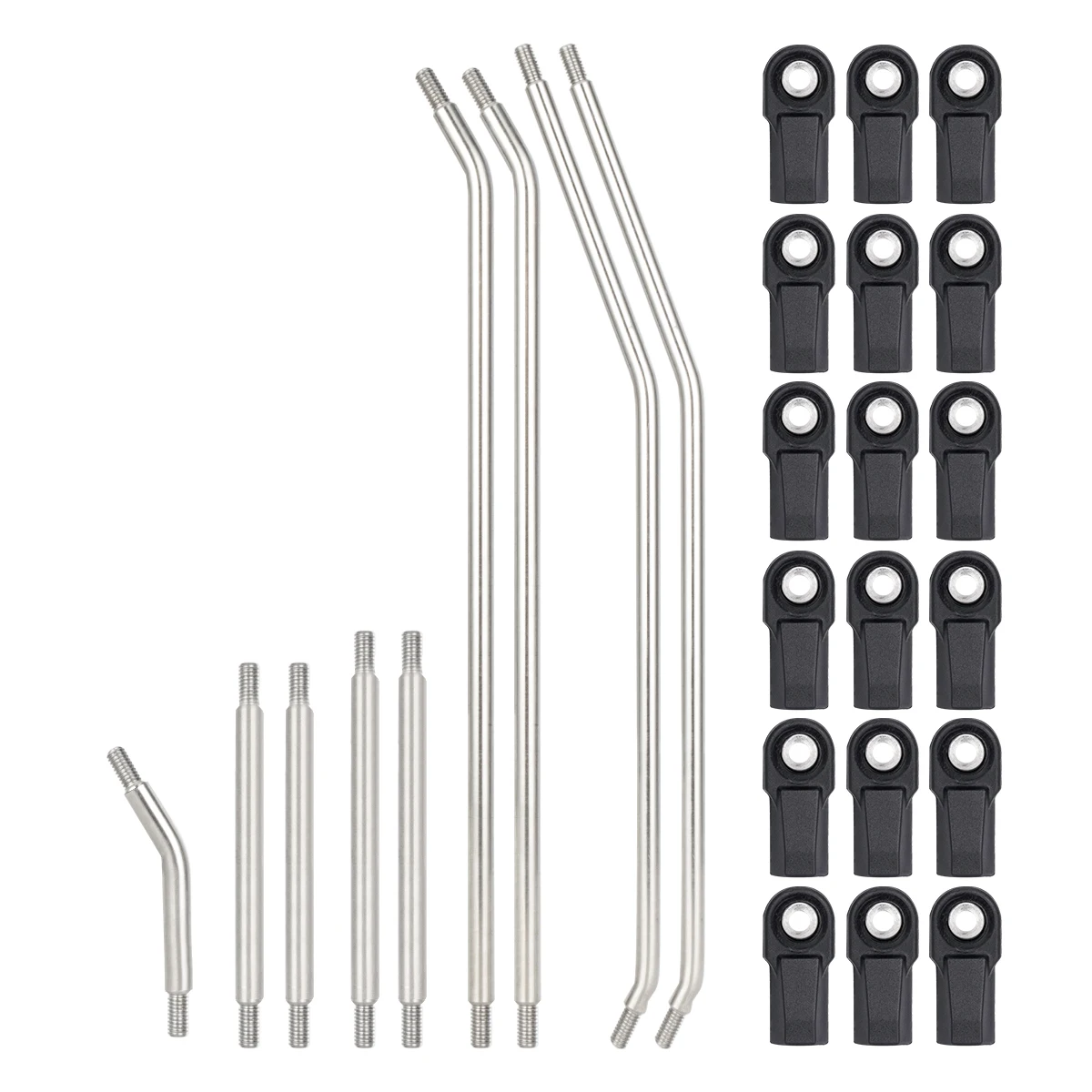

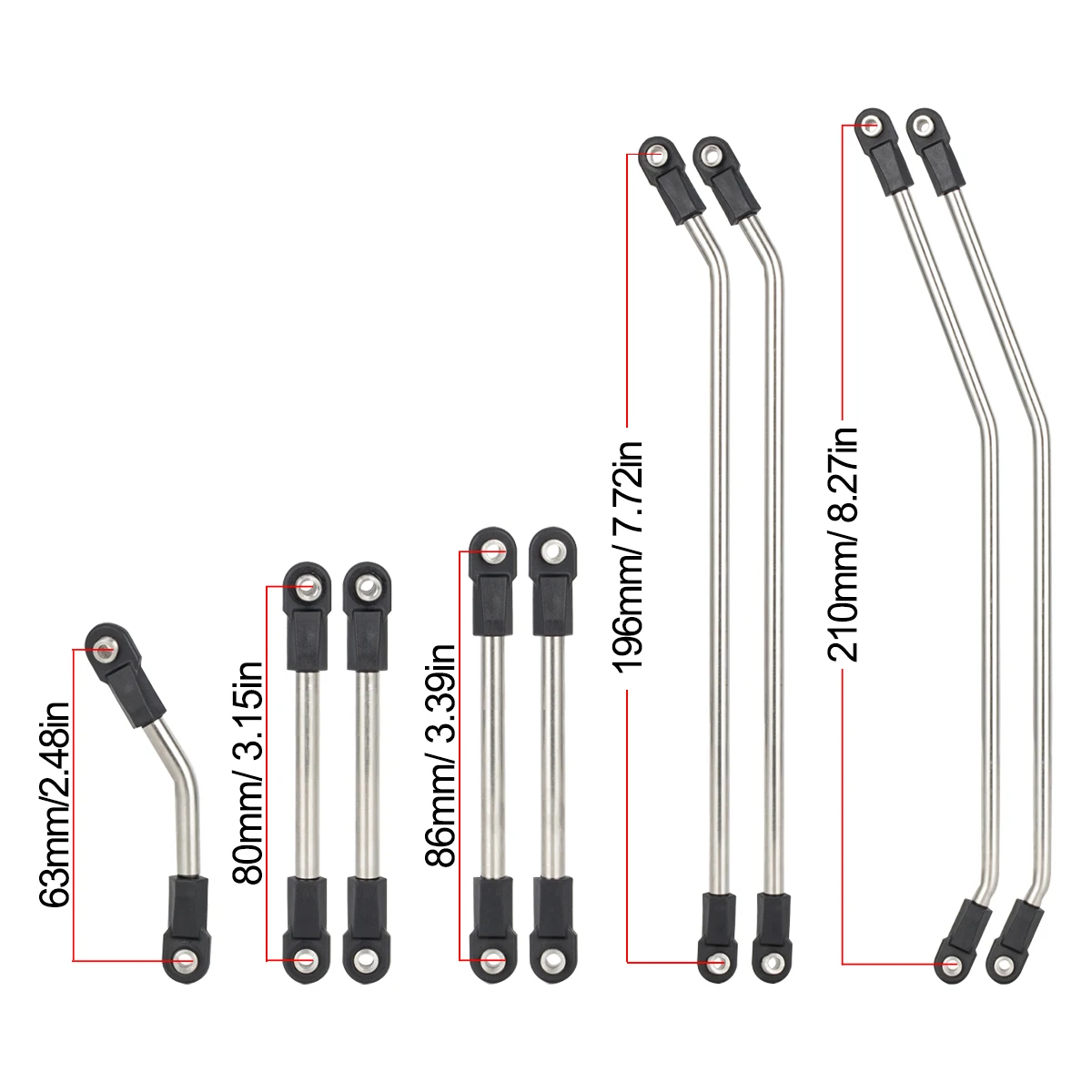

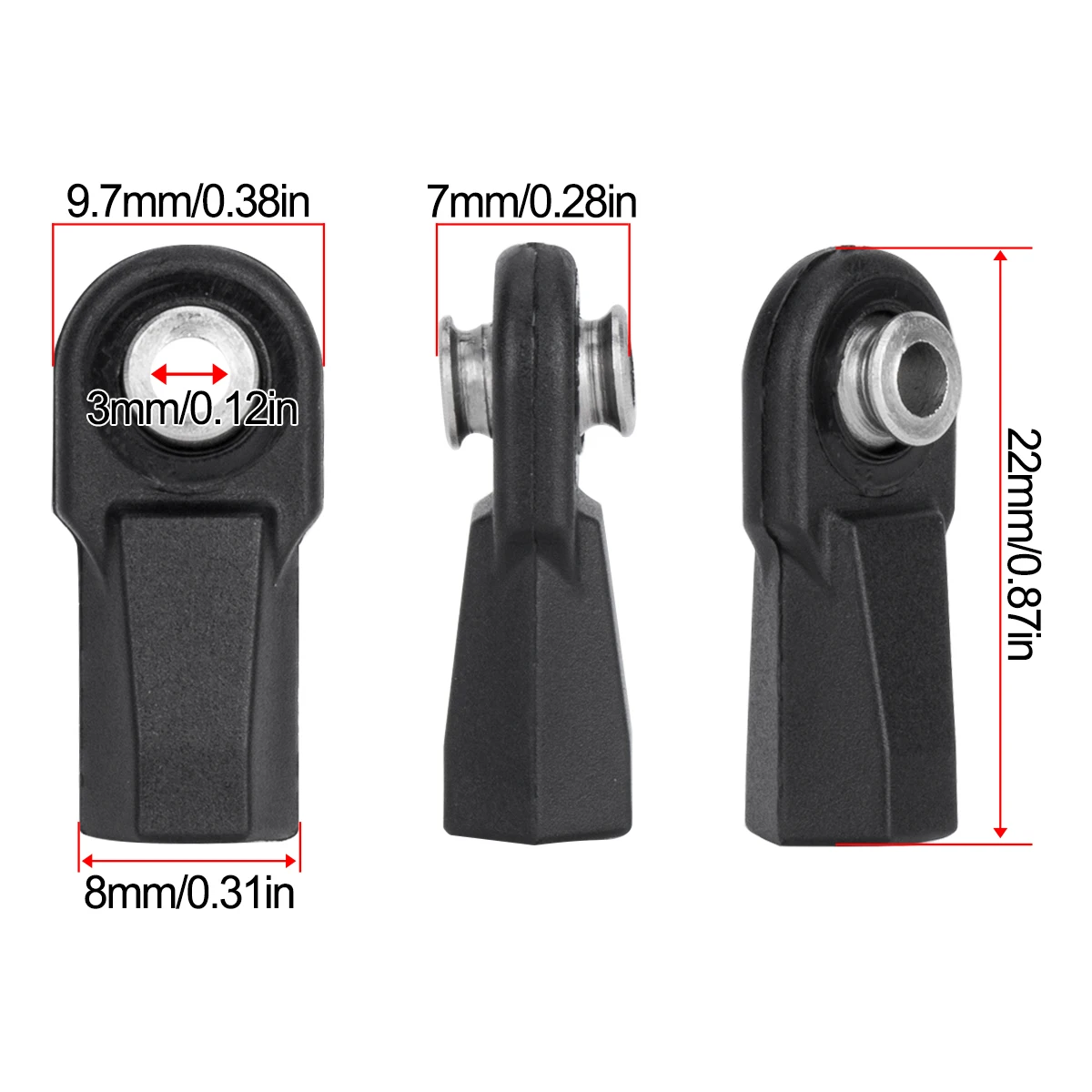

2. High-Clearance Link Set
Weight:180g
Dimensions: As shown in the pictures

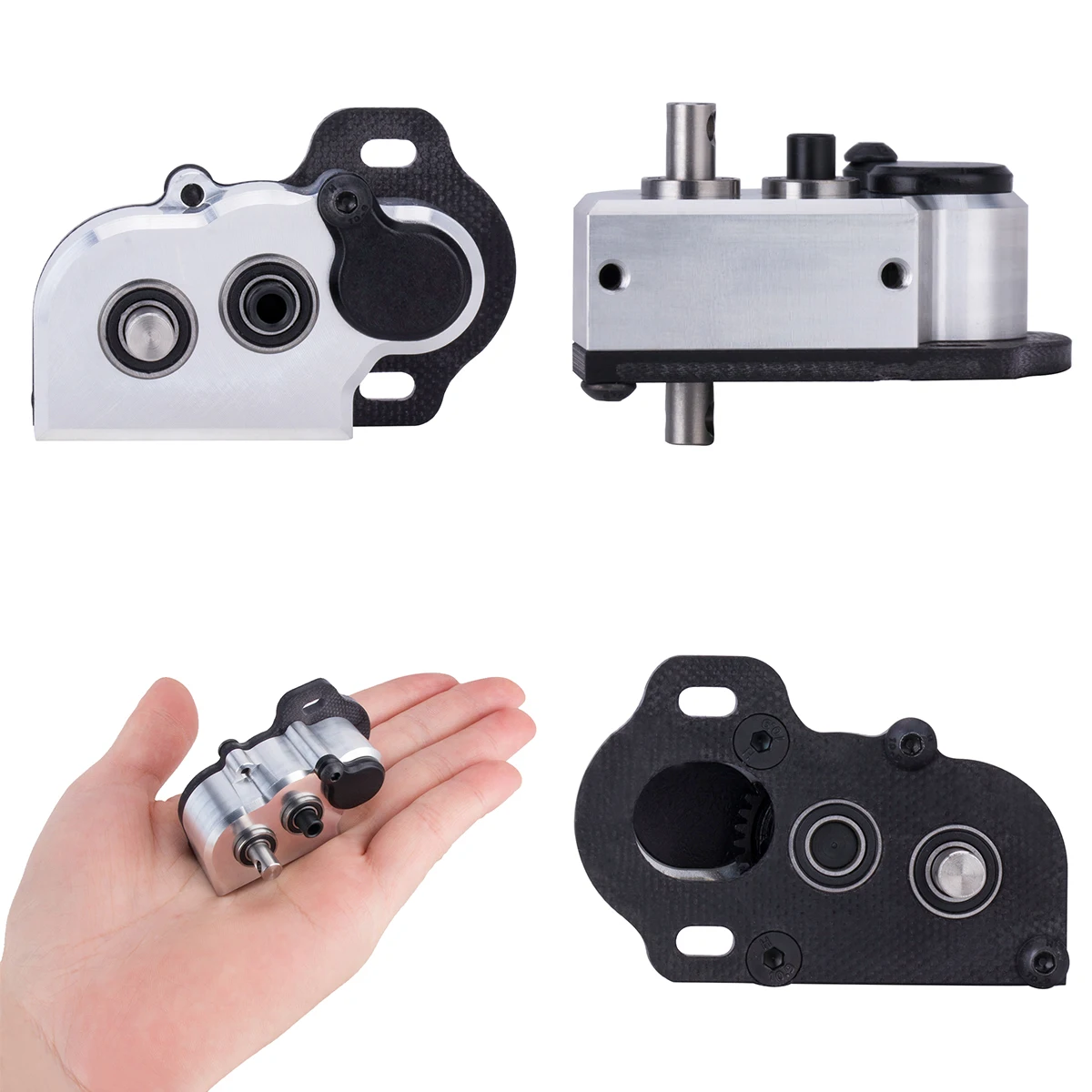

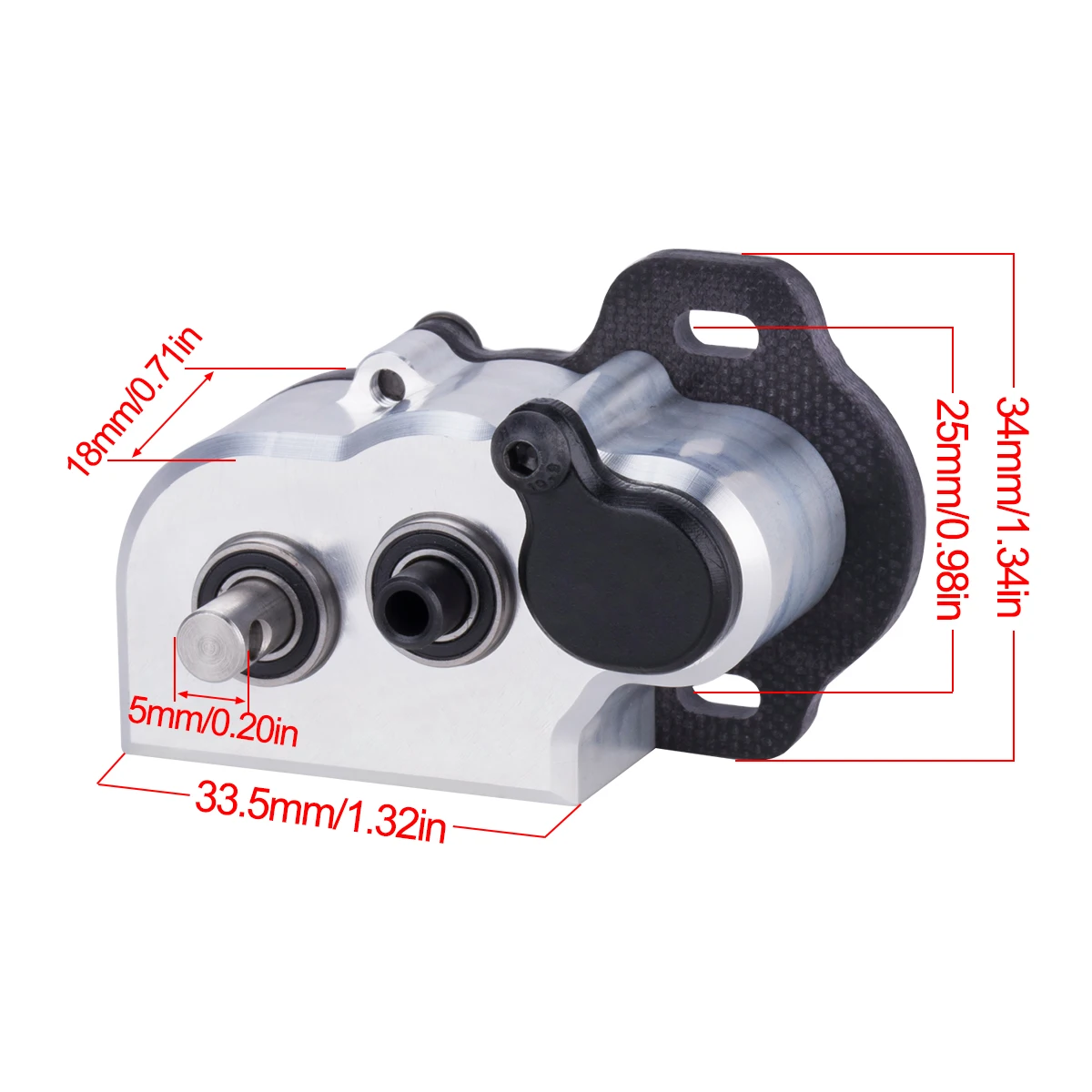

3. Transmission
Gears: Hardened Chromium Steel for long-lasting durability.
Gear Ratio: 3:1 (Pinion/Spiral Bevel Gear)
Spur Gear: 36T (48 Pitch)
Compatibility: Works with 11T to 18T (48 Pitch) pinion gears.
Motor Mount Hole Spacing: 25mm (center to center)
Skid Plate Mount Hole Spacing: 28mm (M3 threaded holes)

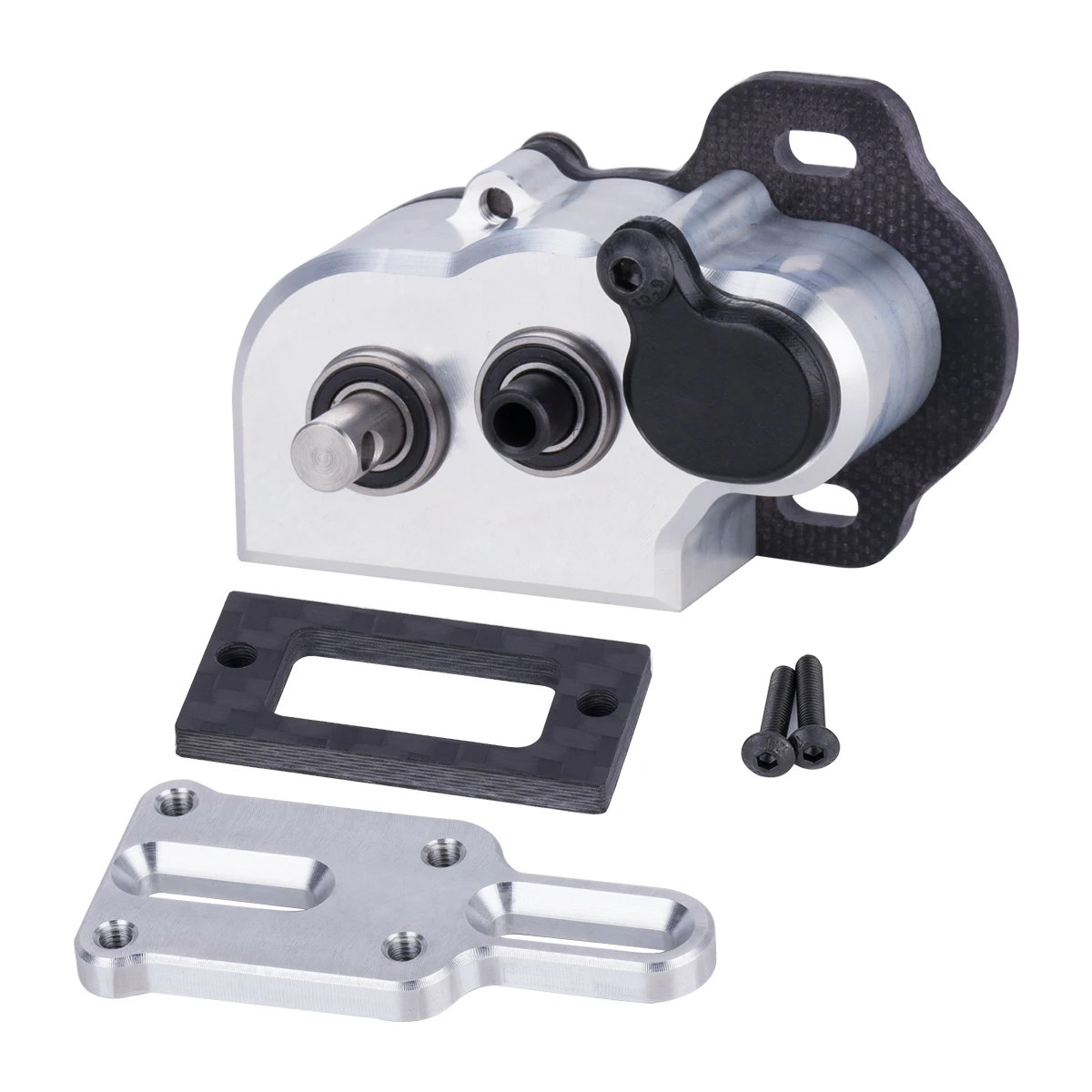

Includes: A 3mm raised SCX10 4-hole chassis adapter for perfect alignment with a 550 motor.
Weight: 42g
⚠️ Important: The Chassis Kit is designed specifically for this transmission.

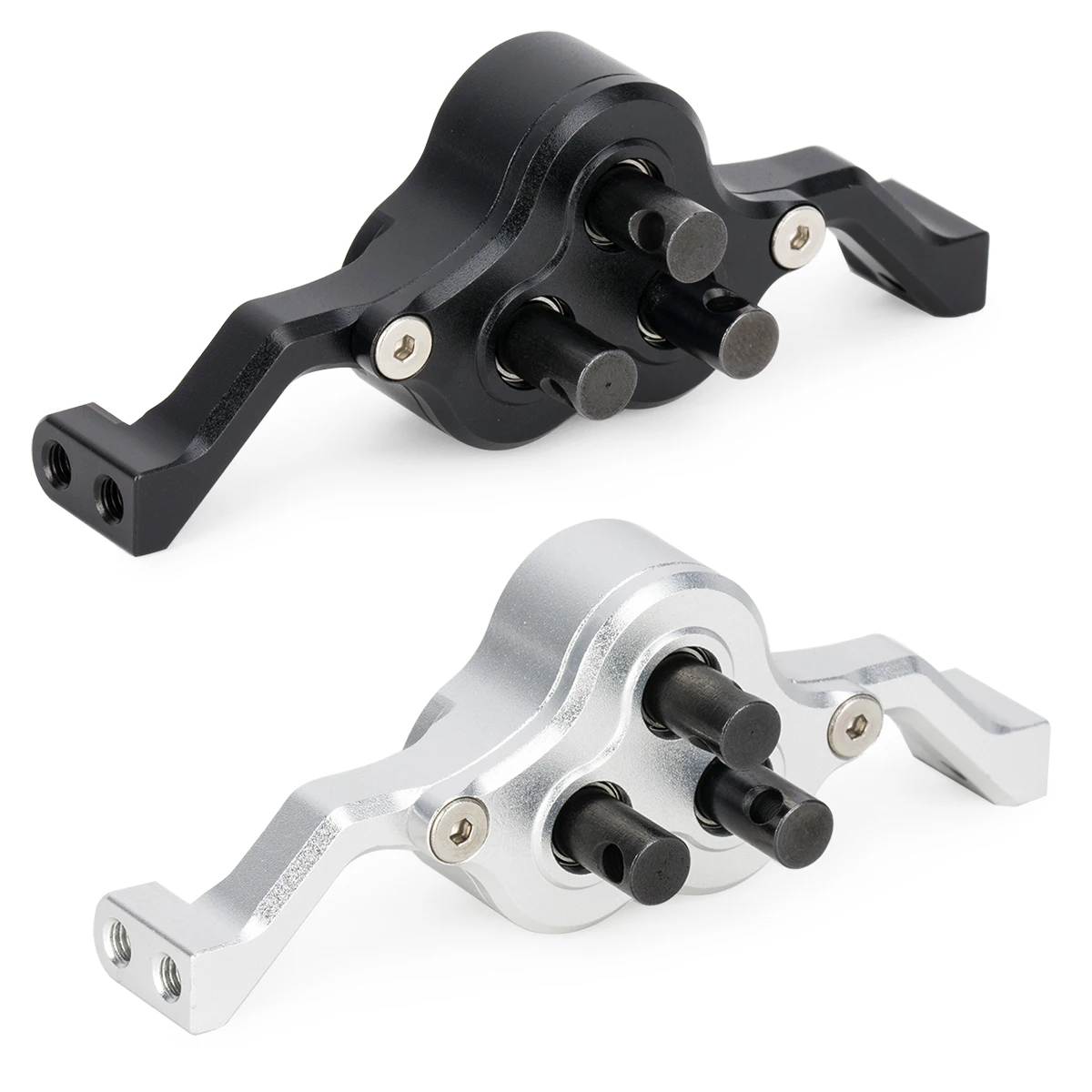

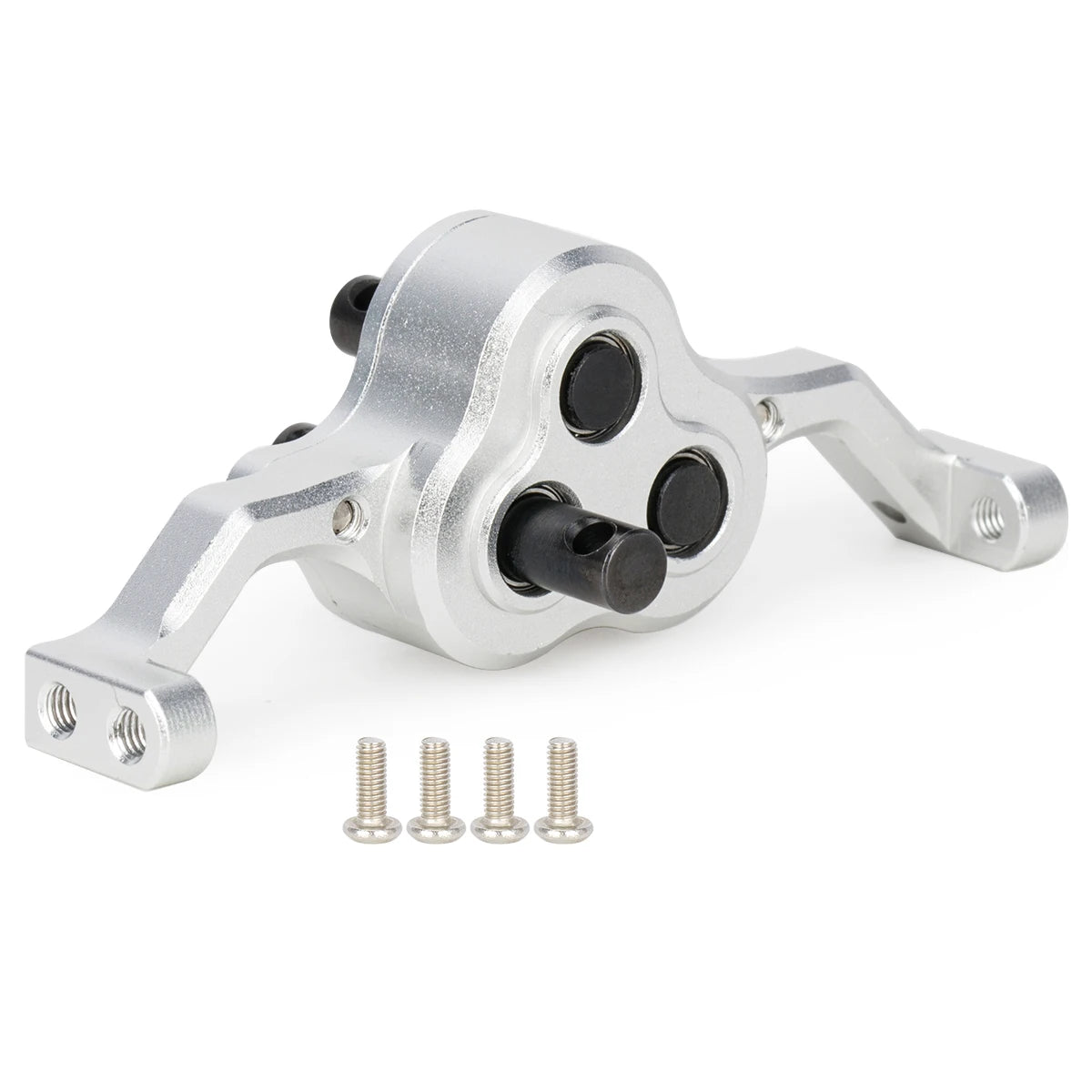

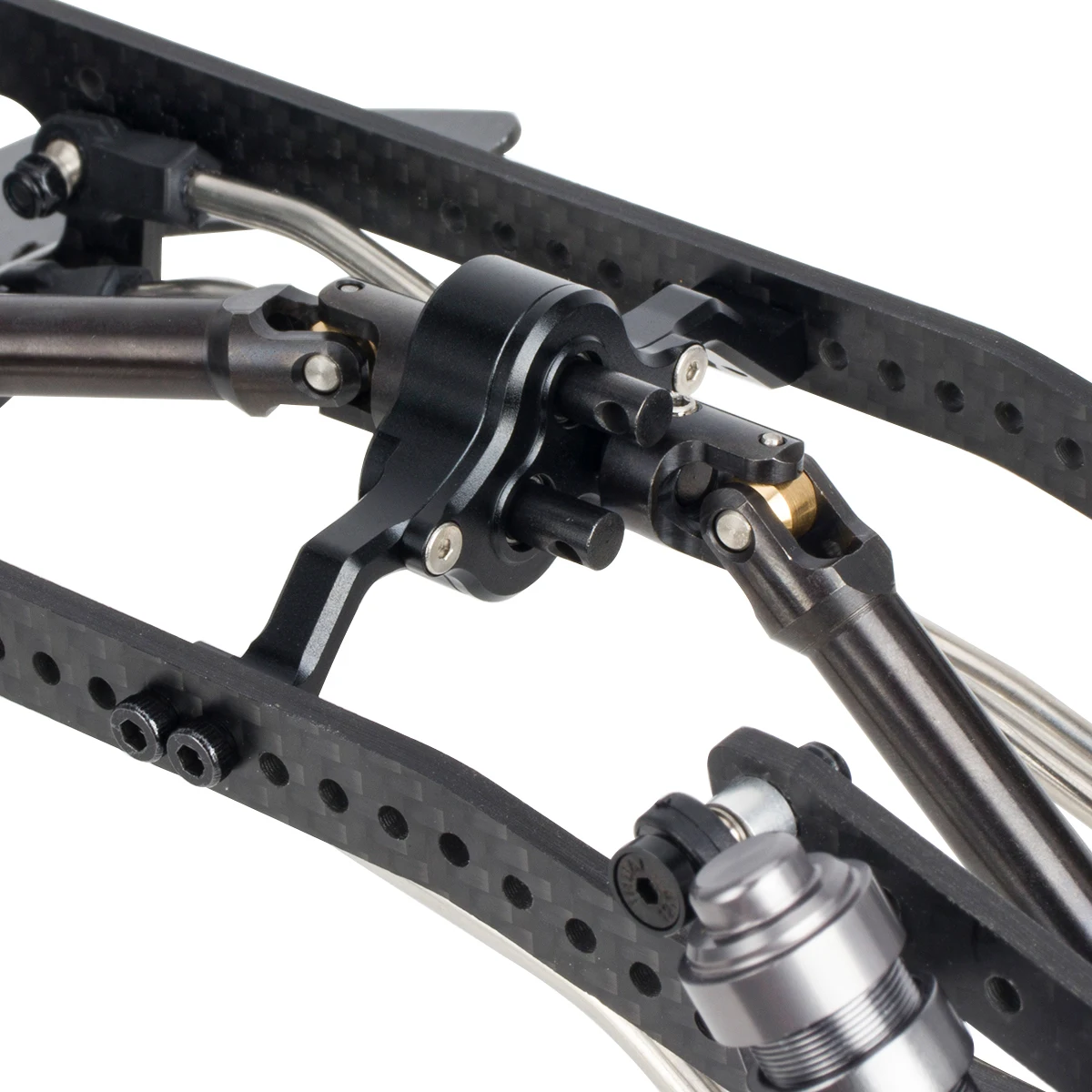

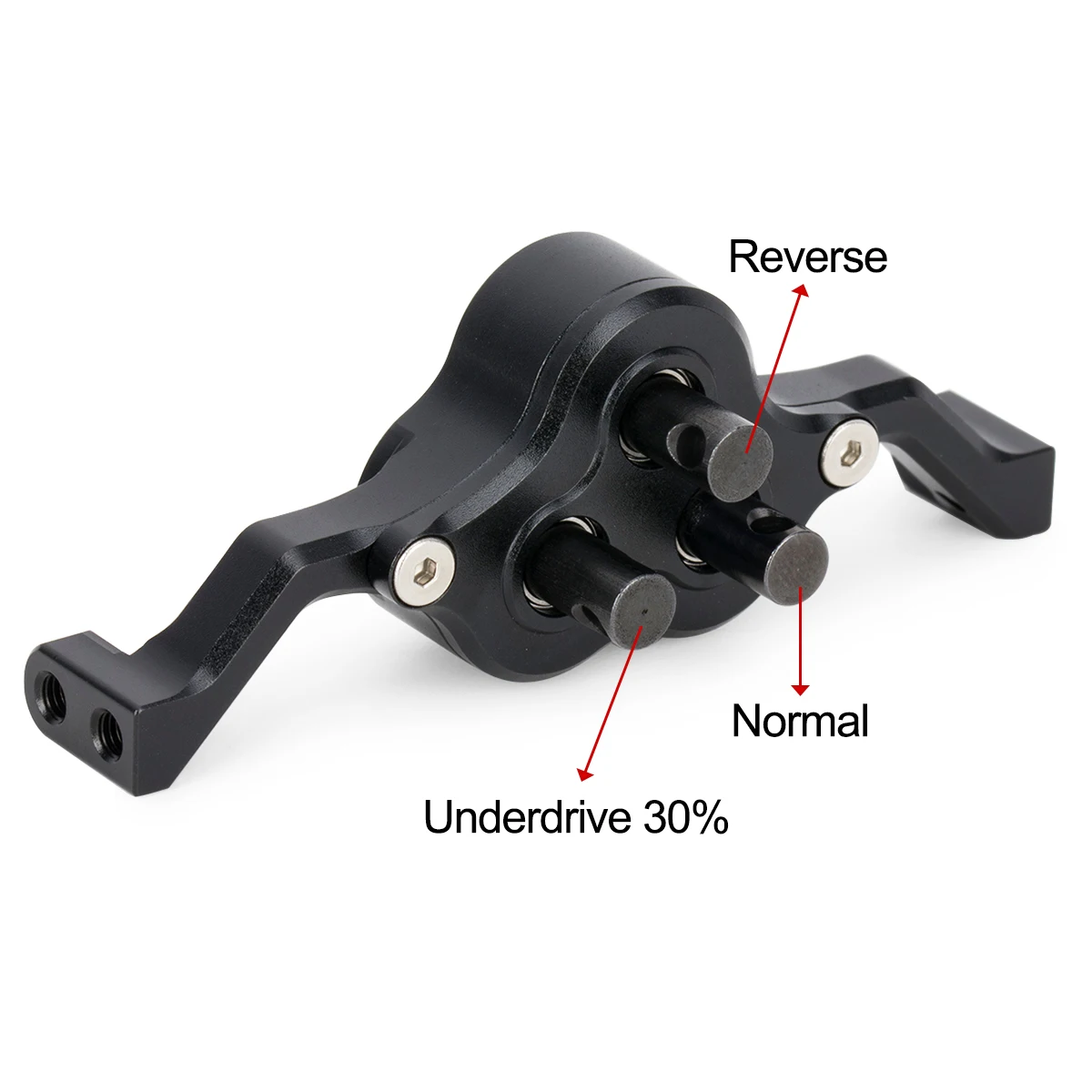

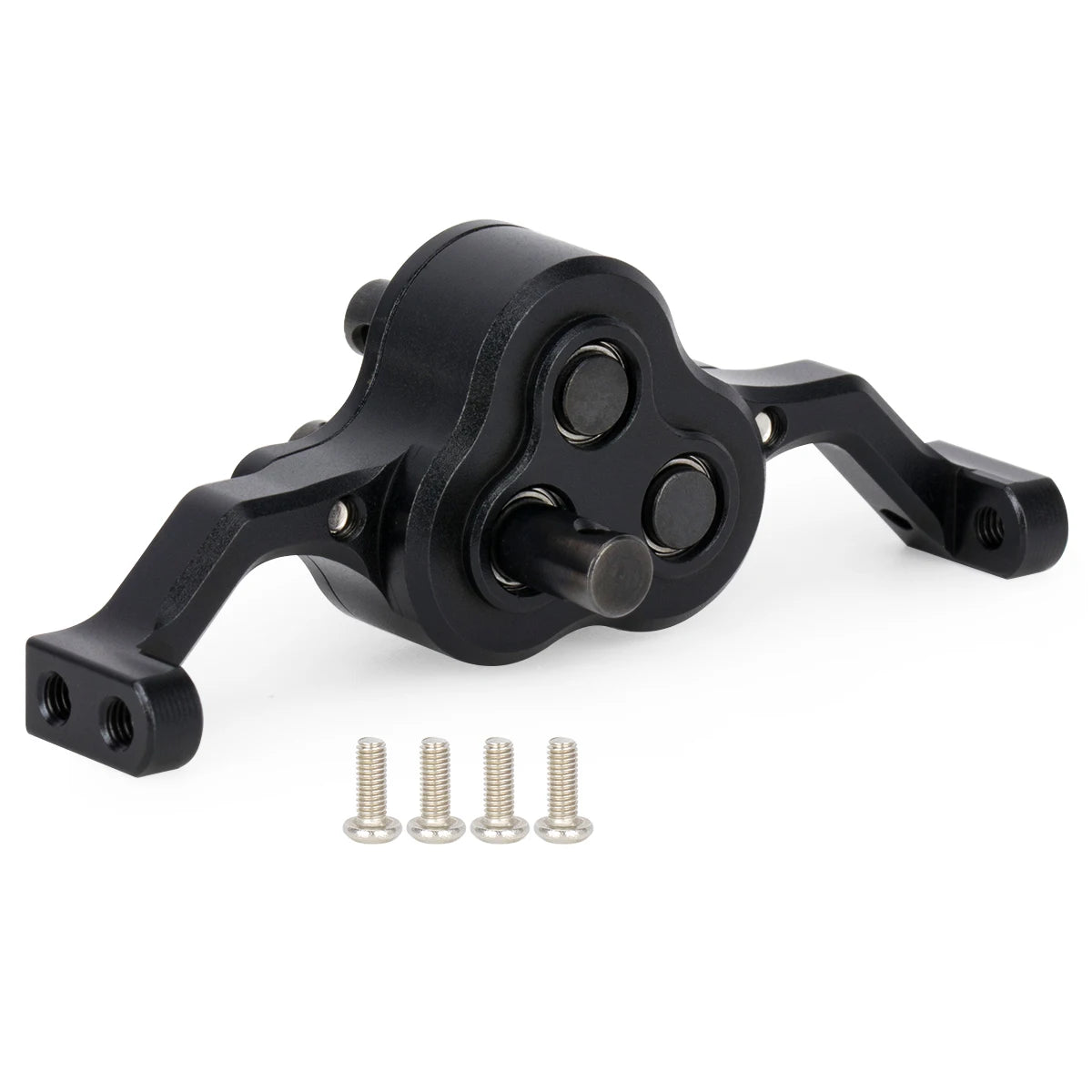

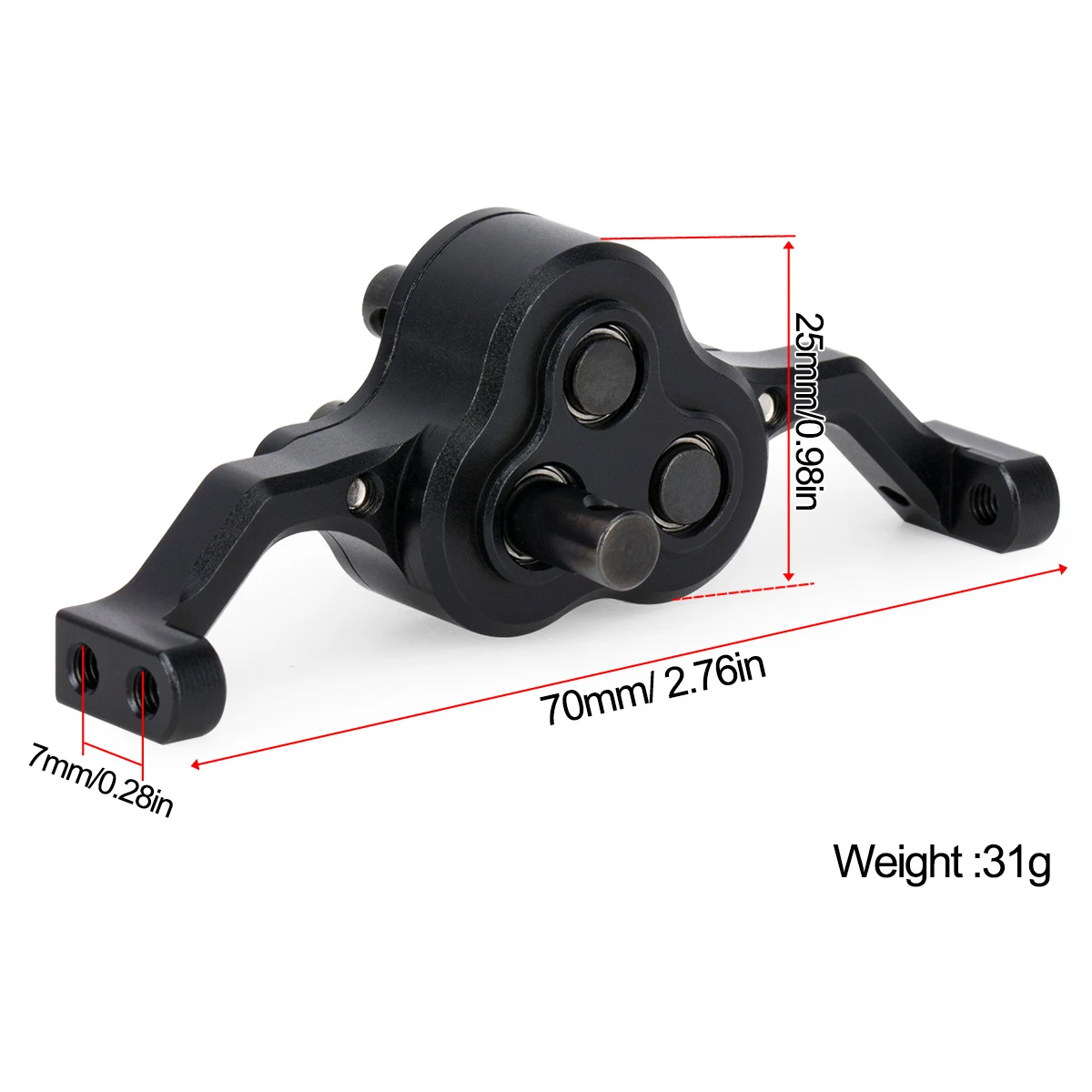

4. Transfer Case
Feature: 3-Mode Selectable Gear Control
Modes:
30% Underdrive: For enhanced torque and controlled, slow-speed crawling.
Reverse: For superior maneuverability out of tough spots.
Normal: For balanced speed and power on various surfaces.
Color Options: Black, Silver
Weight: 31g
Dimensions: As shown in the pictures

⚙️ Important Note:
This product is shipped as a DIY kit and requires assembly by the customer. Basic modeling tools and knowledge are necessary.

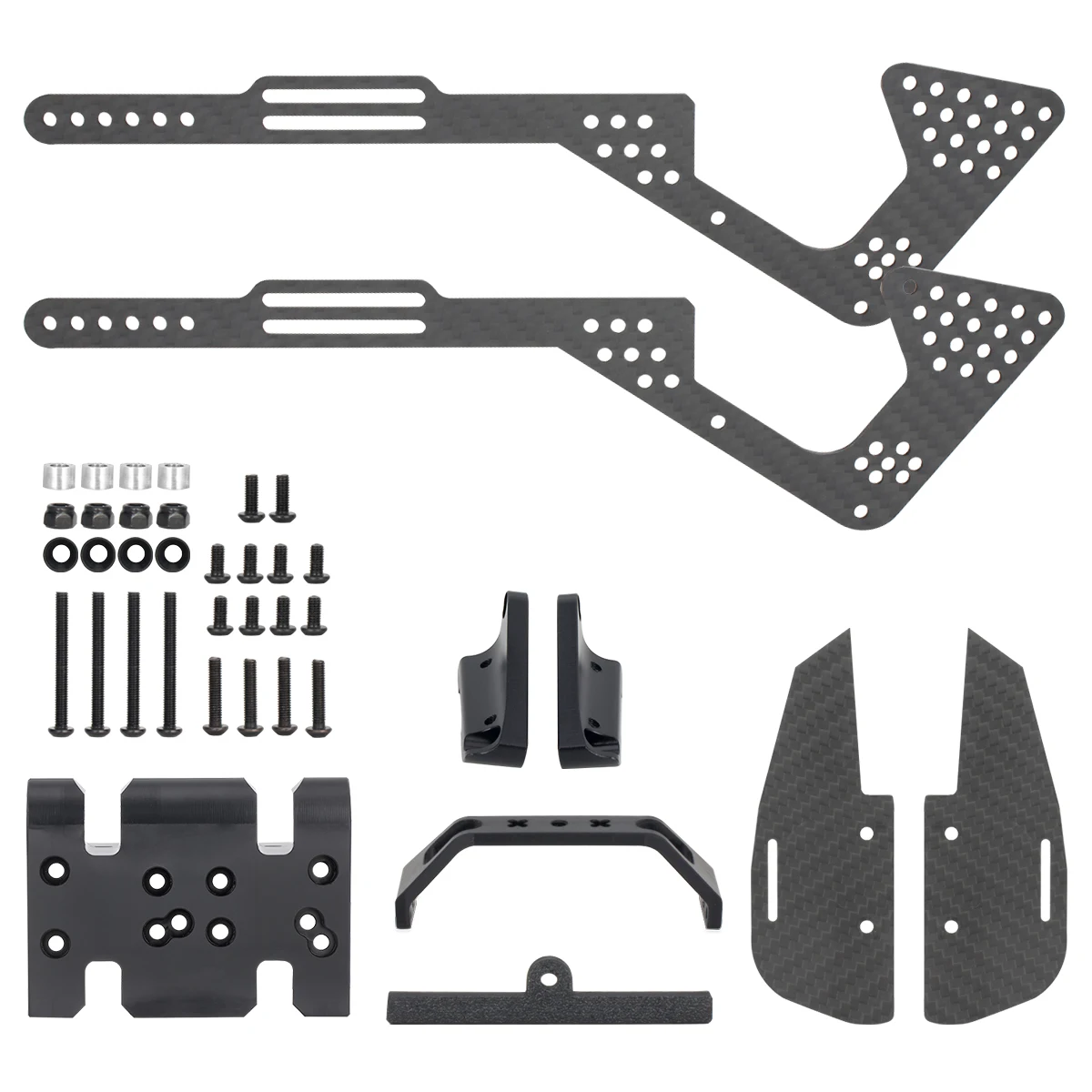

Chassis Kit
