SPECIFICATIONS

Brand Name: Fimonda

Certification: NONE

Choice: yes

For Vehicle Type: Cars

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Material: Metal

Model Number: metal axle

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: AXLE

Recommend Age: 14+y

Remote Control Peripherals/Devices: Servos

Size: 1/10

Technical parameters: value 2

Tool Supplies: Assembled class

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

semi_Choice: yes

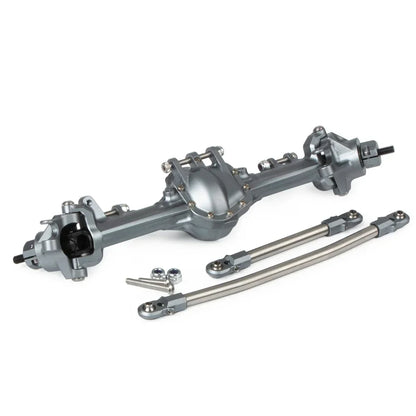

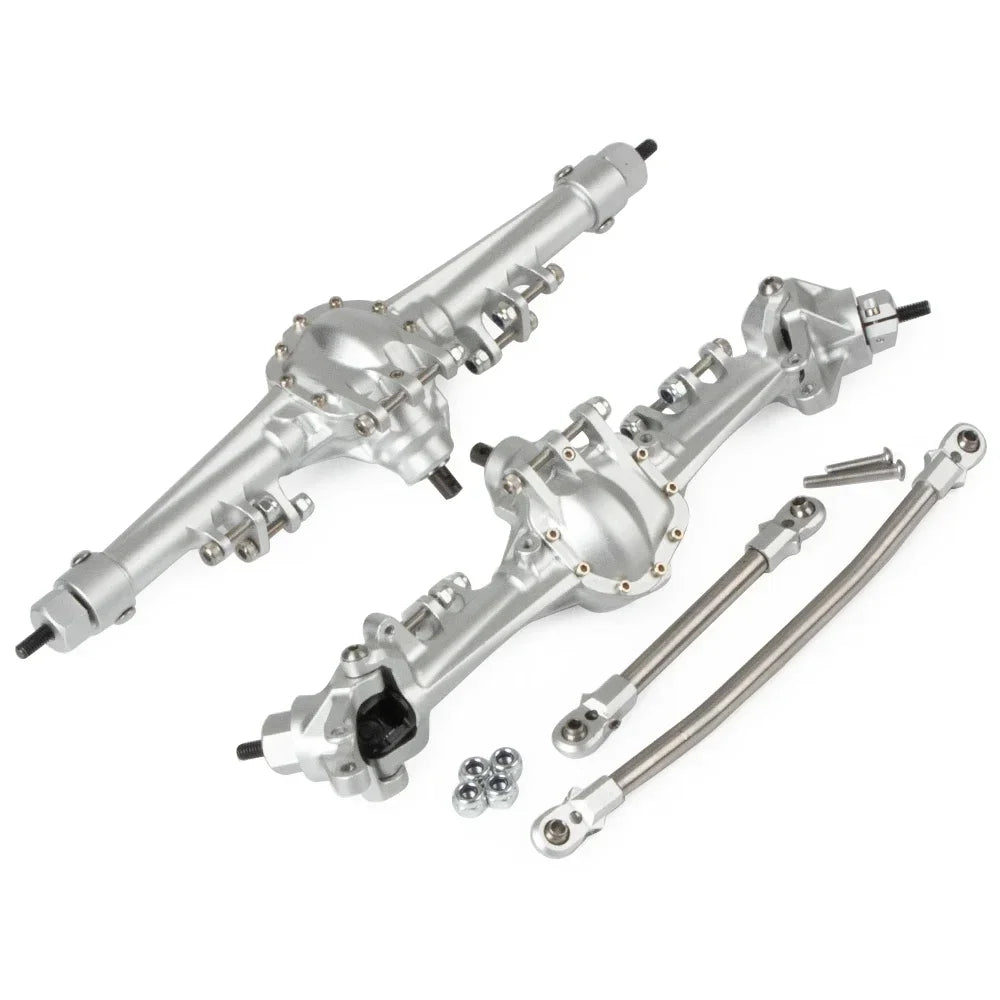

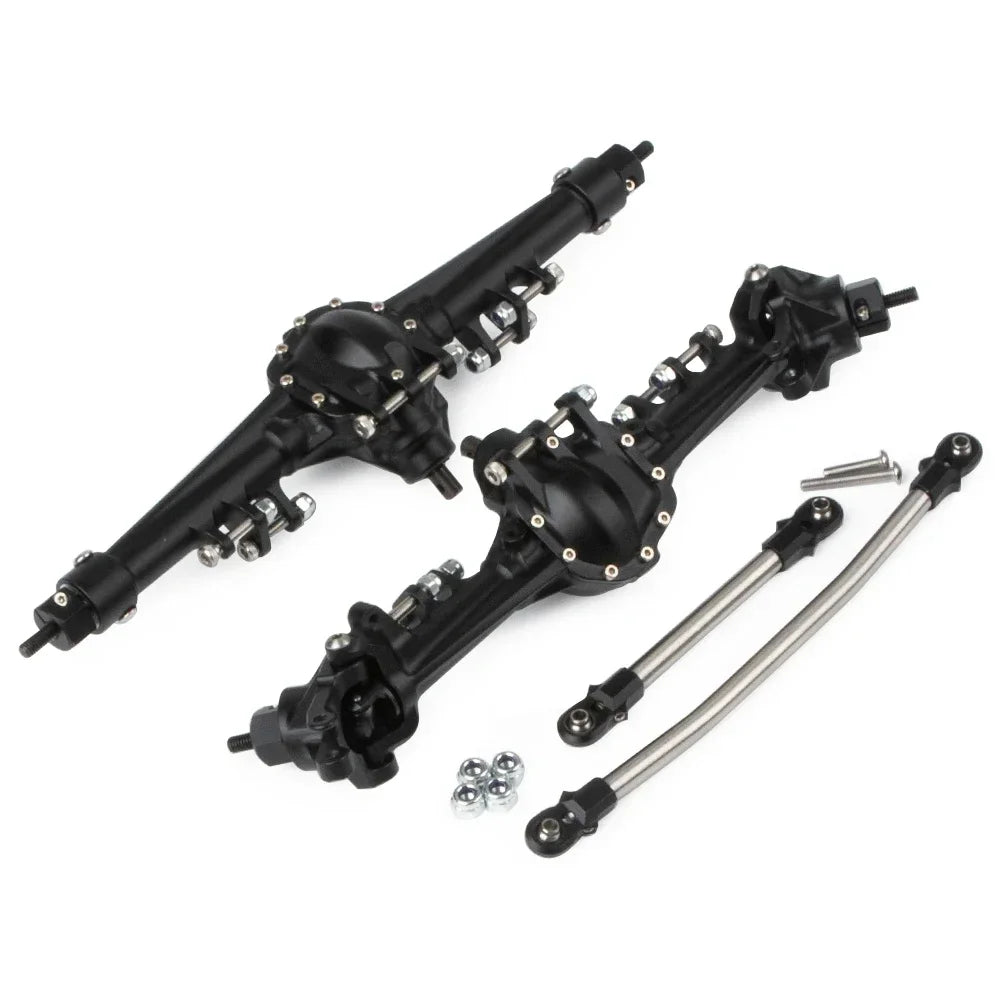

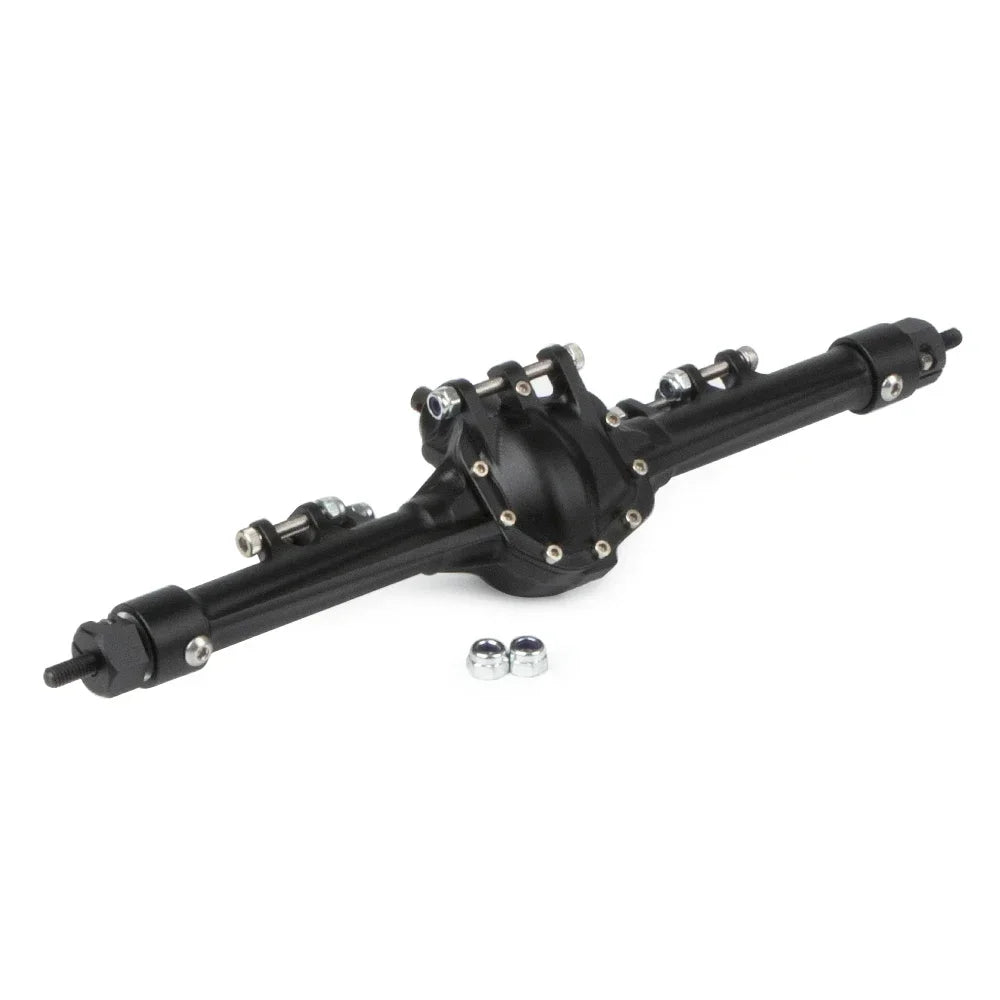

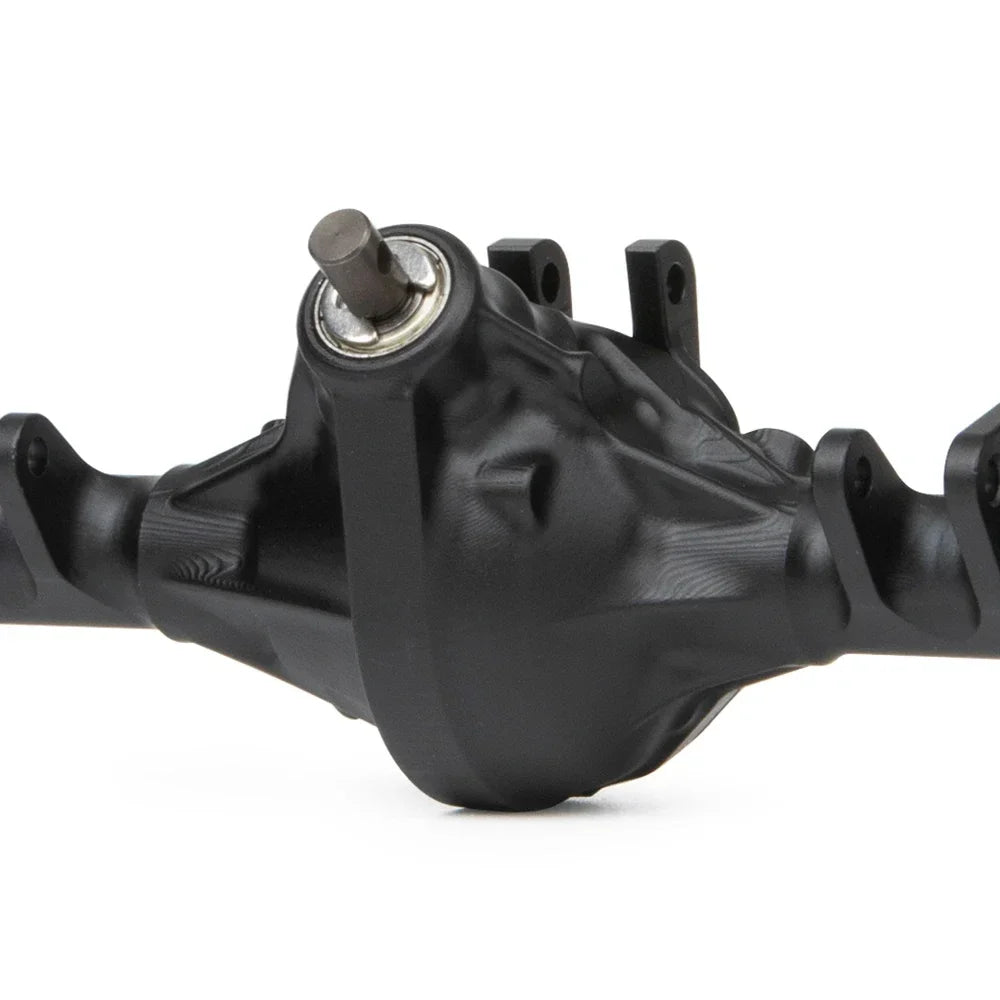

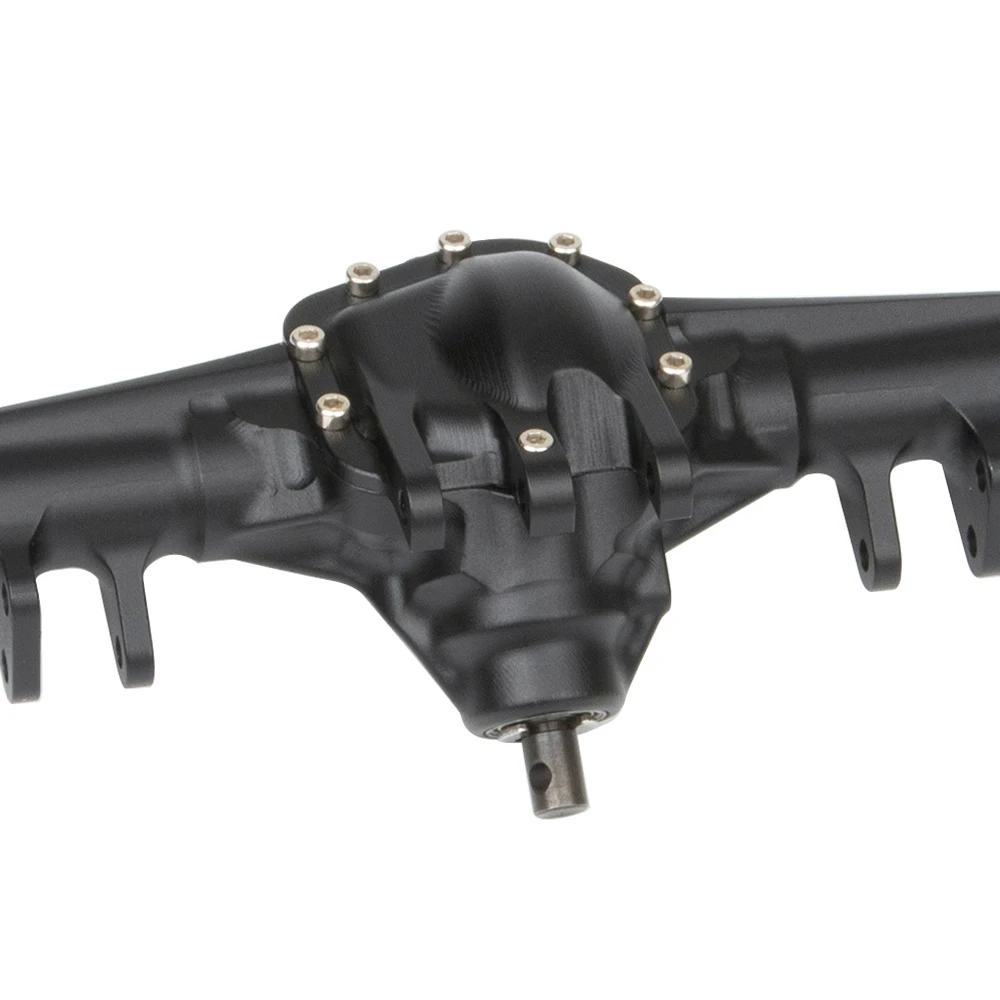

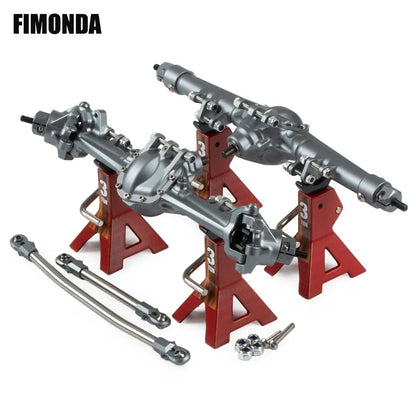

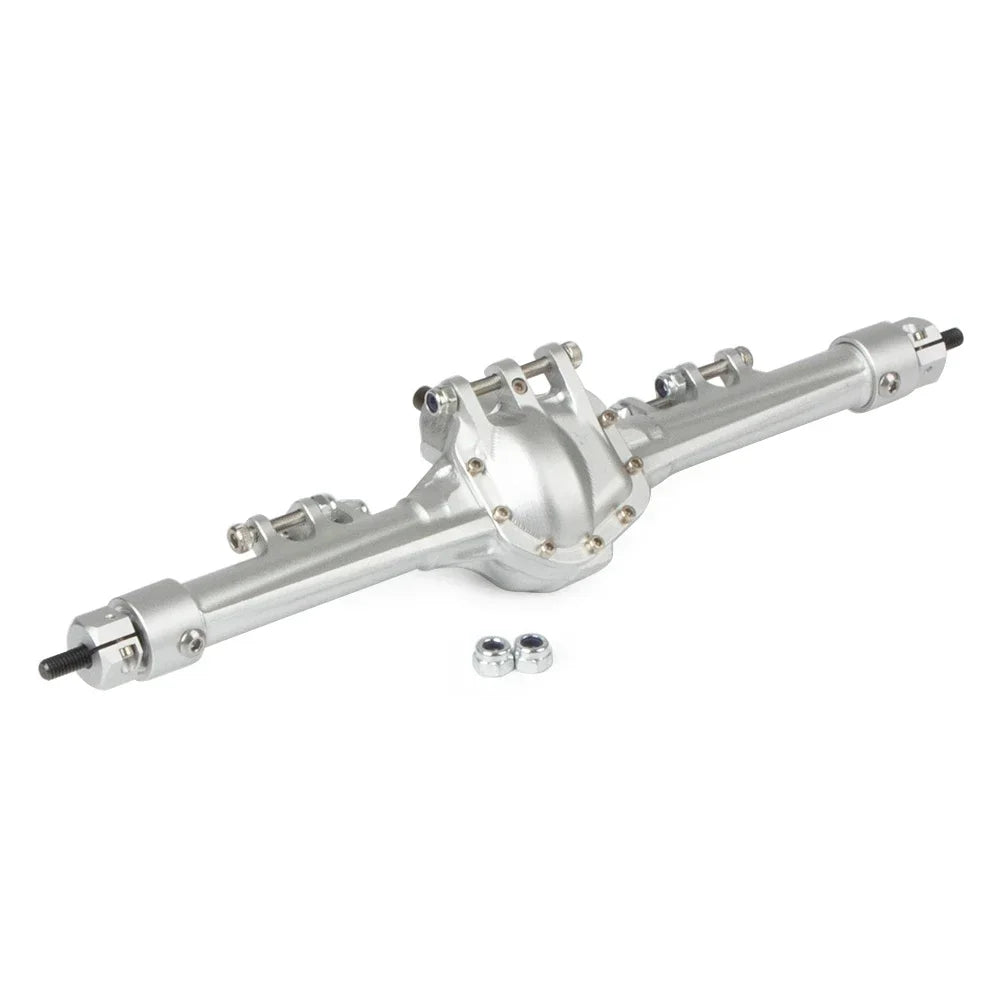

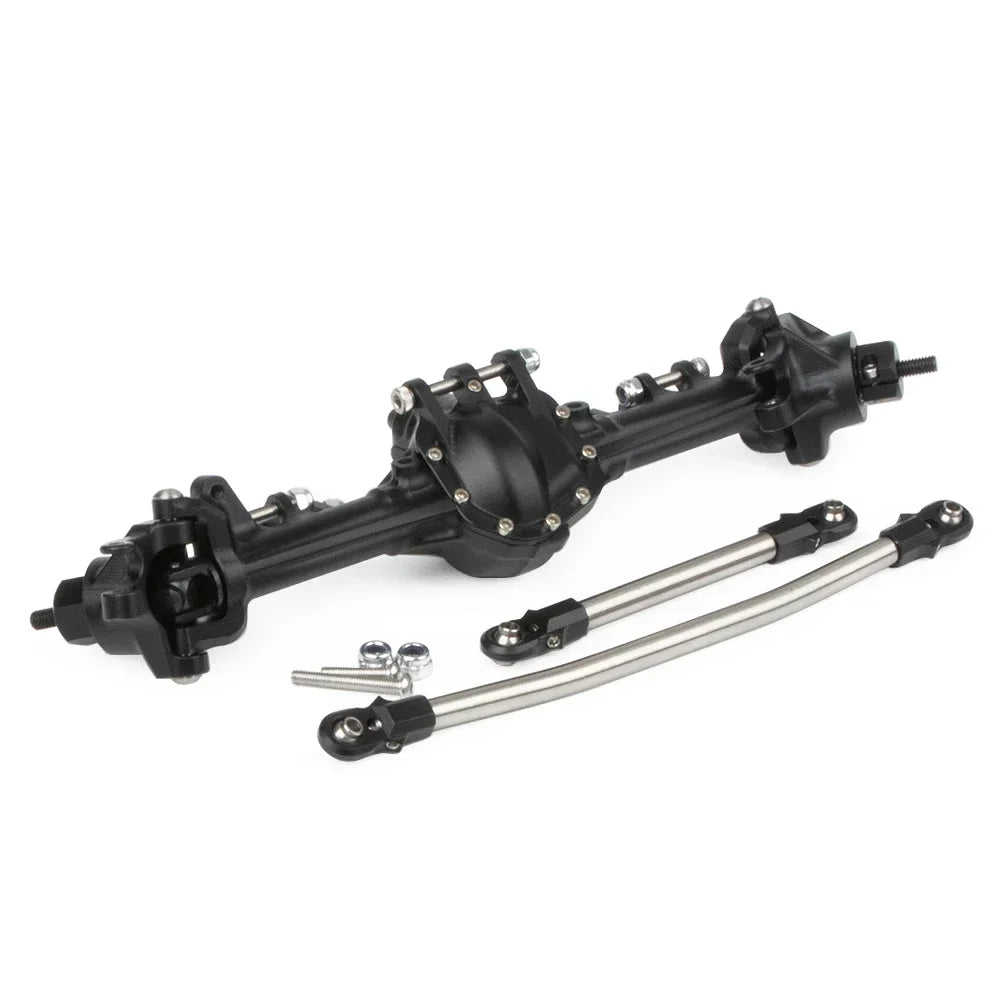

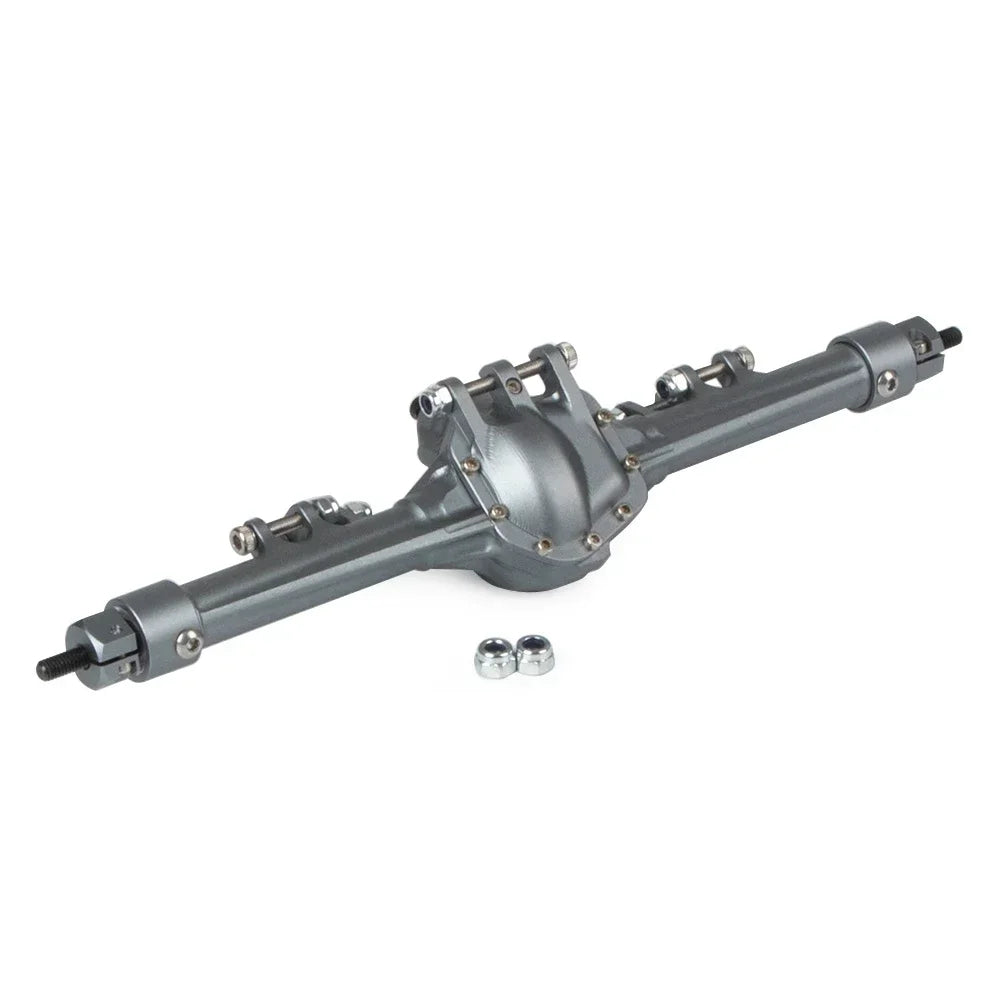

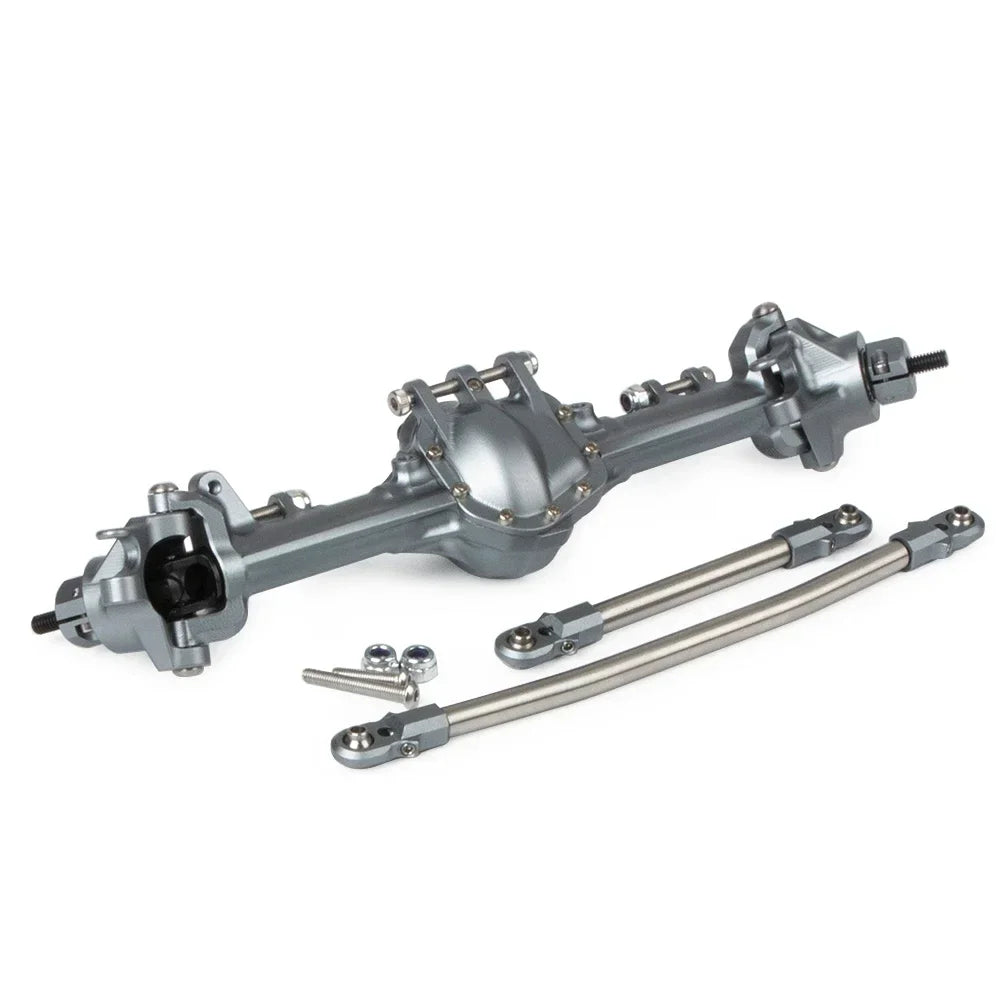

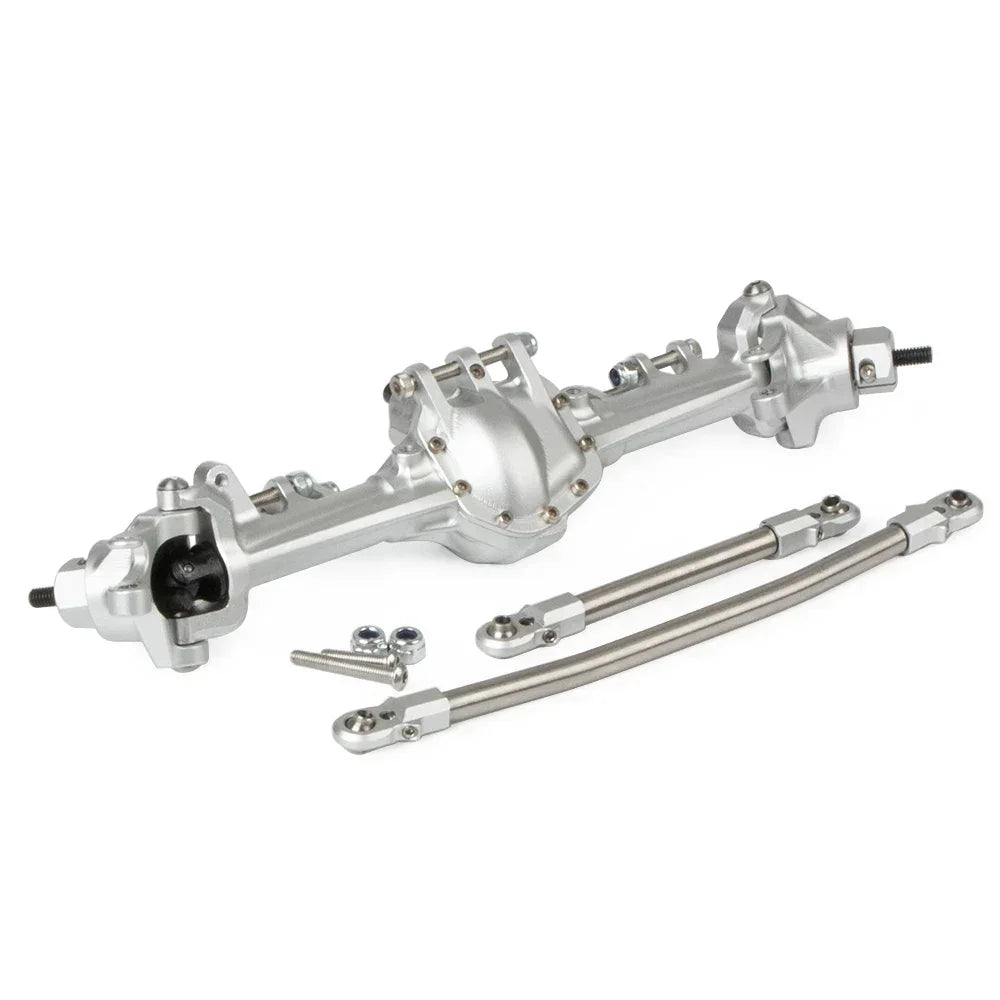

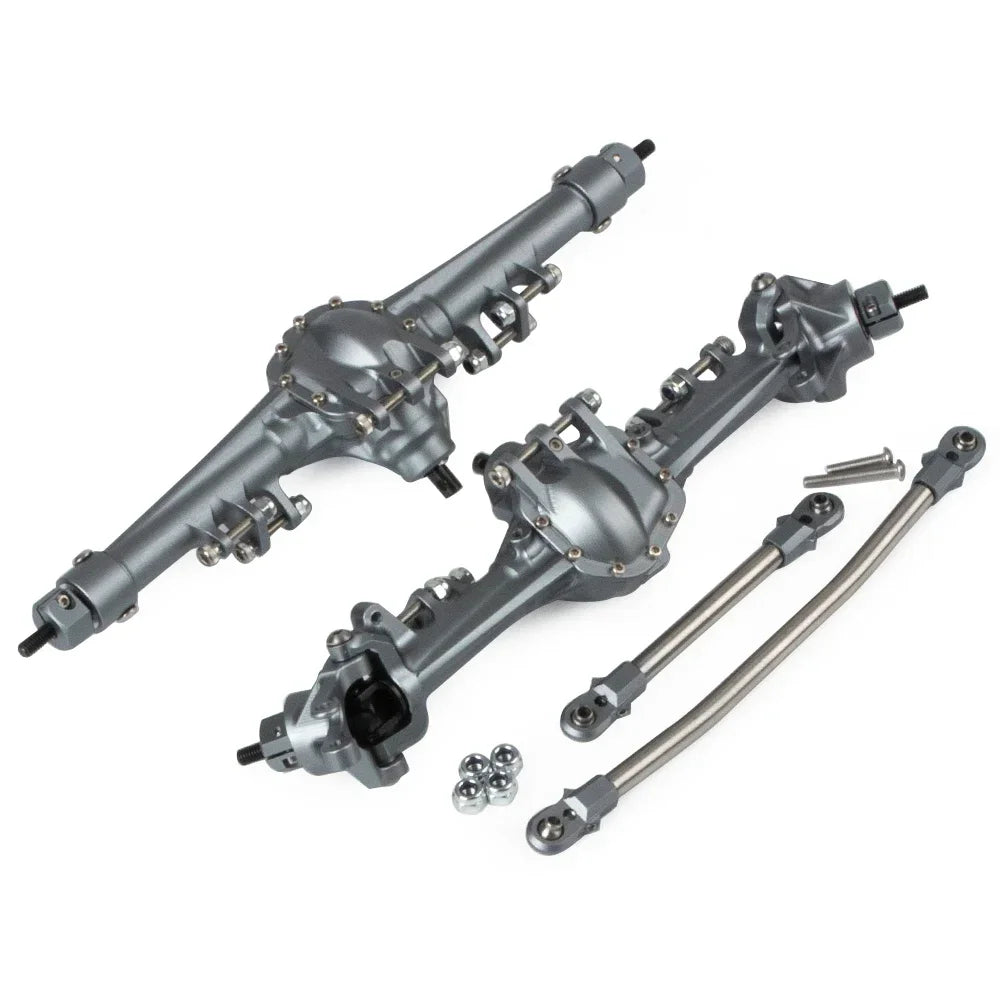

Integrated CNC Aluminum Front Rear Axle with Optional Bevel Gear SOA Mount for 1/10 RC Crawler Rig SCX10 II Element Enduro CC01

• 6061 Aluminum Housing
• CNC Machined
• Black/Clear/Gray Anodized

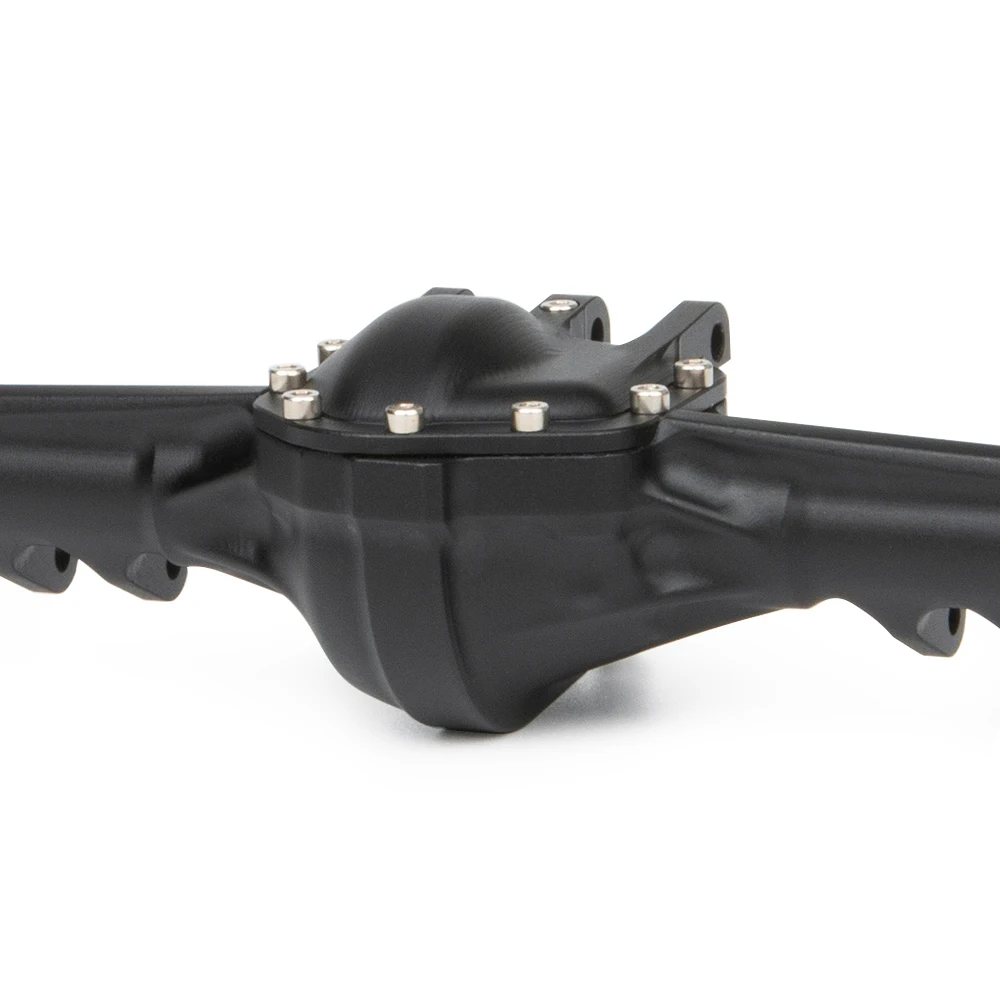

• Housing Solid Reinforcement Design, Scale Appearance
• Integrated C-Hub Design
• Integrated Panhard Mount

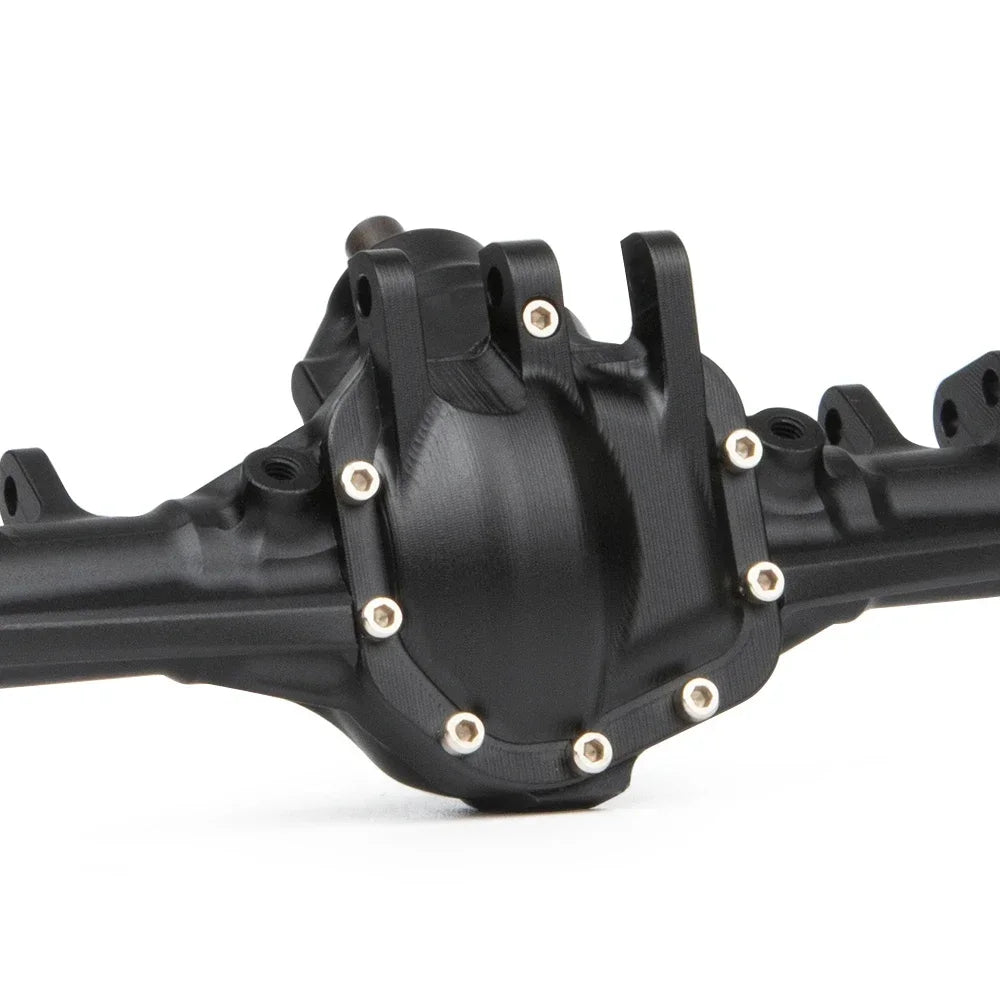

• Upper Link Mounts Built into Differential Cover
• Increased Upper Link Clearance for More Suspension Up Travel Ability
• Compatible with Factory Axial SCX10 II Links
• Heavy Duty Hardened Steel Bevel Gear Set(30/8T)
• Hardened Steel Universal Axle and Straight Axle
• Up to 46 Degrees of Steering
• Smooth Action for an Efficient Drivetrain
• Stainless Steel Steering/Servo Link
• Quality CNC Aluminum Rod Ends

Specifications:
Material: 6061 Aluminum
Color: Black/Clear/Gray
Total Length: 215mm

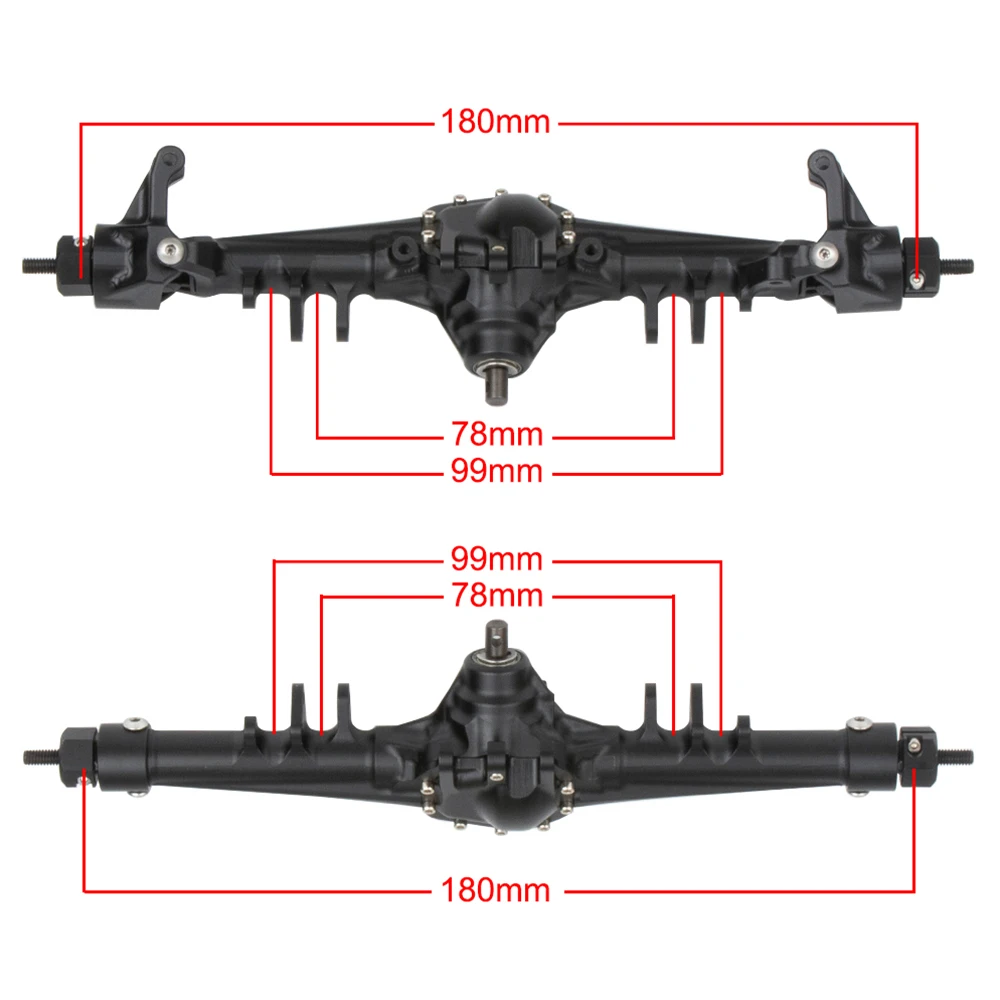

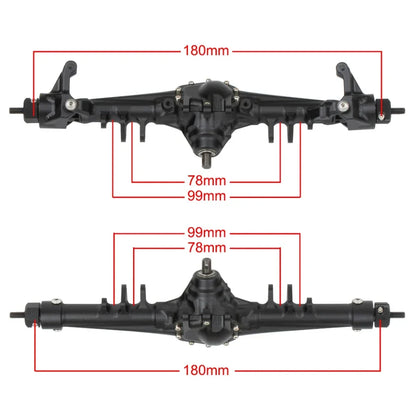

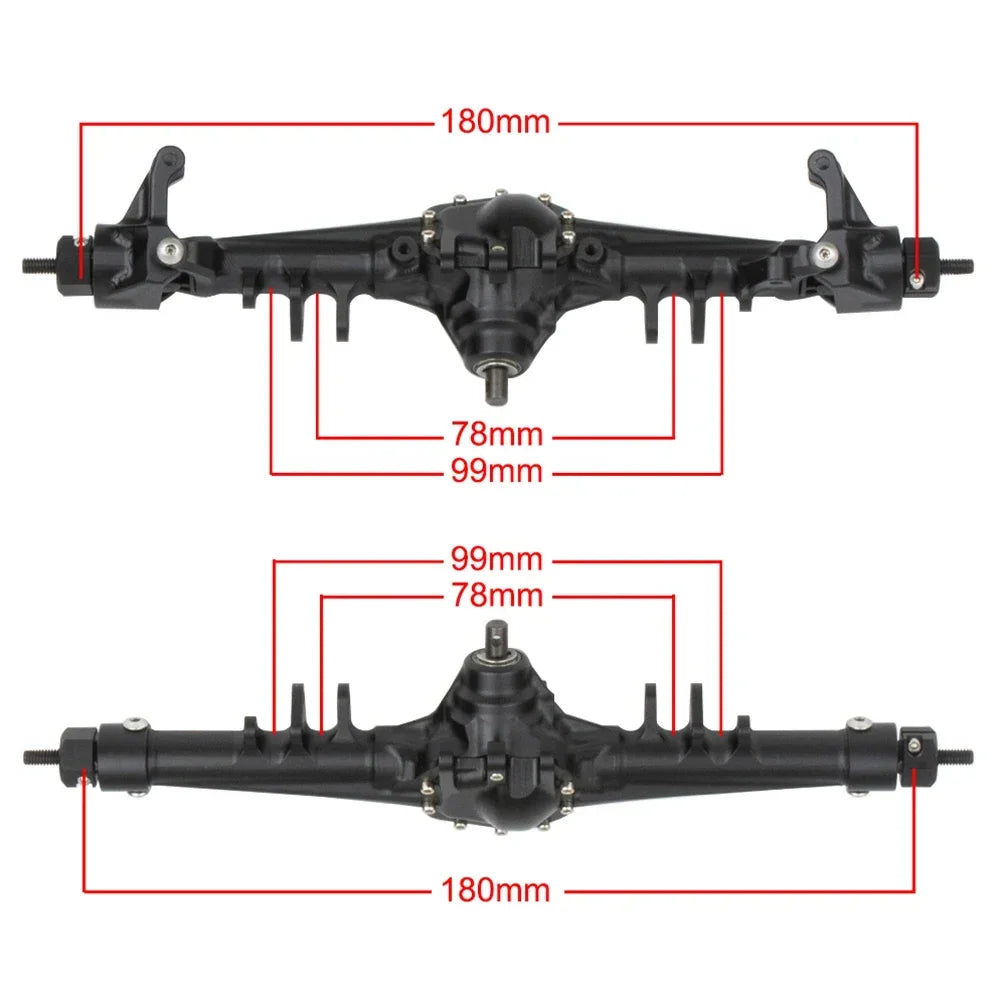

Pin to Pin: 180mm
Pumpkin Height: 36mm
Input Pinion Shaft: 5mm
Gear Ratio: 3.75 : 1

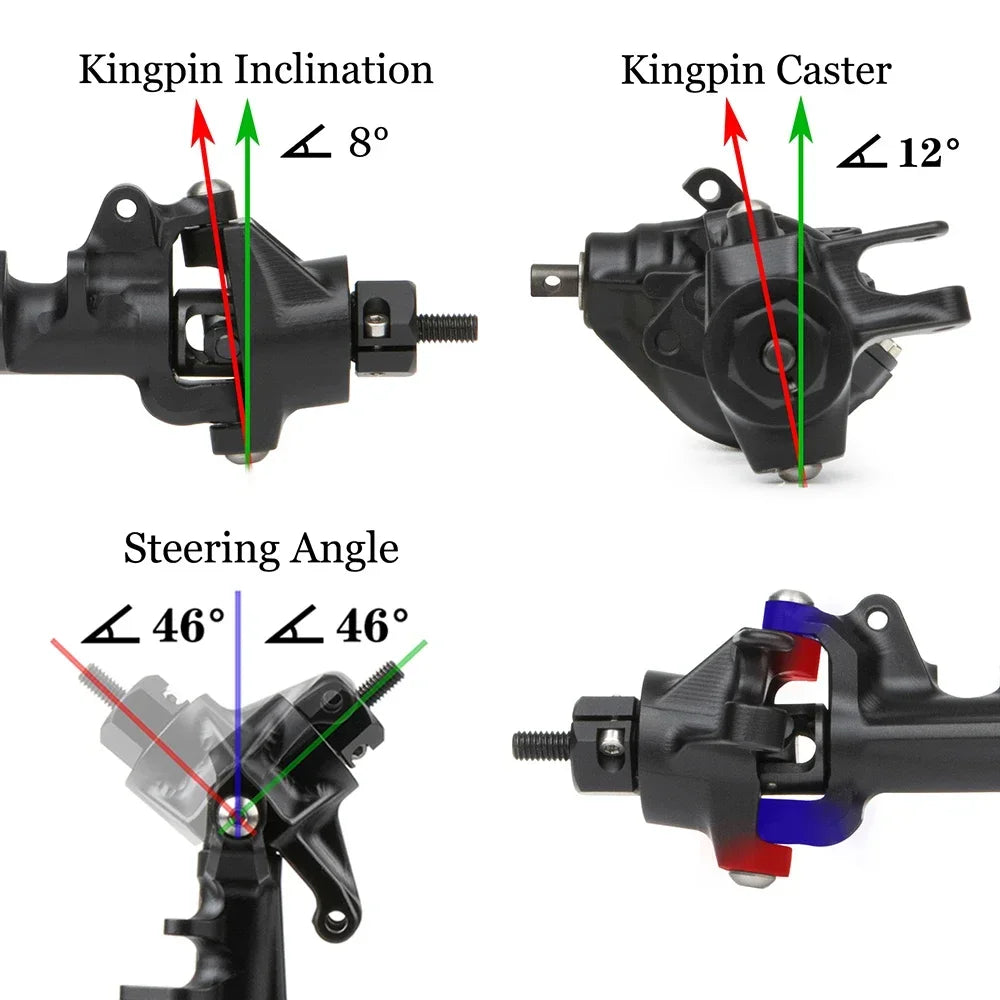

Kingpin Inclination: 8 Degrees
Kingpin Caster: 12 Degrees
Weight (Front Axle): 230g
Weight (Rear Axle): 150g

Optional Parts:

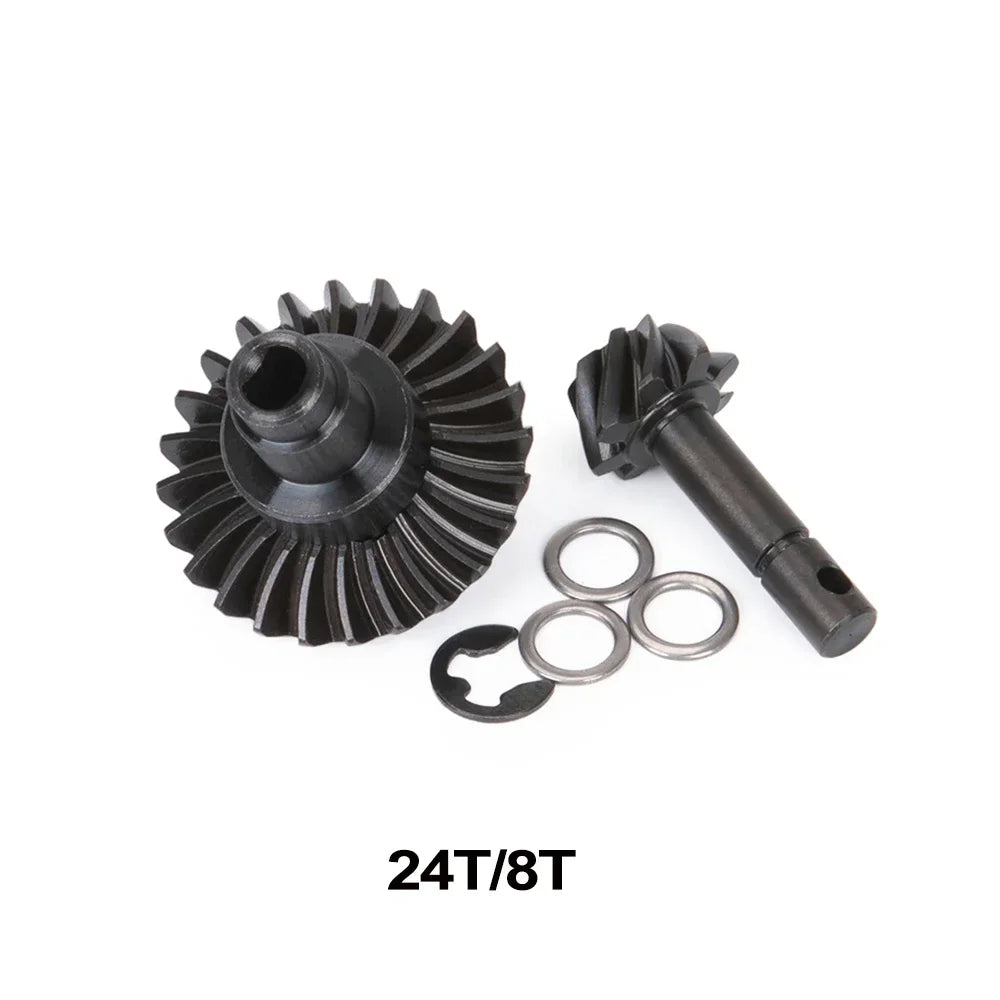

• Overdrive Gear Set 24T/8T

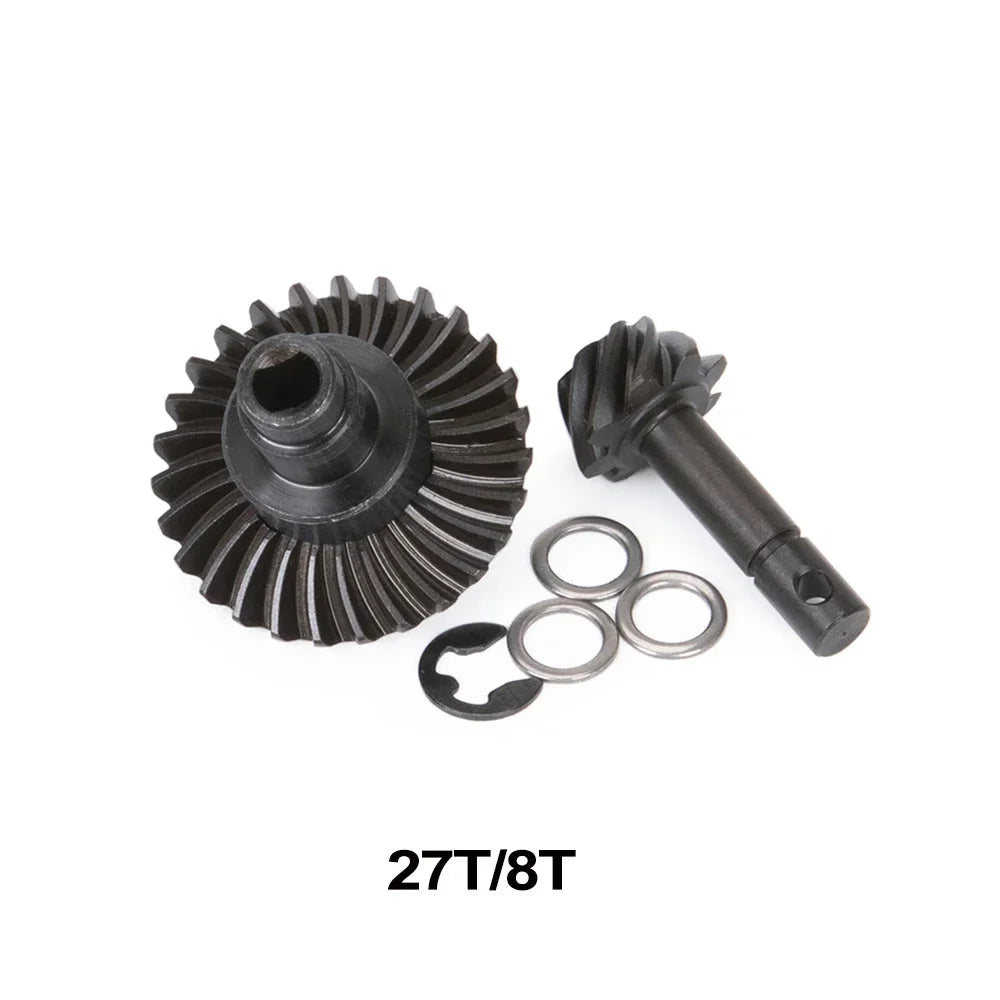

• Overdrive Gear Set 27T/8T

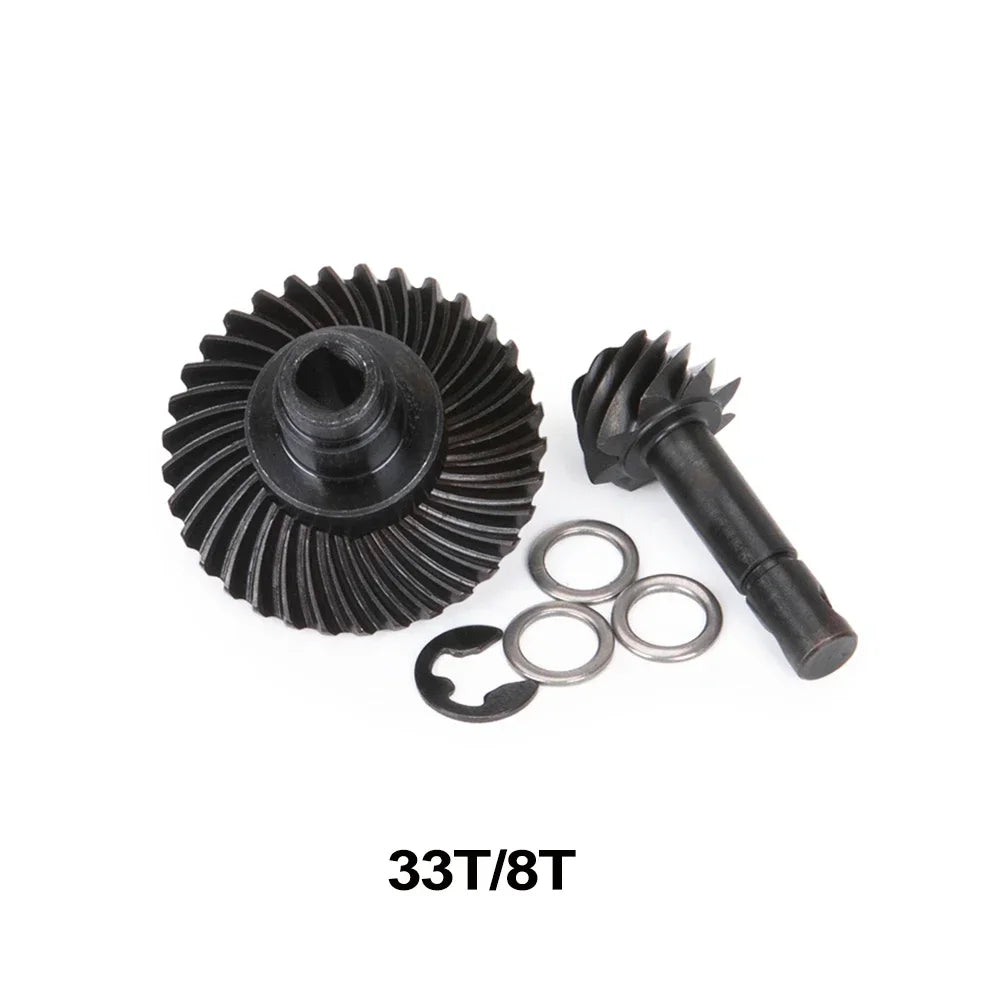

• Underdrive Gear Set 33/8T
• SOA (Servo on Axle) Mount (Coming Soon)

Important Notes:
1. Before you run the axles, make sure there is plenty of grease in the diff (enough to cover the gears)
2. Fasten all screws securely

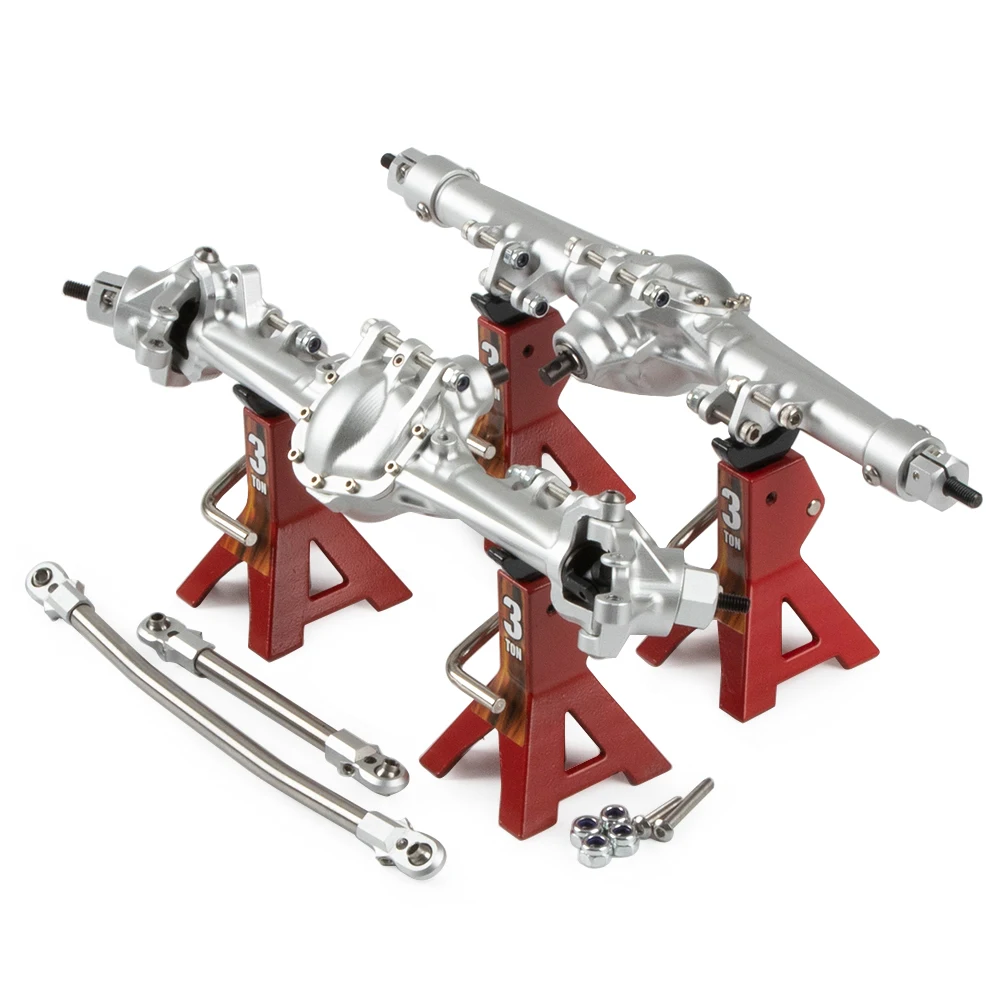

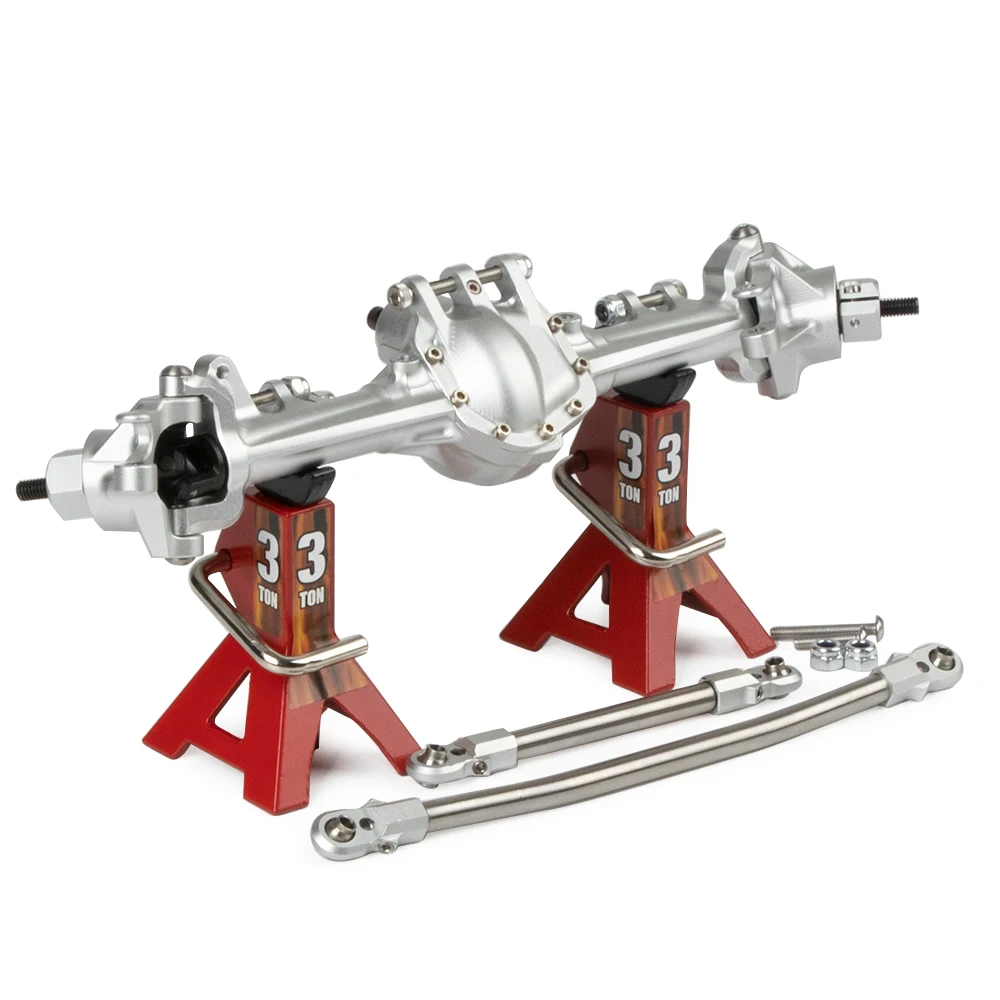

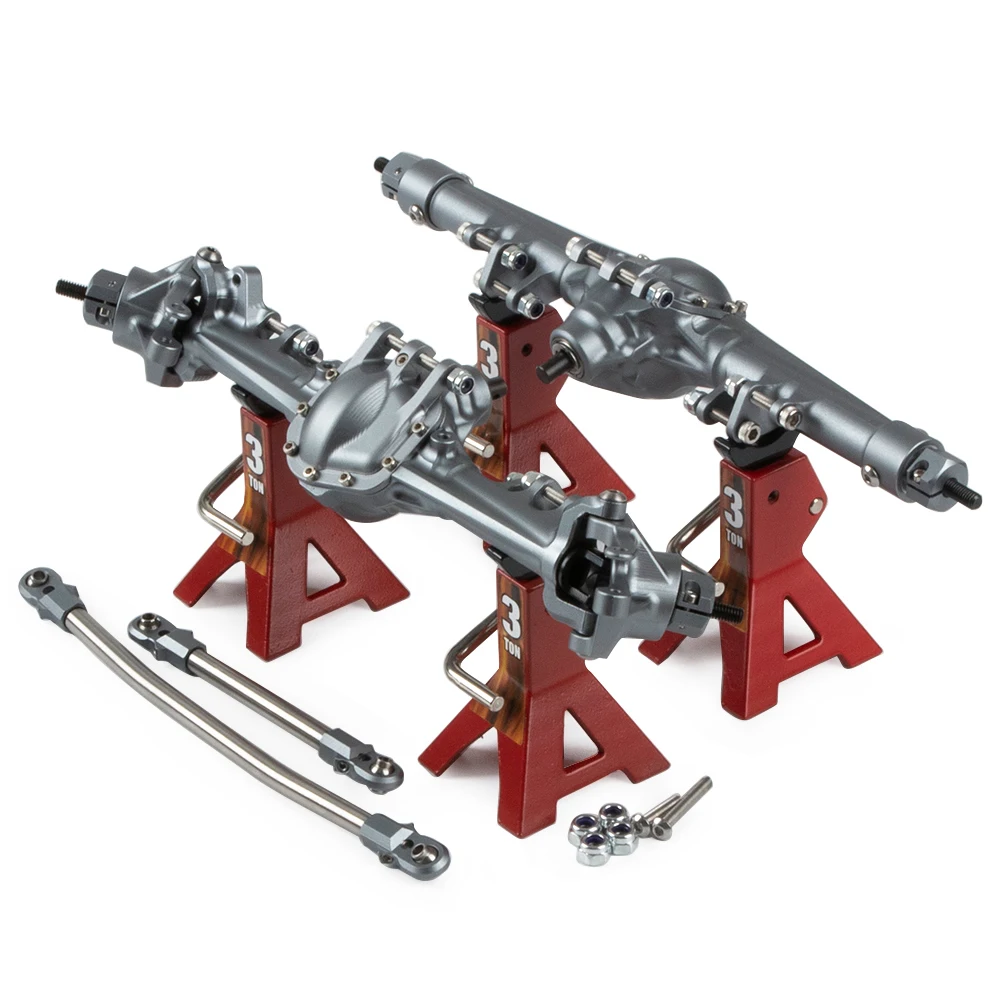

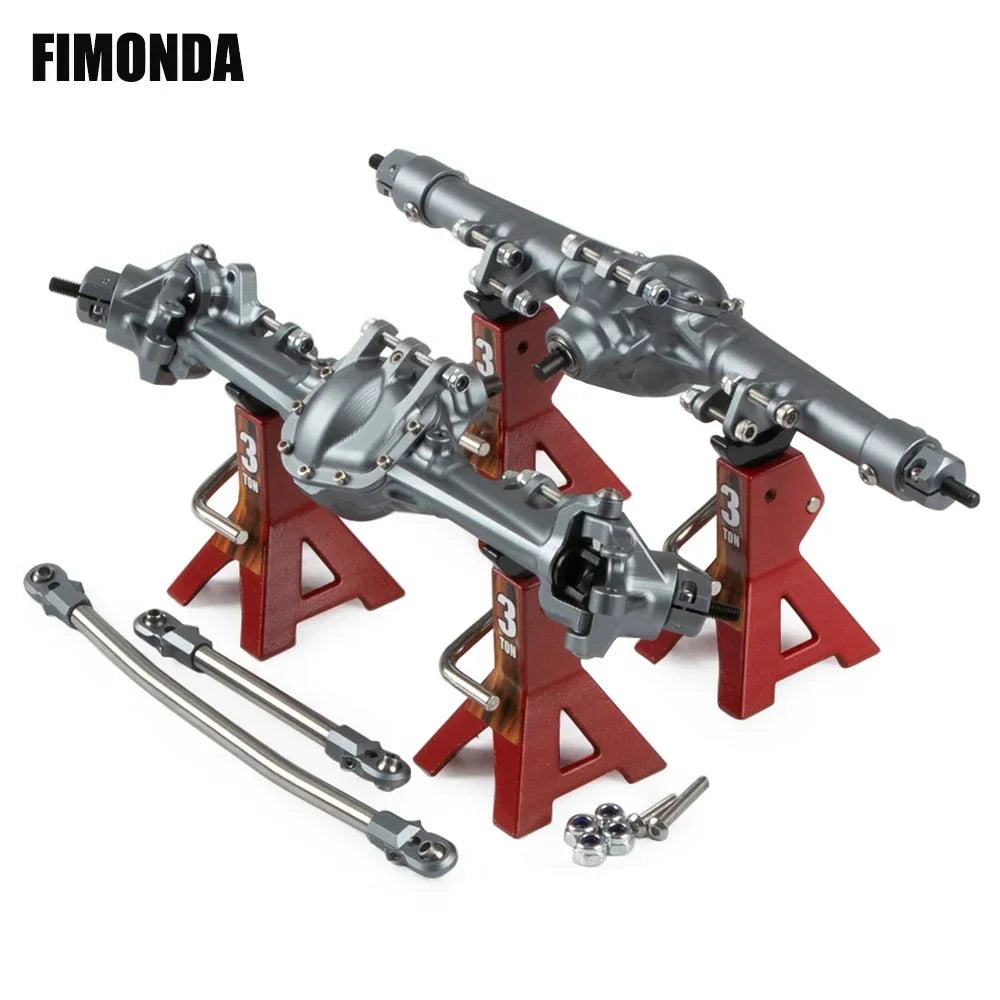

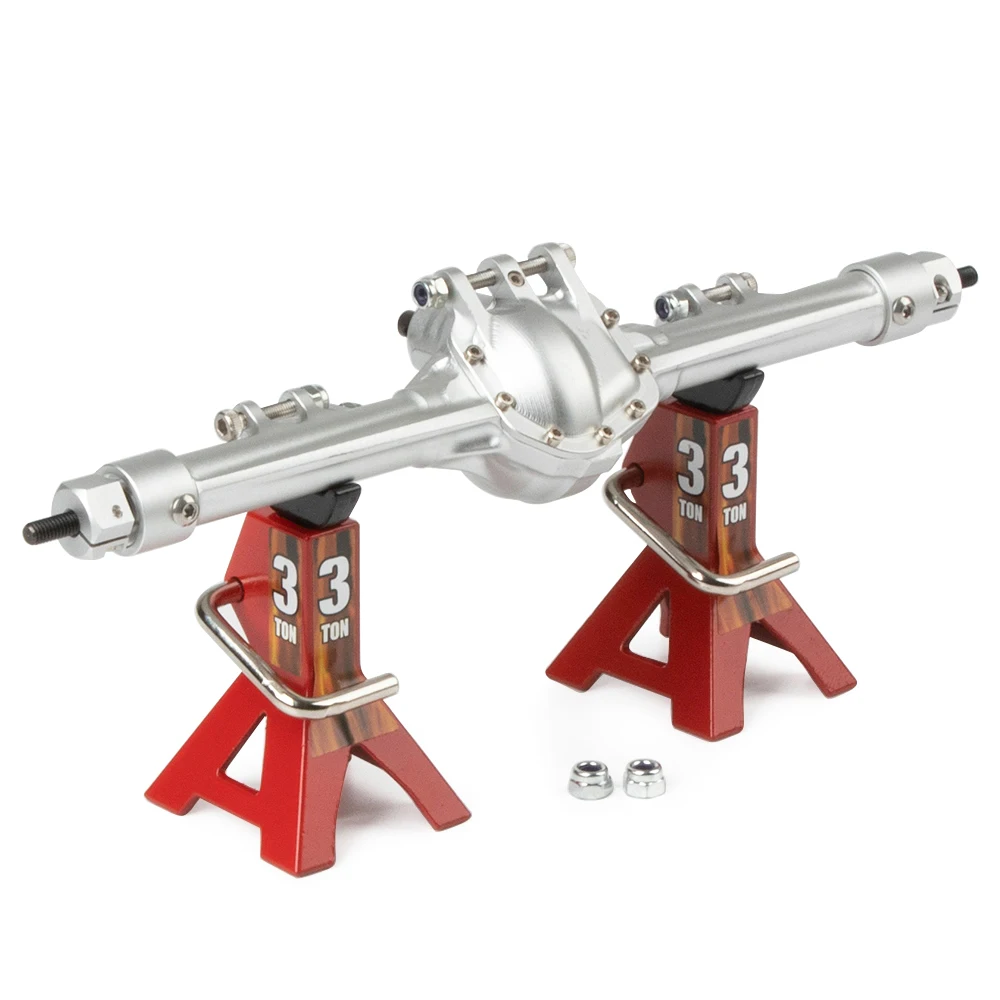

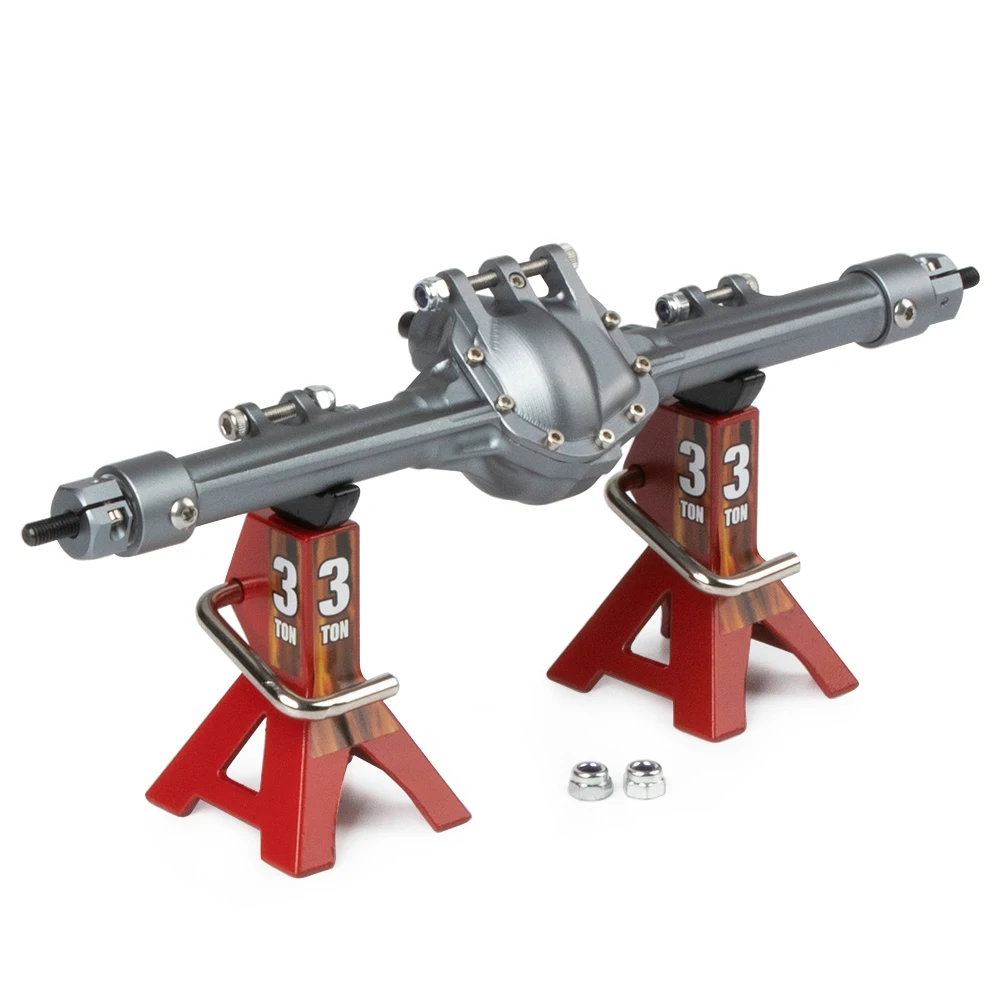

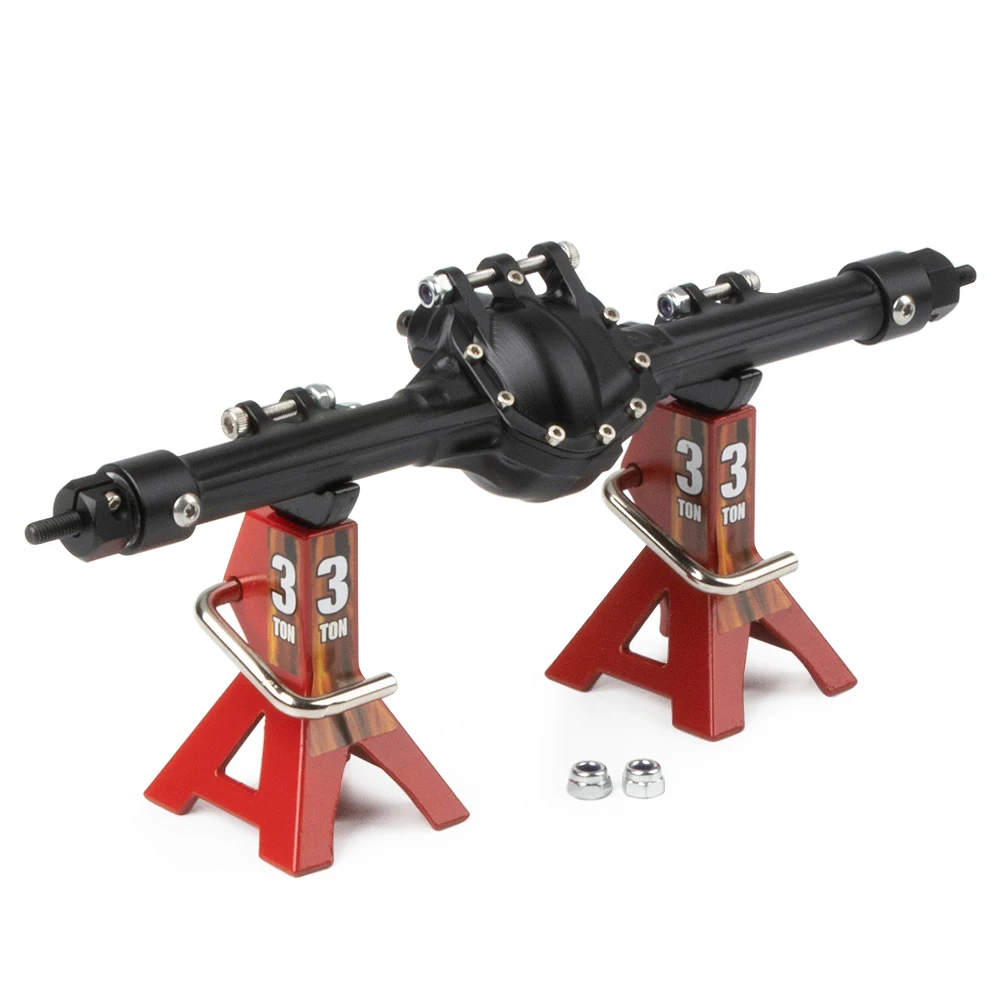

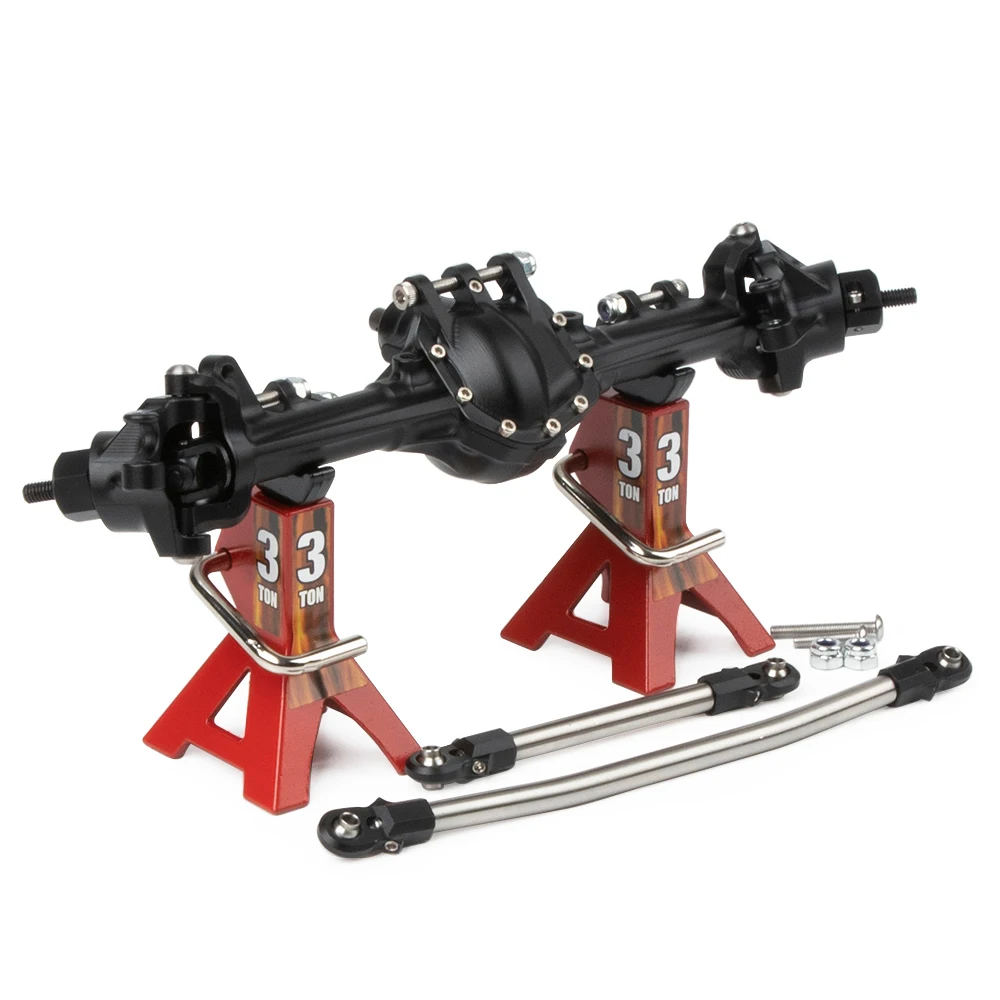

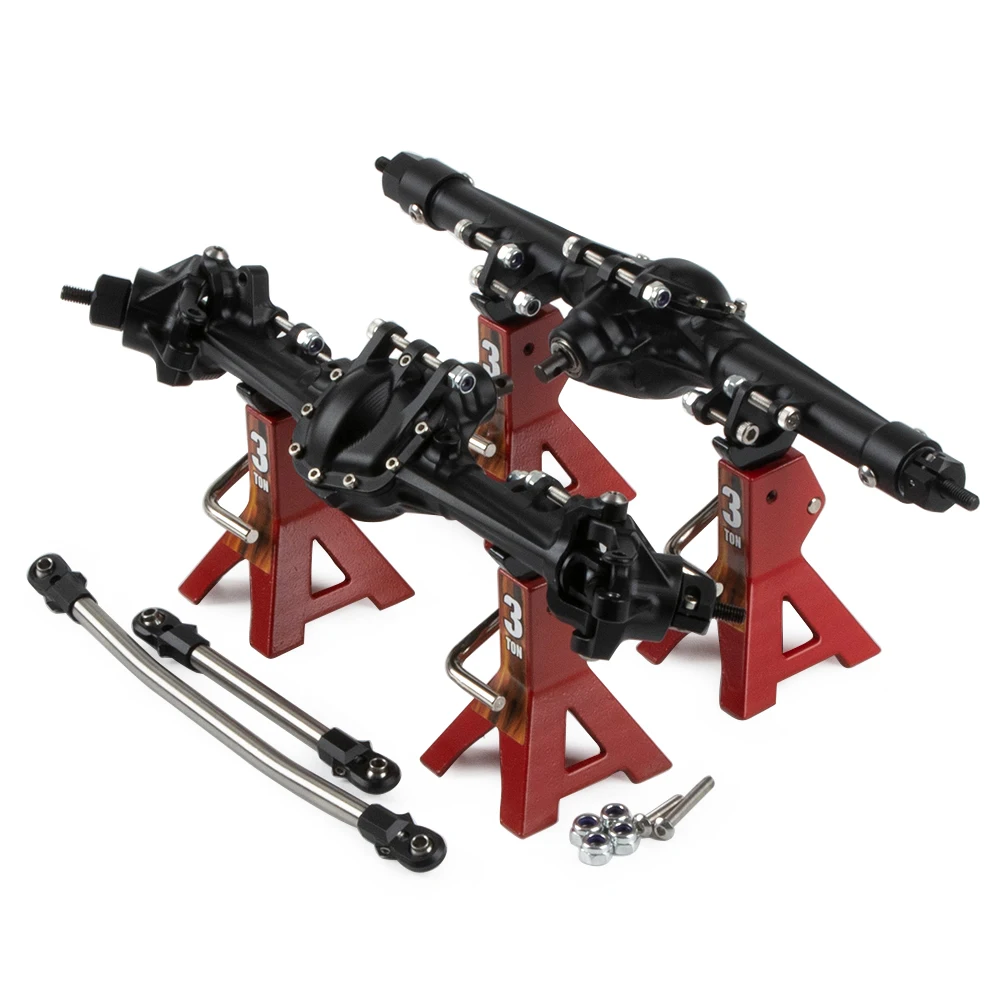

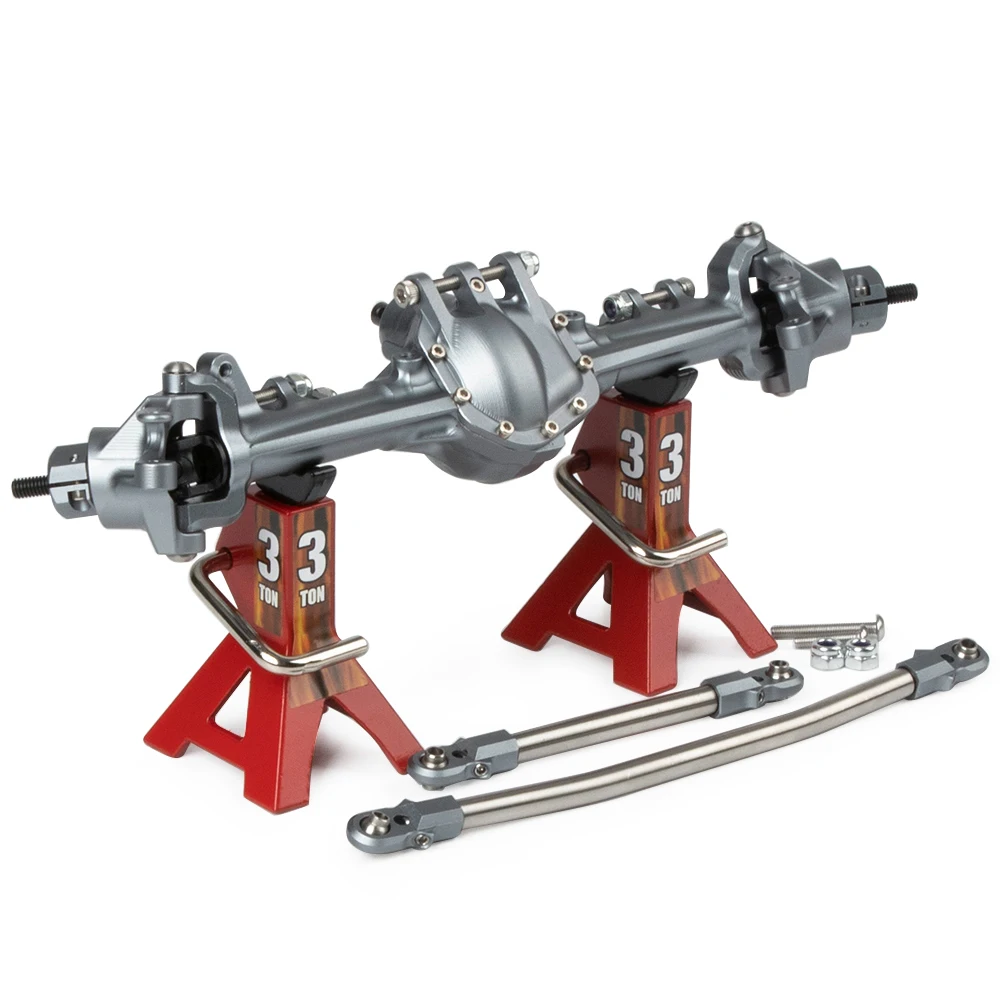

3. The jack in the photo is for showing the axle only (Not Included)
4. This axle is not compatible with reverse bevel gears
