SPECIFICATIONS

Brand Name: BDXRc

Choice: yes

For Vehicle Type: Cars

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: Portal Axle

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: AXLE

Recommend Age: 14+y

Remote Control Peripherals/Devices: Servos

Size: for 1/10 RC Crawler

Technical parameters: value 2

Tool Supplies: Assembled class

Upgrade Parts/Accessories: Hydraulic Transmission Box

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

Features

• CNC Machined

• Anodized

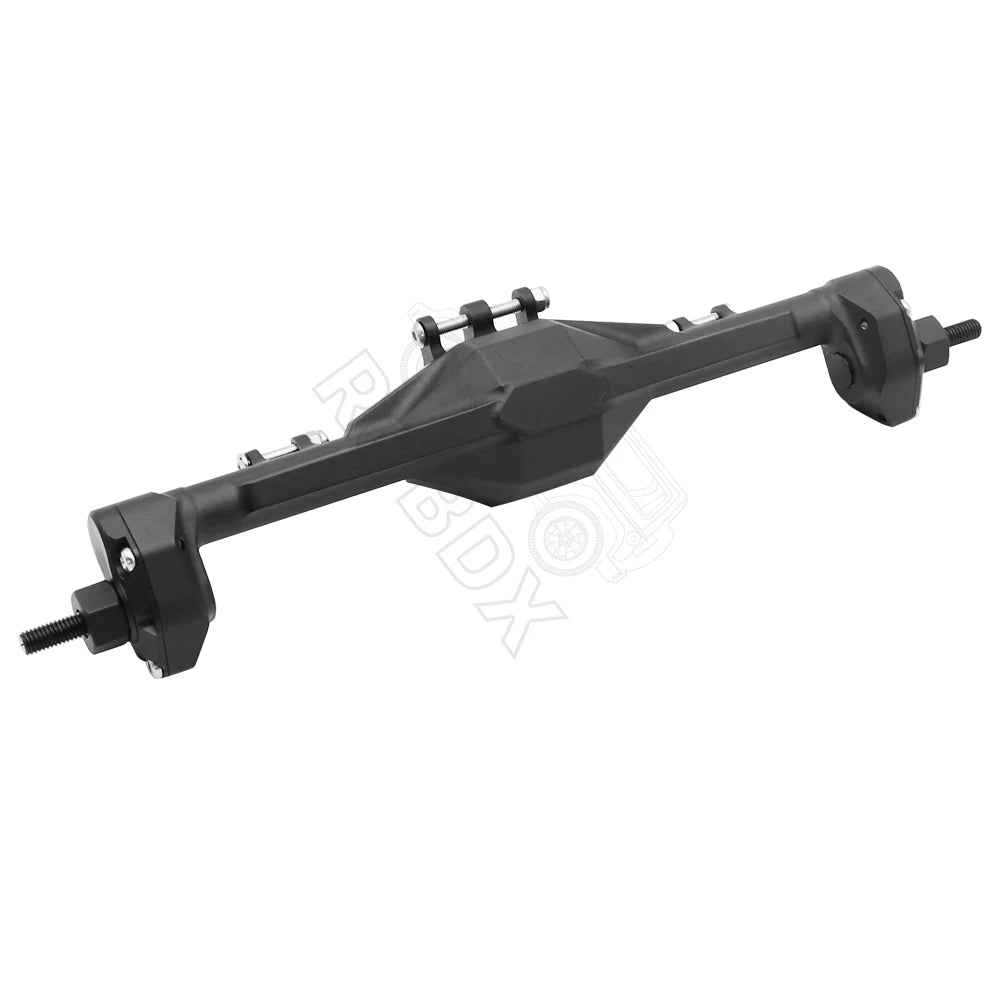

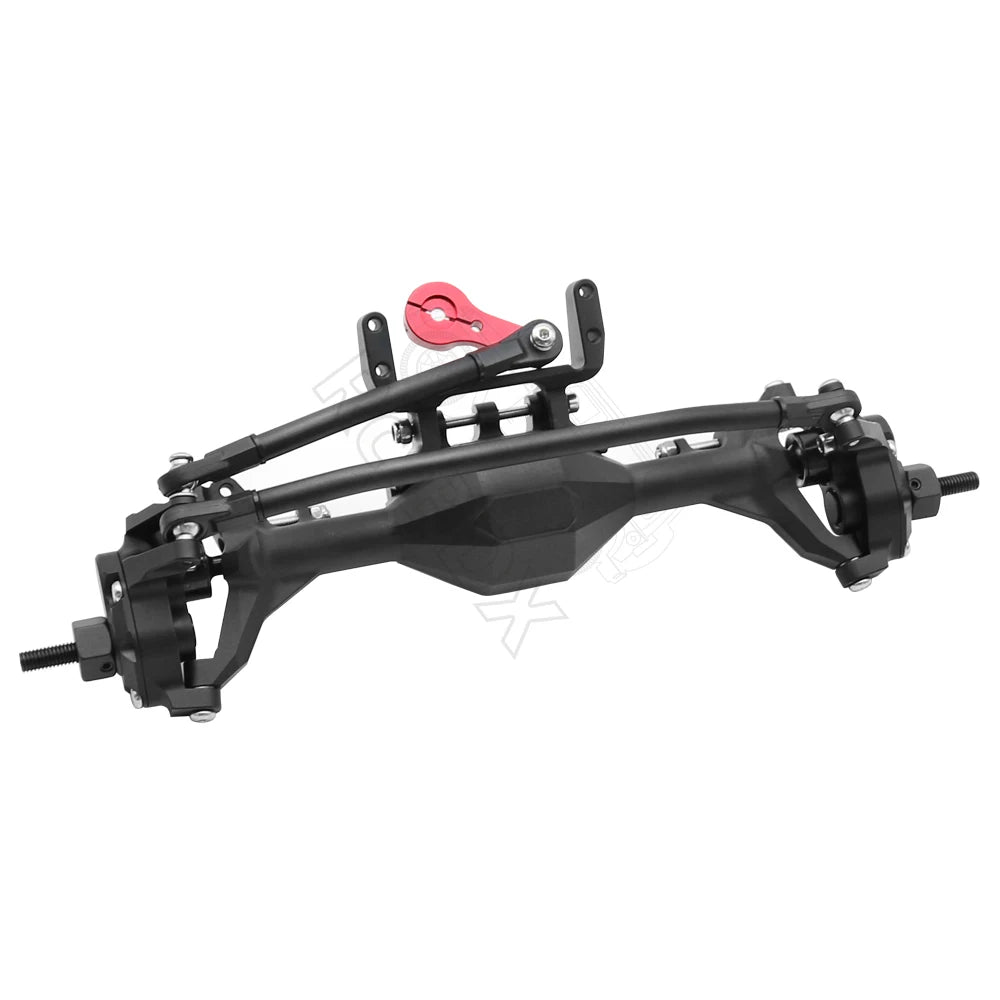

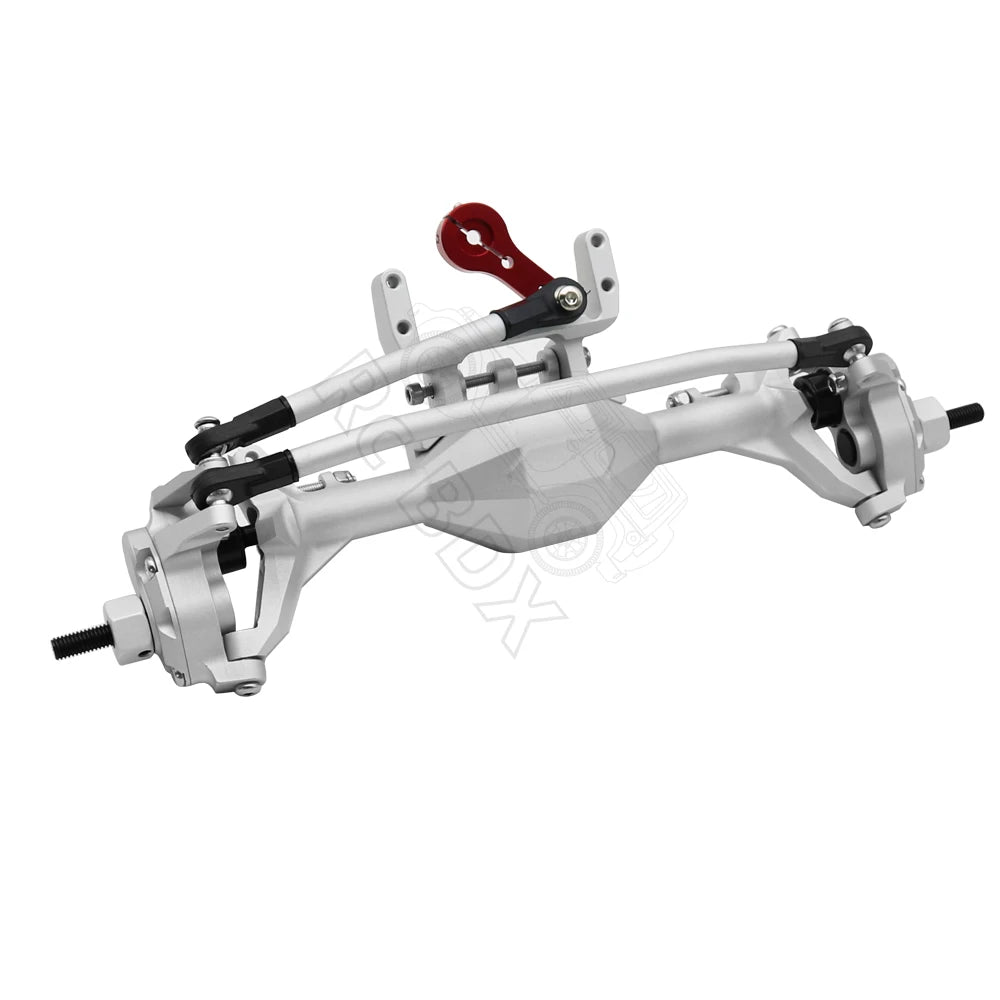

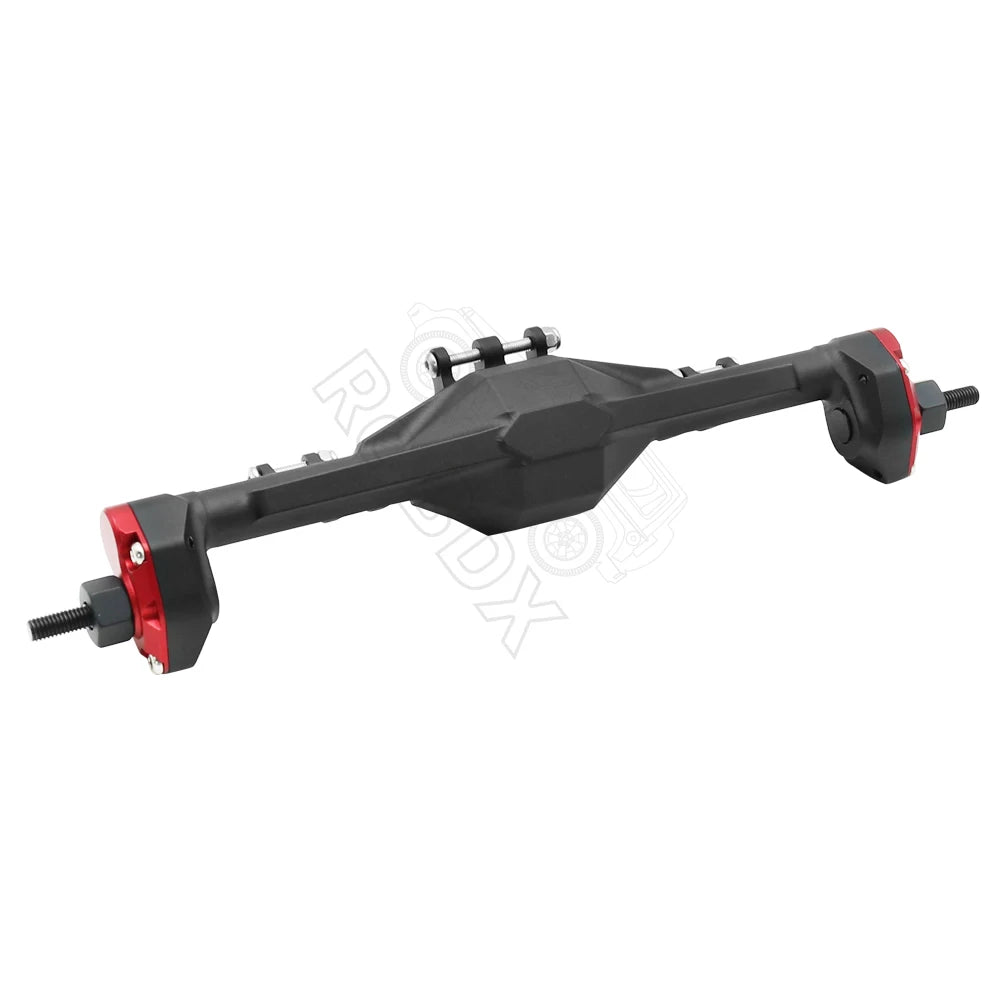

• Integrated axle housing design for durable

• Portal box built into the knuckle with bolt on high steer arm for double shear mounting

• Offset C-hubs is machined into the housing for strength and durability

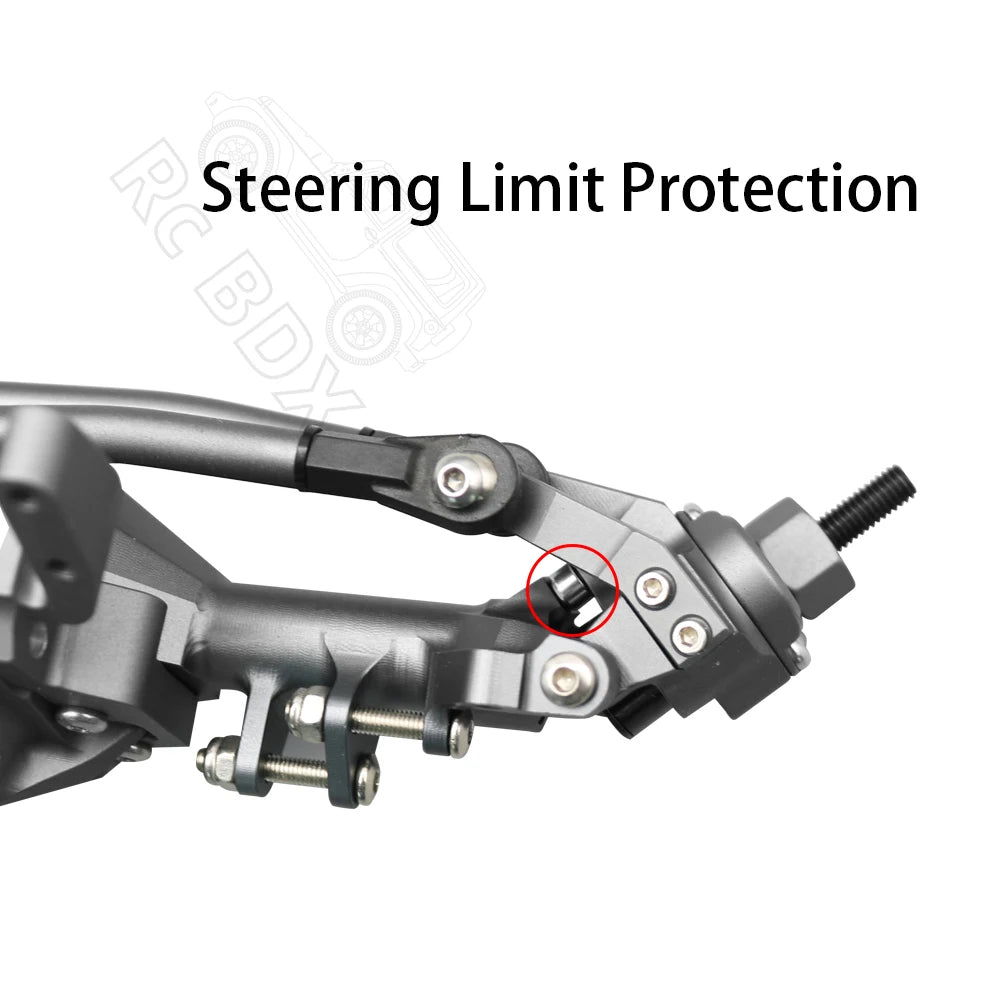

• Adjustable steering stop integrated into knuckle

• Complete fast eddy bearings kit

• Double shear shock mounts

• Integrated panhard mount

• Increased upper link clearance for more suspension up travel ability

• 13mm increase in ground clearance

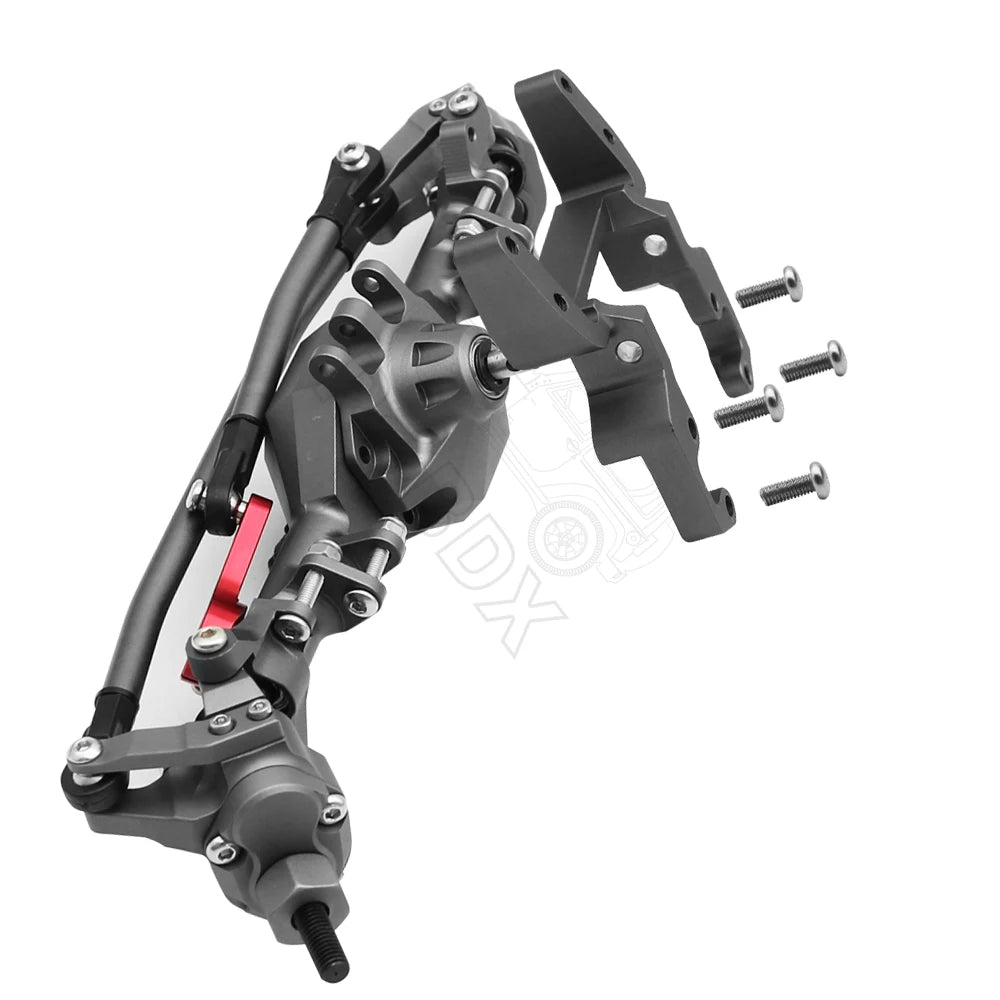

• Comes with servo mount and steering links

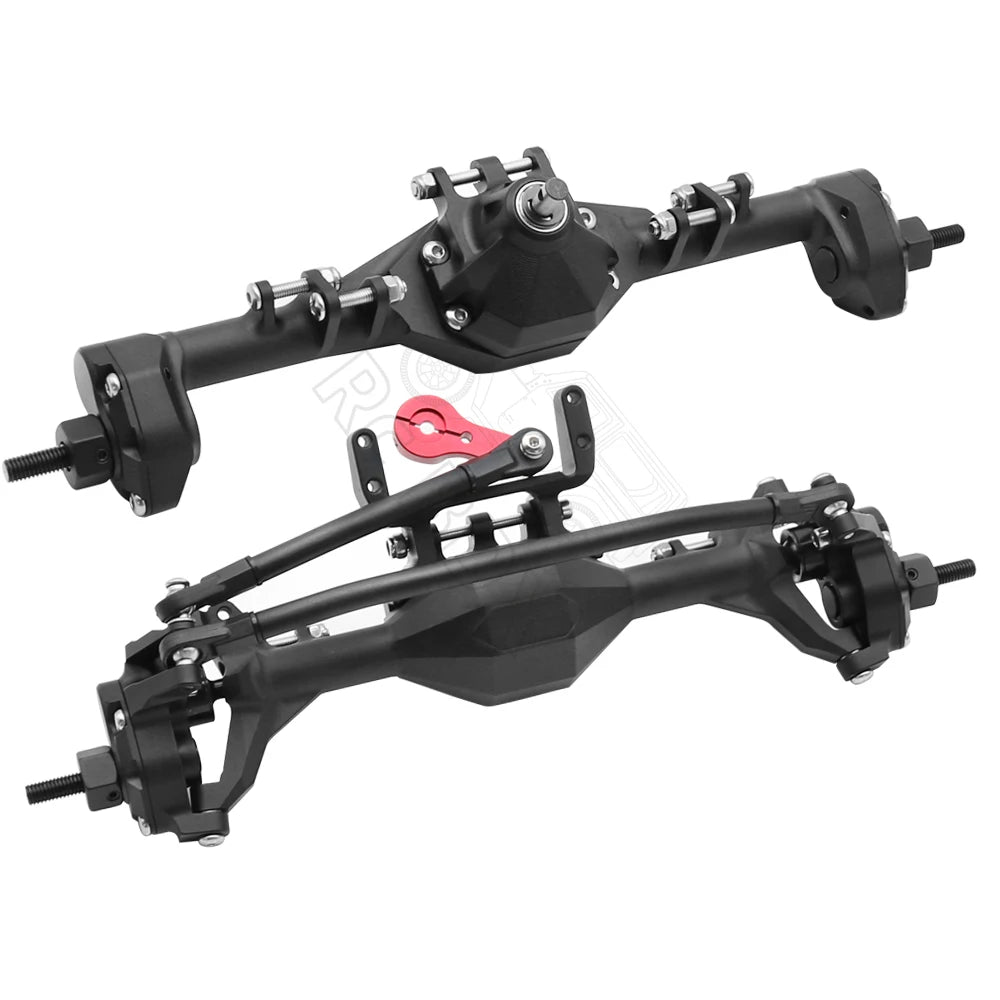

• Come with all parts needed to assemble a full axle.

• Direct replacement to any Axial AR44 axle

• Fits 1/10 RC Crawler Axial SCX10 I, SCX10 II, RGT 86100, Redcat GEN8 etc.

Material

• Housing: #6061 Aluminum

• Inner Spool: Stainless Steel, Black Anodized

• Bevel Gear Set: #40 Chrome Steel

• Portal Gear Set: Powder Metallurgy

• Bearings Set: Bearing Steel

Size

• Total Width: 220mm/8.66in

• Pin to Pin Width: 188mm/7.40in

• 5mm Axle Output Shaft

• 6mm Stub Shafts, 5mm thread

• 12mm Standard Hex

• Hex Thickness: 8mm

• Links Mount Width: 7.2mm

• Bevel Gear Set: 8/30T

• Portal Gear Set: 18T/30T

• Total Gear Ratio=6.25:1

Weight

Front Axle: 295g / 10.4oz

Rear Axle: 229g / 8.08oz

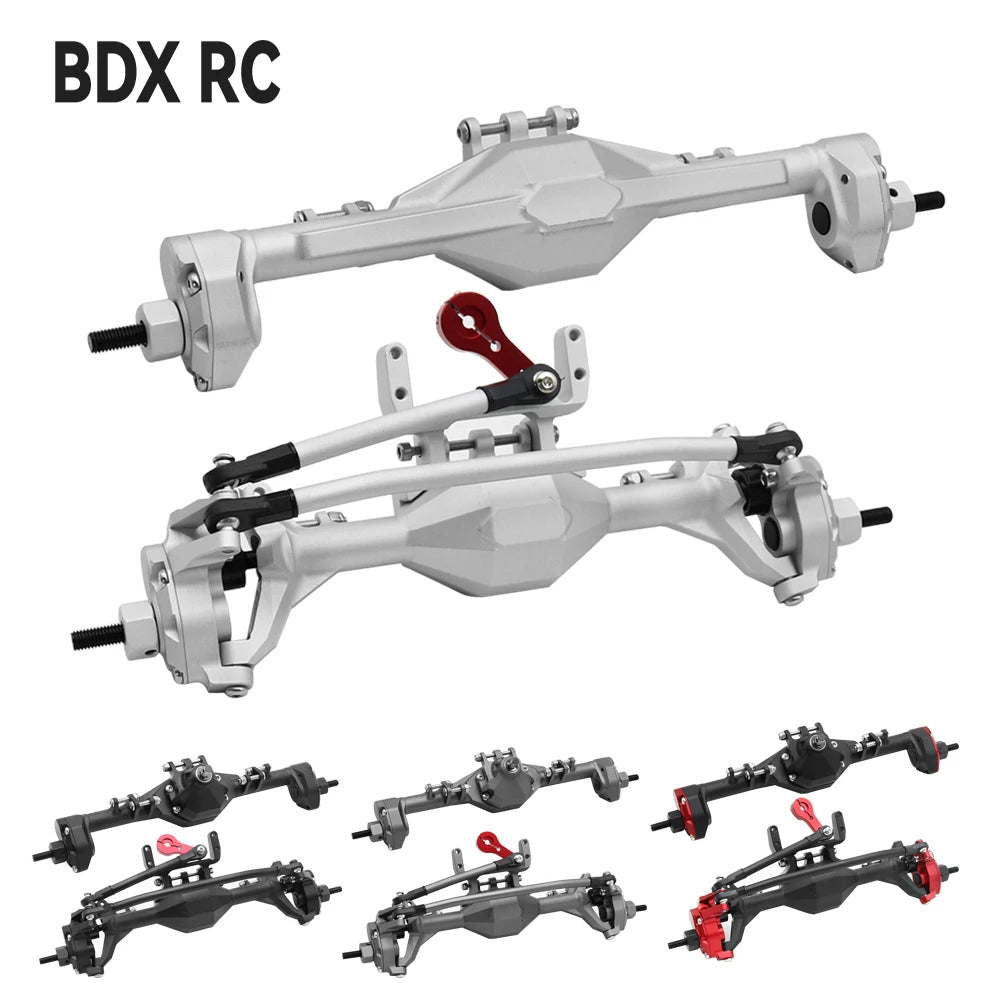

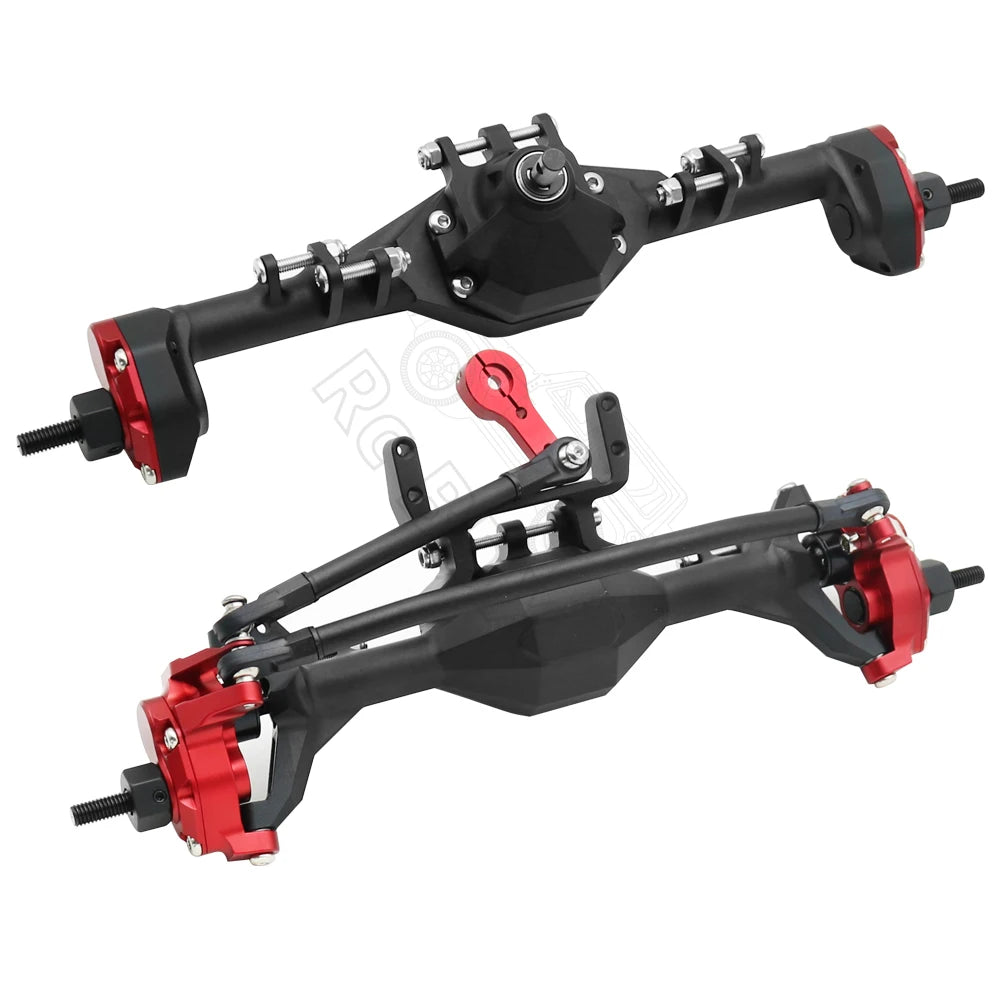

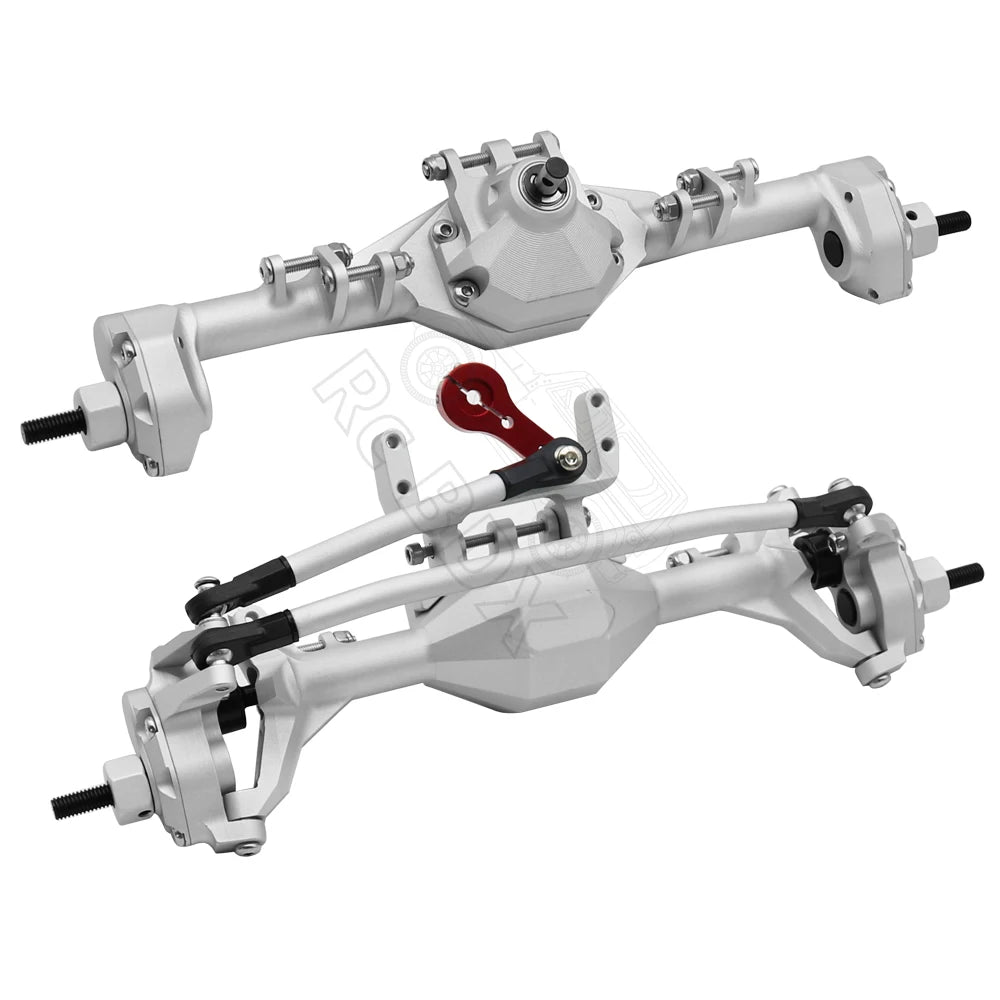

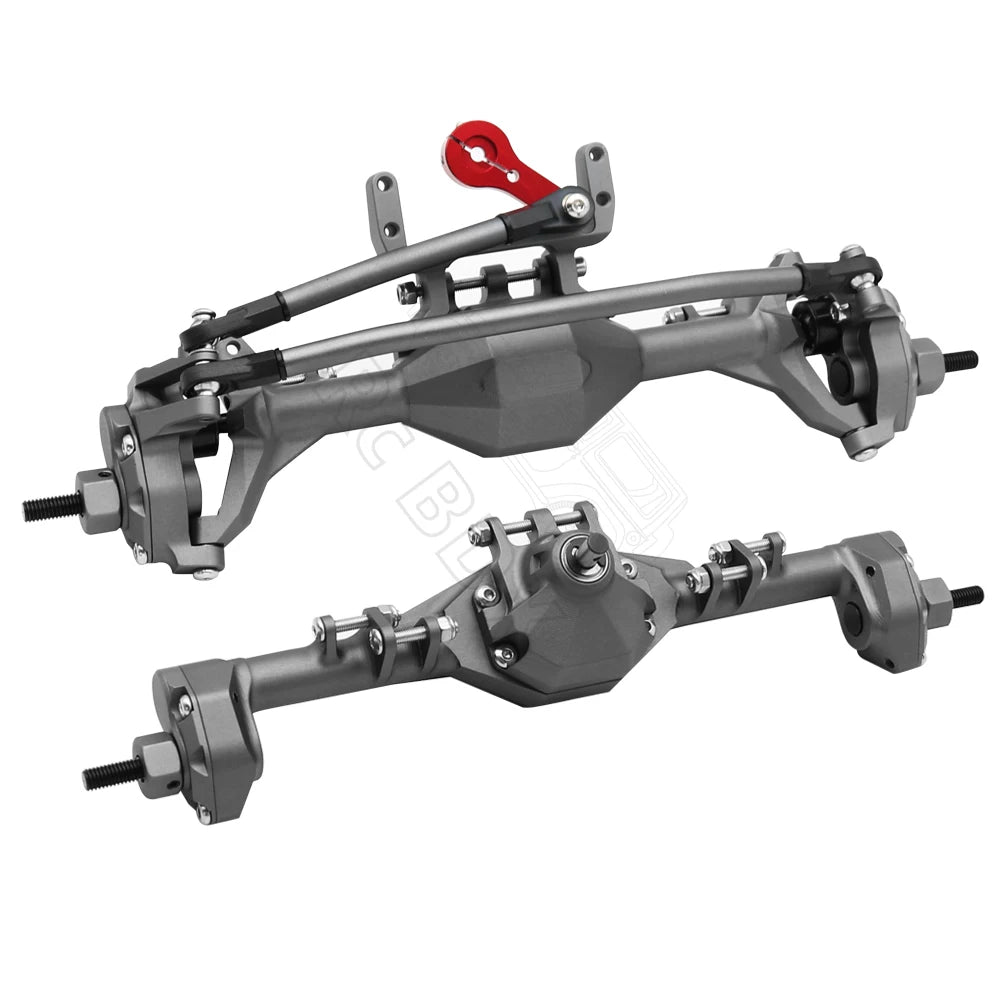

Color: Silver, Red, Gray, Black
