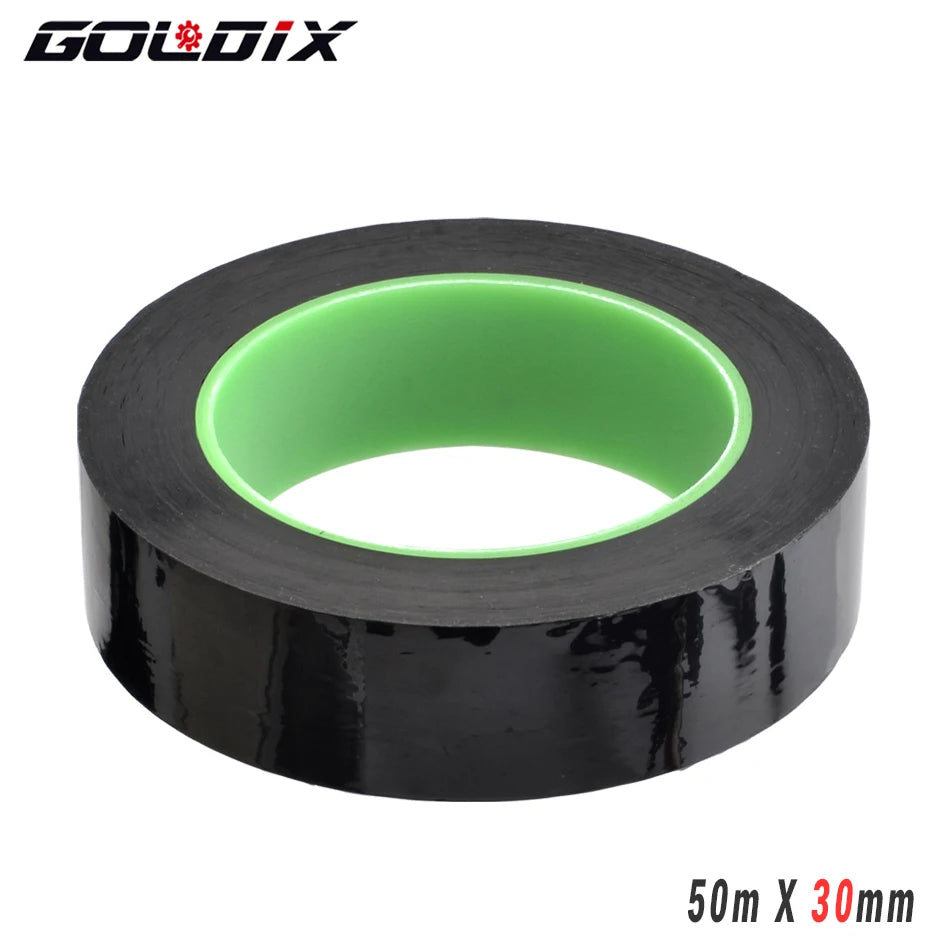

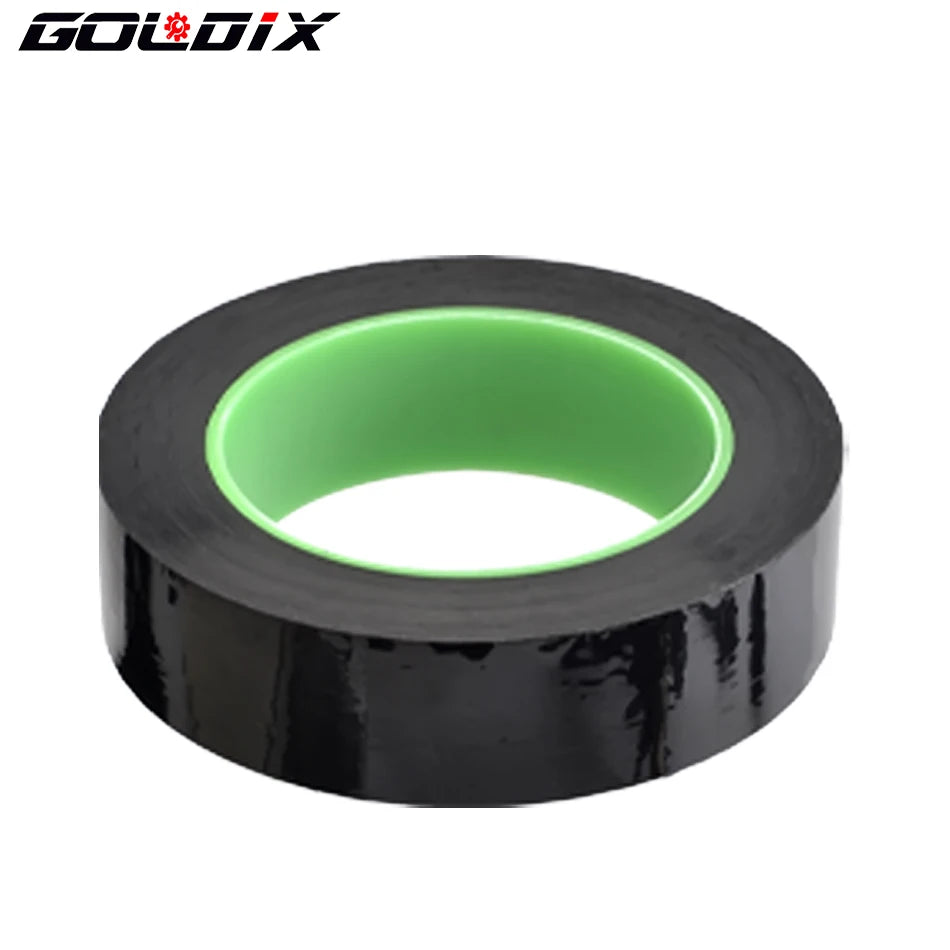

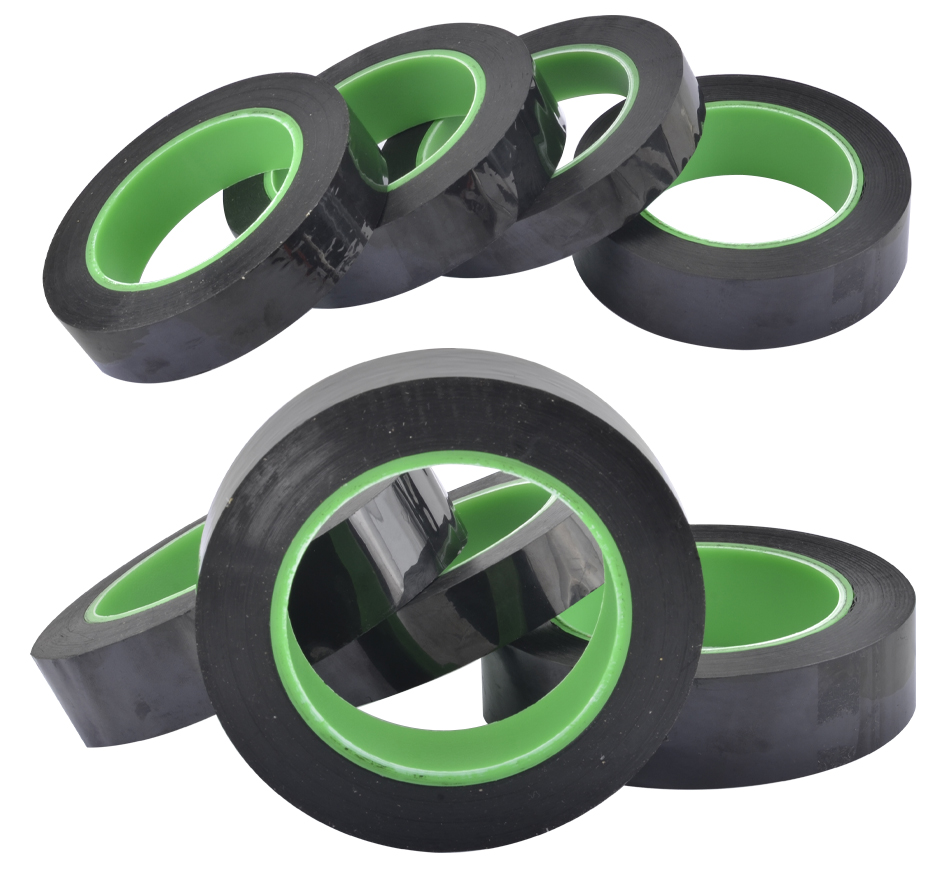

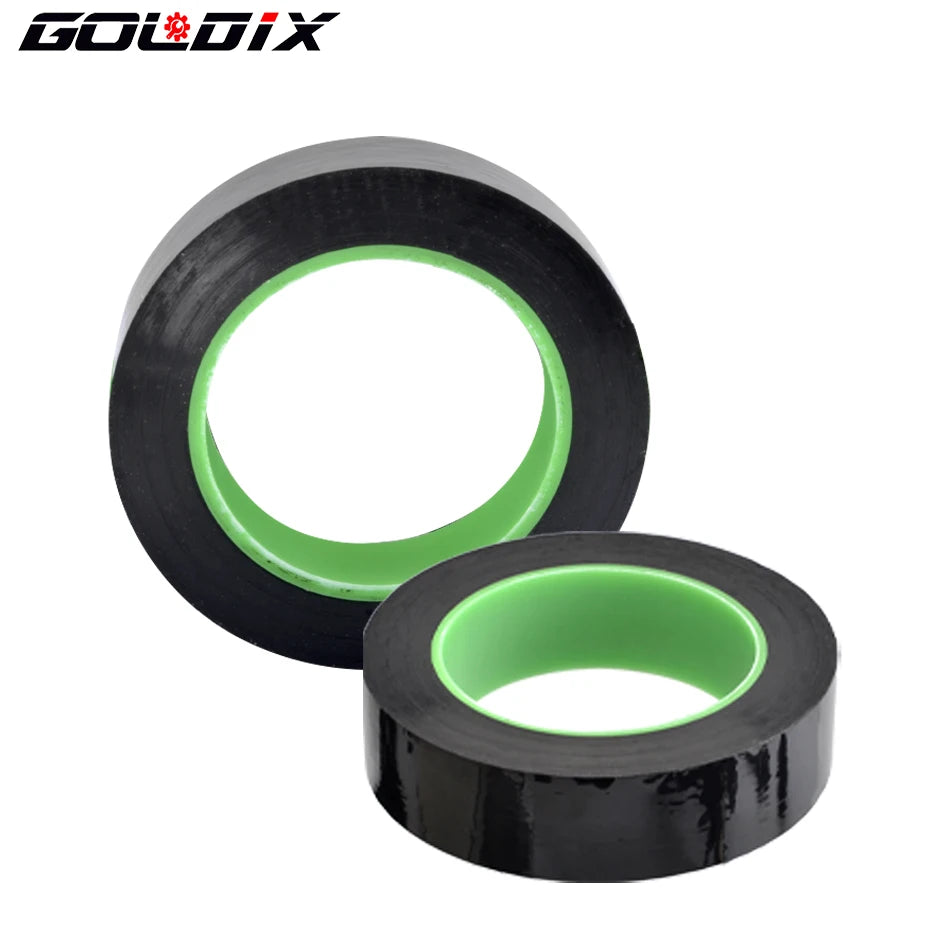

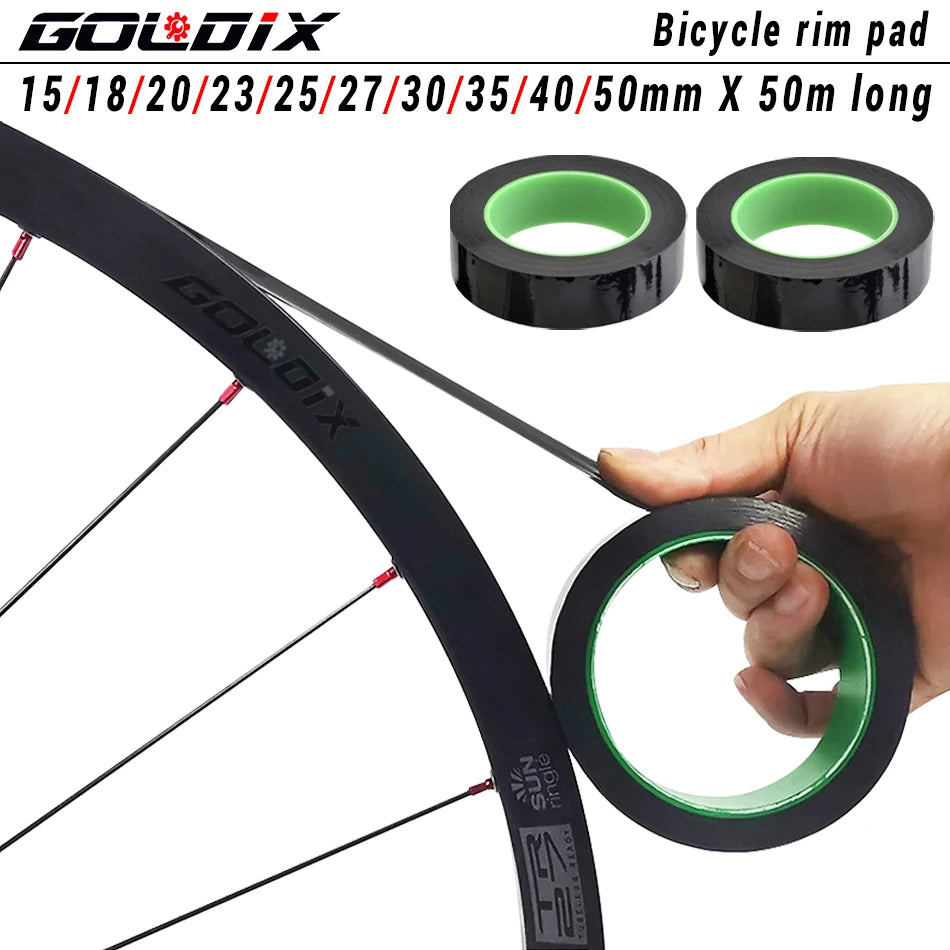

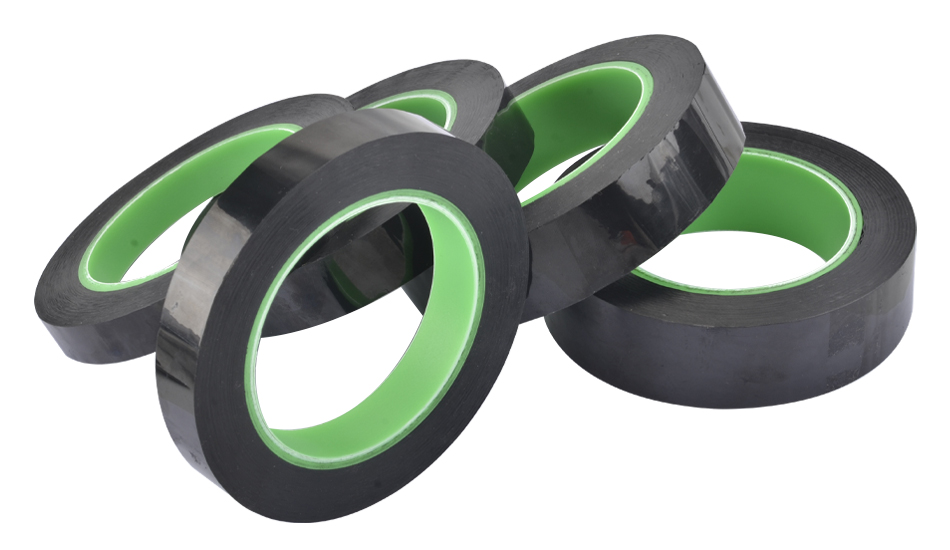

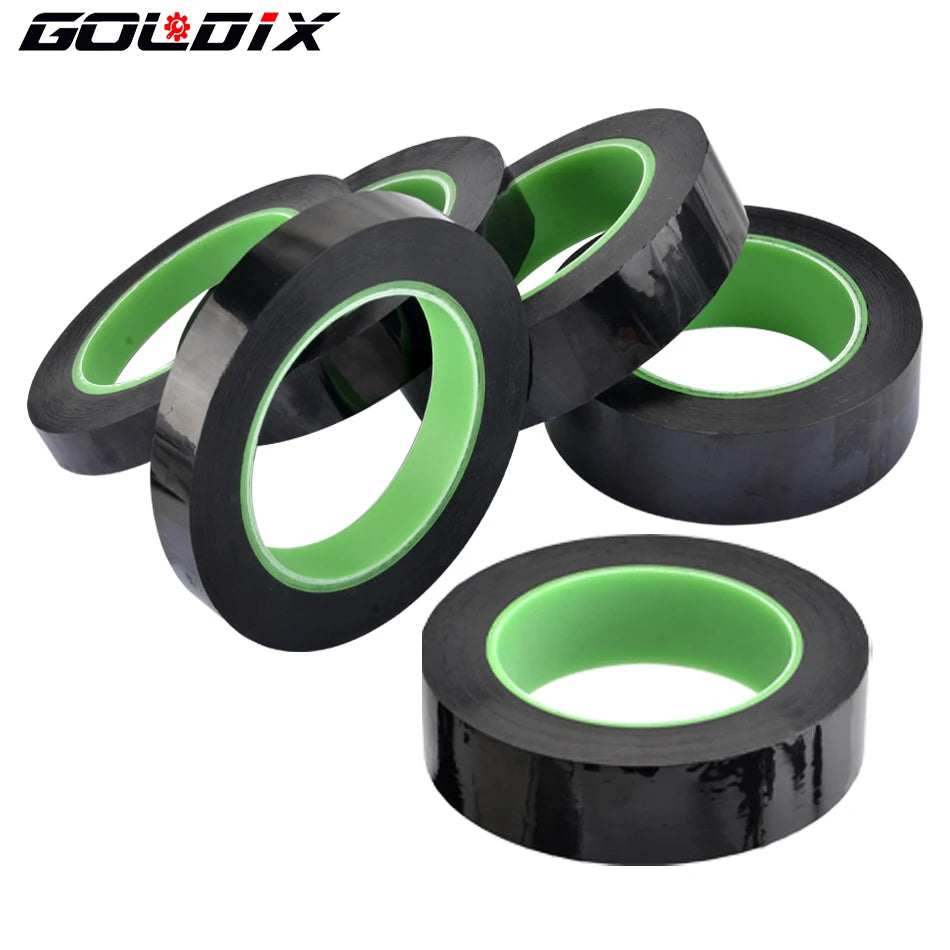

Tubeless tyre pads also support the use of ordinary inner tubes. The width is 15 18 20 23 25 27 30 35 40 50 wide*50m long and 10 specifications.

Tire pad width selection basis: tire pad width = inner width of rim section + 2~4mm, for reference only.

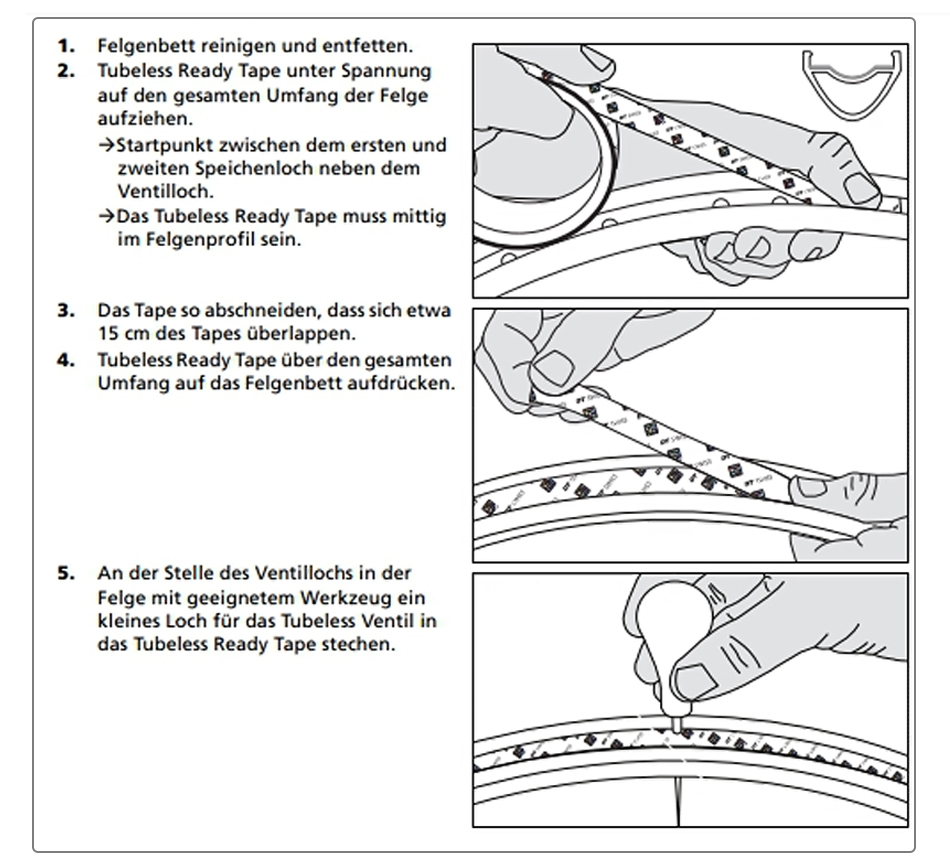

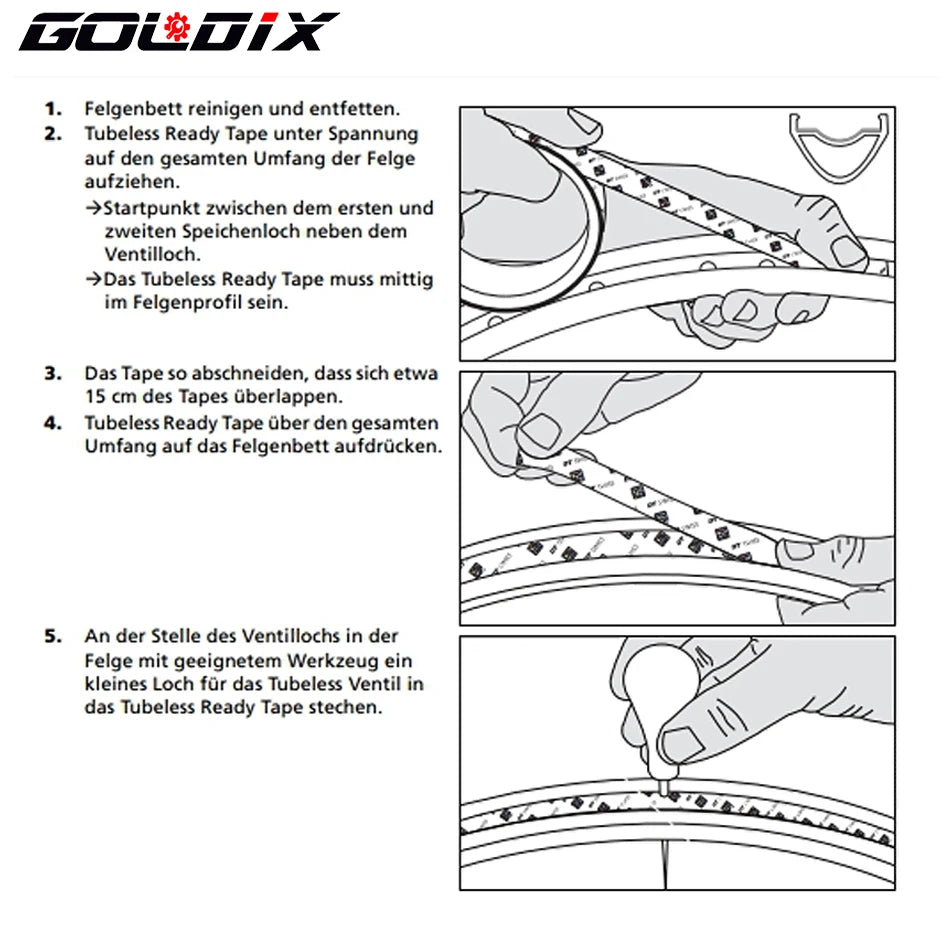

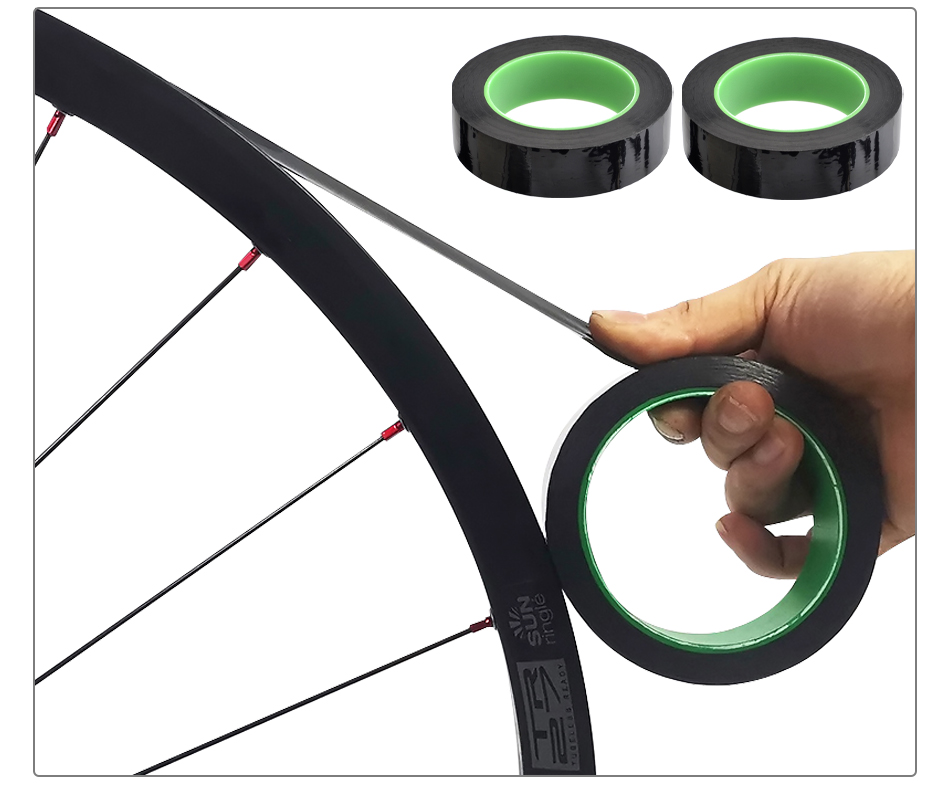

If a tubeless tyre is installed, the left side of the air nozzle hole starts to wind and the right side ends, and the vacuum nozzle covers the tire pad interface;

It is recommended to wrap the tire pads twice to insure enough!

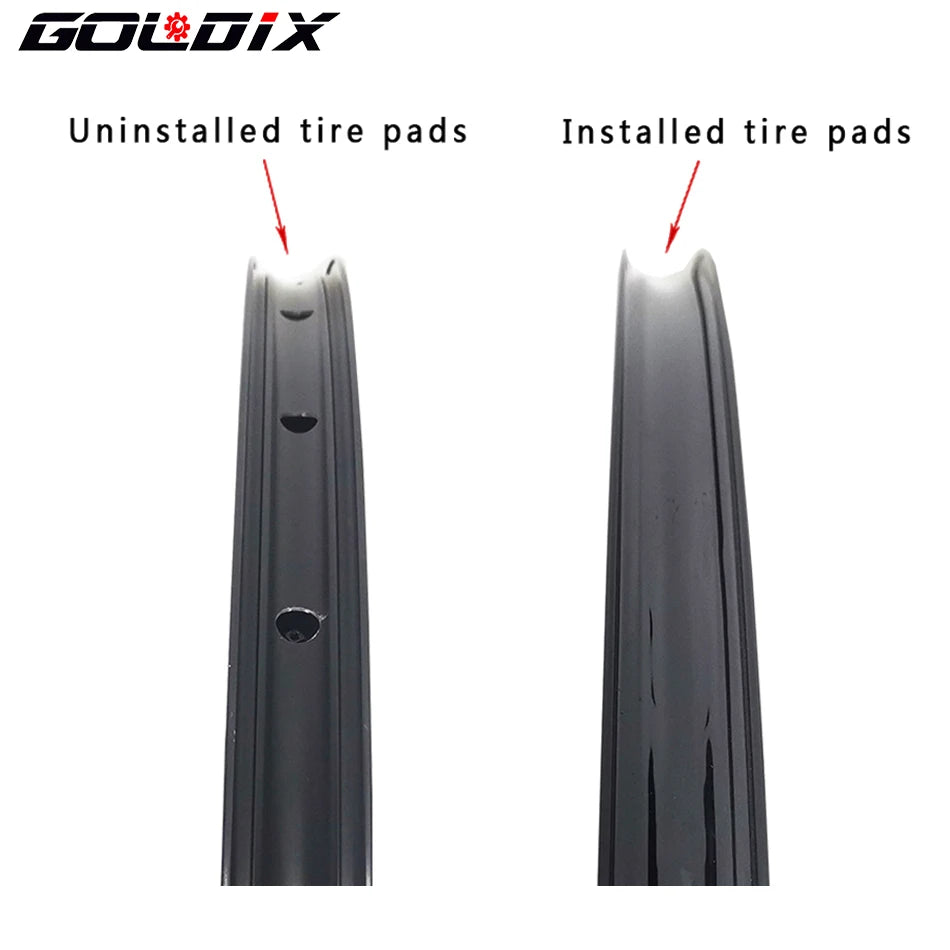

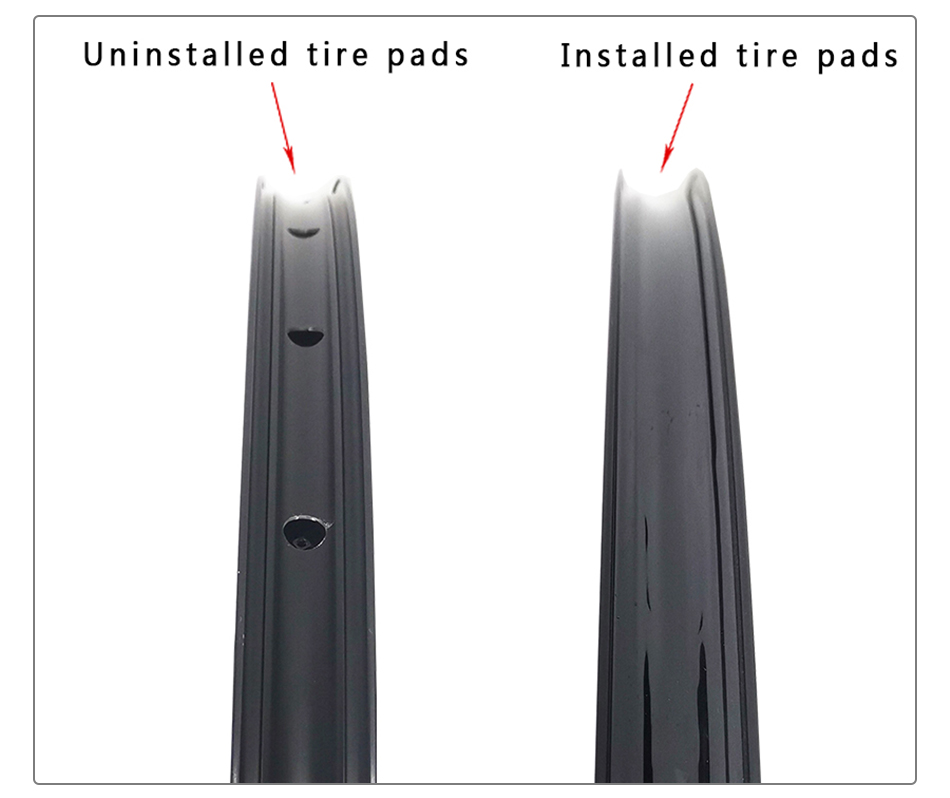

Tubeless tyres are wound with adhesive backing. In addition to being able to modify the vacuum wheel set through its good airtightness (the vacuum wheel set is modified by winding tubeless tyres, the rim needs a vacuum cross-section structure). Compared with traditional nylon tires, there are also differences. Few advantages: improved nylon tire pads displacement, wrinkles, cut inner tube, long time break and other problems; at the same time, a round of traditional nylon tire pads are about 20g, while a tubeless tire pad is only 5g, which is not only safe And very lightweight! Diameter of wrapping pad for various wheel diameters:

26 inches is 559mm, that is, 0.559x3.14=1.76m, and the overlap of the 26-inch tire pad is about 2 meters in one round;

27.5 inches is 584mm, that is, 0.584x3.14=1.83m, and the overlap of 27.5 inches tire pads is about 2.1 meters per round;

The 29-inch and 700C are both 622mm, that is, 0.622x3.14=1.95m, and the overlap of each 29-inch tire pad is about 2.3 meters;

The above-mentioned amounts of tire pads for various wheel diameters are for reference only, and are subject to actual measurements by riders.
