SPECIFICATIONS

Brand Name: GOLDIX

Category: CRANK

Choice: yes

High-concerned chemical: None

Material: Aluminum Alloy

Model Number: GOLDIX-SL

Origin: Mainland China

Type: Bicycle Crank

Use: Road Bicycles

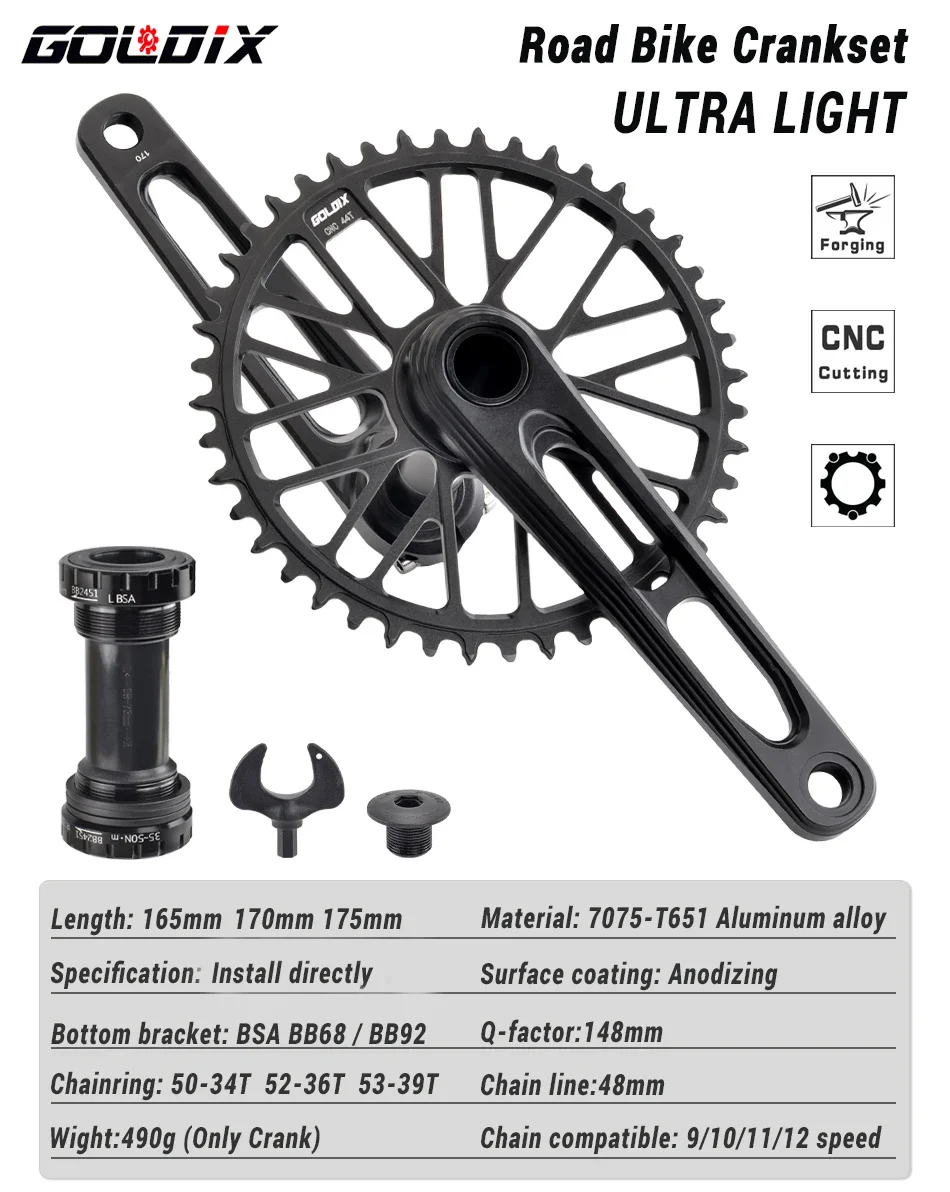

GOLDIX UltraLight Road Bike Crankset 165/170/175mm With 0mm offset Single Plate 32-48T Double Plate 50-34T 52-36T 53-39T


Brand: GOLDIX

Material: 7075 aluminum alloy

Model: GOLDIX-SL

Crank length: 165/170/172.5/175mm

Installation Type:3BOLT Direct Installation

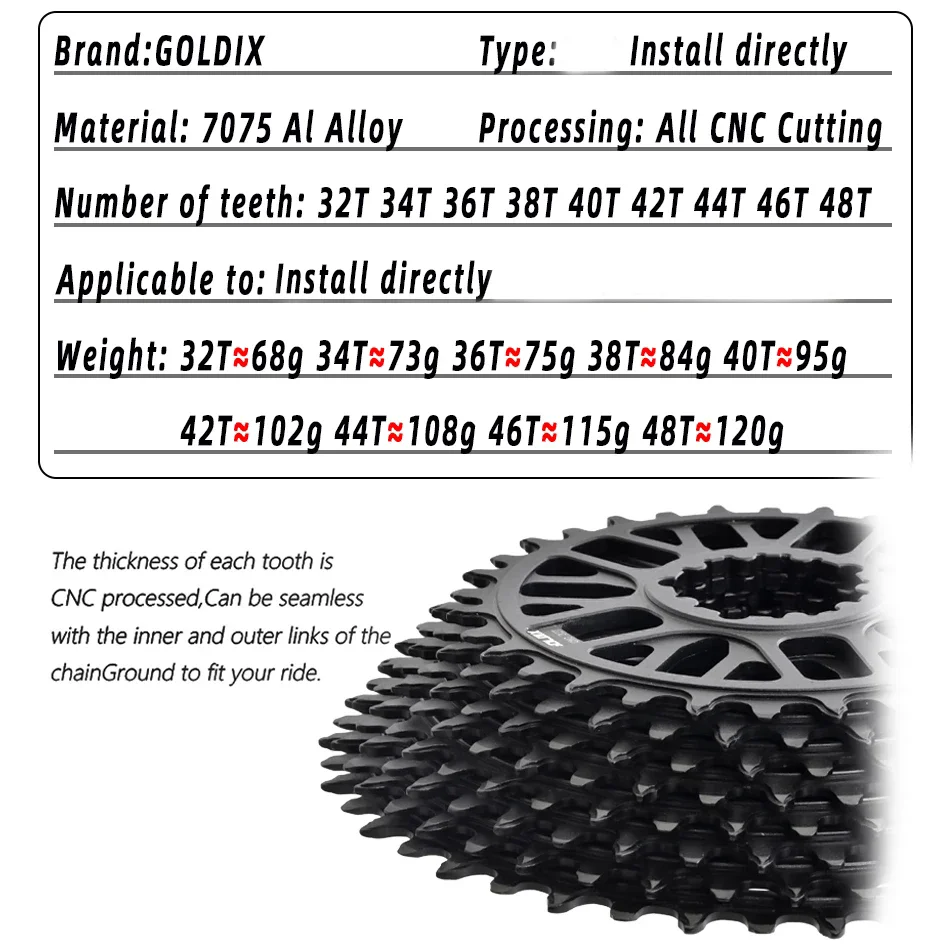

Chain Ring: 32T/34T/36T/38T/40T/42T/44T/46T/48T

Chainring Offset: 0mm OffsetAxis diameter: 24mm

Axis material: 7075 aluminum alloy

Axis length: 115mm

Crank screw specification: m15

Surface treatment: Anode oxidation

Pedal: m14

Support speed: 7s-12s

Compatible: ROFShimano, SRAM, SENSAH, LTWOO, Microshift

Bottom bracket specifications:

BB68 M68-73 (standard configuration),The applicable frame bottom bracket width of 68mm-73mm.

Thread specifications: BC1.37*24T, 34mm outer diameter, suitable for 24mm Axis

Feature:

1. 7075 aluminum alloy forging.

2. Compatible with 7-12 speed.

3. Axial chromium solvent steel, high intensity, high temperature resistance, preservatives, light weight.

4. Laser laser surface treatment, will not fade.

5. 3D forging process, one by one.

Product weight:

Bicycle crank weight:

165mm ≈485g

170mm ≈500g

172.5mm ≈505g

175mm ≈513g

Bicycle chainring weight:

32T≈67g

34T≈71g

36T≈78g

38T≈84g

40T≈95g

42T≈99g

44T≈108g

46T≈114g

48T≈118g

50-34T ≈180g

52-36T ≈186g

53-39T ≈203g

Bottom bracket: ≈95gAxis diameter: 24mm

Axis material: 7075 aluminum alloy

Axis length: 115mm

Crank screw specification: m15

Surface treatment: Anode oxidation

Pedal: m14

Support speed: 7s-12s

Compatible: Shimano, SRAM, SENSAH, LTWOO, Microshift

Bottom bracket specifications:

BB68 M68-73 (standard configuration),The applicable frame bottom bracket width of 68mm-73mm.

Thread specifications: BC1.37*24T, 34mm outer diameter, suitable for 24mm Axis

Feature:

1. 7075 aluminum alloy forging.

2. Compatible with 7-12 speed.

3. Axial chromium solvent steel, high intensity, high temperature resistance, preservatives, light weight.

4. Laser laser surface treatment, will not fade.

5. 3D forging process, one by one.

Product weight:

Bicycle crank weight:

165mm ≈485g

170mm ≈500g

172.5mm ≈505g

175mm ≈513g

Bicycle chainring weight:

32T≈67g

34T≈71g

36T≈78g

38T≈84g

40T≈95g

42T≈99g

44T≈108g

46T≈114g

48T≈118g

50-34T ≈180g

52-36T ≈186g

53-39T ≈203g

Bottom bracket: ≈95g

Note: Manually measured, there is a ±5g error.

If you need to replace the bottom bracket of the BB92 pressing method, you can tell us or leave a message for our order
