SPECIFICATIONS

Brand Name: HooCrawler

Choice: yes

High-concerned chemical: None

Origin: Mainland China

Recommend Age: 14+y

Technical parameters: value 2

Use: Vehicles & Remote Control Toys

semi_Choice: yes

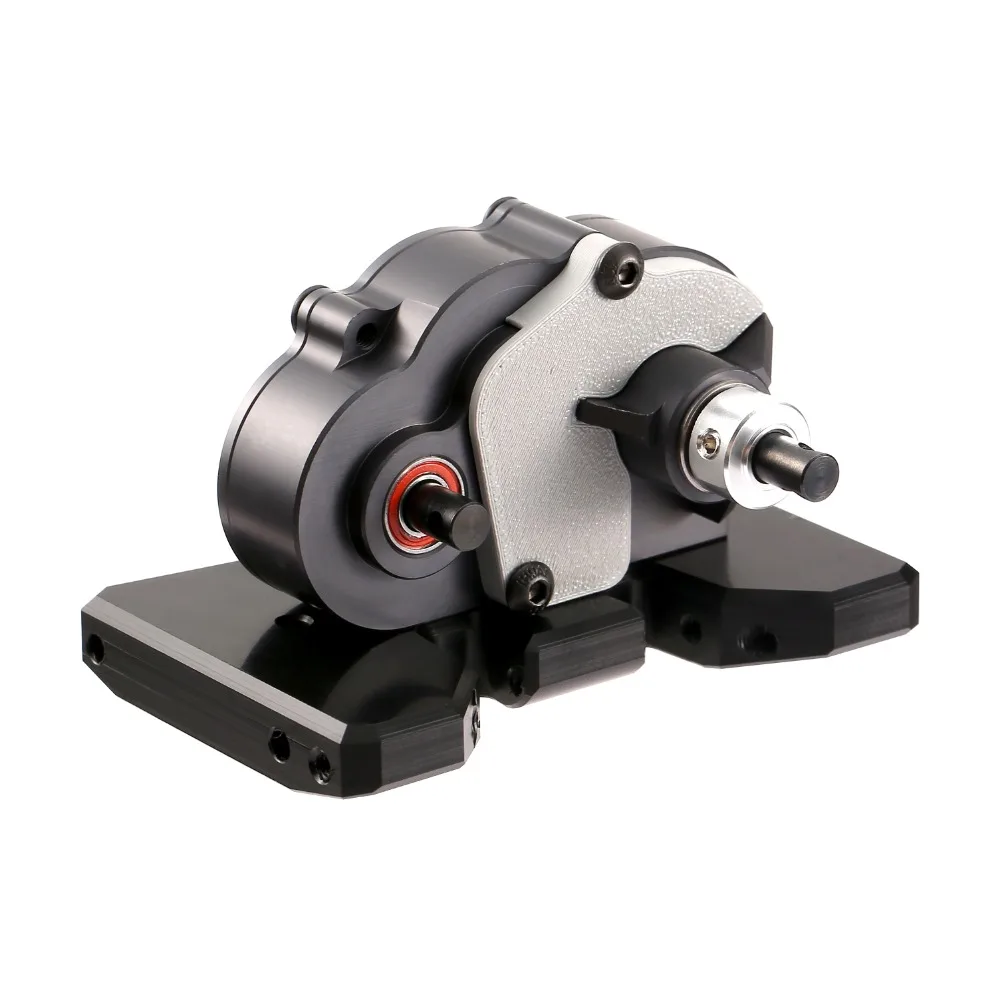

Features:

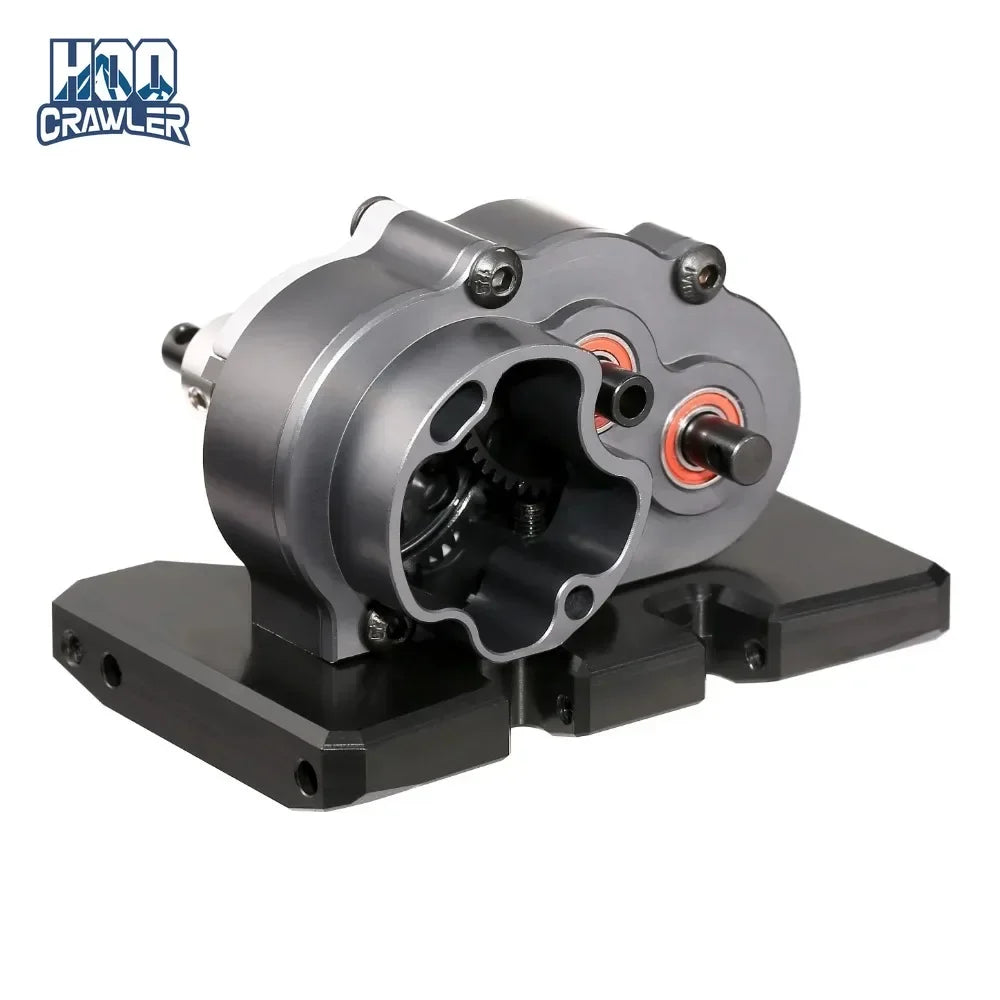

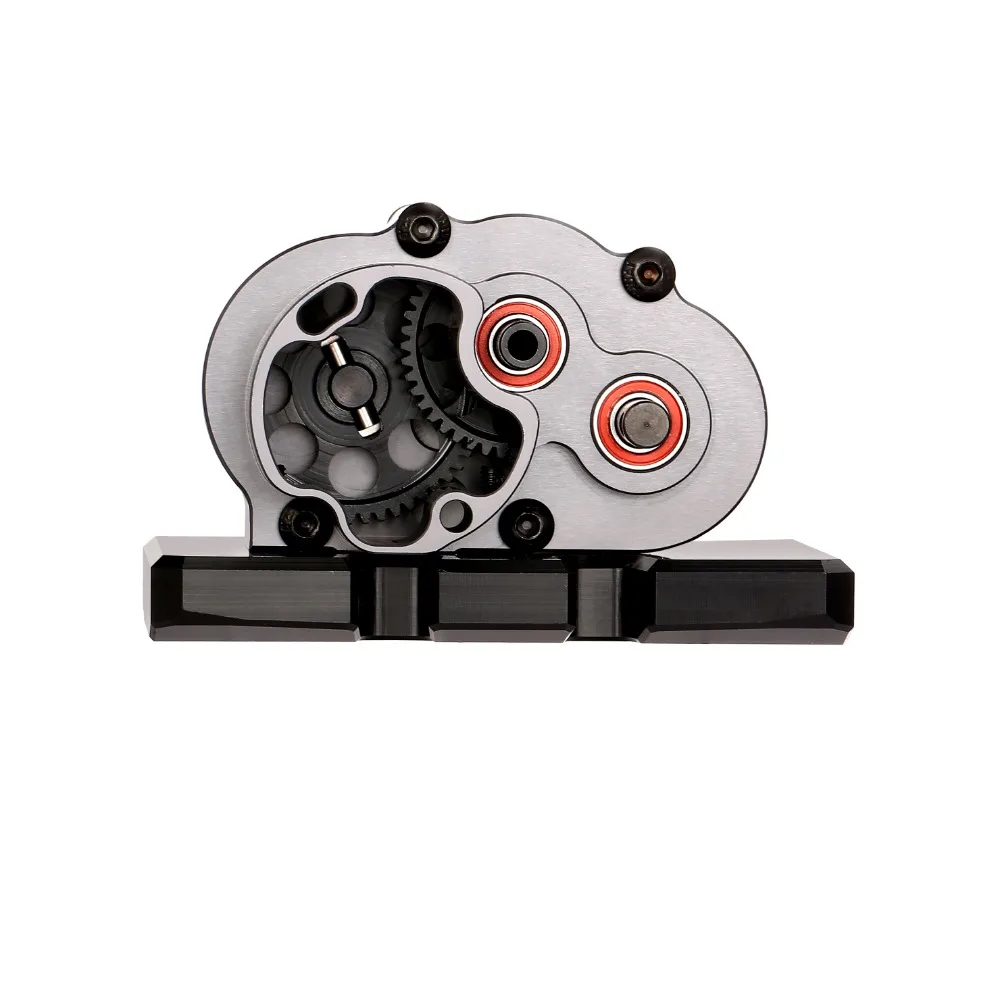

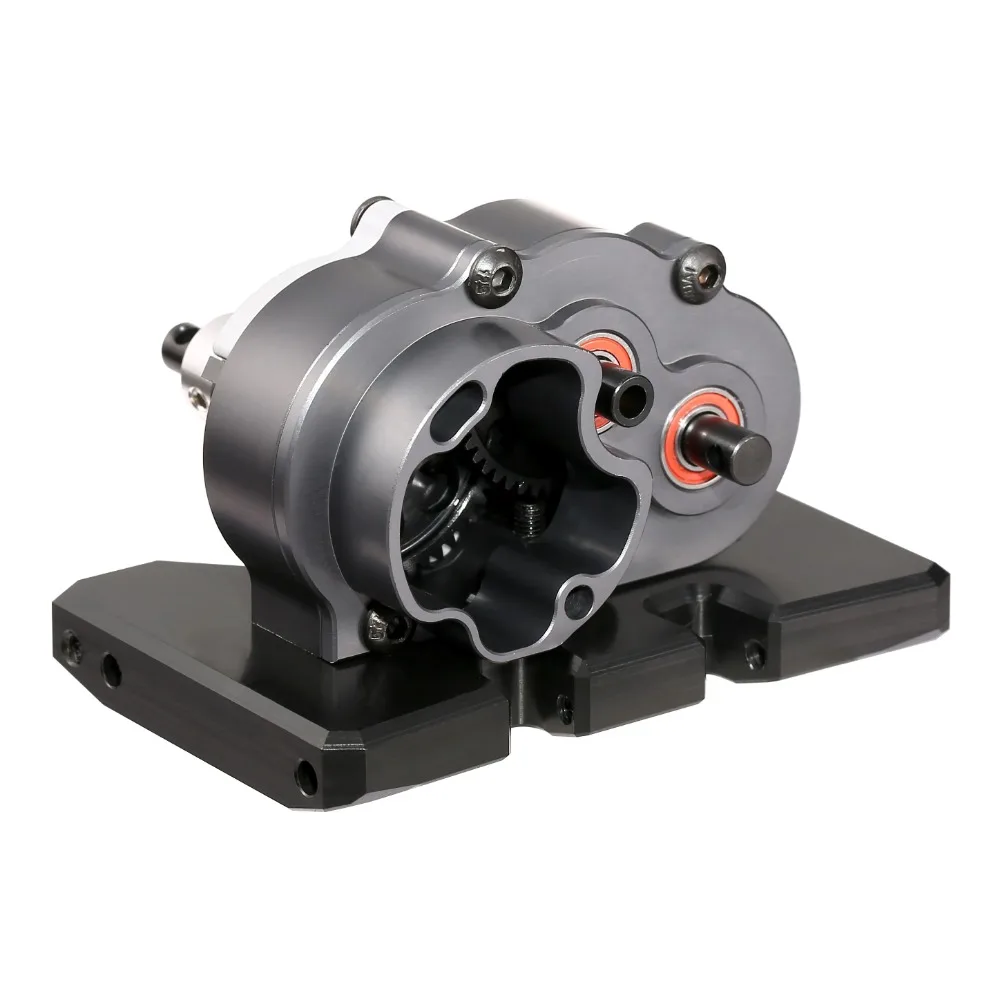

●Machined aluminumc ase, Anodized.
●Heat treated alloy steel gears and output shafts.
●Machined solid delrin skid plate, super slippery for sliding over rocks and debris.
●Includes hardware required for assembly
●3.66:1 gearing, plus 44T spur gear.

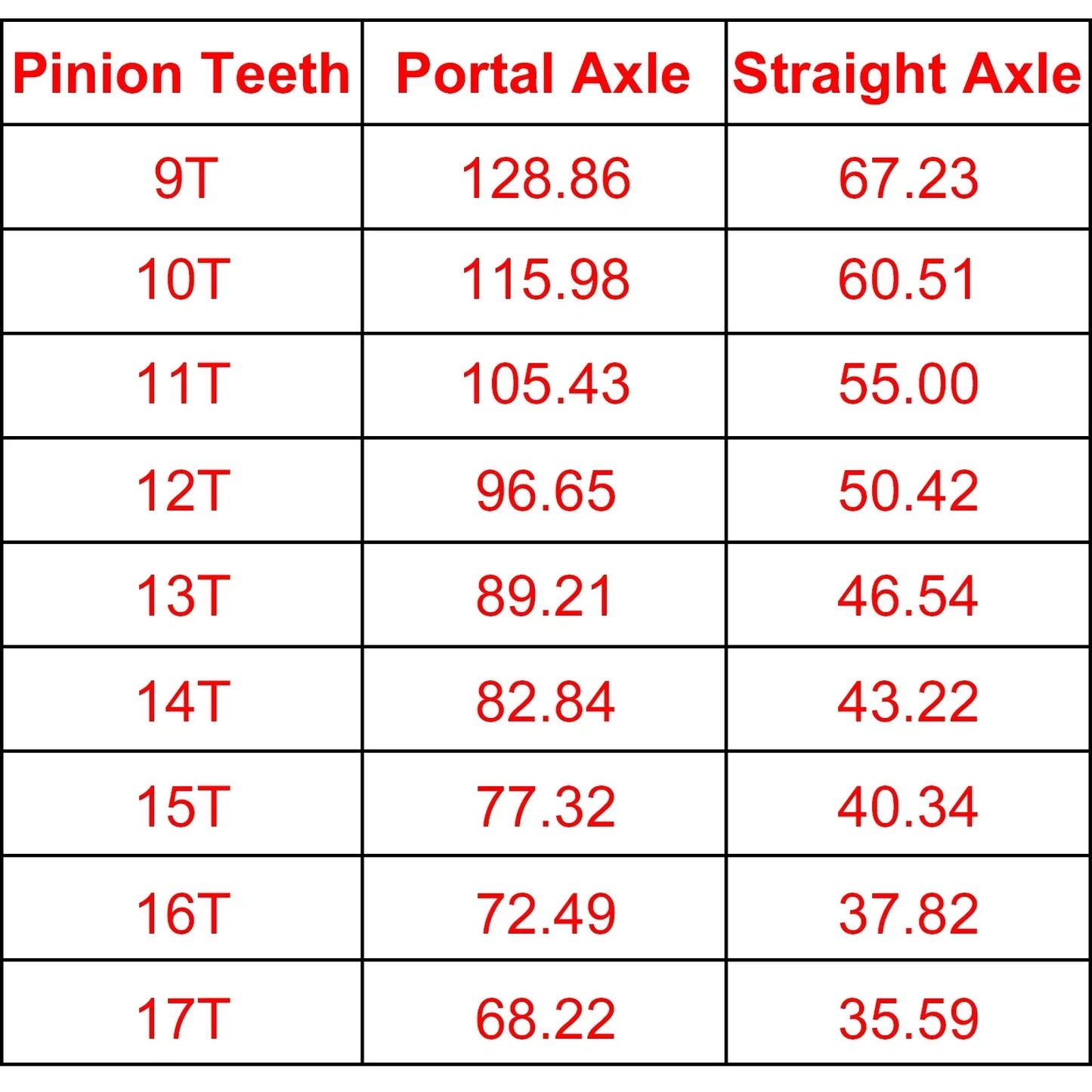

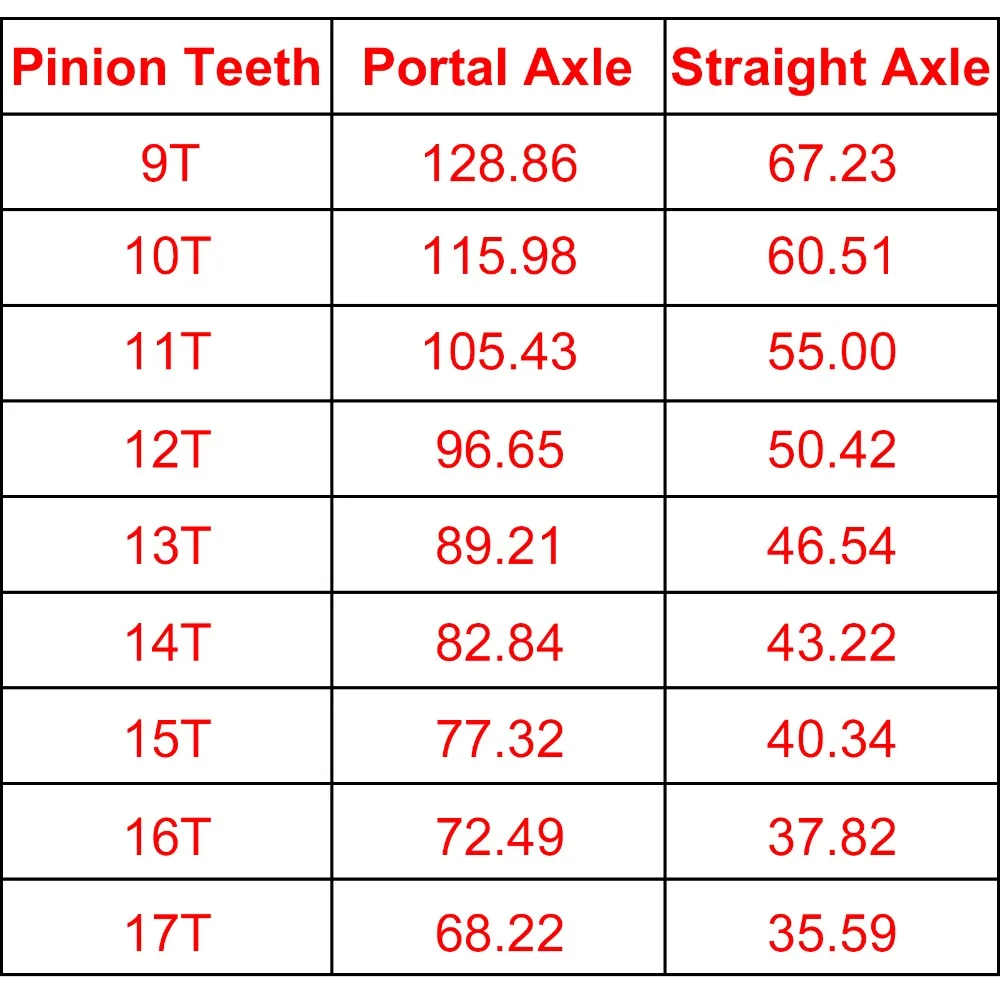

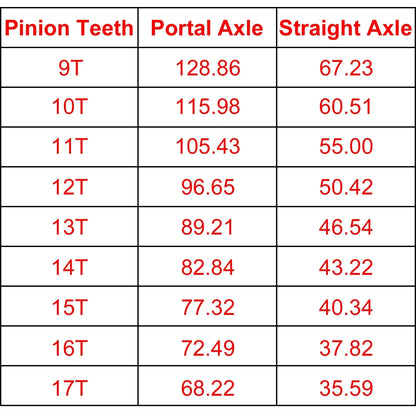

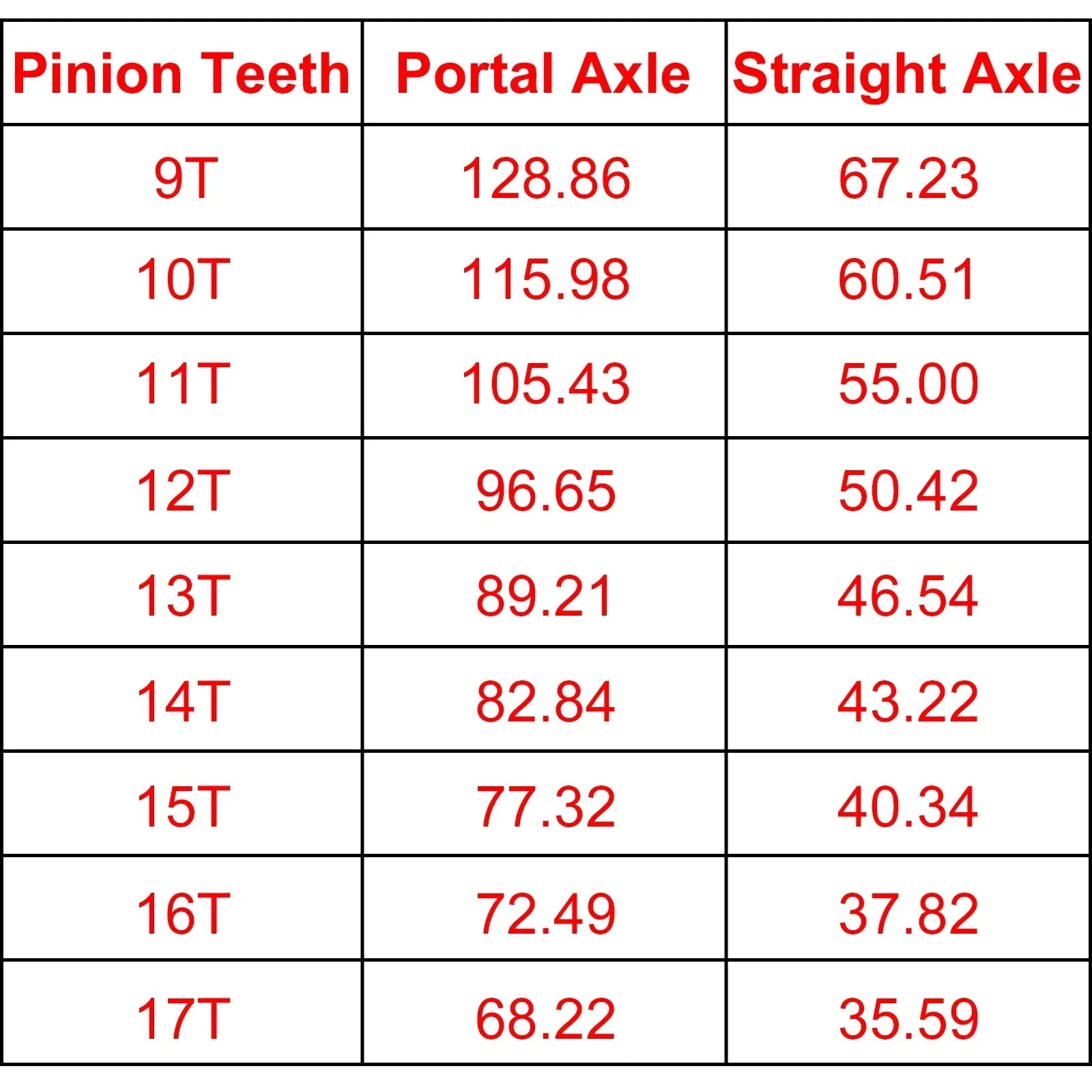

●Uses 48P pinion gears from 9 to 17 teeth(Not Included).
●Use 12T pinion gear as a starting point for most AR44 applications with overdrive front gears.
●18.6% overdrive (both outputs spin same direction, so no need for flipped ring gears).
●28% overdrive when used with underdrive rear ring and pinion.
●38% overdrive when used with underdrive and overdrive ring and pinion.

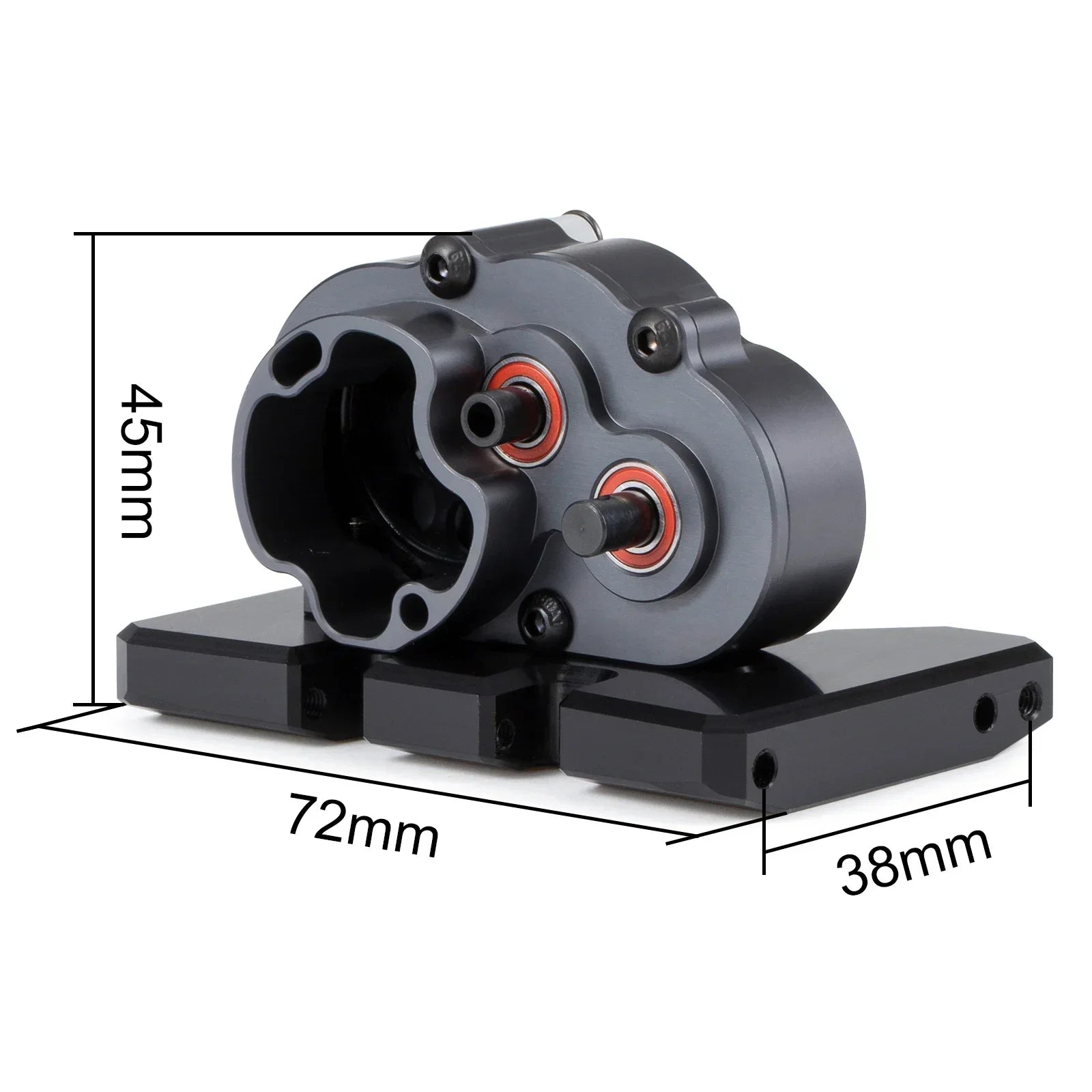

Dimensions:
Transmission: 35Lx59Wx36H (in mm)
Skid Plate: 41Lx72Wx9H (in mm)

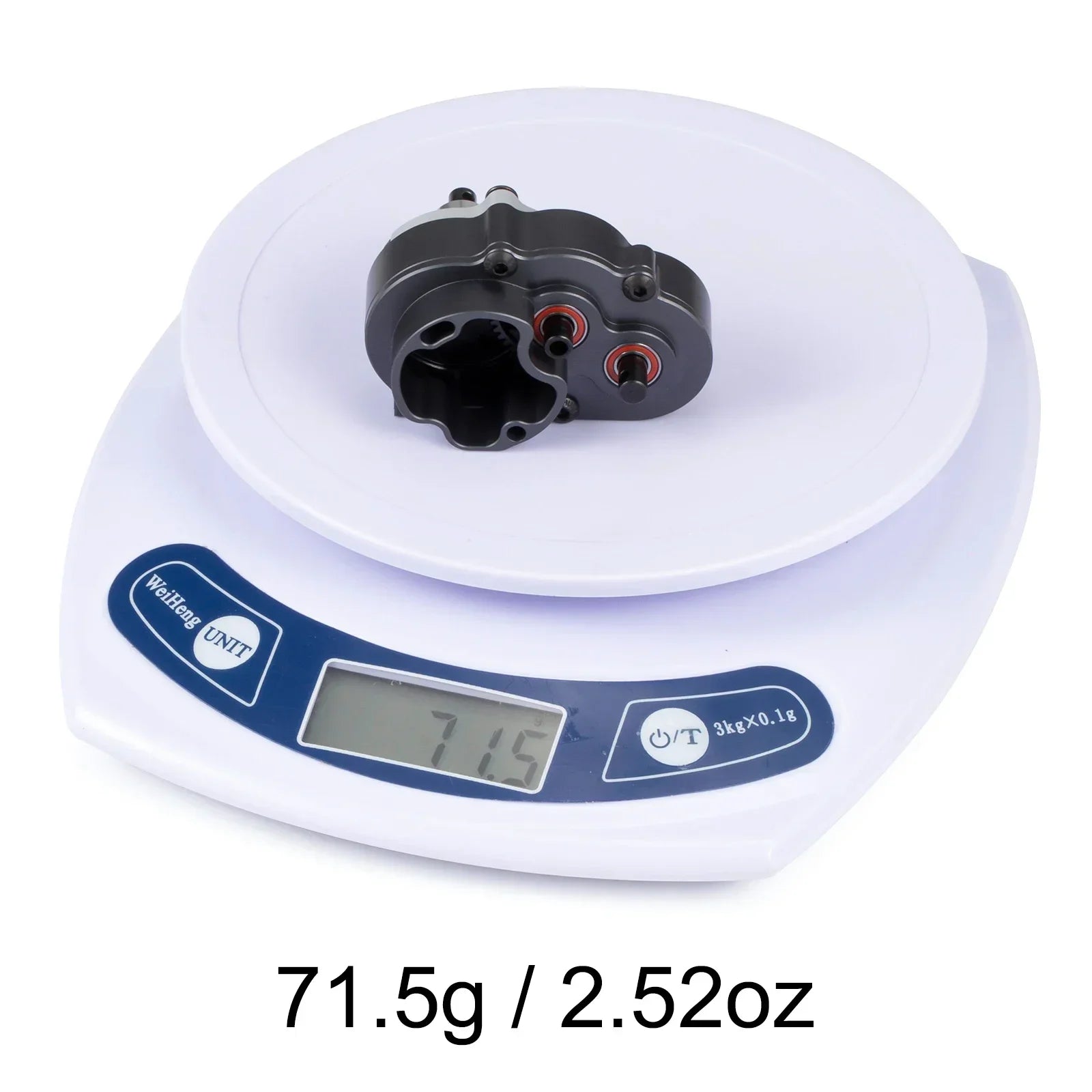

Weight:
Transmission: 71.5g / 2.52oz
Skid Plate: 31.5g / 1.11oz

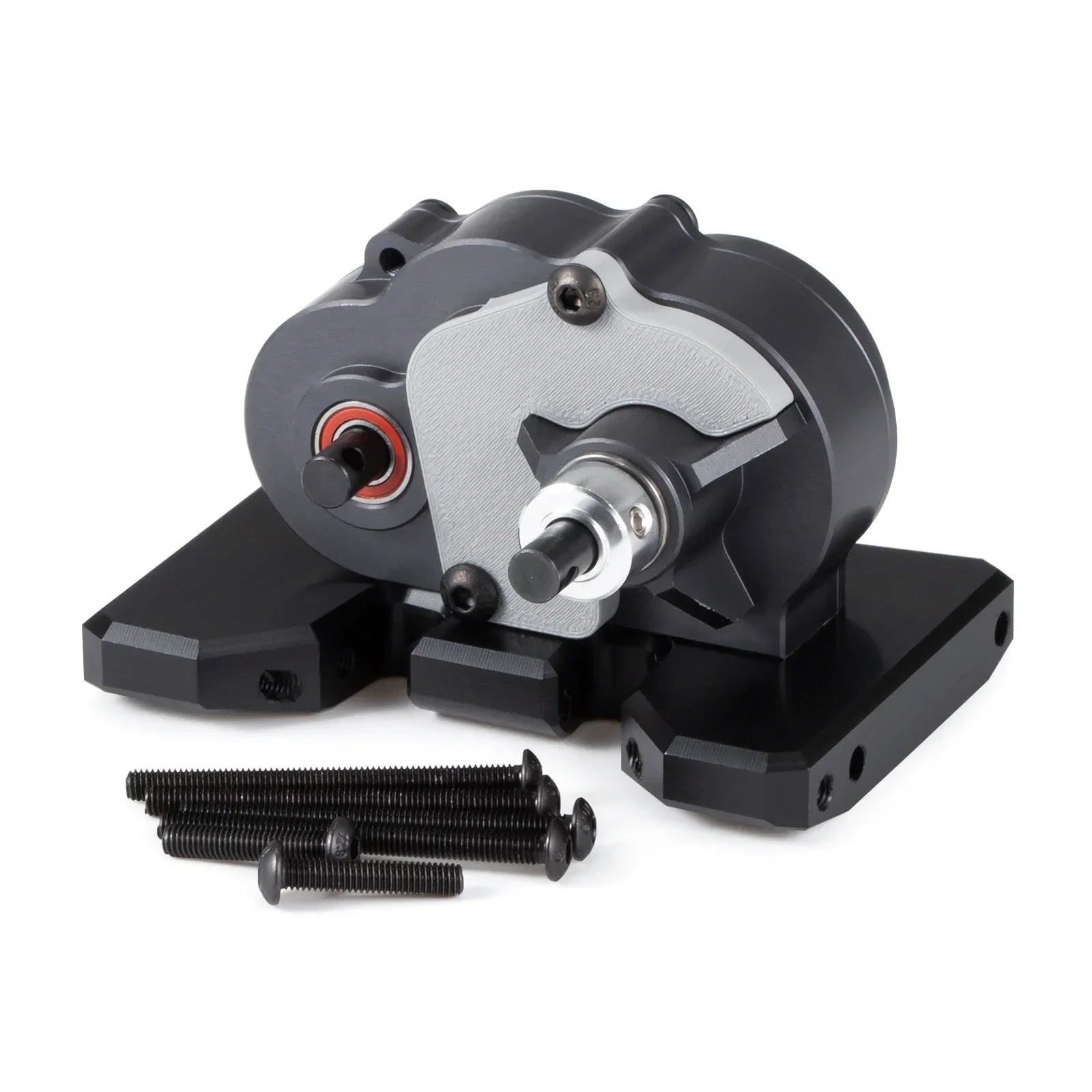

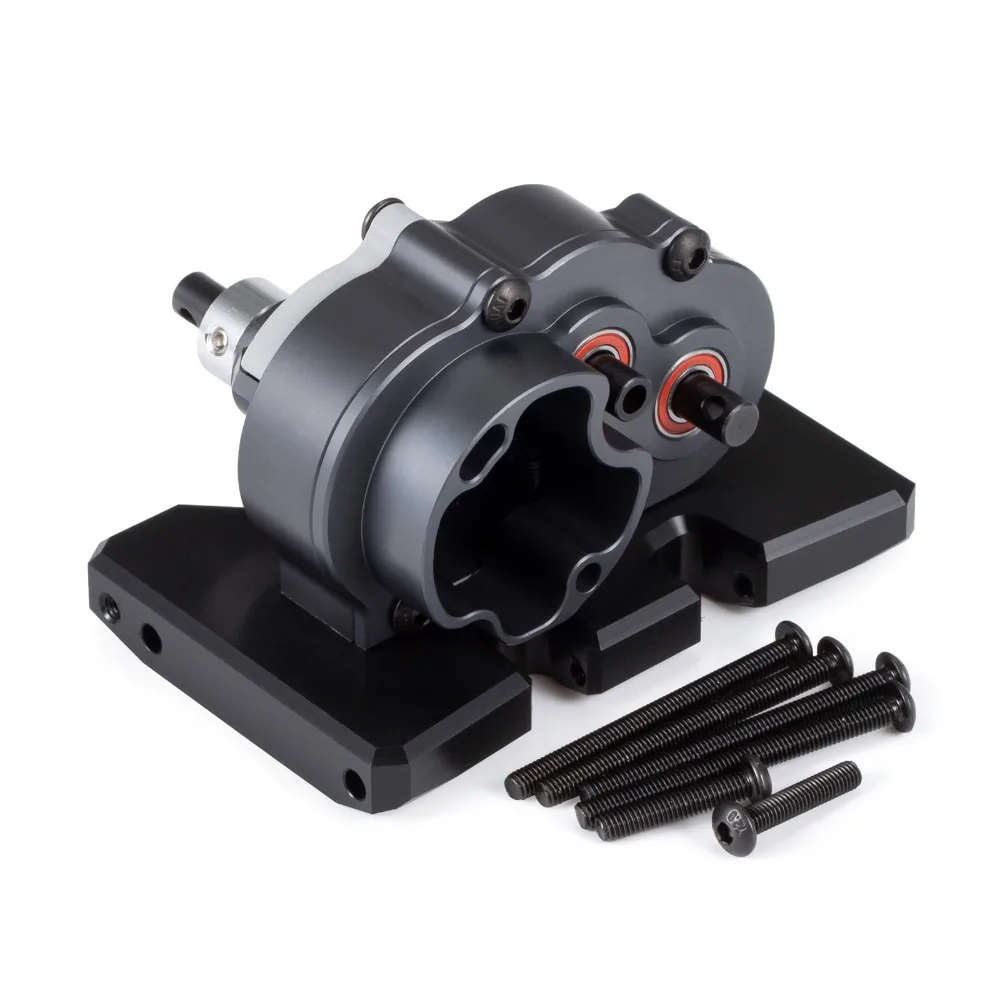

Package List:
1* Transmission
1* Skid Plate
1 set of screws

Notes:

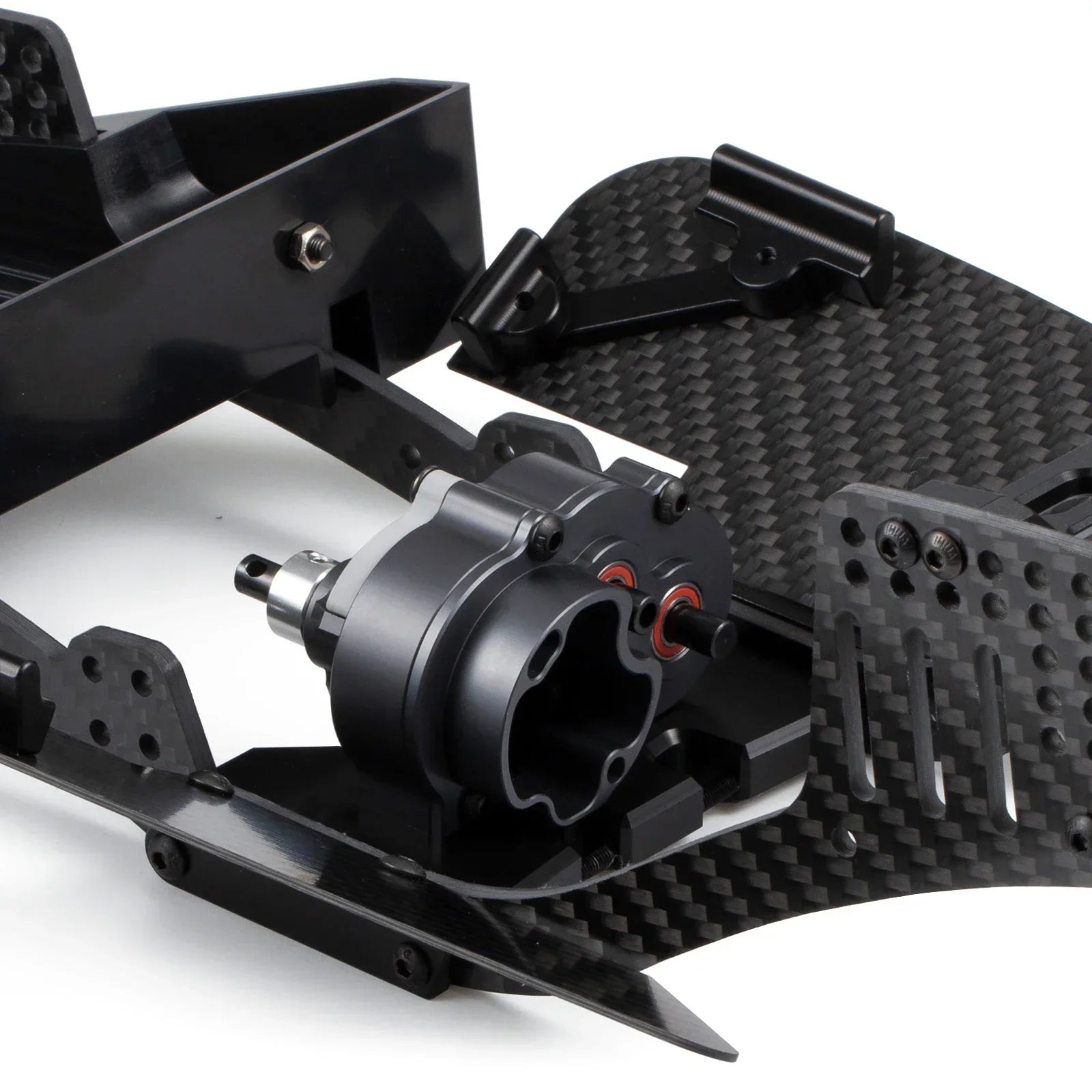

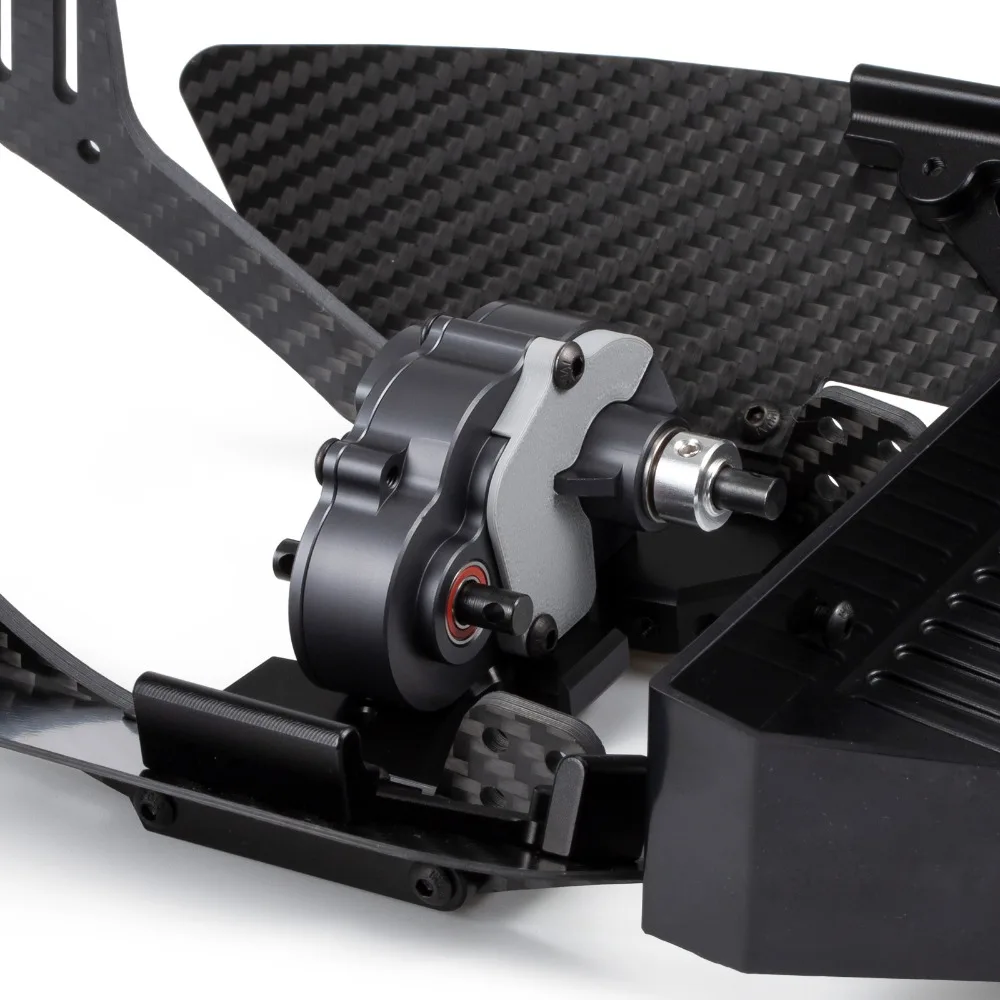

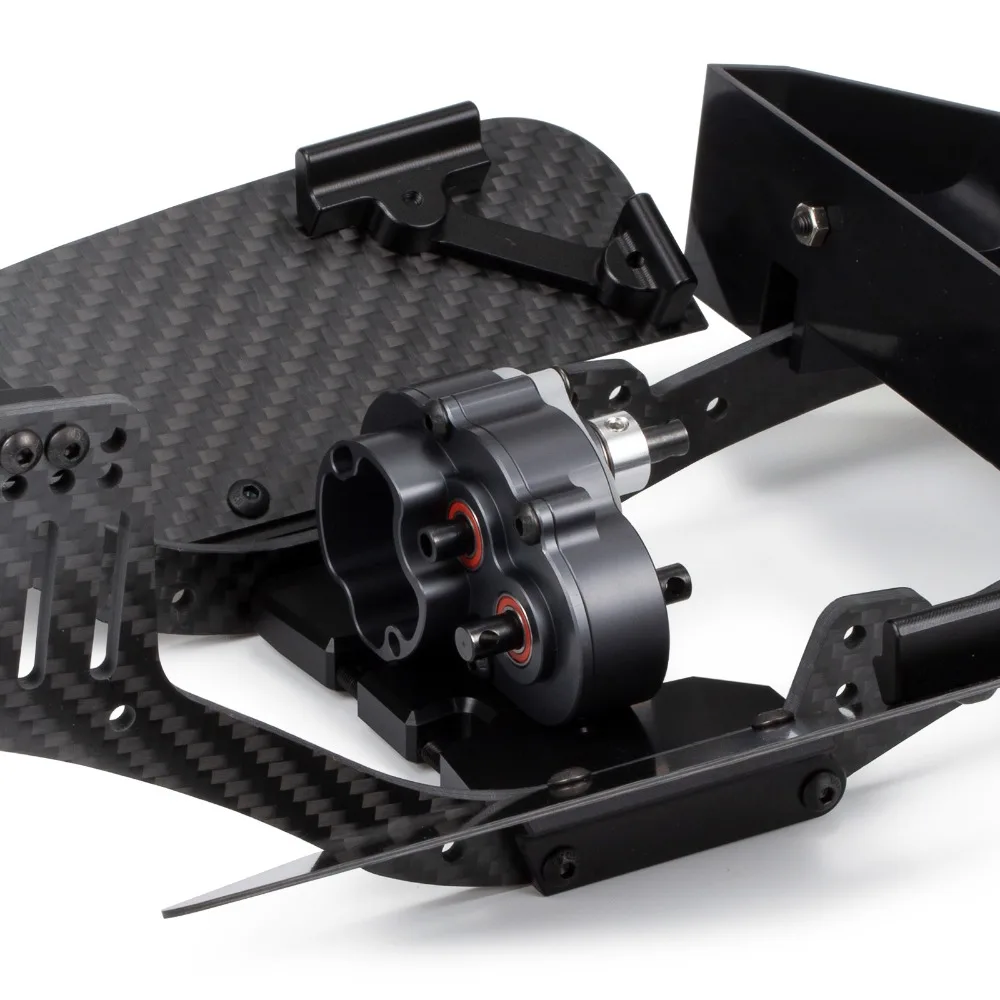

1. The other products in the picture are for display only and are not included.
2. Any problem, please contact our store without hesitation. Honored to serve you.
