Product Description

Pre purchase notice
This product is a DIY bidirectional charging module. To make the required motherboard or output module for the power pack, a certain amount of basic knowledge is required. The module has been tested before leaving the factory. Do not make mistakes in operation that may cause damage, as it is difficult to provide after-sales service.

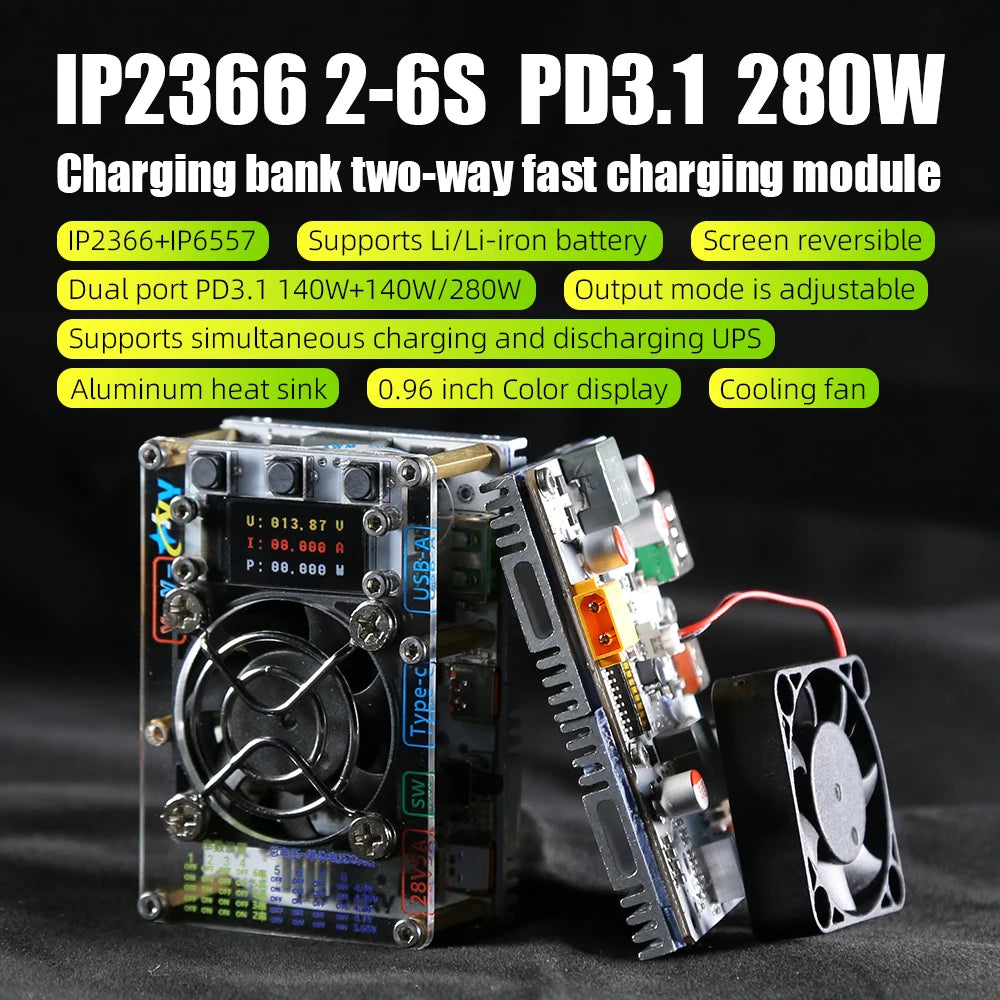

Product Introduction

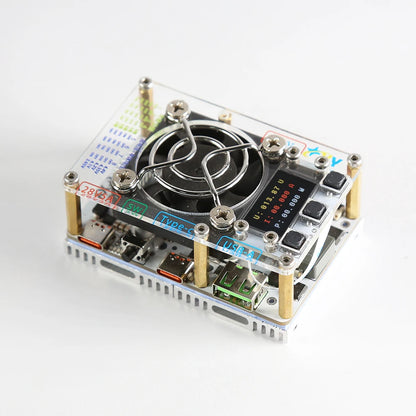

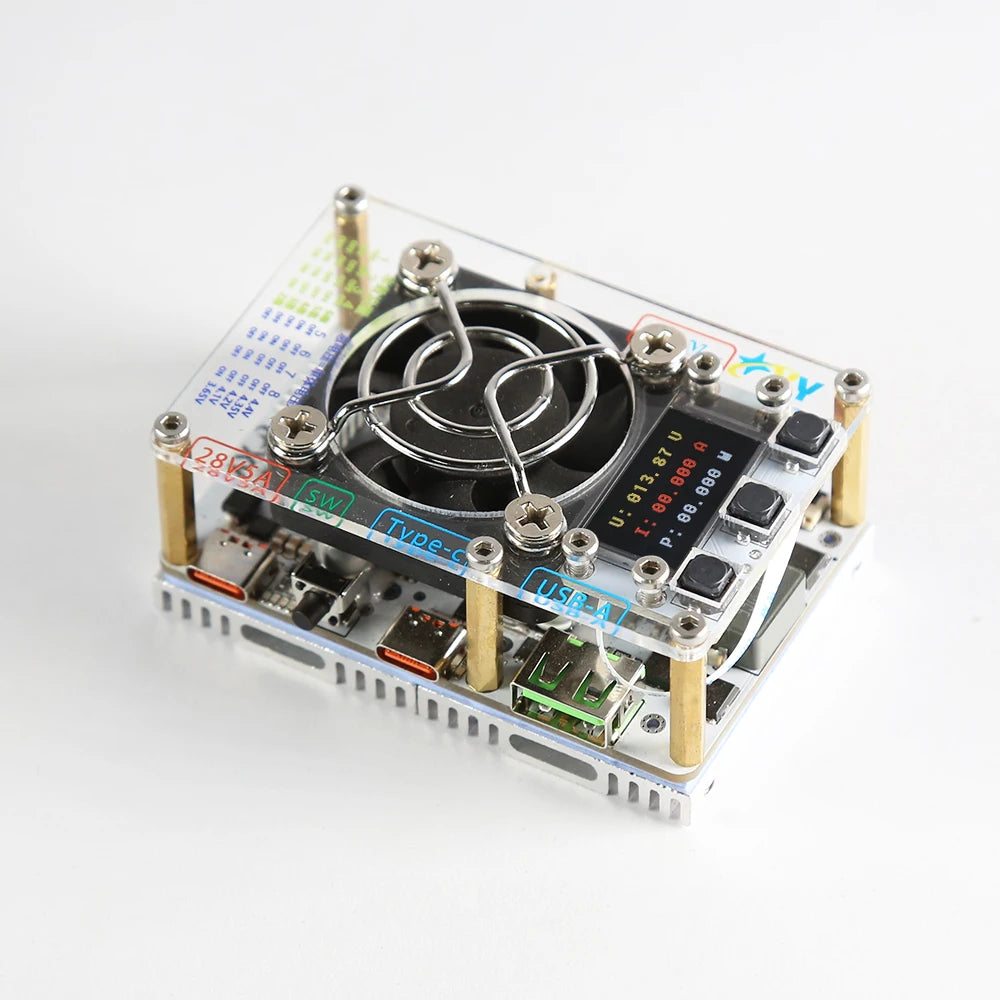

This product is a combination of bidirectional fast charging, unidirectional fast charging, lithium iron/lithium battery fast charging, color screen display, and fan aluminum heat dissipation. It is equipped with two Type-C ports, one USBA port, and two high-power Type-C ports that support PD3.1
A DIY module with 140W+140W output is a great choice as a power bank motherboard or fast charging module.

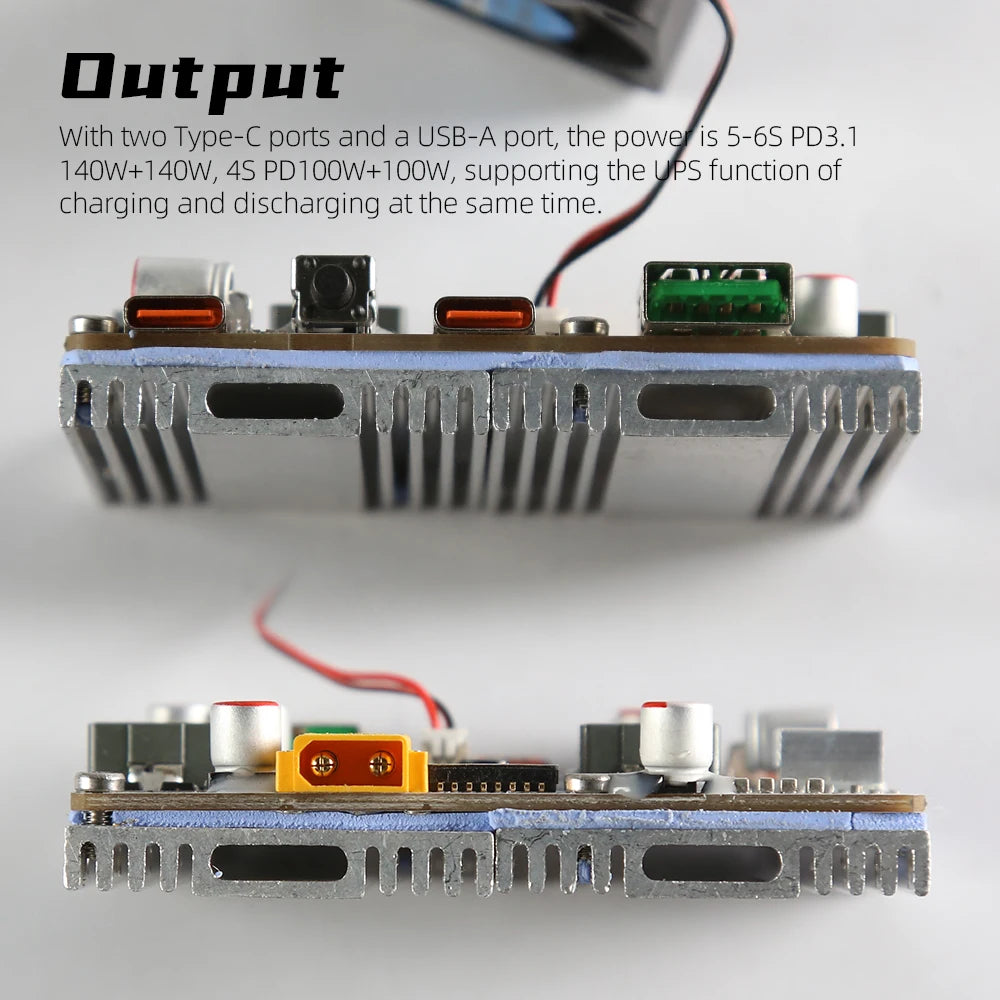

power
This product has a total power of 280W and is equipped with IP2366+IP6557, paired with a 2Type-C port and a USB-A port. When 5-6S input is used, it can achieve PD3.1 140W+140W output, and PD100W+100W output at 4S. It is a battery with high discharge rate and good quality that is easy to use.
Support PD3.1 28V5A, 3-21V 3A PPS FCP、AFC、SCP、QC2.0/3.0/3.0+。 It can meet the needs of most mobile phones and laptops, and colleagues can charge various battery packs, such as tool batteries, equipment batteries, or rechargeable batteries.
Support UPS function with simultaneous input and output
This function can be achieved by outputting a Type-C port and inputting a Type-C port.
Low end version
The low-end version without a monitor meets different usage needs, paired with IP2366+SW3538, with a power of 140W 28V5A+140W 20V7A, and only comes with one cooling fan.

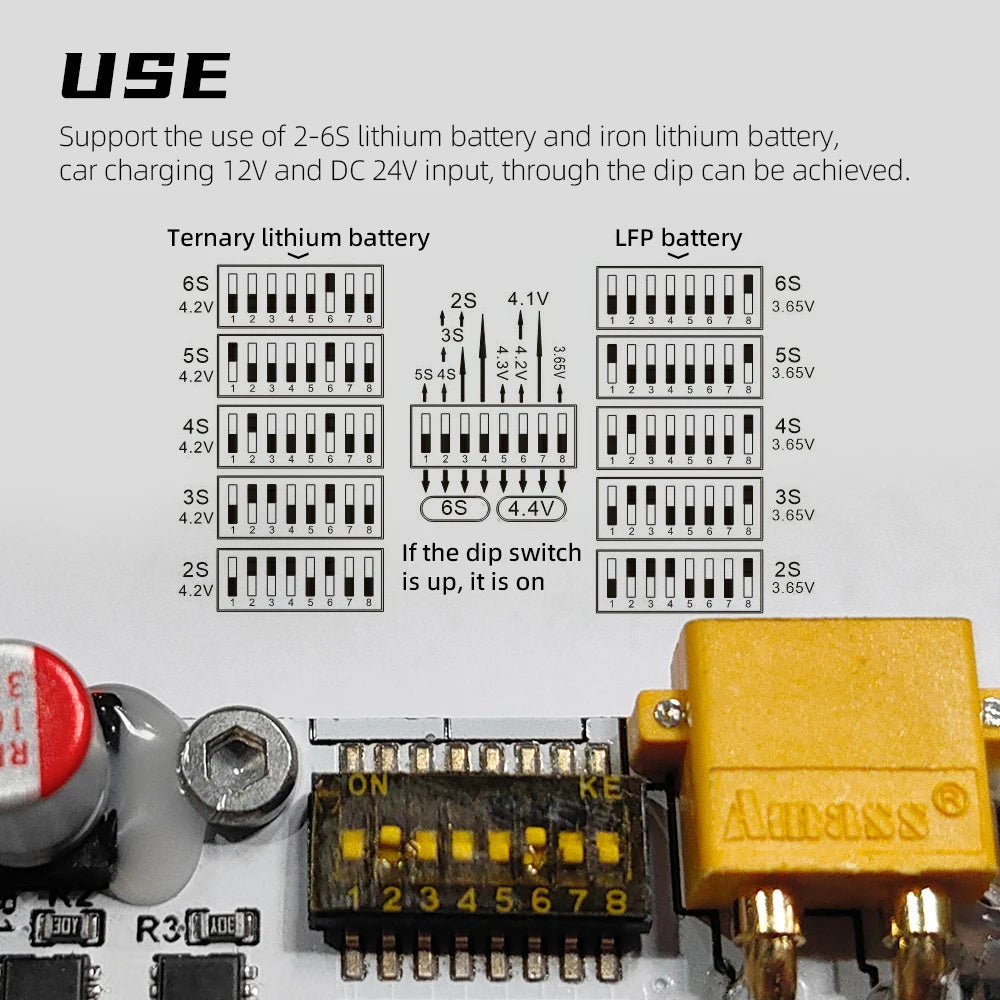

use
This product can be connected to a battery pack as a bidirectional fast charging module, and can also be used as a vehicle charging 12V input and DC 24V input unidirectional module. When used as a fast charging module for battery packs, it can be connected to 2-6S lithium battery packs and iron lithium battery packs. All need to be adjusted to the appropriate voltage for use in conjunction with dialing.
The interface switching of the screen can be achieved through the buttons next to the screen.

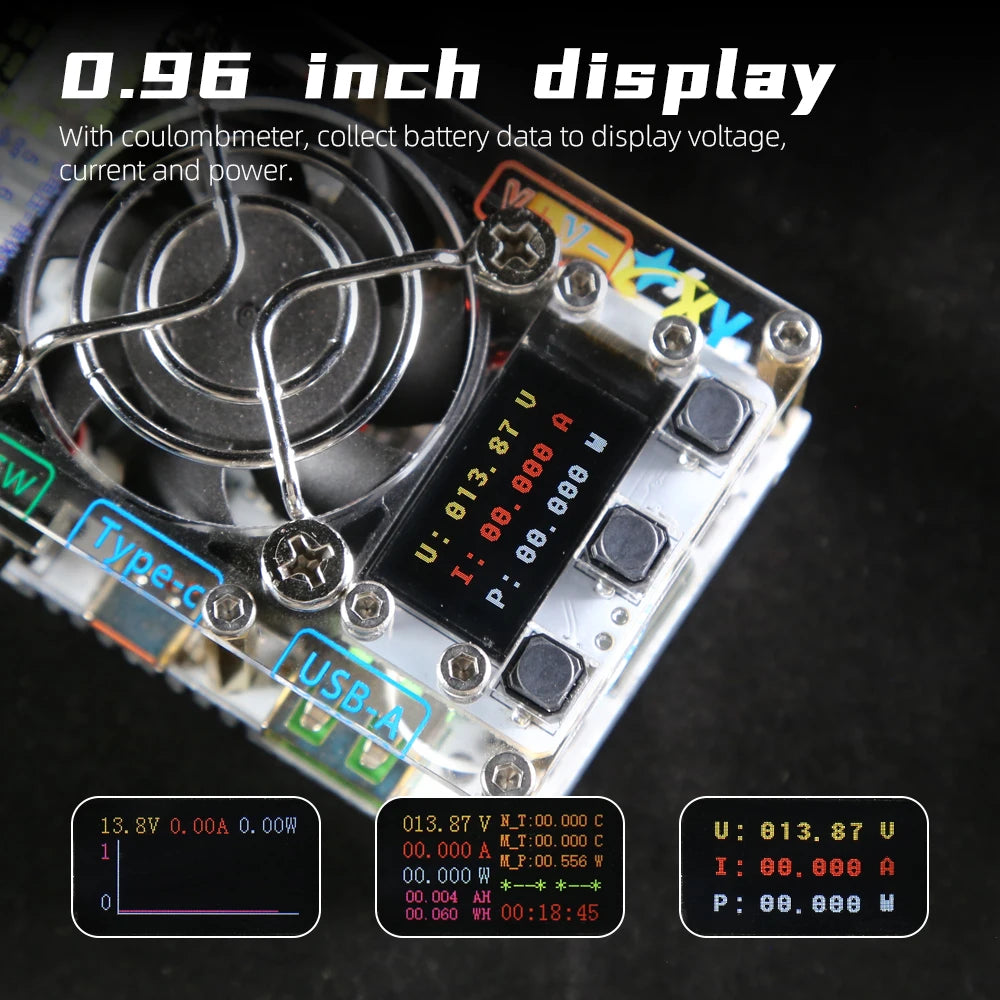

monitor
The screen displays current, voltage, and power, and is equipped with an independent coulometer to collect data from the battery end, which is relatively accurate. The screen background can be selected in black or white, and the direction of conversion can be adjusted.

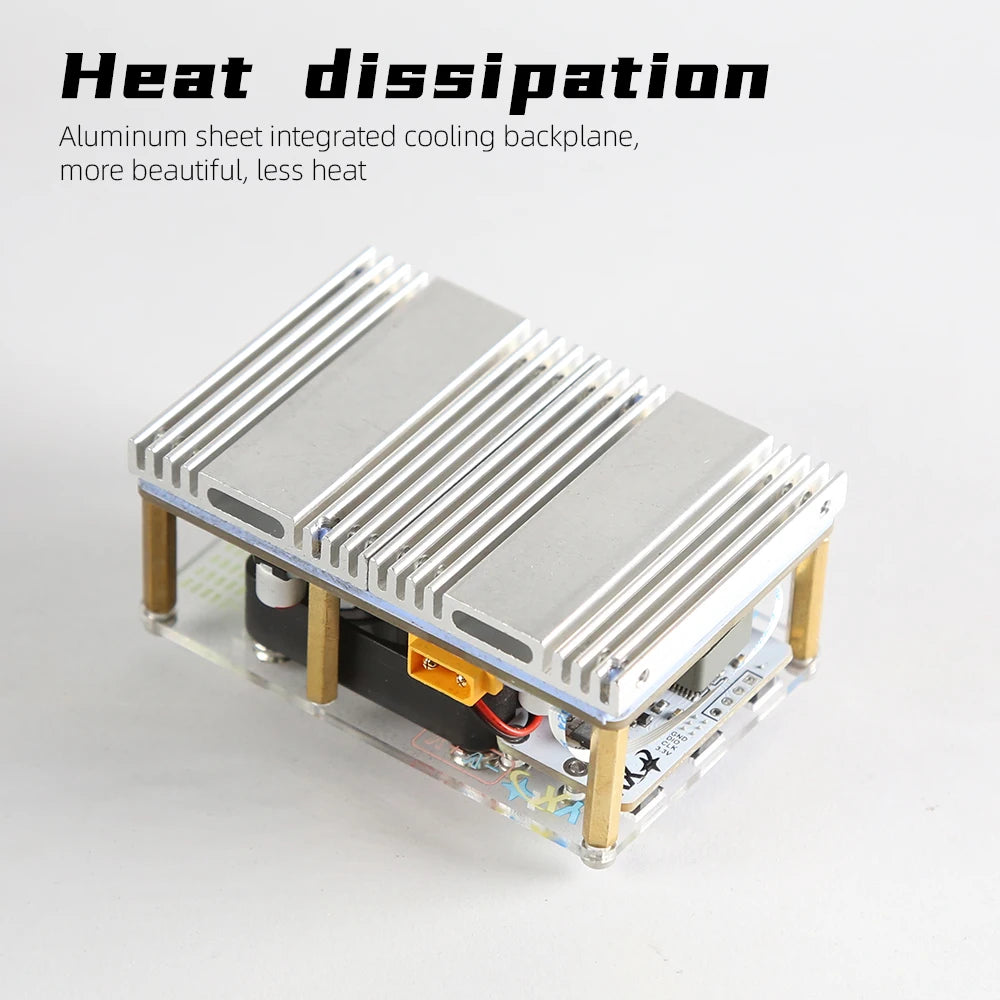

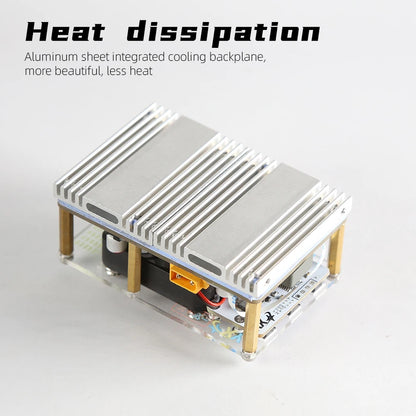

dissipate heat
Adopting dual cooling of fan and aluminum sheet, the new integrated cooling backplate is more beautiful and generates less heat. The fan program is active cooling, starting at temperatures above 45 degrees and automatically shutting down below 38 degrees. It will only start when a device is connected to port C. The fan is powered by DCDC.

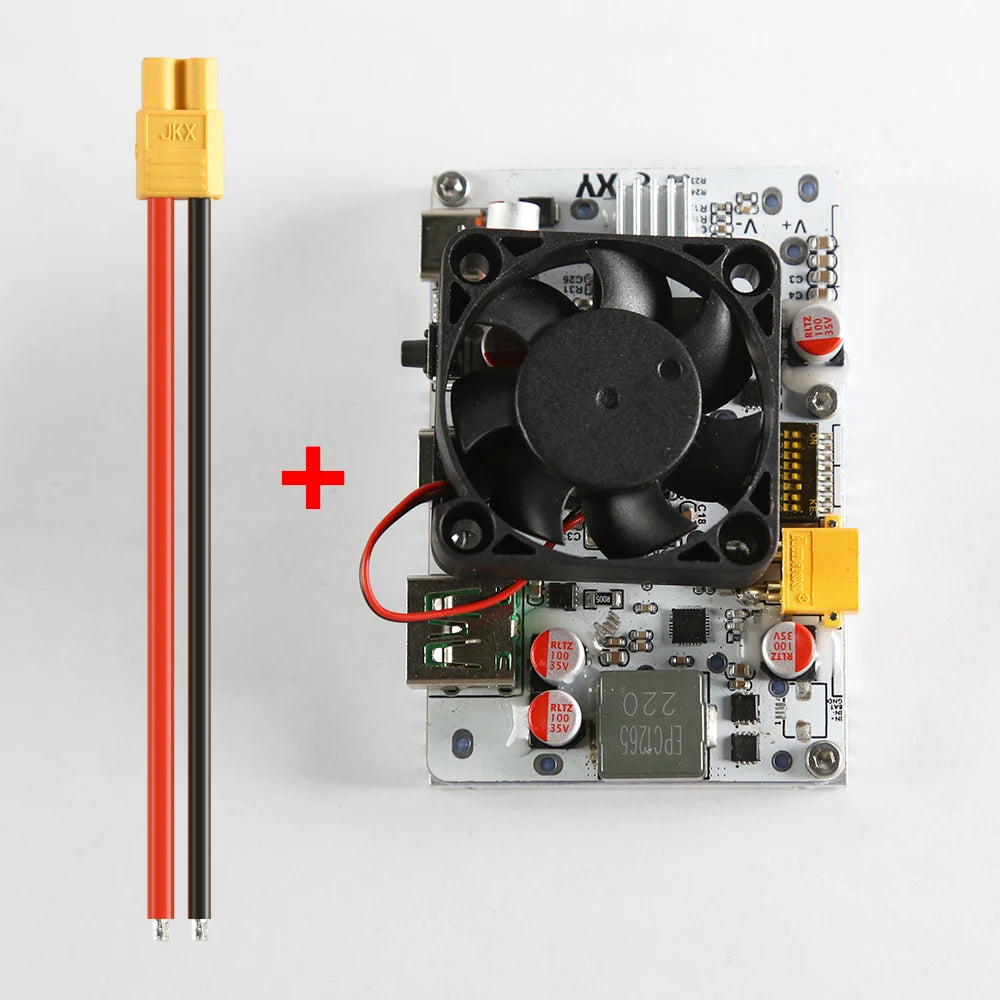

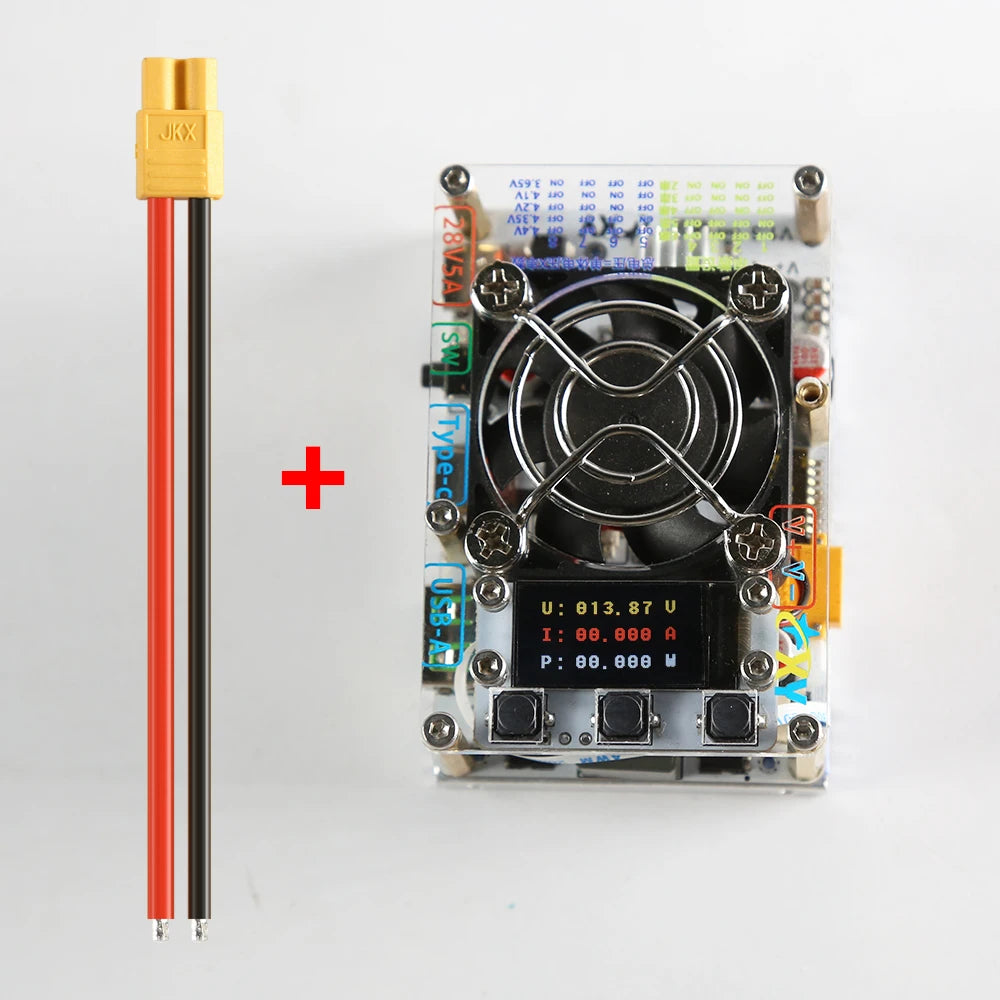

The set includes modules and XT30 female head
