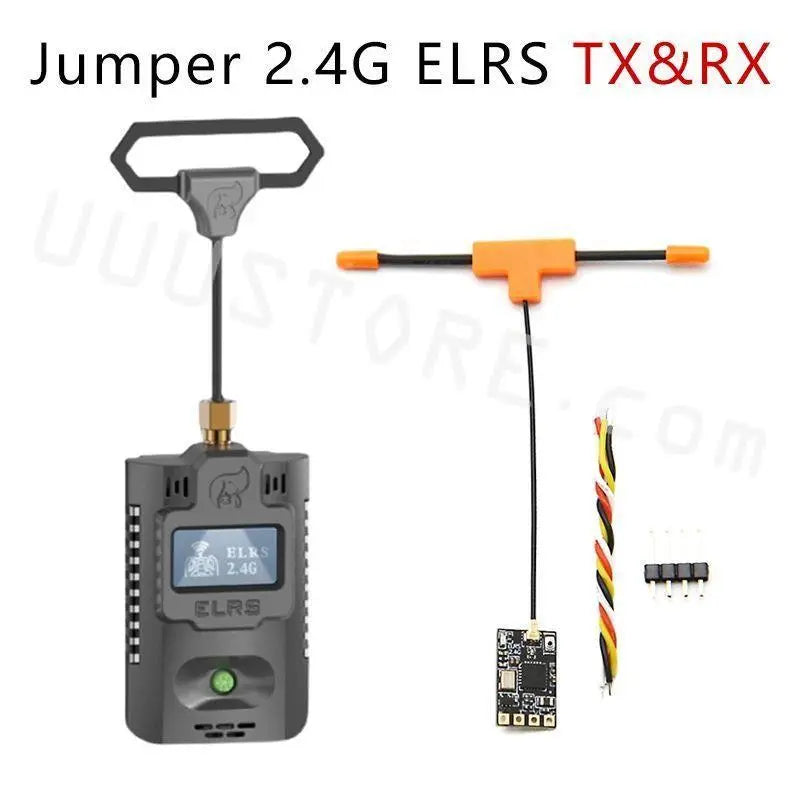

Spec:

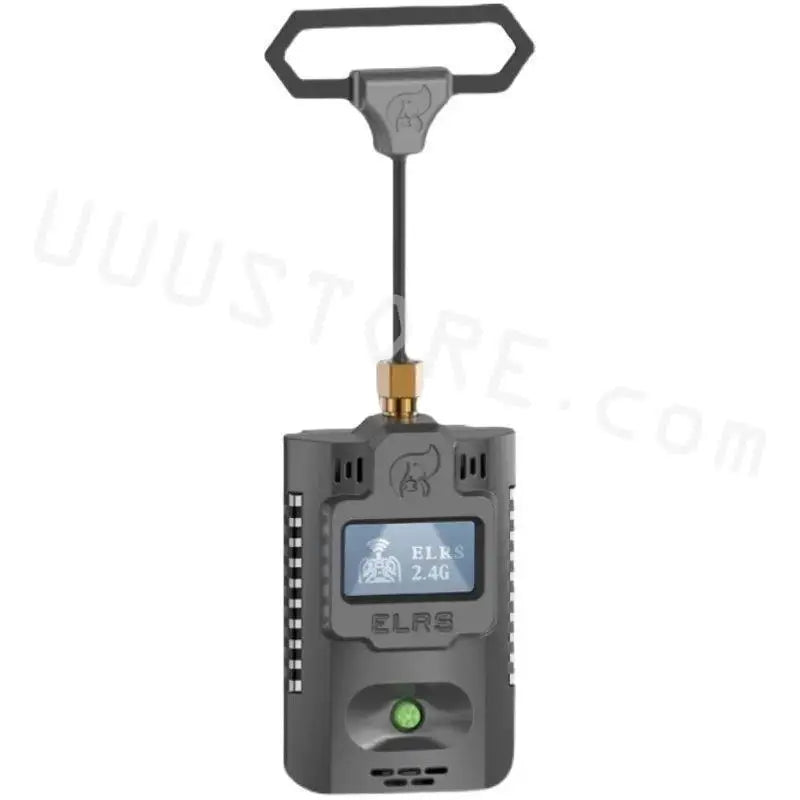

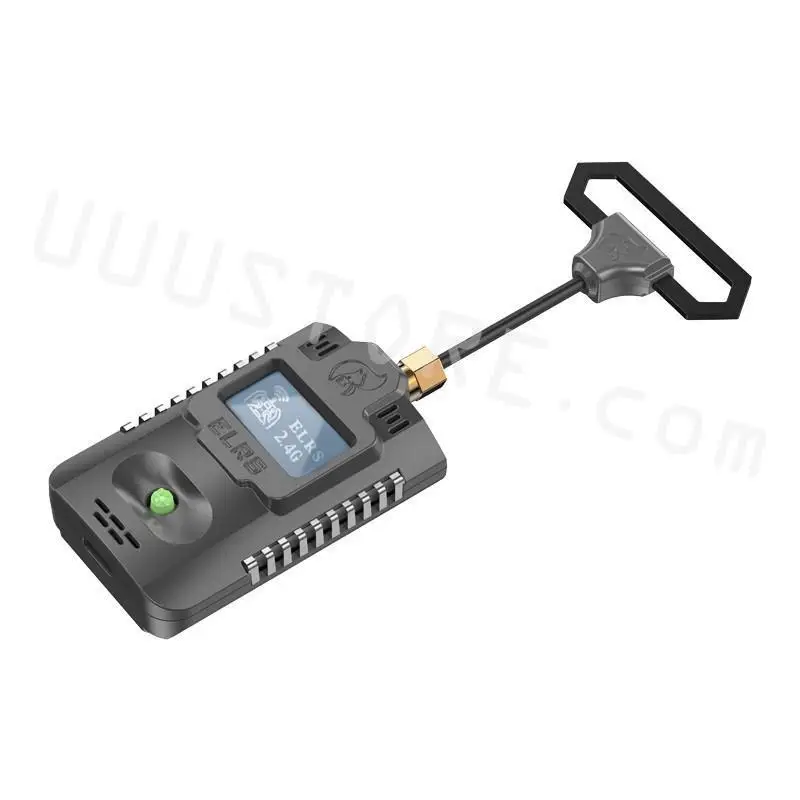

Product: Jumper 2.4G ELRS TX Module

Model Name: AION TX NANO

Screen: OLED

MCU: ESP32

RF Output Power: 10-500mw

Frequency Range: 2.4GHz-2.5GHz

Firmware: ExpressLRS

Antenna: Directionality Diamond antenna for best signal penetration

Working Voltage： DC5-8.4v

Maximum receive refresh rate: 500Hz

Menu button: 5 directions button

Voltage: DC6-8.4V

Current: ＜400mA

Port: S.port

Firmware update: via Wifi, UBC-C, or Blue tooth

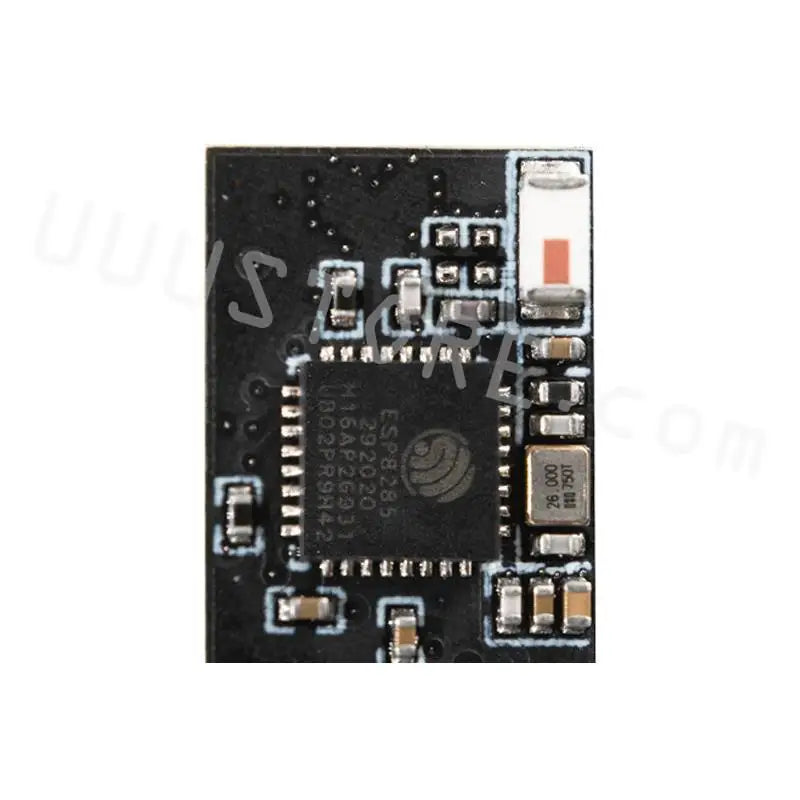

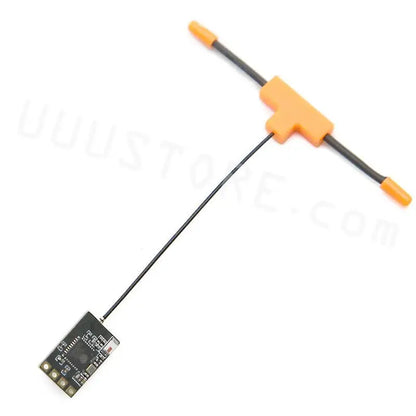

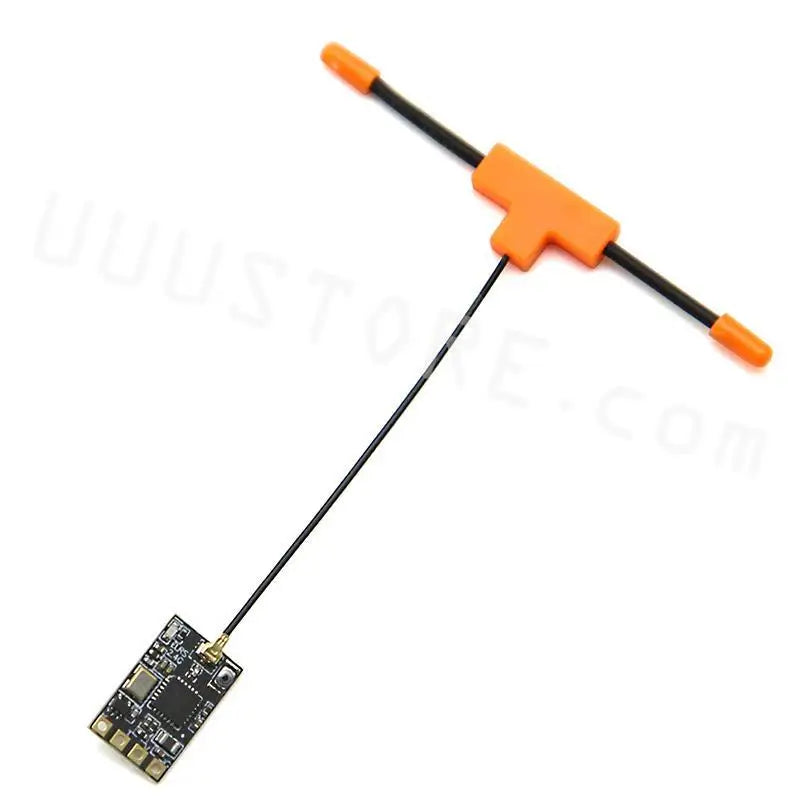

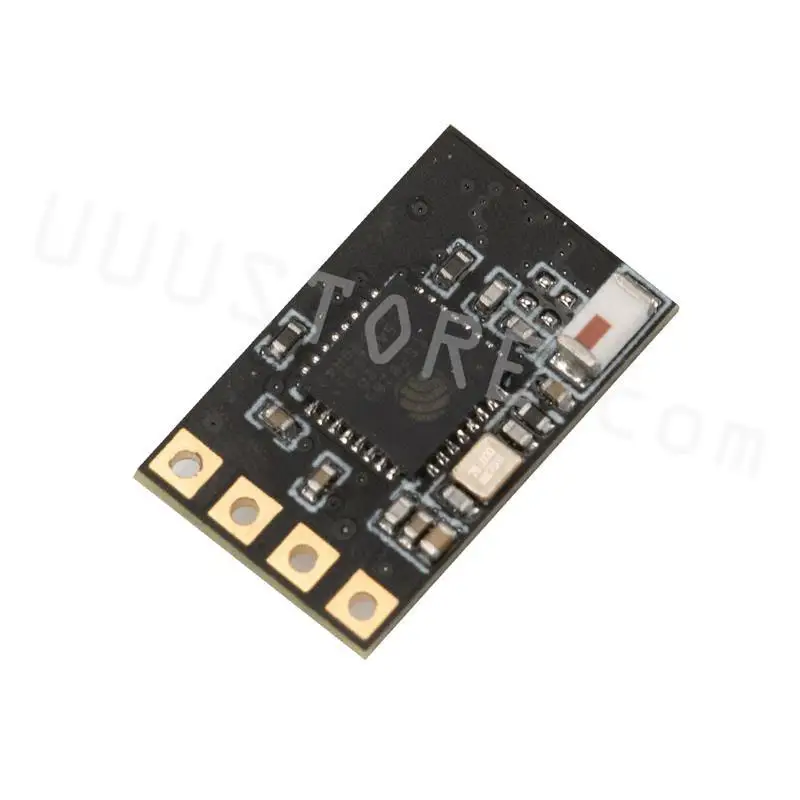

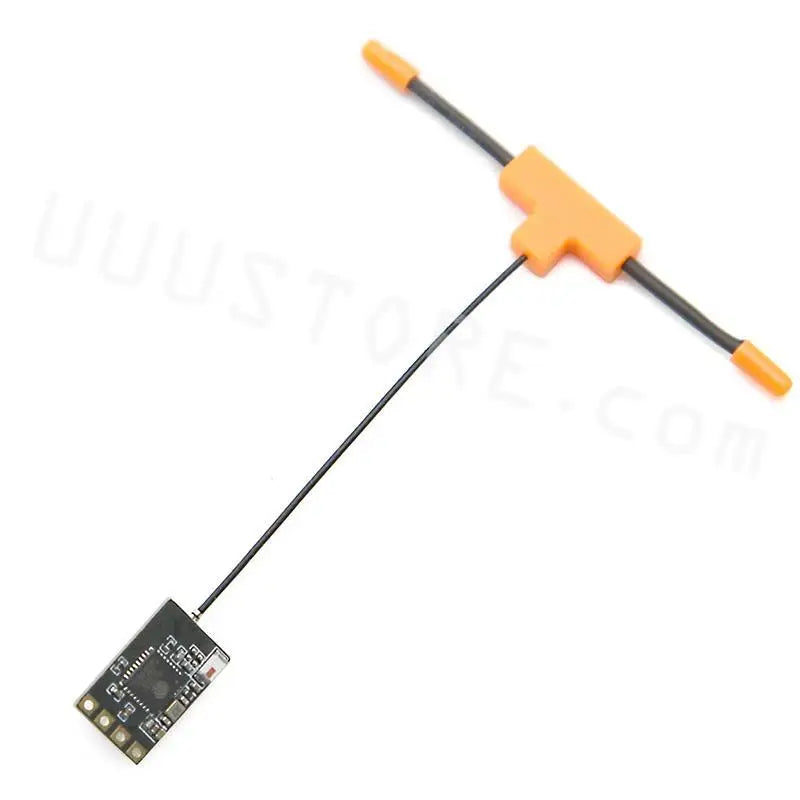

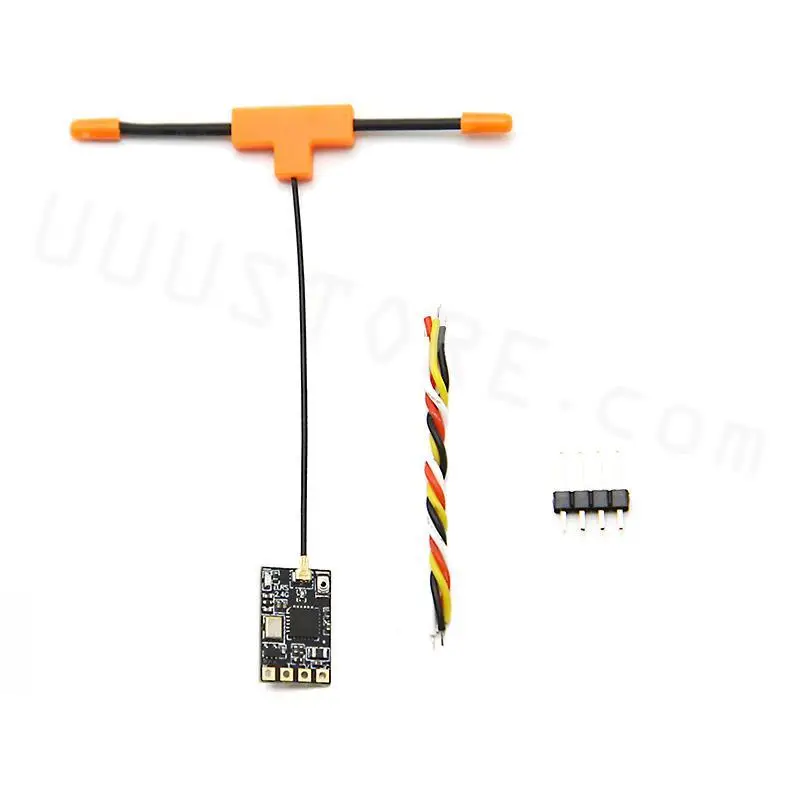

Specifications
Dimension: 17.2*8.8*4.3mm (L x W x H)

Weight: 1.1g

Number of Channels: 16Ch

Operating Voltage Range: 3.5V~6V

Operating Current: 60mA@5V

Operating Range: Full range

Distance: ＞5KM

Compatibility: radios in ELRS 2.4 mode

Binding Procedure

Binding is the process of uniquely associating receiver to a transmitter/transmitter RF module . A transmitter internal

or external RF module can be bound to multiple receivers (not to be used simultaneously).A receiver can only be

bound to one RF module.Follow the steps below to finish the binding procedure.

1.Put the transmitter/transmitter RF module into binding mode

2.Power on the receiver, the receiver's green light will flash and the receiver is in binding mode. Bind in the radio, the

receiver's green light will be always on, then the binding is completed.

If the receiver is not bound in 20 seconds after power-on, the receiver will get into Wifi firmware updating mode, the

green light will flash at the same time.

Failsafe

Failsafe is a useful feature which is for a preset channel output position whenever control signal is lost for a period.

Follow the steps to set Failsafe for channels necessary :

Failsafe for receiver supporting ELRS RF mode setting can be set via radio interface, which support no pulse, hold and

custom three modes for each channel.radio go to: MODEL SETUP/Internal RF/Failsafe
