Note:

• Designed for the Furitek Micro Komodo sized motors (medium diameter), all smaller motors will fit, any motor length will fit, large diameter motors will not fit. The Micro Komodo is 15.75mm in diameter and 20.5mm in length, LARGER MOTORS WILL NOT FIT

• Motors like the normal Komodo, Injora Viper, or other "pancake" style motors will not work.

Features:

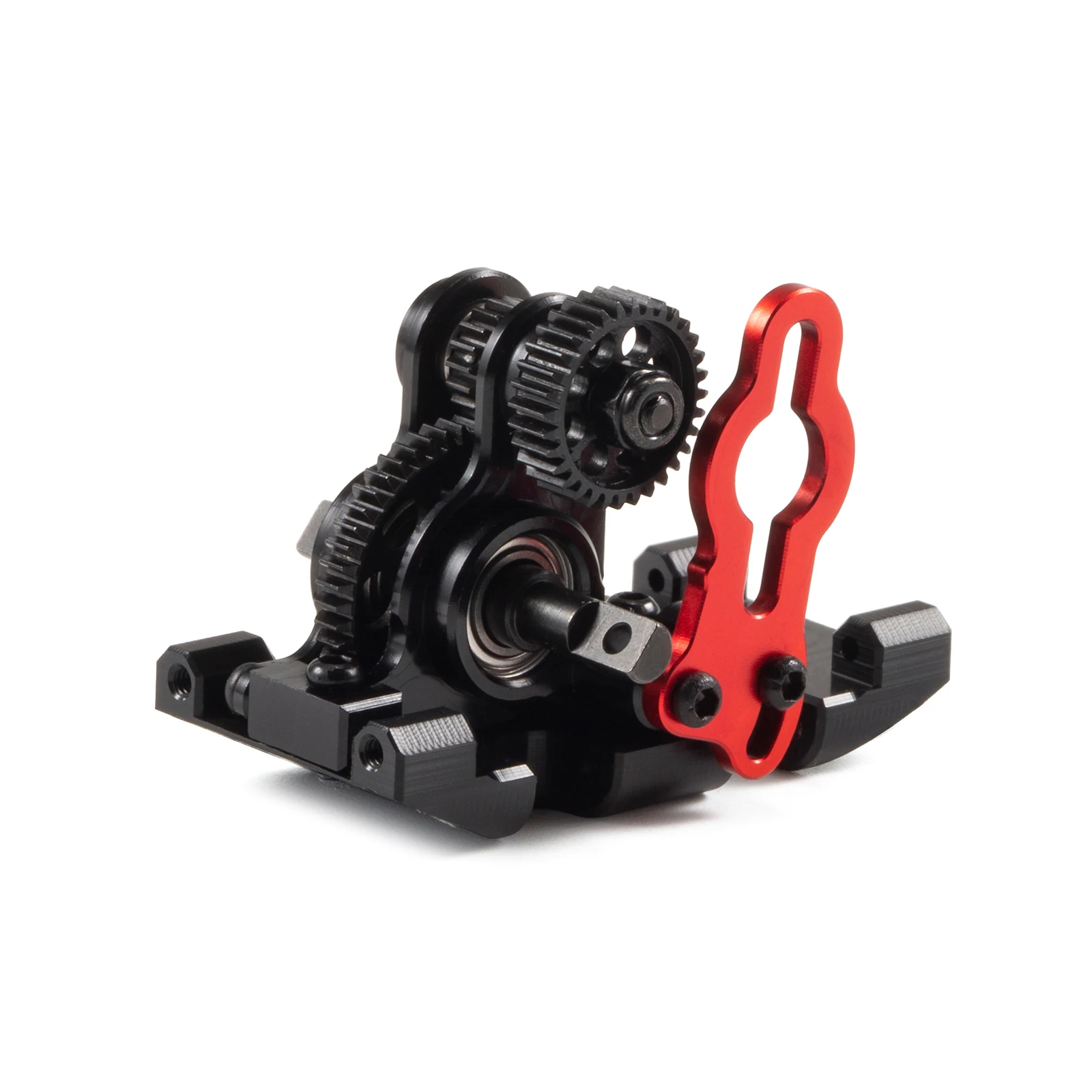

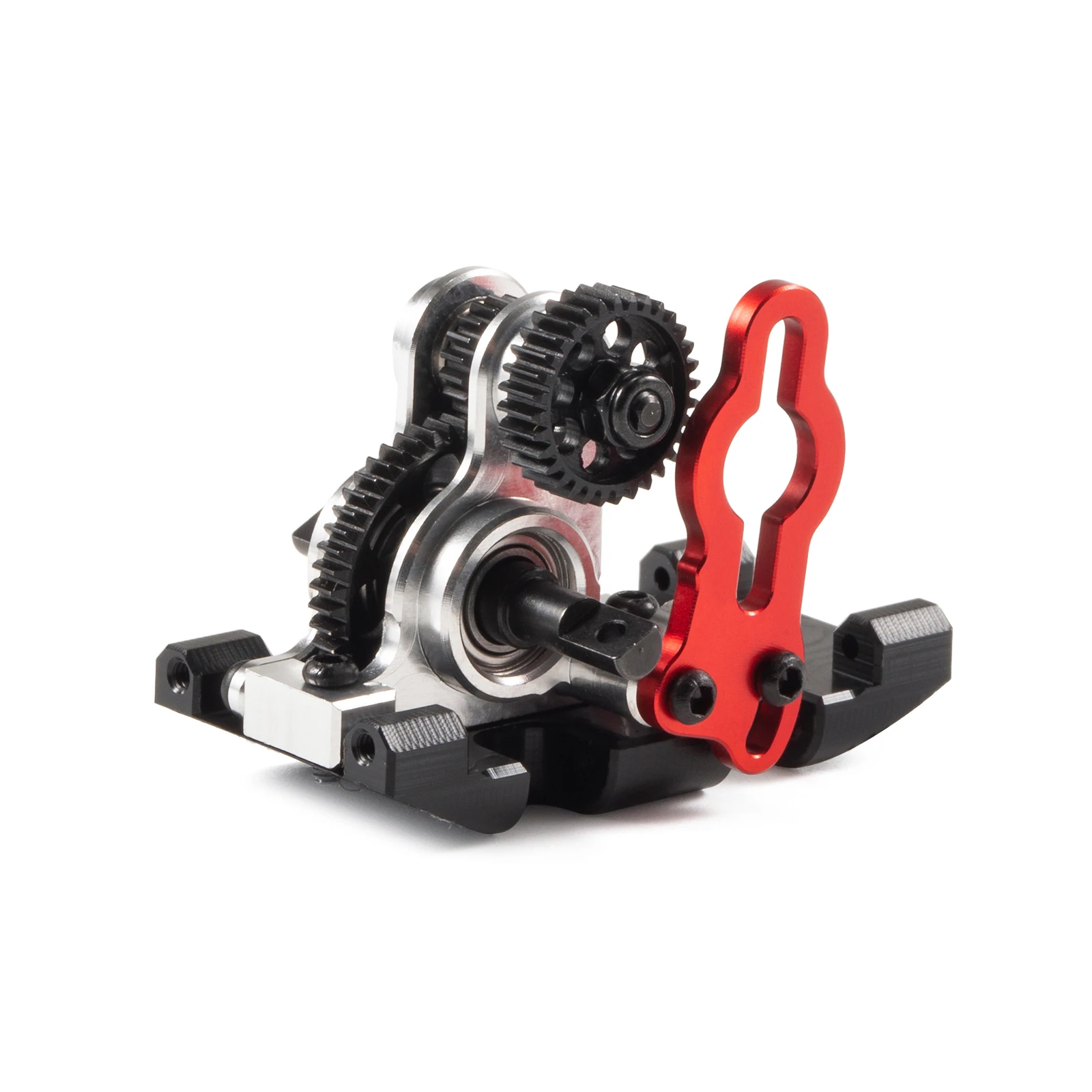

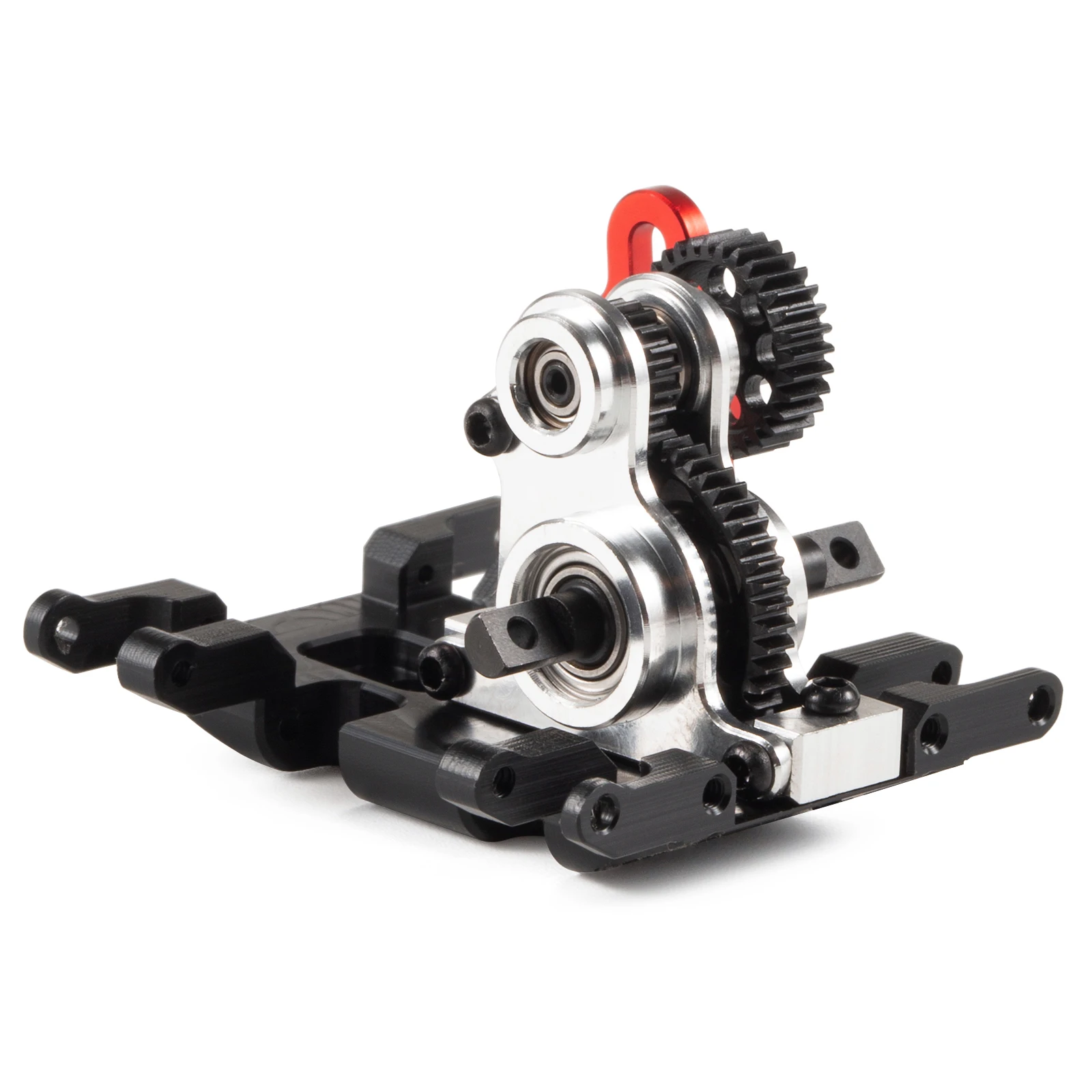

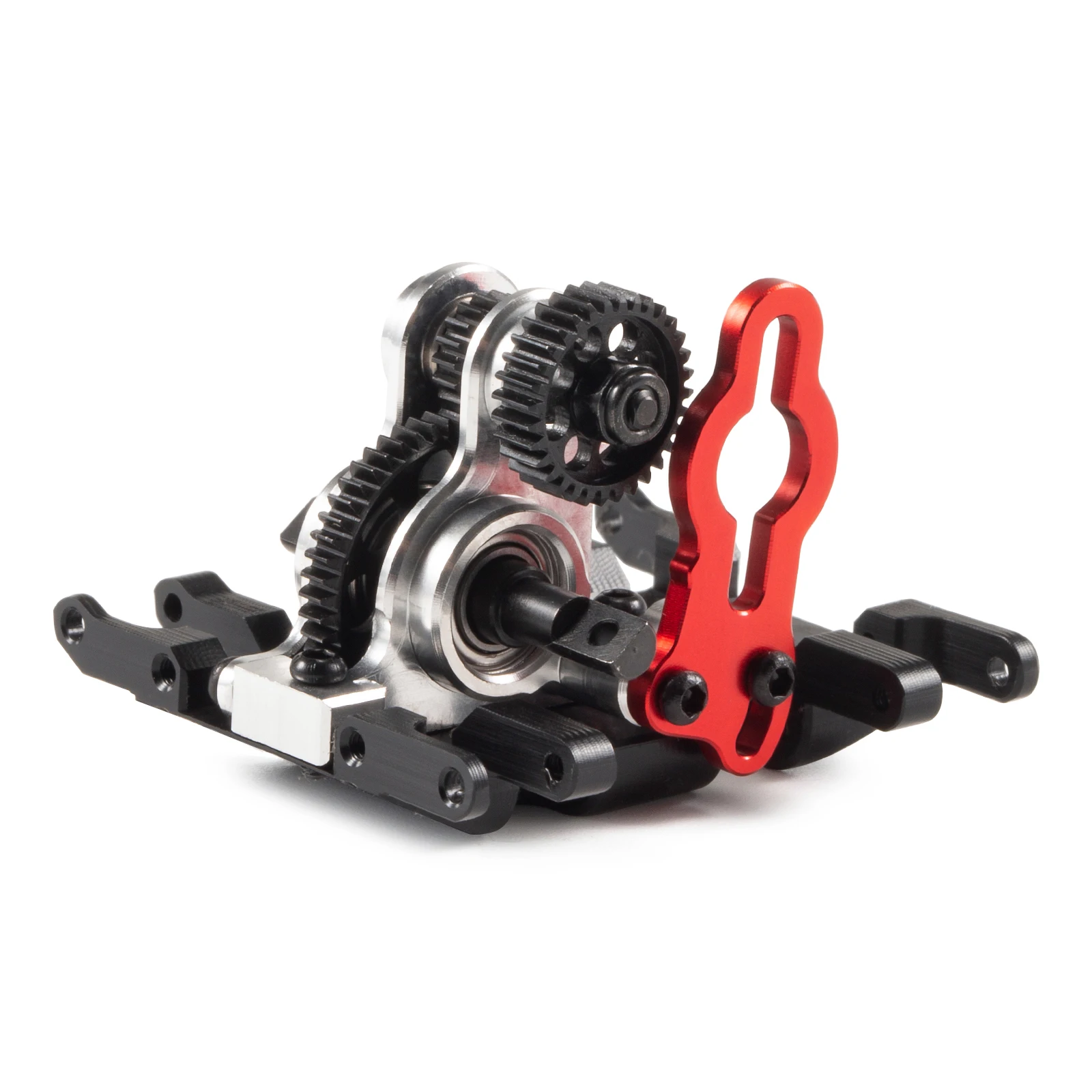

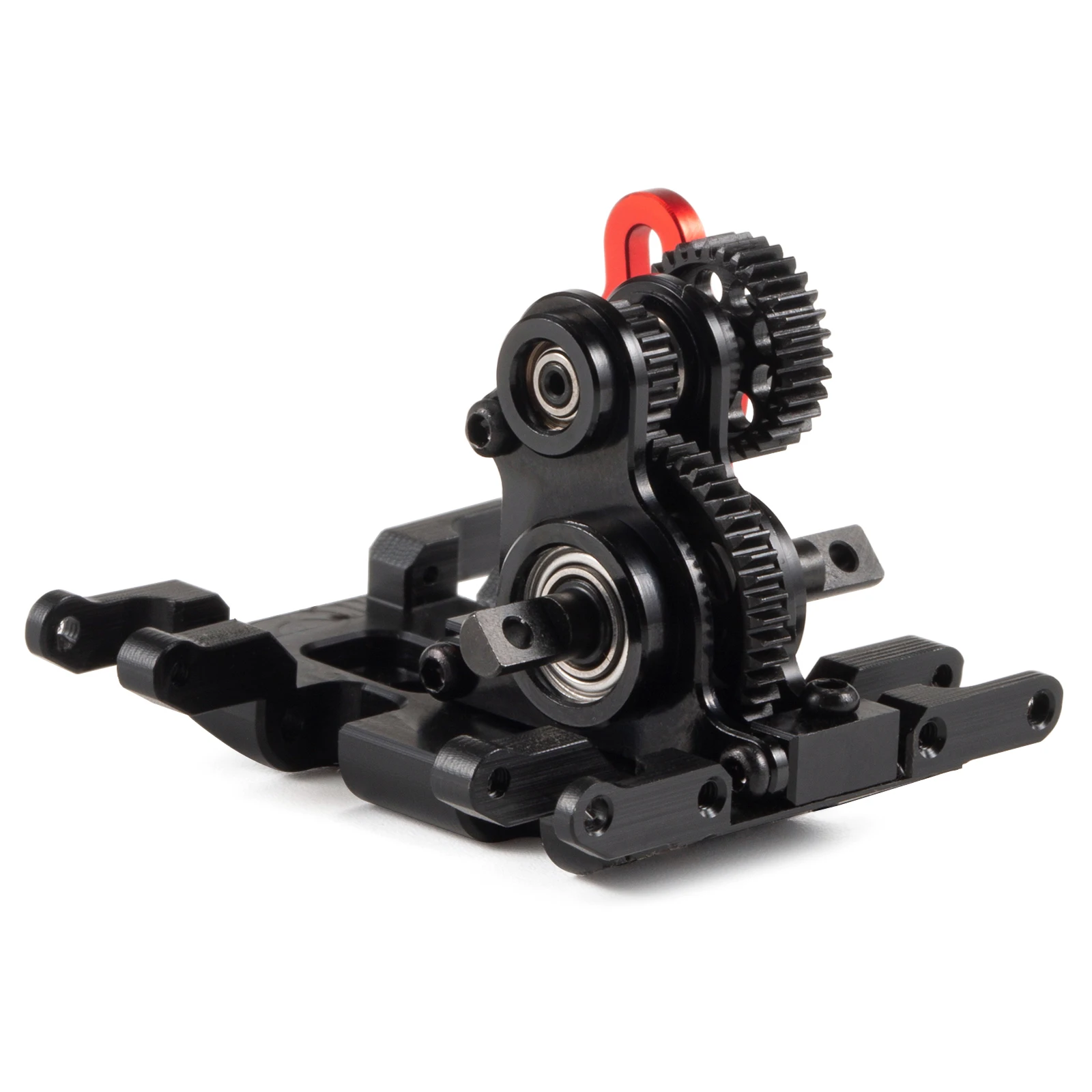

• Aluminum housing with open design.

• Heat-treated alloy steel gears, lightened to the absolute maximum.

• Integrated input/output shafts for the ultimate in strength.

• Motor relocated much lower for lower center of gravity.

• Motor placement is adjustable higher or lower as needed to clear any combination of upper link location, pinion size, and motor size. This means you can set the motor as low as possible for your specific setup.

• Designed for rear facing motor (to allow room for front battery placement).

• 2.68:1 ratio with 32 tooth, 0.3 mod spur gear.

• 32 tooth, 0.3 mod spur gear provides greatly increased wheel speed while still having great low speed control for competition crawling, and plenty of torque for bound up tires.

• Weight: 8.7 transmission, or 11g with either skid plate

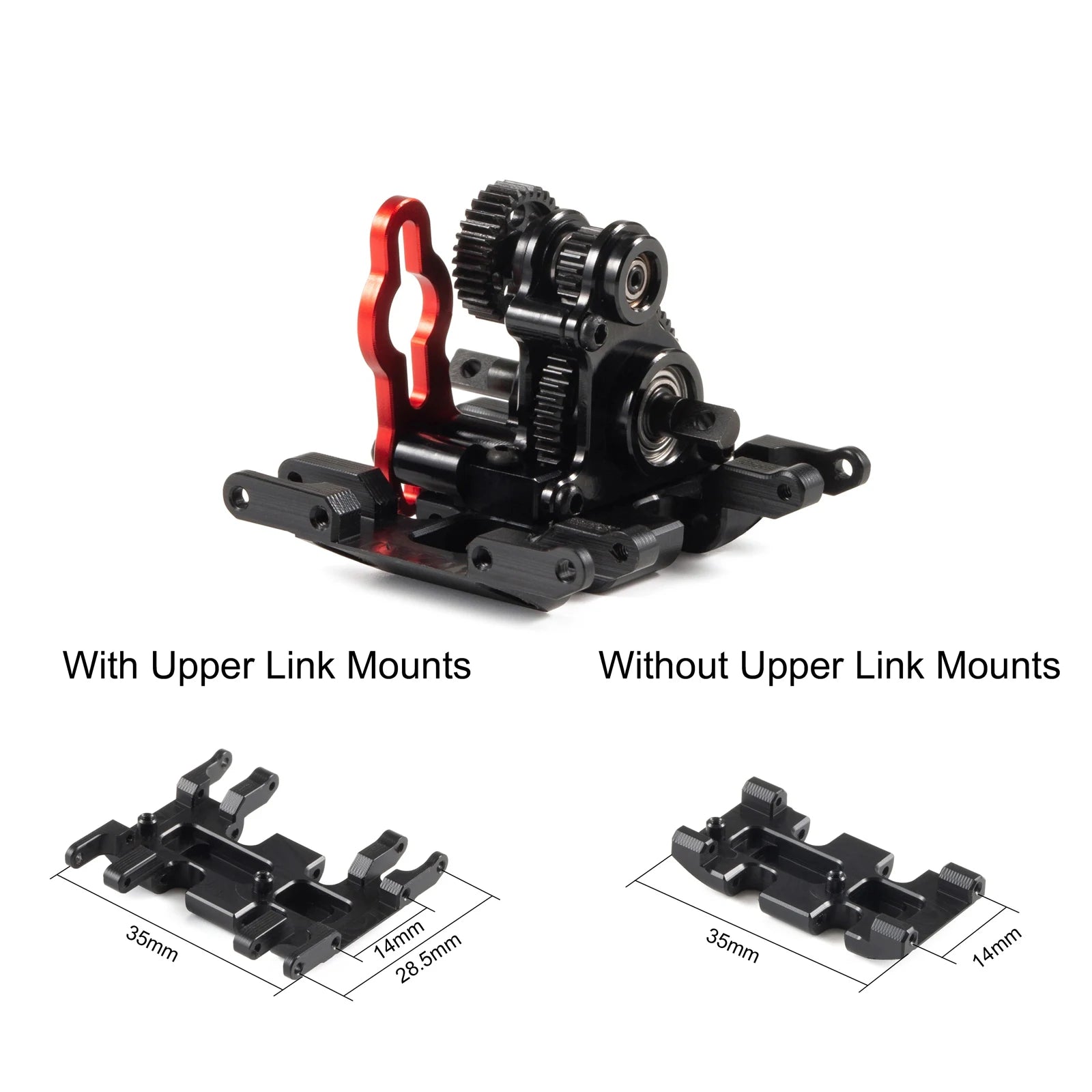

• The included Delrin skid plate is available in two options:

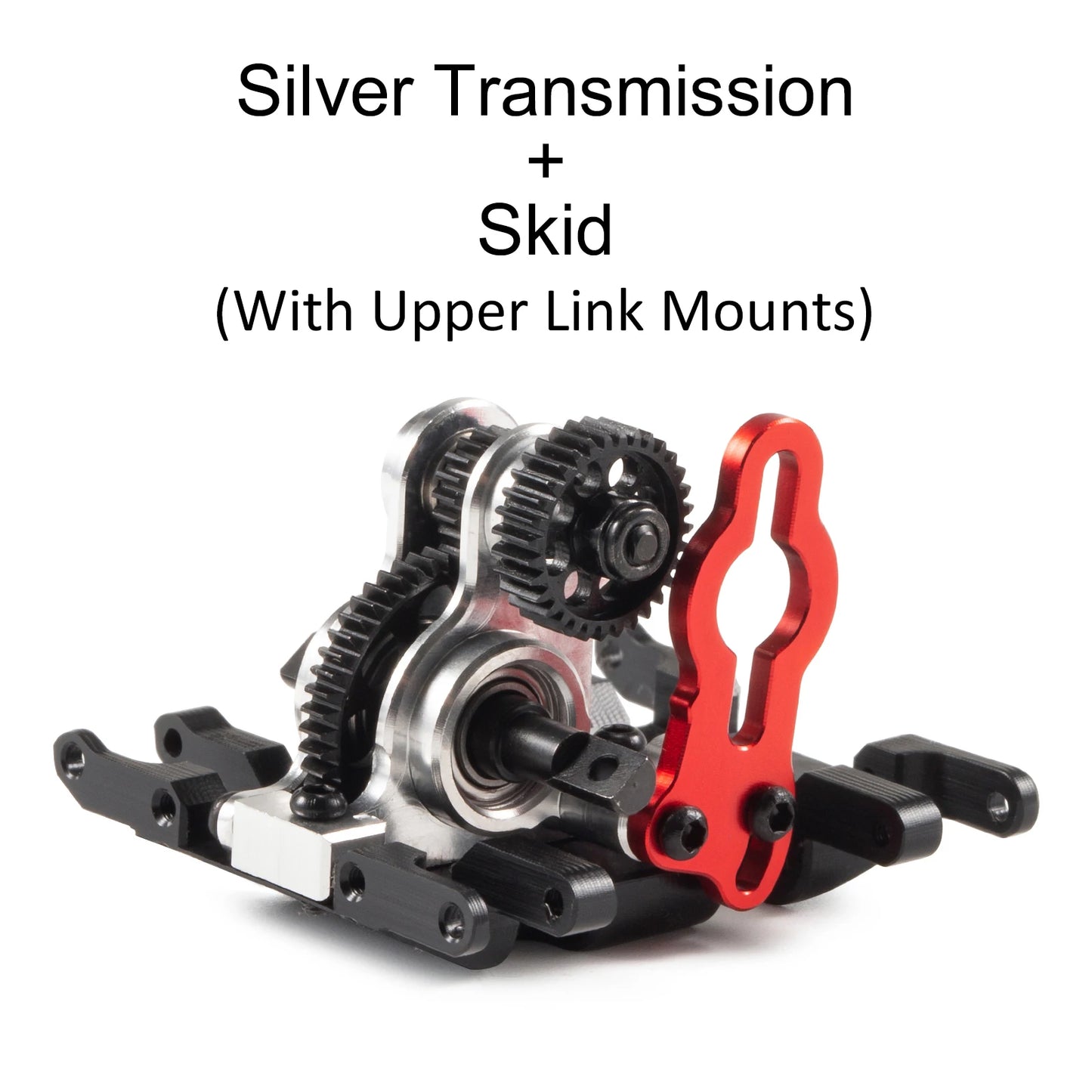

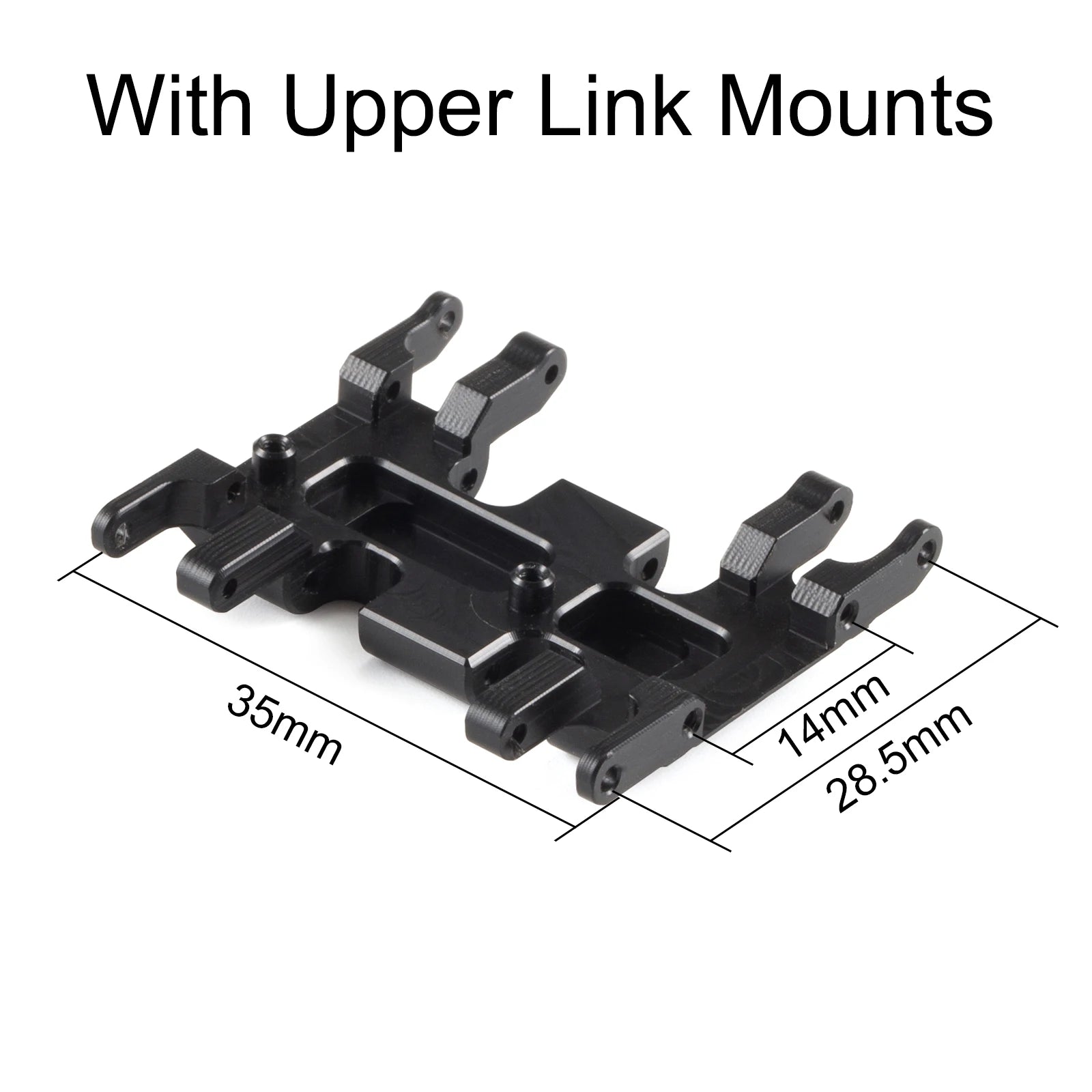

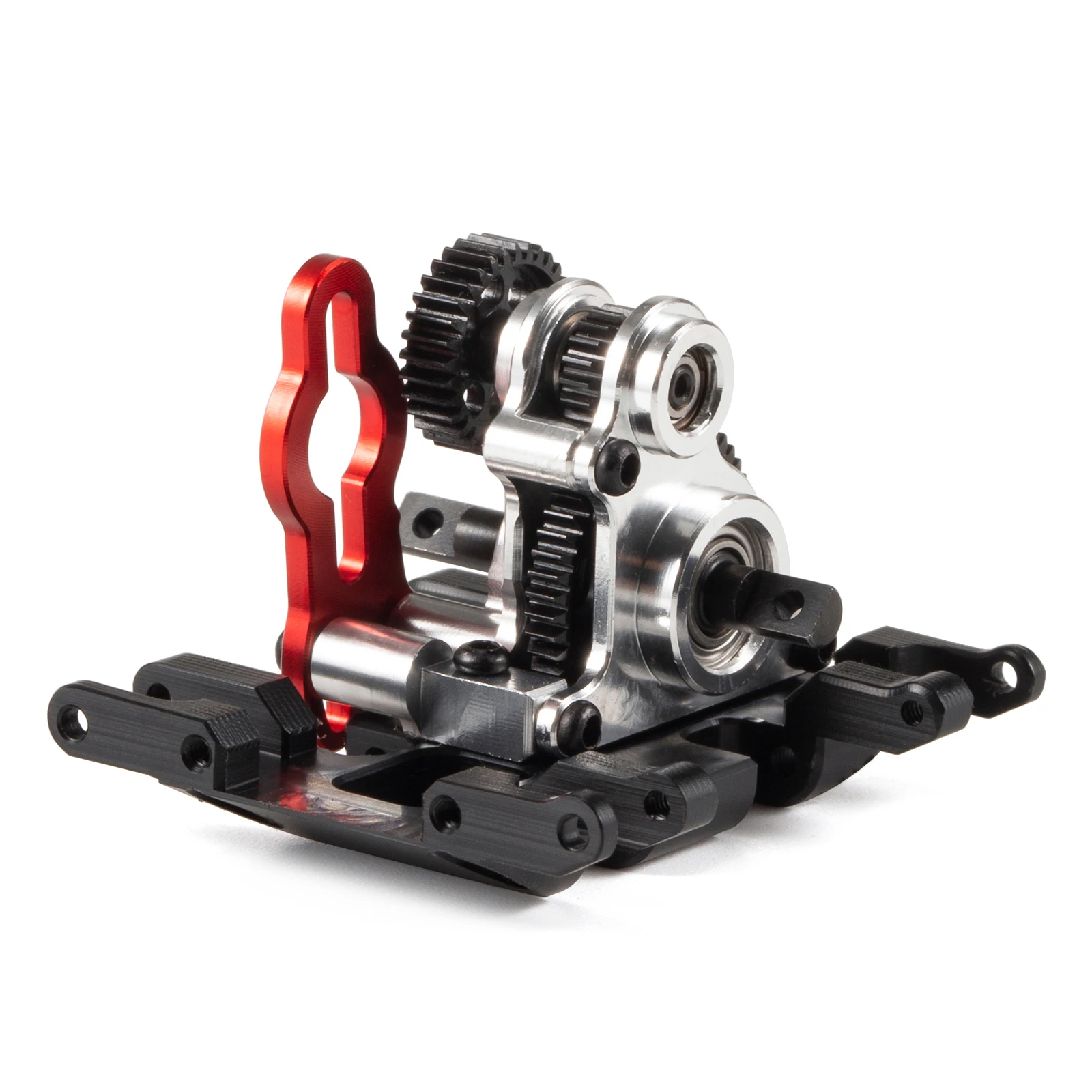

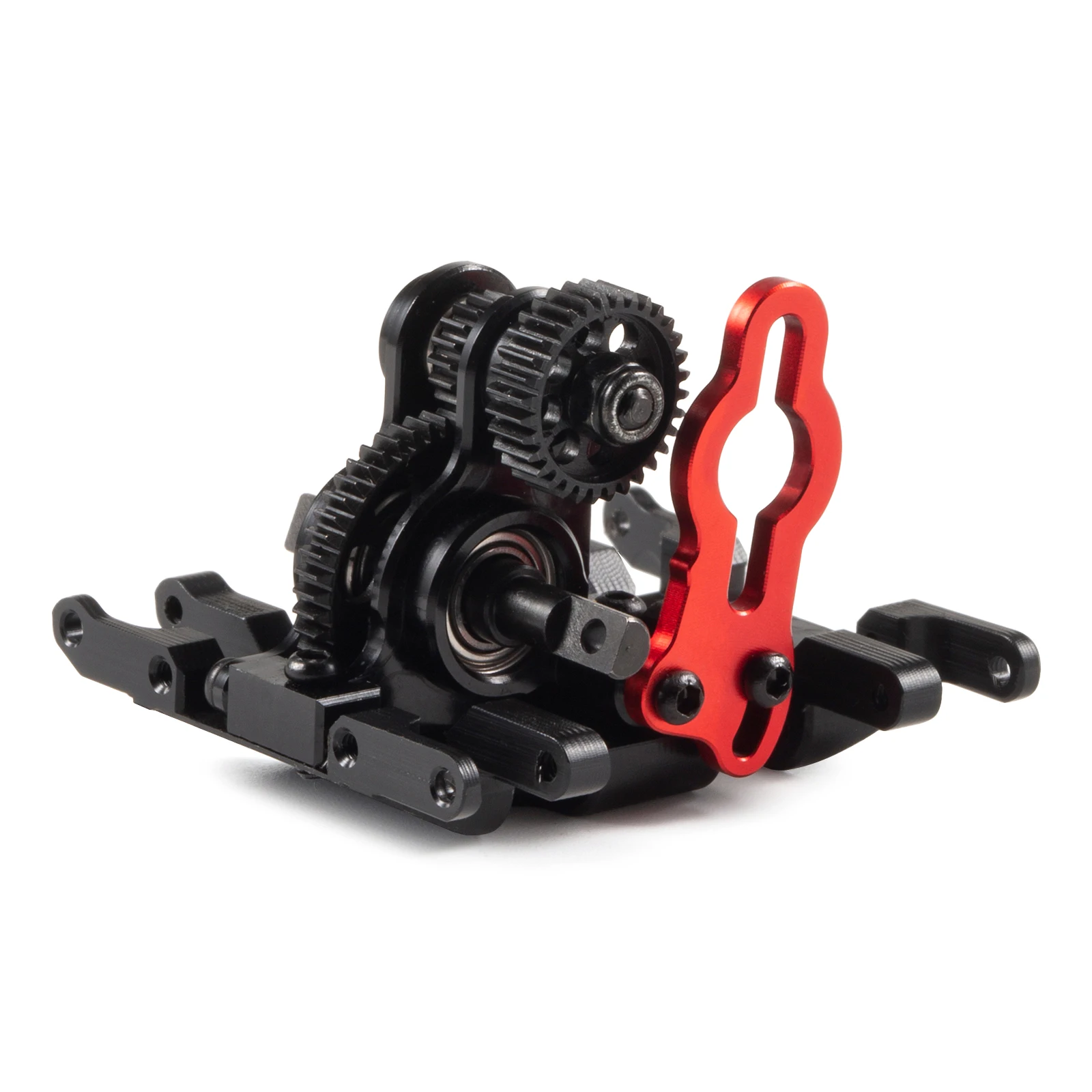

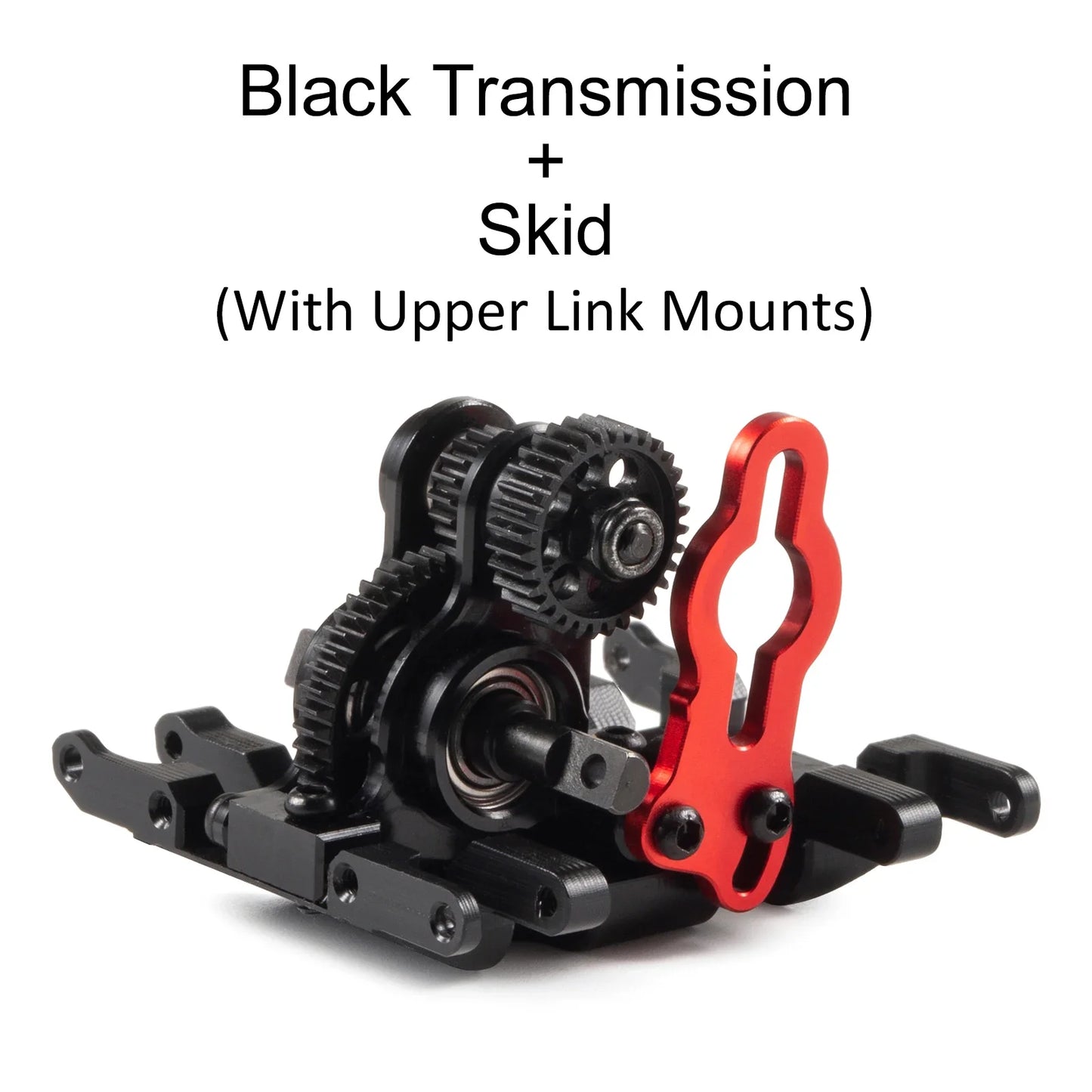

• With upper link mounts - This can be used as a direct replacement in your SCX24.

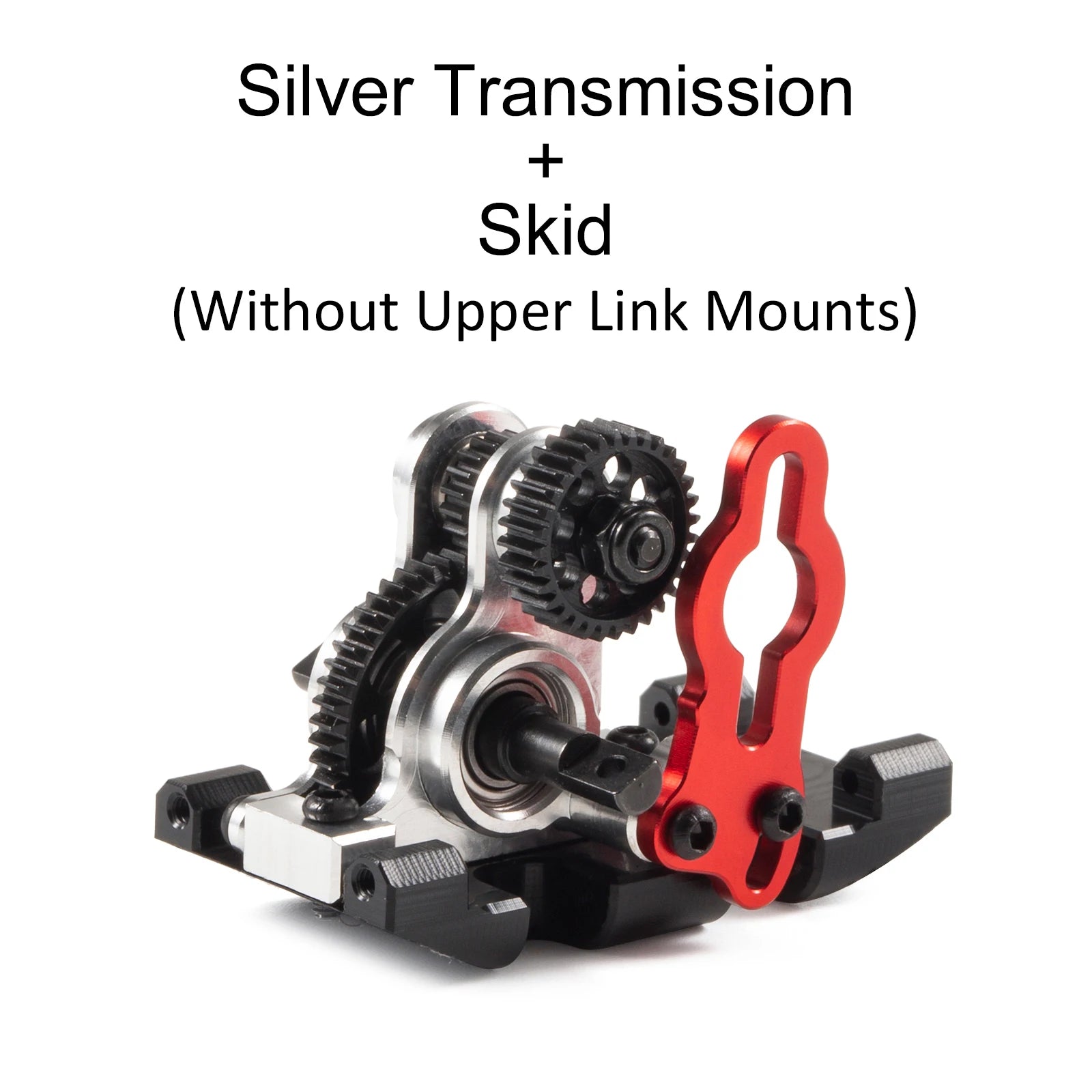

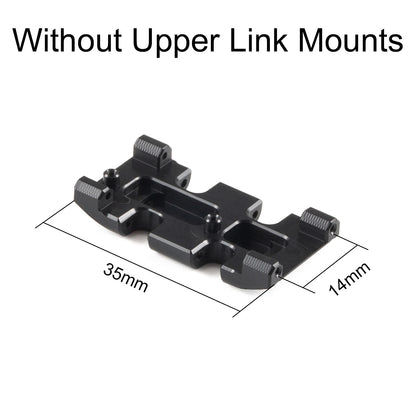

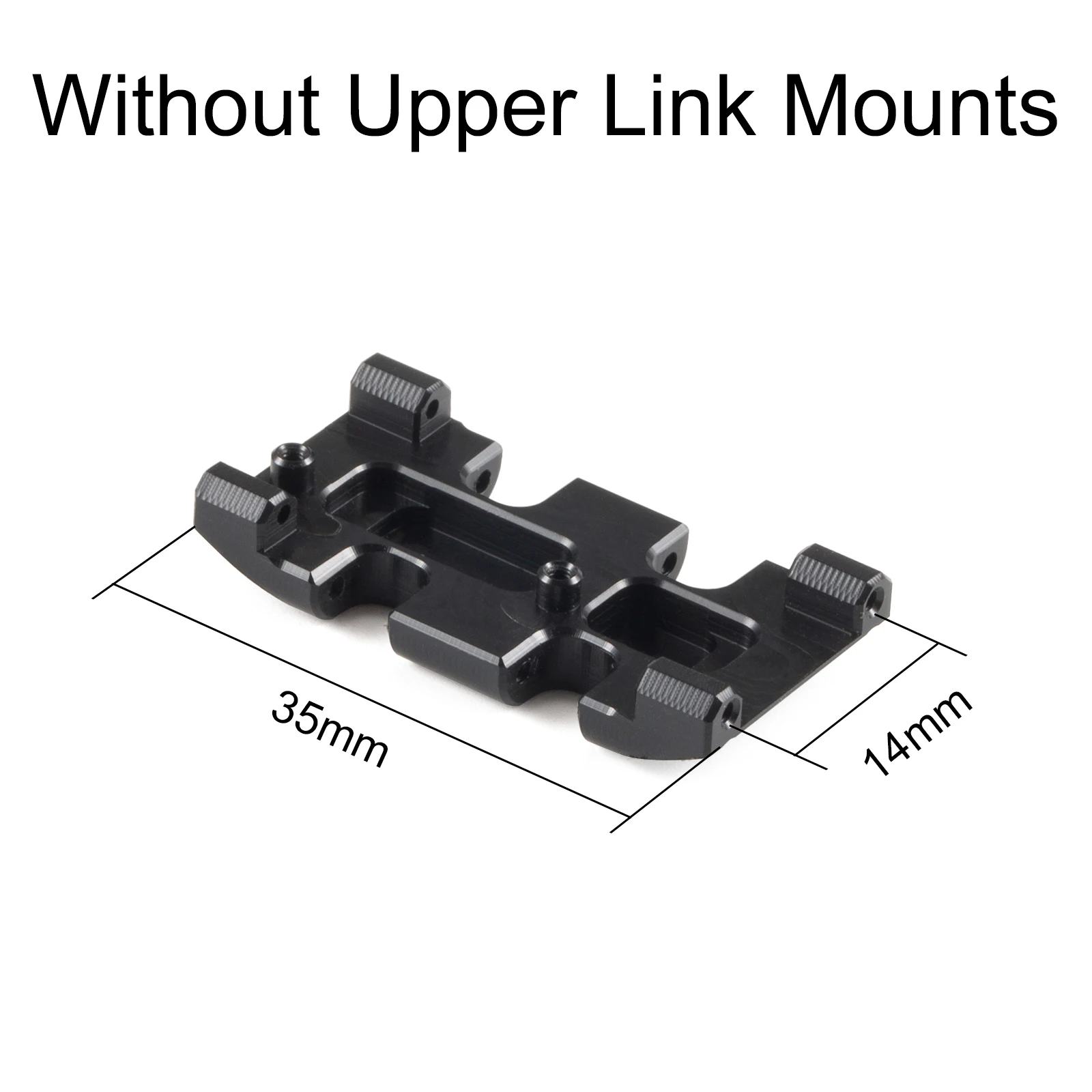

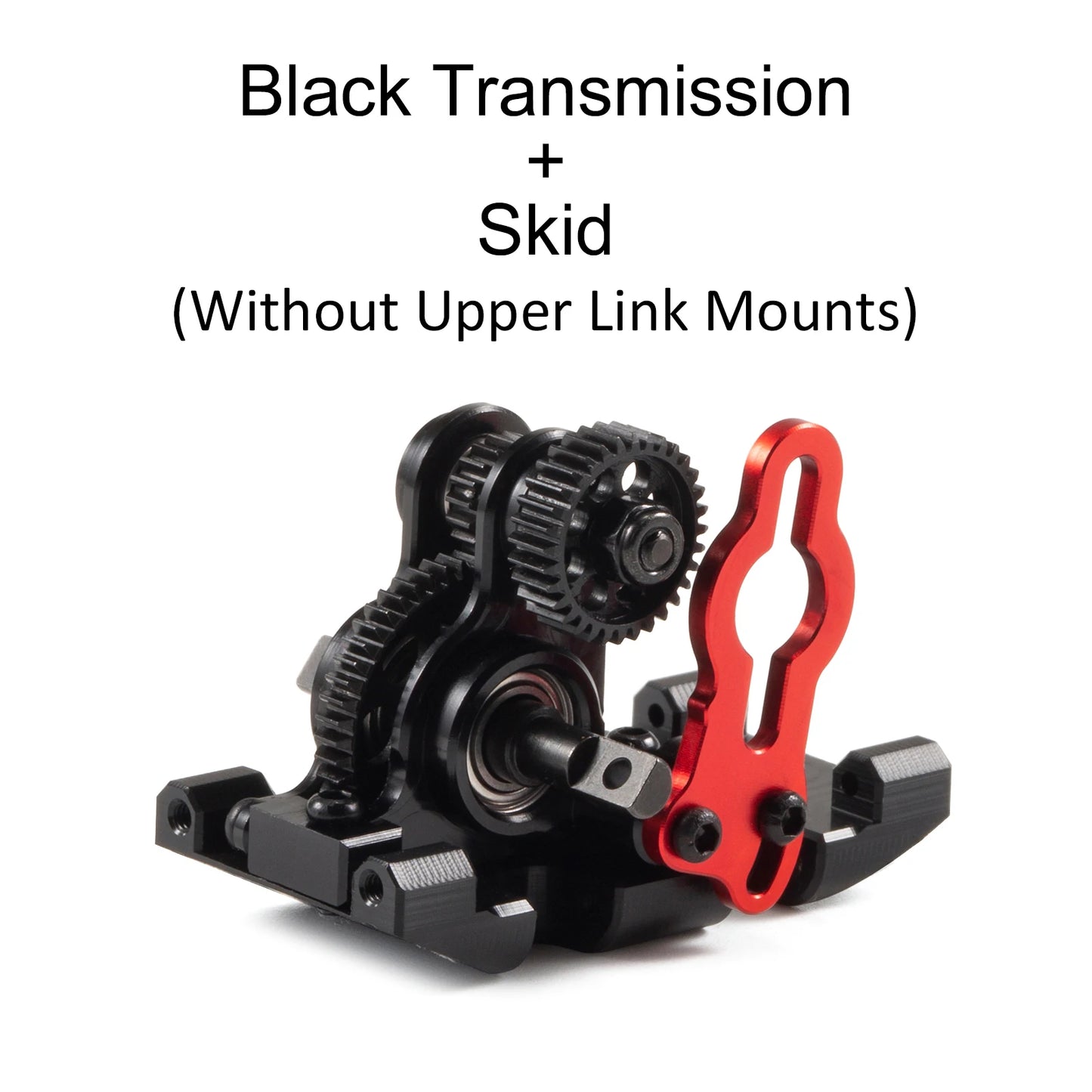

• Without upper link mounts - Requires aftermarket chassis with upper link mounts.
