SPECIFICATIONS

Brand Name: hot rc

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: FPV Camera

Hign-concerned Chemical: None

Material: Metal

Model Number: LST815

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: RC Micro Camera

Recommend Age: 14+y

Remote Control Peripherals/Devices: RECEIVERS

Size: 18x16x16mm (without antenna)

Technical parameters: value 2

Tool Supplies: 40CH 800TVL Transmitter

Upgrade Parts/Accessories: RC Micro Camera

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

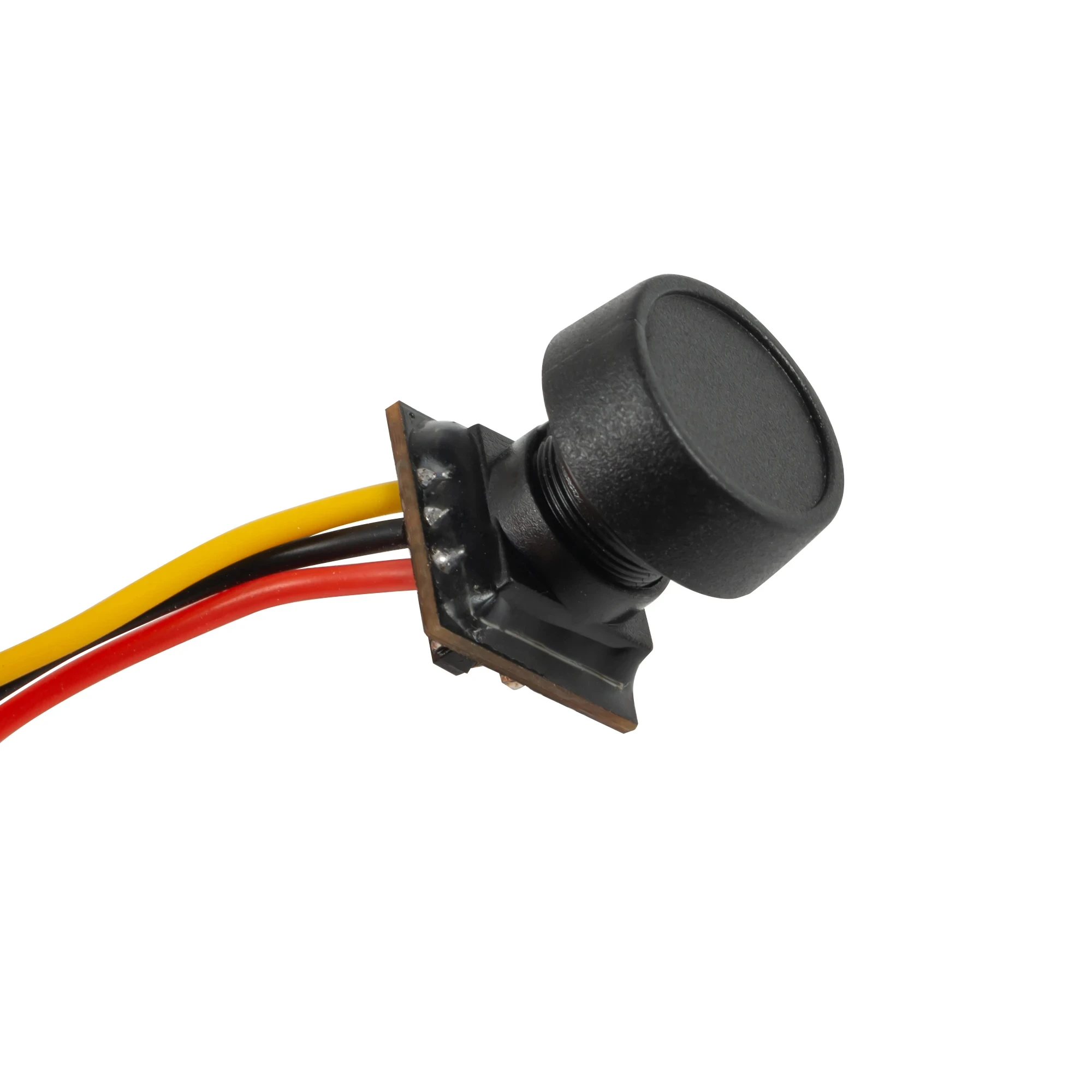

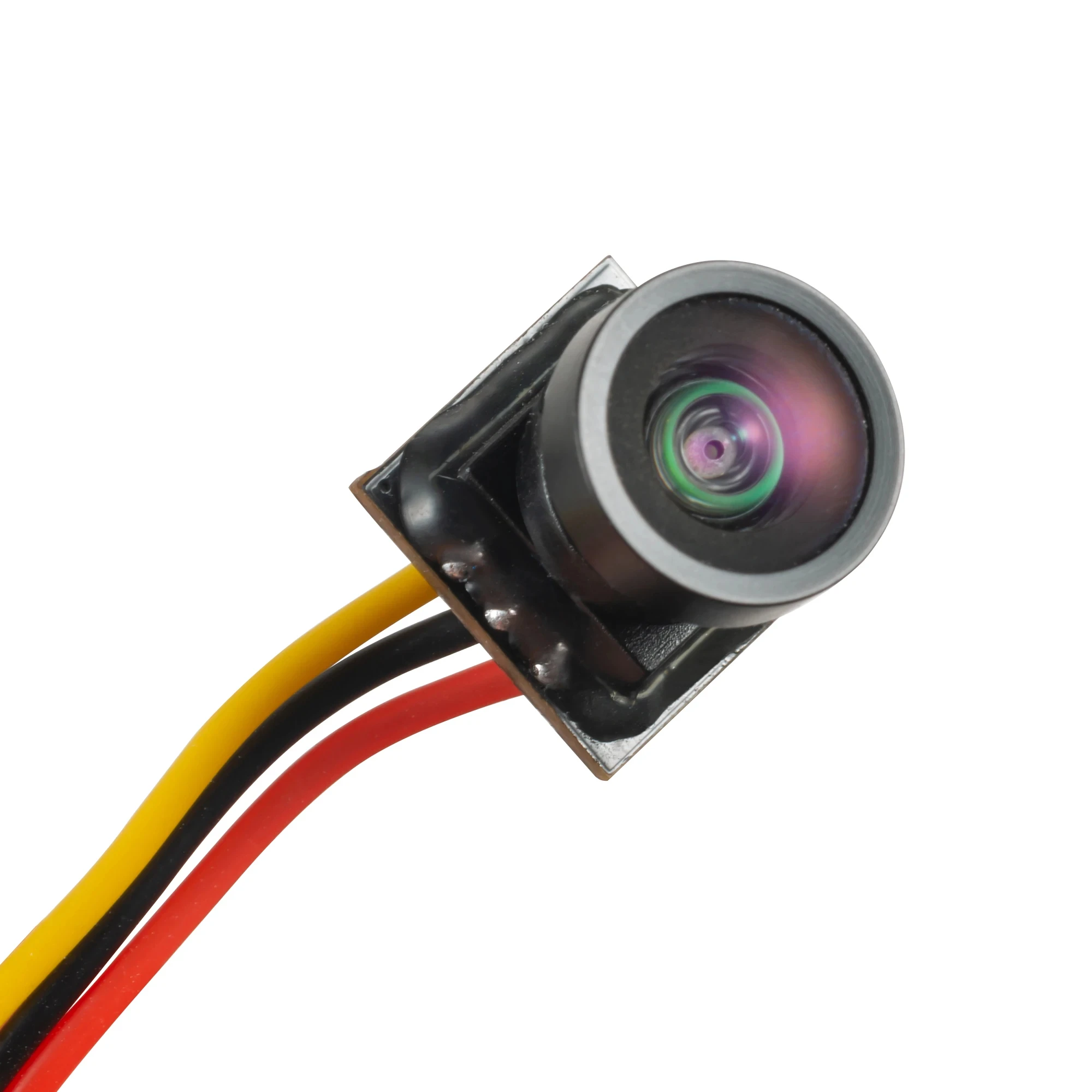

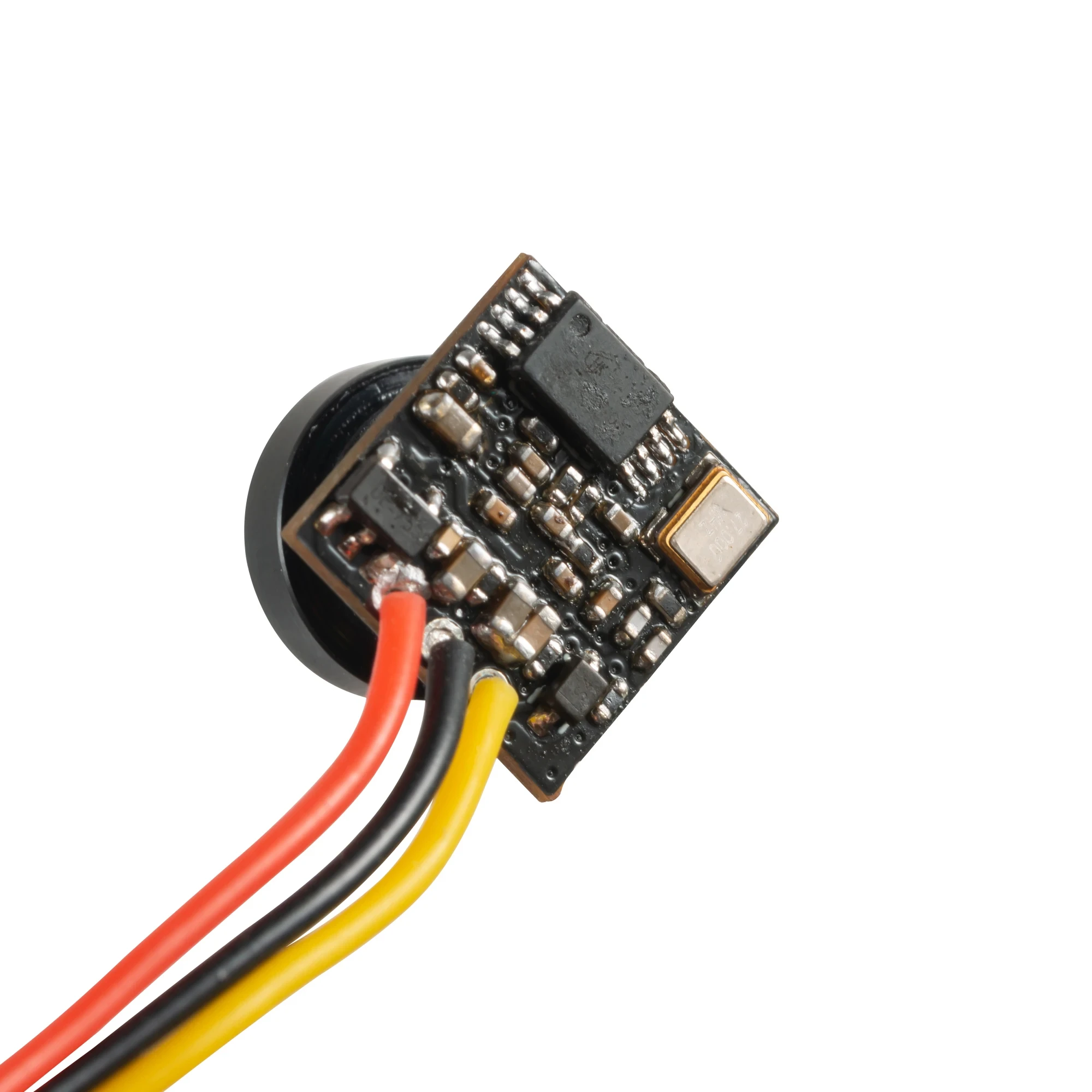

FPV Camera

Sensor: 1/4 "CMOS
Lens: M8 800TVL Lens
Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Format: NTSC / PAL (switchable)
Power consumption: 380mA @ 3 · 7V
Power: 3.6-5.5V
Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)

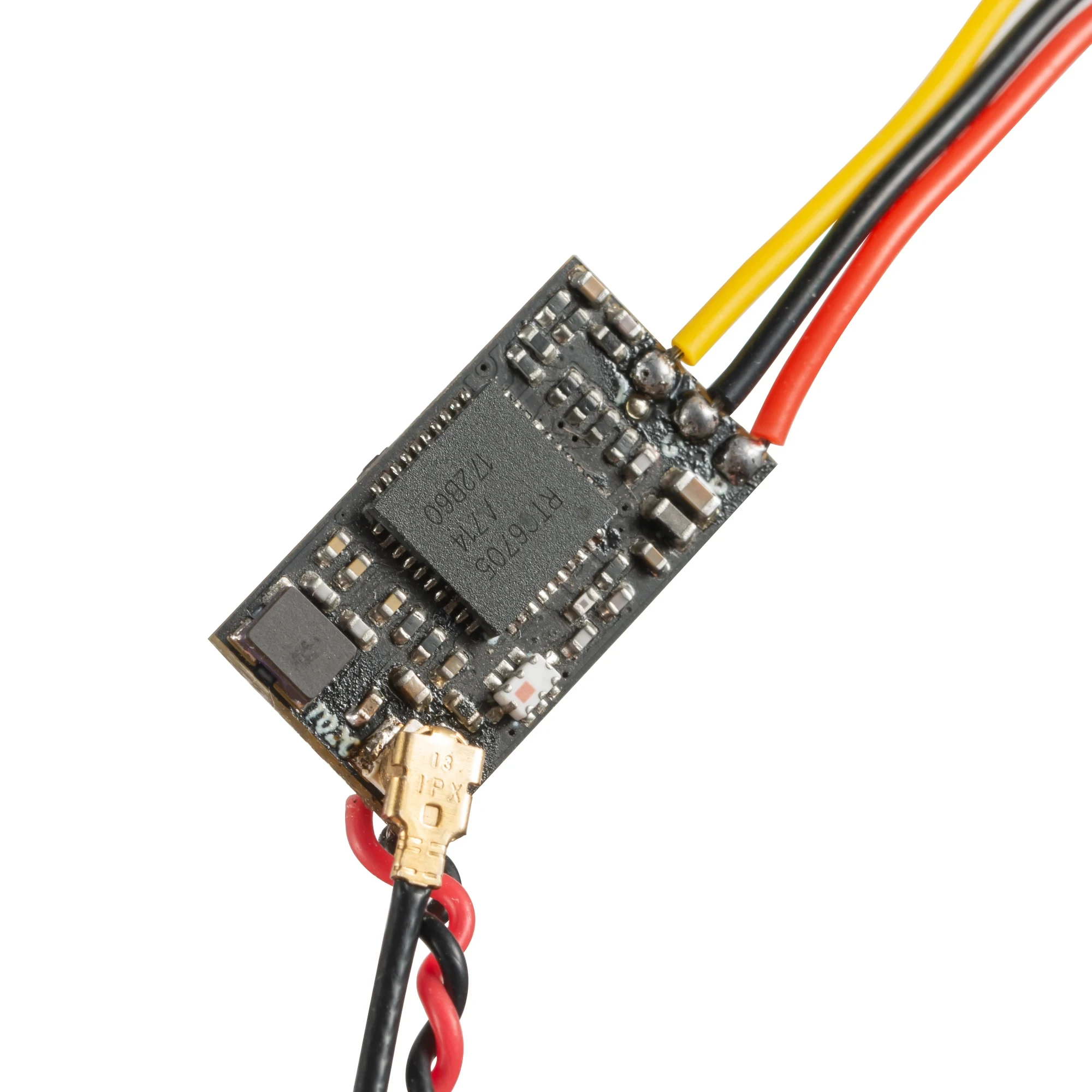

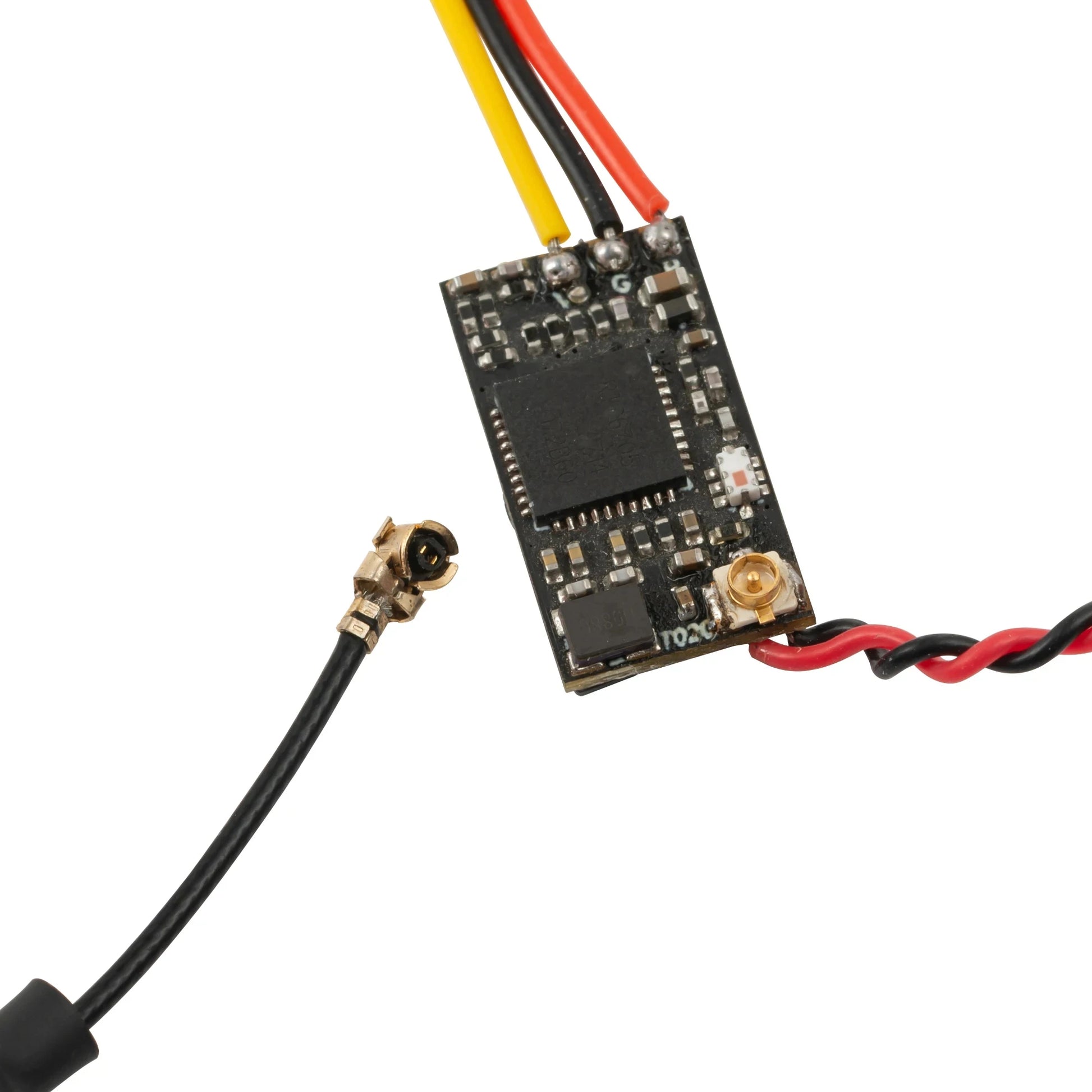

Video Transmitter

Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW
Wireless Channel: 40CH

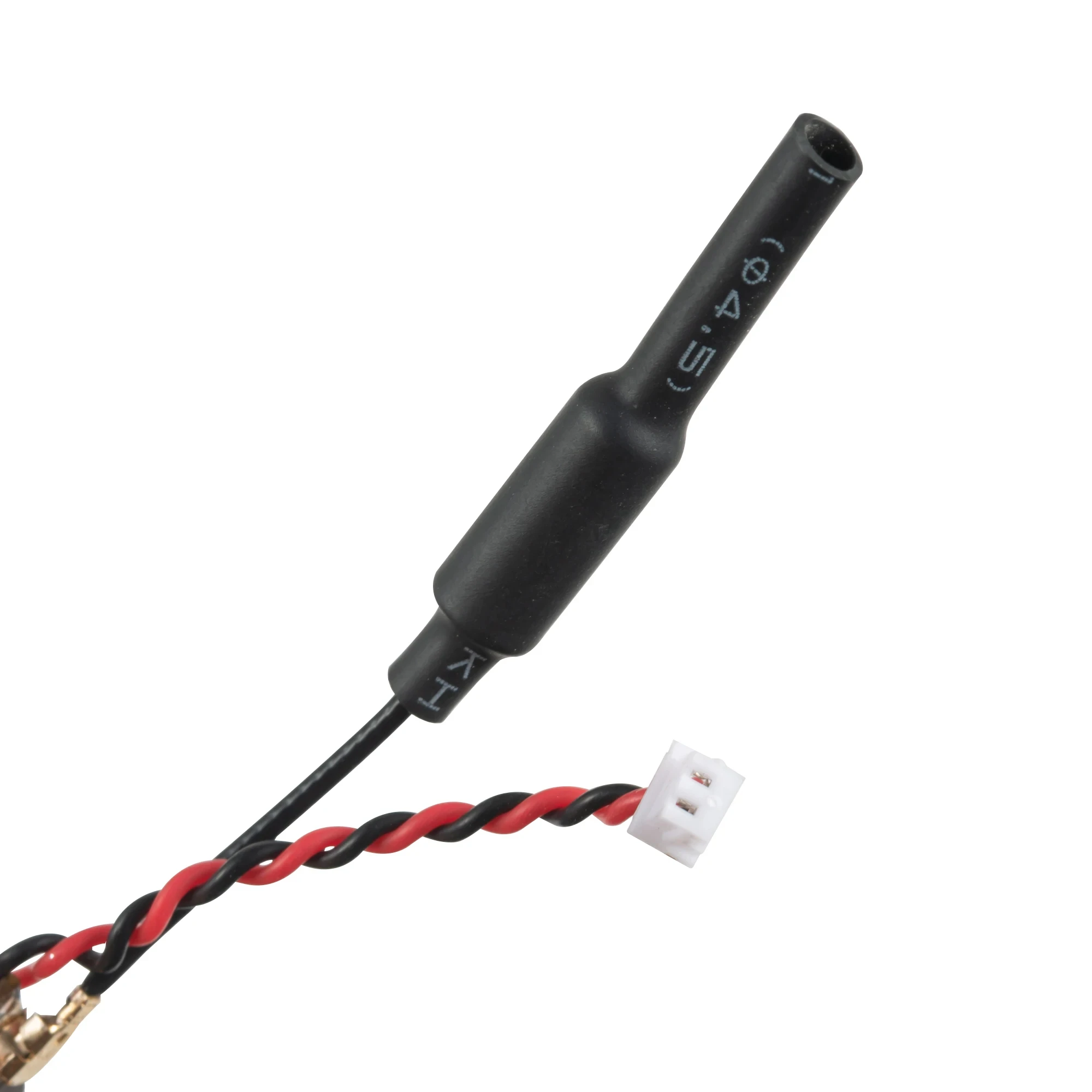

Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz

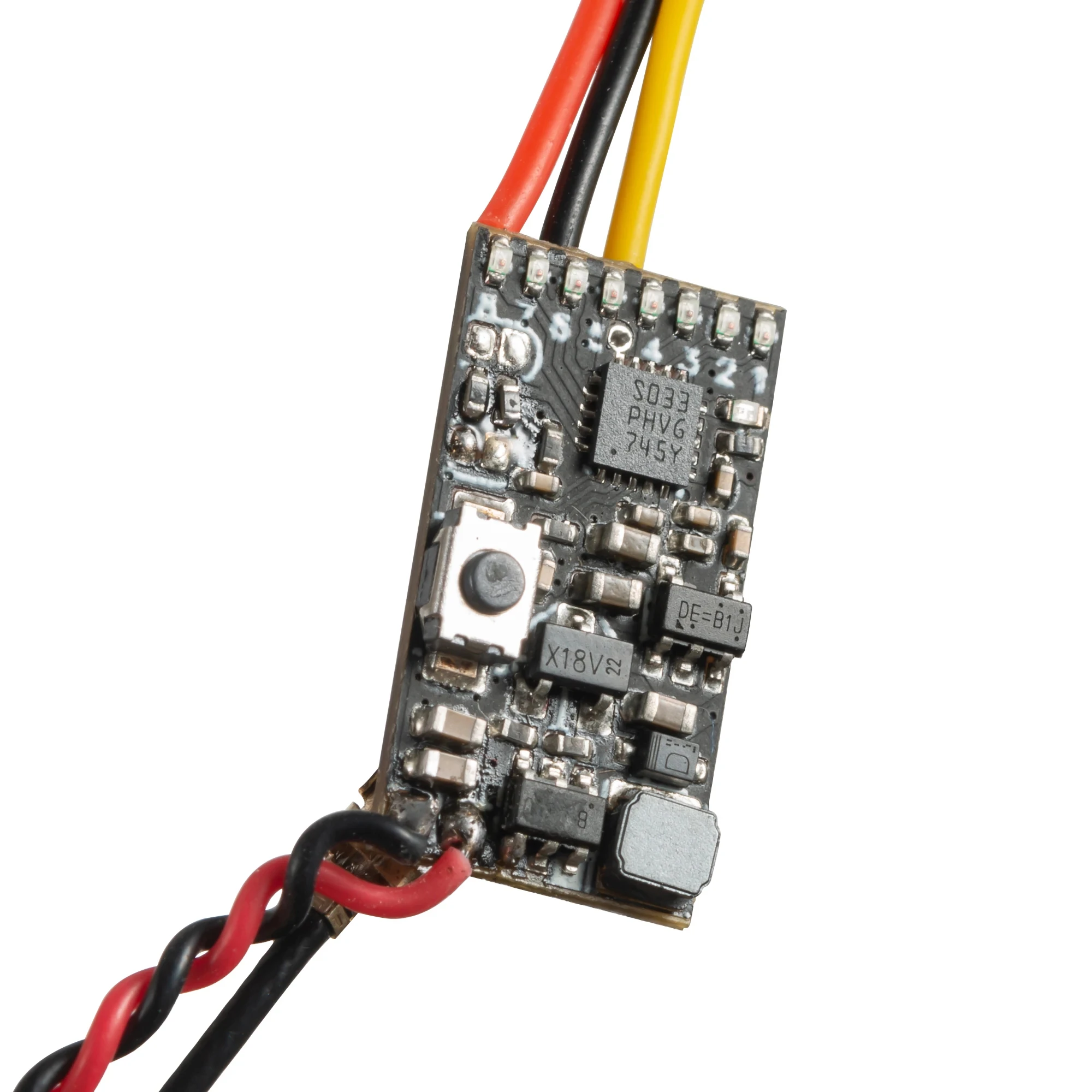

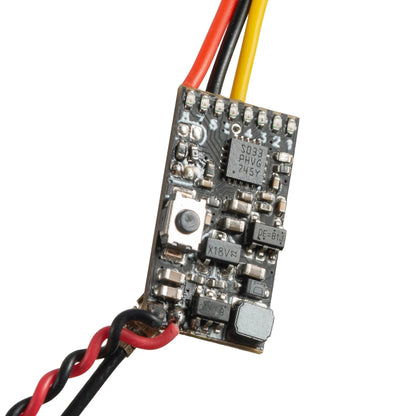

Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)

Body

Weight: 3.6g
Size: 18x16x16mm (without antenna)

Feature:

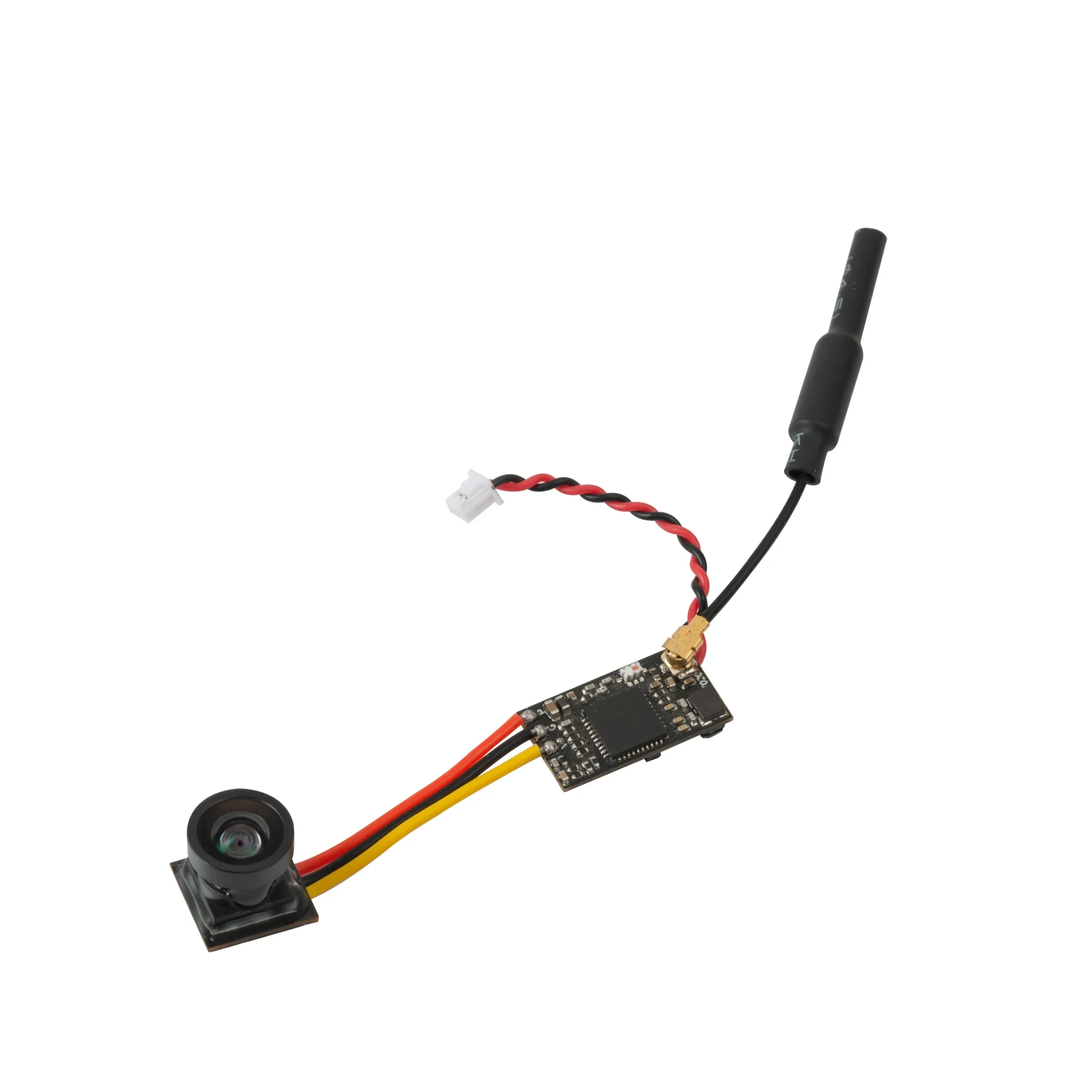

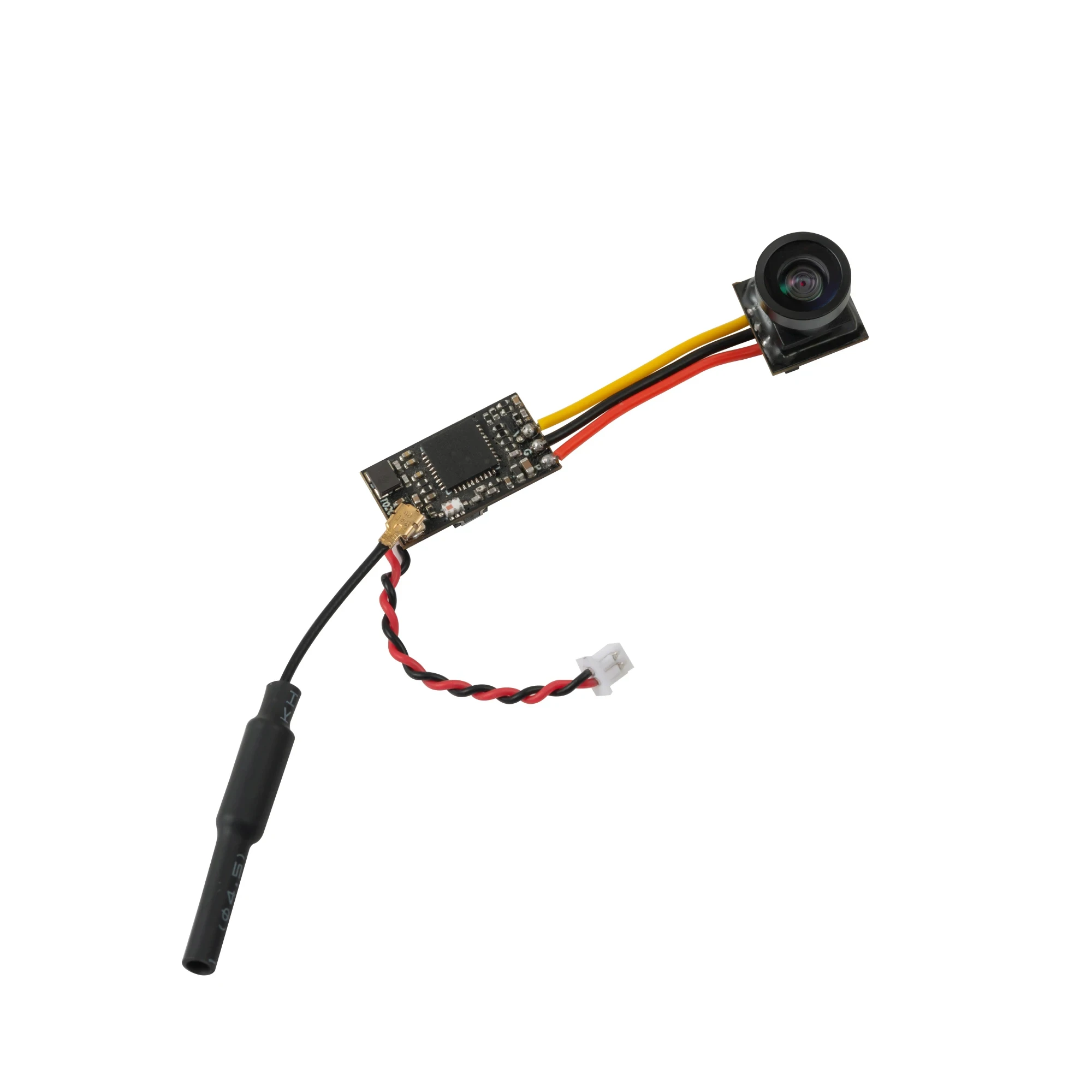

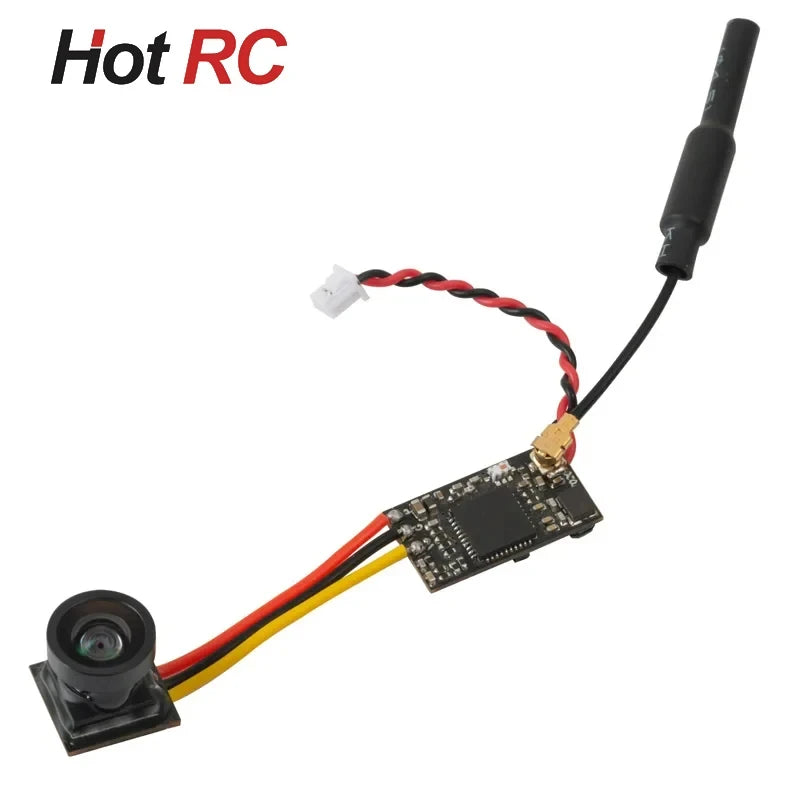

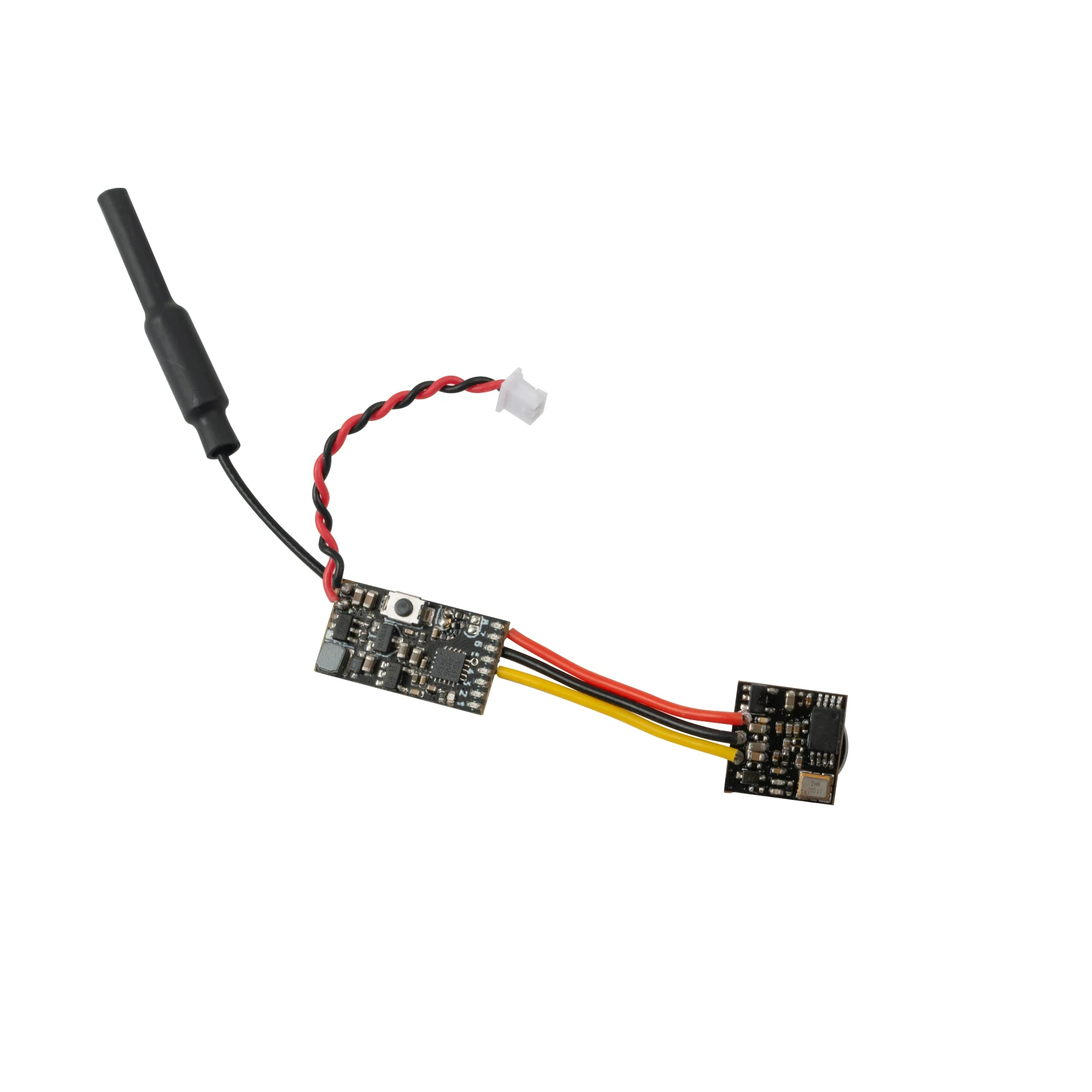

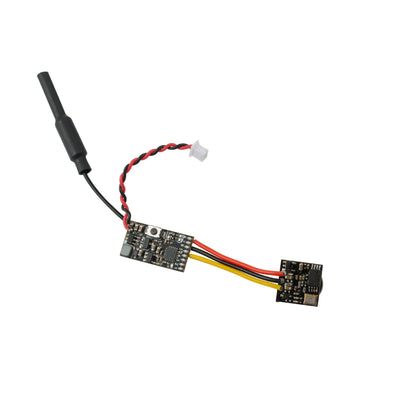

AIO FPV camera, transmitter , antenna all 3 functions in one limit size and weight
150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Five bands 40 channels with Race band

Package Included:
1 X S4 AIO FPV Camera
1 X wiring harness
1 X User Manual
