SPECIFICATIONS

Brand Name: SHIMANO

Choice: yes

Components: Derailleurs

Derailleur Groupset Type: Mechanical Derailleur system

Gears: 9 Speed

High-concerned chemical: None

Material: Alloy

Model Number: M3100

Origin: Jp(origin)

Total Capacity: 36T

Type: Rear Derailleur

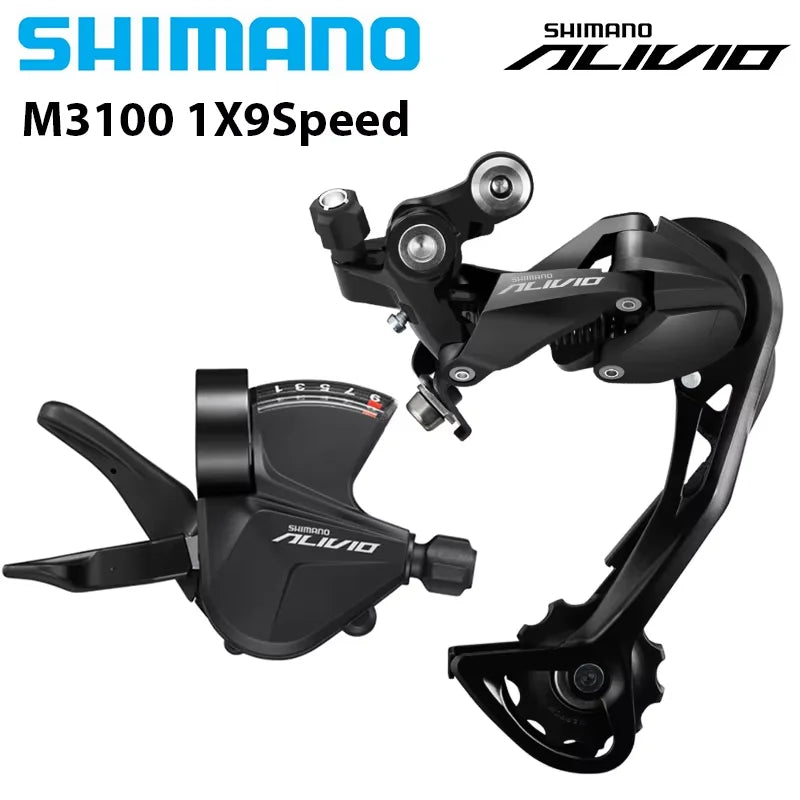

SHIMANO Alivio M3100 Group 9-speed

Note:There are 3 different options showed on the pictures for you to choose.Please check carefuuly before purchasing!

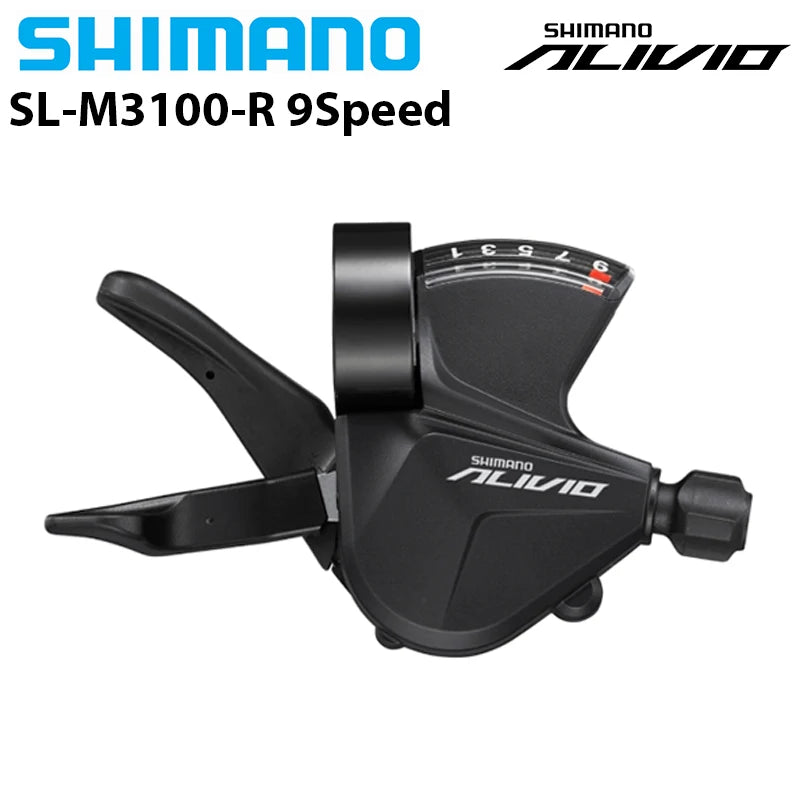

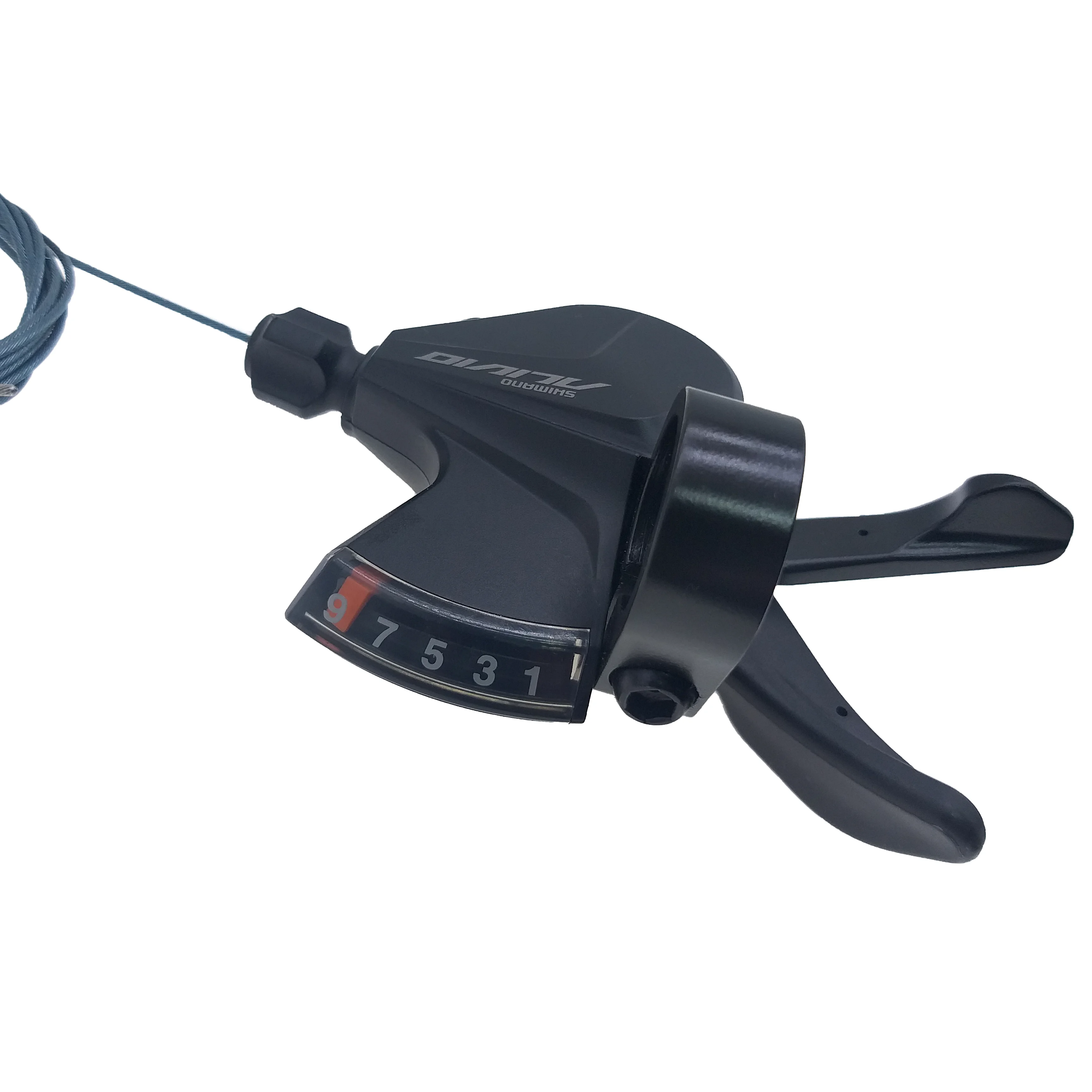

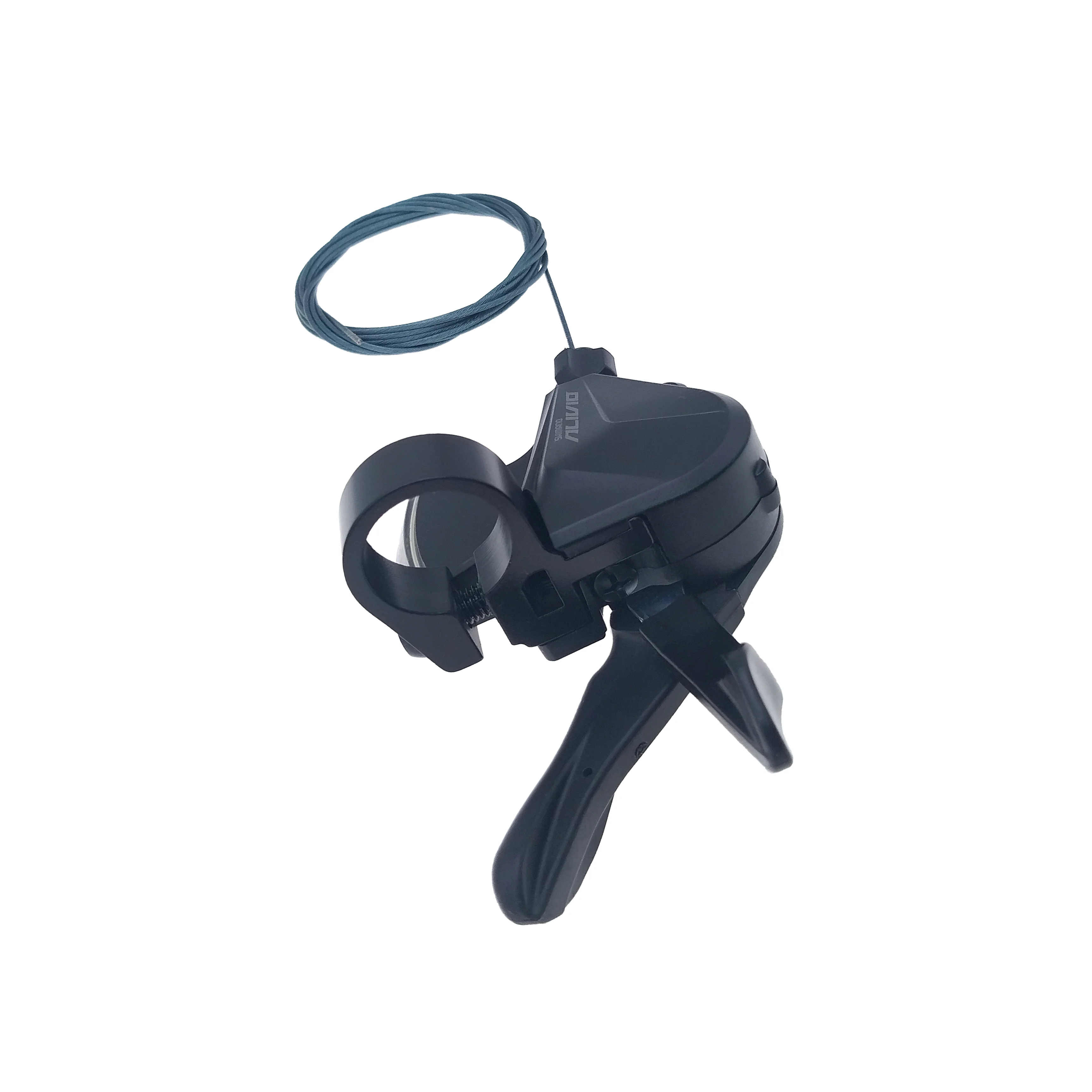

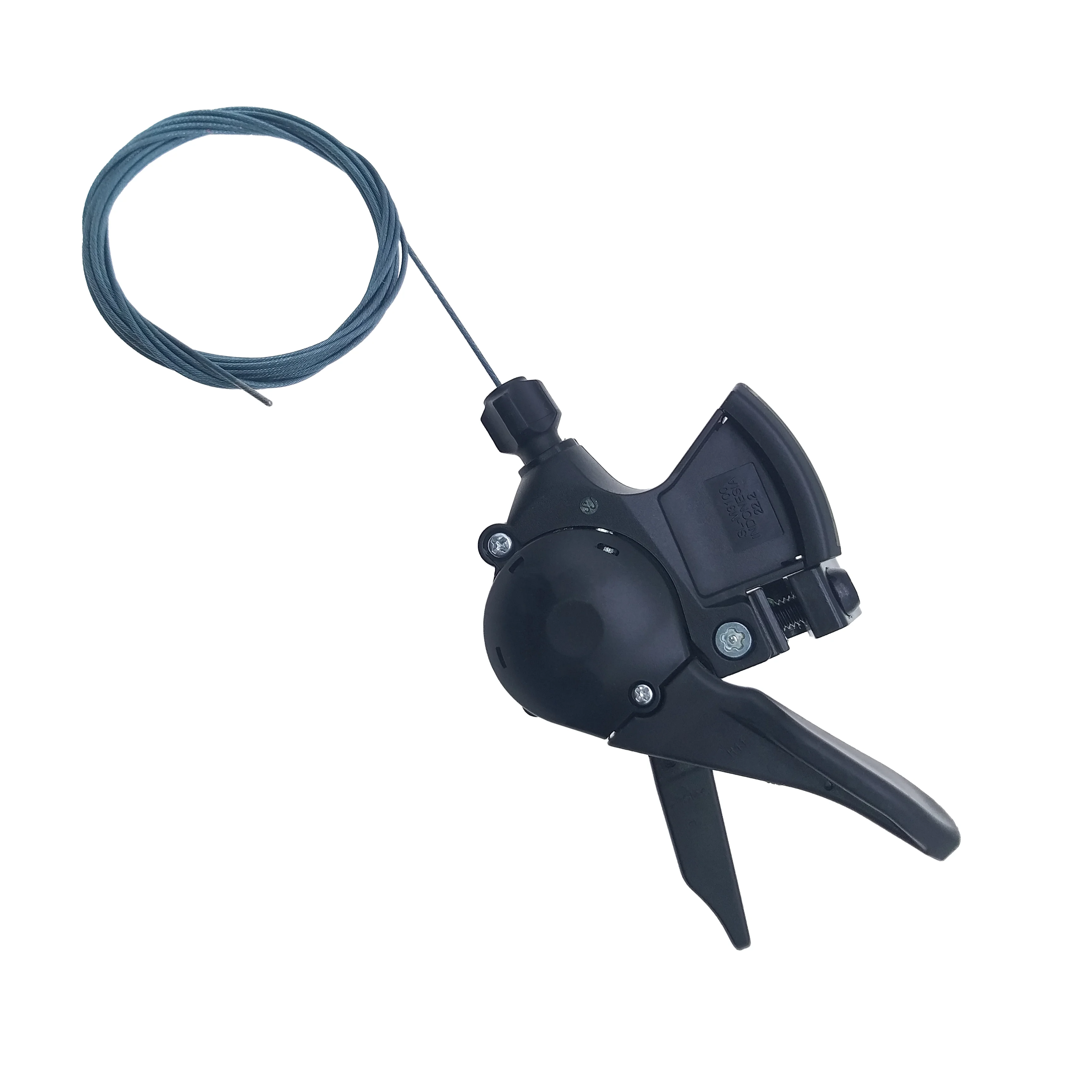

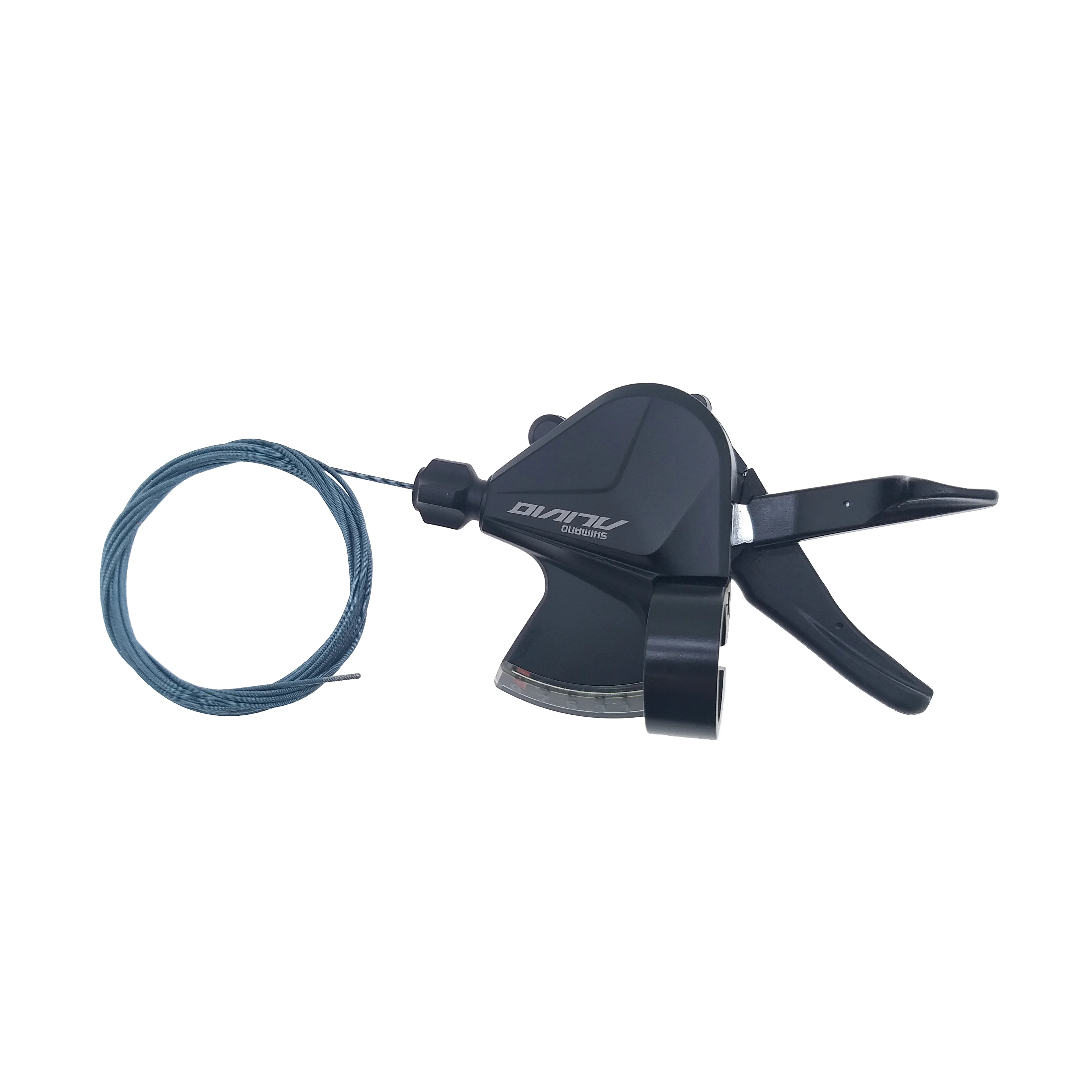

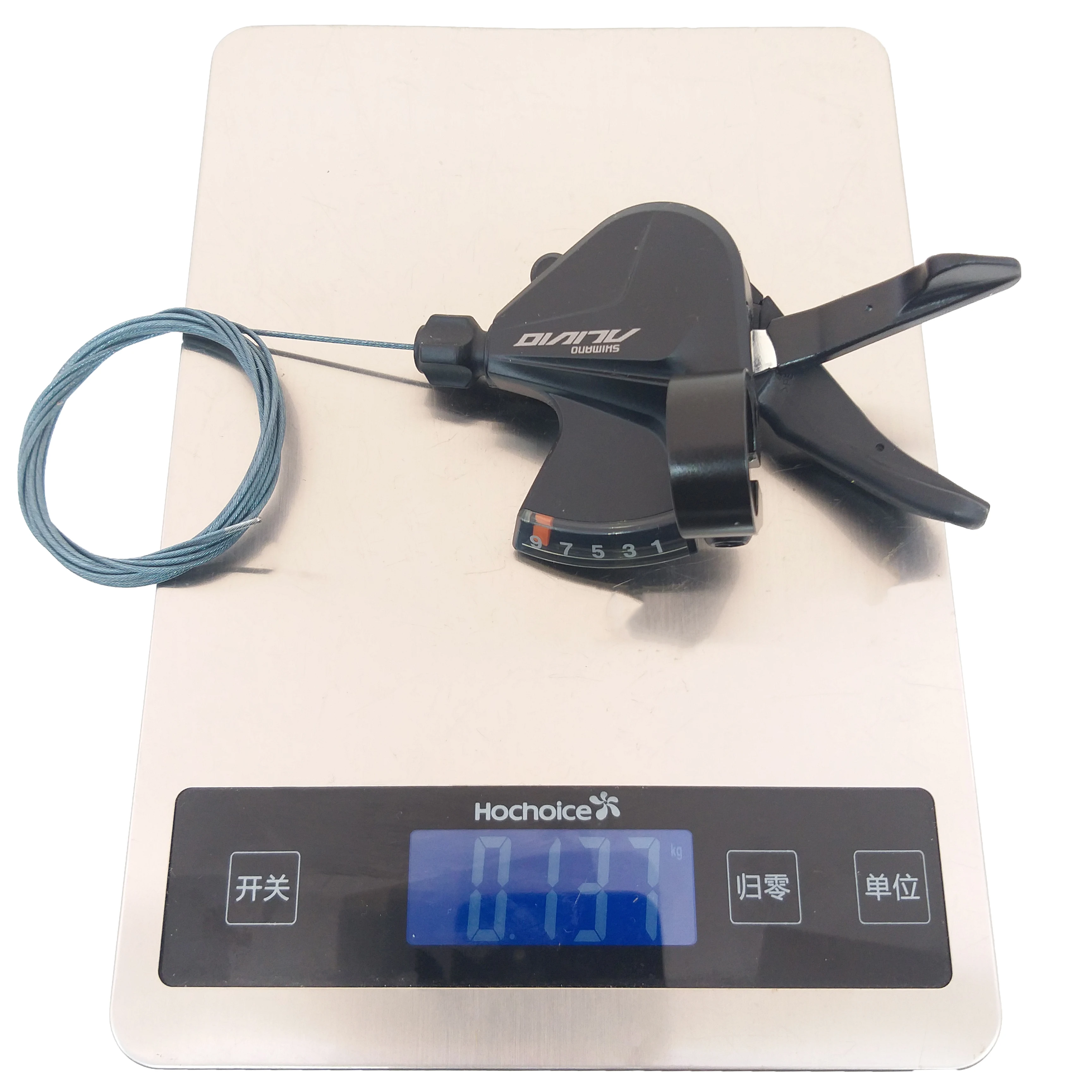

SHIMANO ALIVIO RAPIDFIRE PLUS Shifting Lever 9-speed

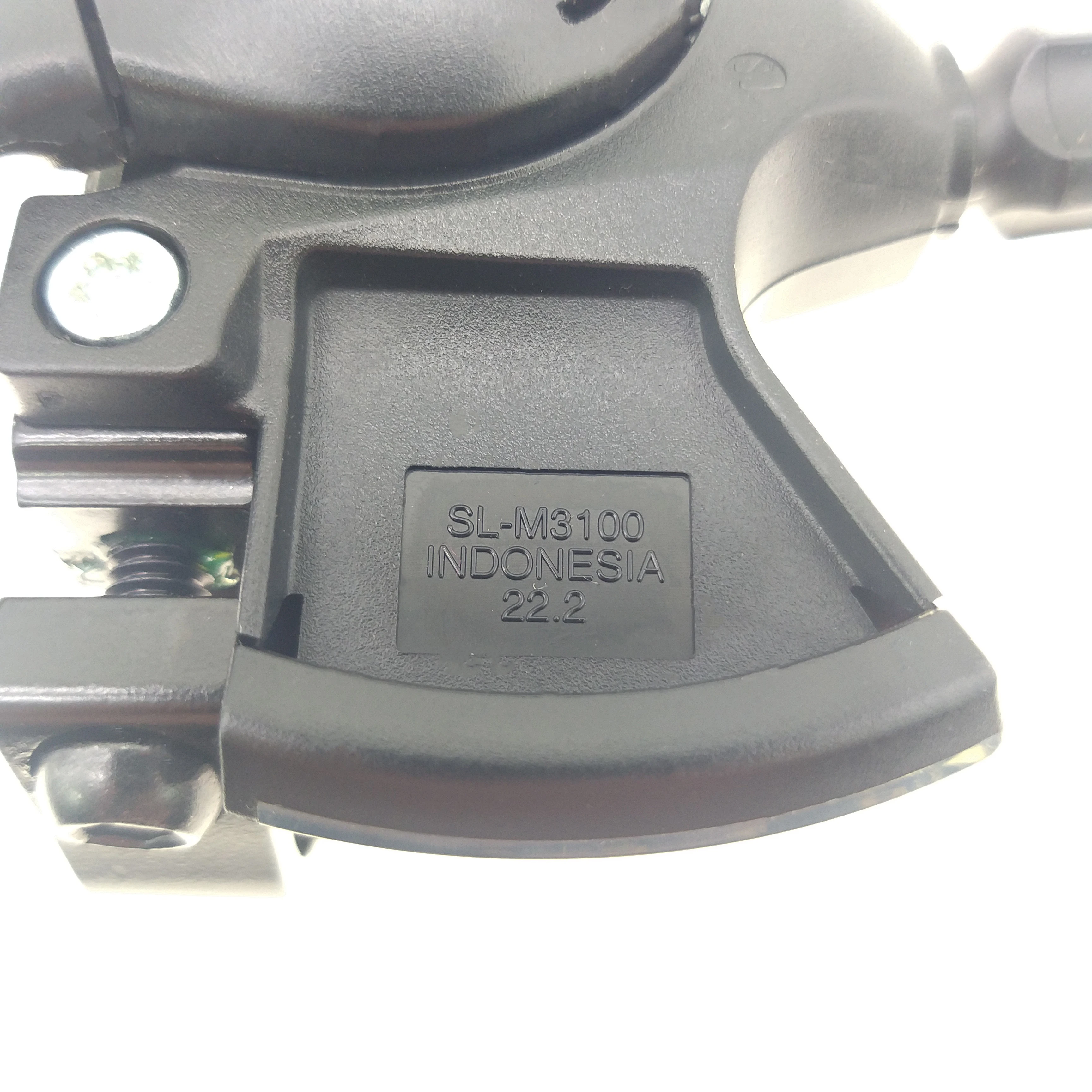

SL-M3100-R

SHIMANO ALIVIO - RAPIDFIRE PLUS - Right Shifting Lever - Clamp Band - 9-speed



The SHIMANO ALIVIO SL-M3100-R shift lever provides responsive rear shifting for 9-speed mountain bike drivetrains. The RAPIDFIRE PLUS lever is suited to quick shifting, giving riders the ability to downshift three gears in one stroke.



FEATURES

Quicker lever access and light operation

Shifts max. 3 gears at a time (Main lever)

OPTICAL GEAR DISPLAY for easy visible gear position



PRODUCT SPECIFICATIONS

MODEL NO SL-M3100-R

SERIES SHIMANO ALIVIO M3100 Series

Color Series color

Shifter type RAPIDFIRE PLUS

Rear speeds 9

Compatible rear derailleur type MTB 9-speed

Mount type|Clamp band ✔

Shift lever cable adjust ✔

Max. multiple shifts (main lever/rear) 3

OPTICAL GEAR DISPLAY|With ✔

Shift lever cable|Inner cable|OPTISLICK ✔

Shift lever cable|Inner cable|Steel ✔

Recommended shift lever outer casing OT-SP41



TECHNOLOGIES

RapidfirePlus

optical_gear_display

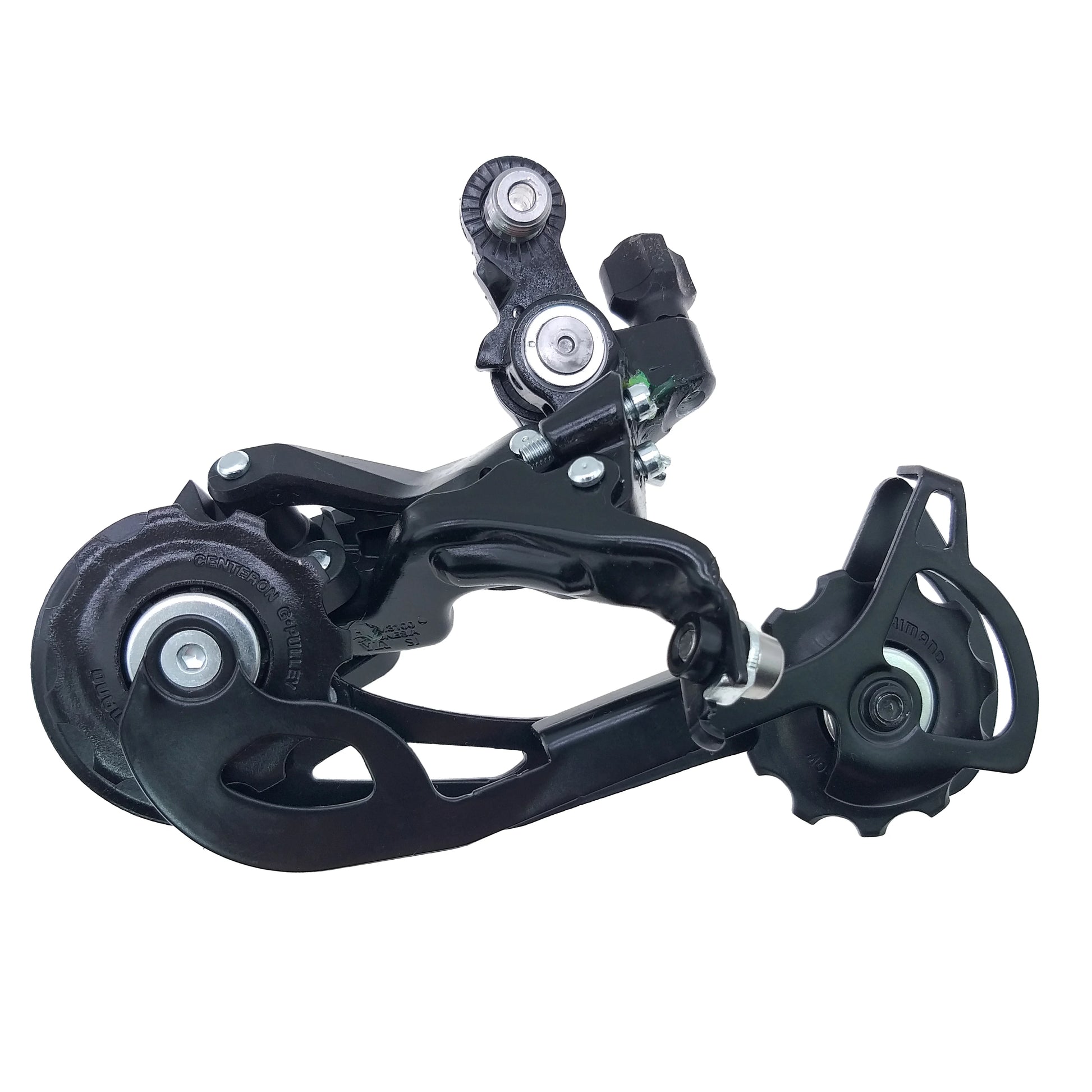

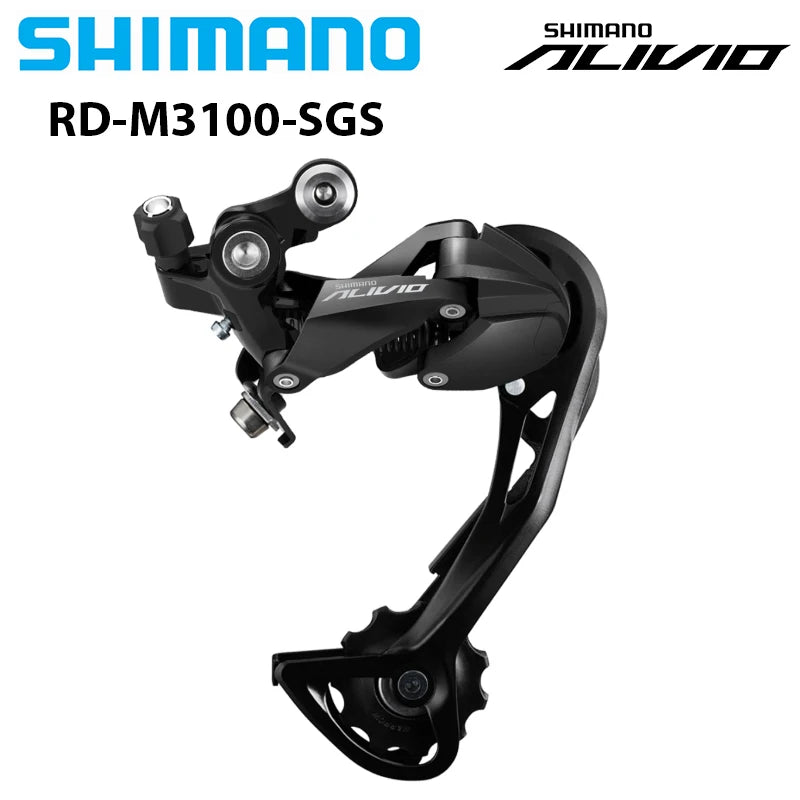

SHIMANO ALIVIO Rear Derailleur SHIMANO SHADOW RD 9-speed

RD-M3100-SGS

SHIMANO ALIVIO - Rear Derailleur - SHIMANO SHADOW RD - 9-speed



The SHIMANO ALIVIO M3100 rear derailleur delivers a low profile design that lets you ride aggressively with fewer interruptions thanks to its SHIMANO SHADOW design.



FEATURES

Low-profile design

Total capacity: 45T

Max. low sprocket: 36T

Adjustment barrel



PRODUCT SPECIFICATIONS

MODEL NO RD-M3100-SGS

SERIES SHIMANO ALIVIO M3100 Series

Color Series color

Rear speeds 9

Compatible chain HG 9-speed

Top-normal spring type|SHIMANO SHADOW RD ✔

Mount|Direct attachment (conventional) ✔

Cable adjuster ✔

Max. front difference 22T

Total capacity 45T

Low sprocket|Max. 36T

Low sprocket|Min. 32T

Top sprocket|Max. 12T

Top sprocket|Min. 11T

Fluoric coated link bushings 1

Pulley|Teeth 11T

Pulley|Sunken type pulley screw ✔

B-axle|Hollow axle ✔



TECHNOLOGIES

shimano_shadow_rd
