SPECIFICATIONS

Brand Name: SHIMANO

Choice: yes

Components: Derailleurs

Derailleur Groupset Type: Mechanical Derailleur system

Gears: 9 Speed

High-concerned chemical: None

Material: Alloy

Model Number: U4000

Origin: Jp(origin)

Total Capacity: 46T

Type: Rear Derailleur

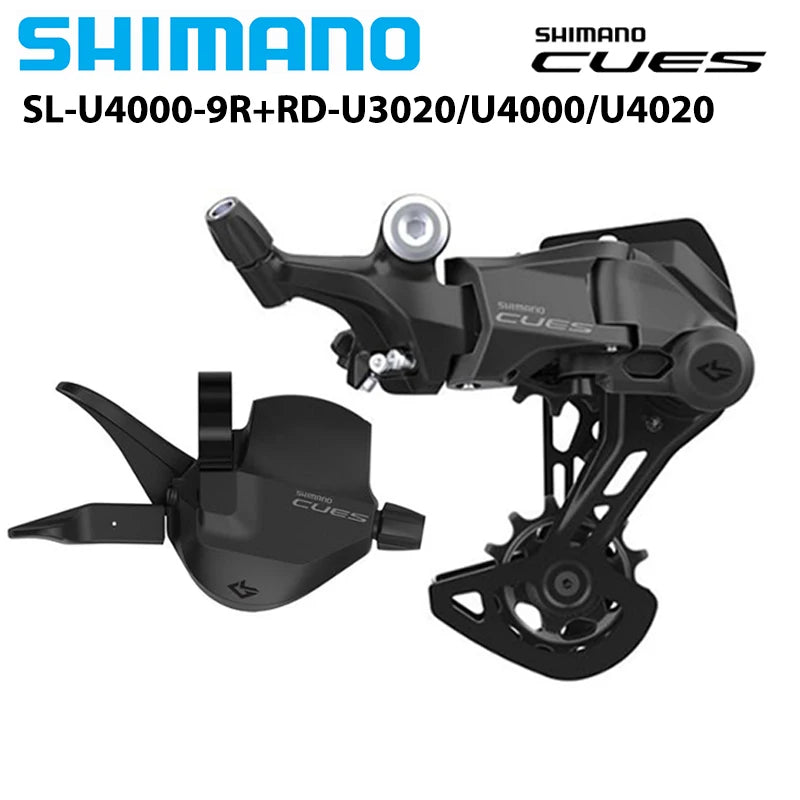

Note:There are seven different options for you to choose.Please check it carefully before purchasing!

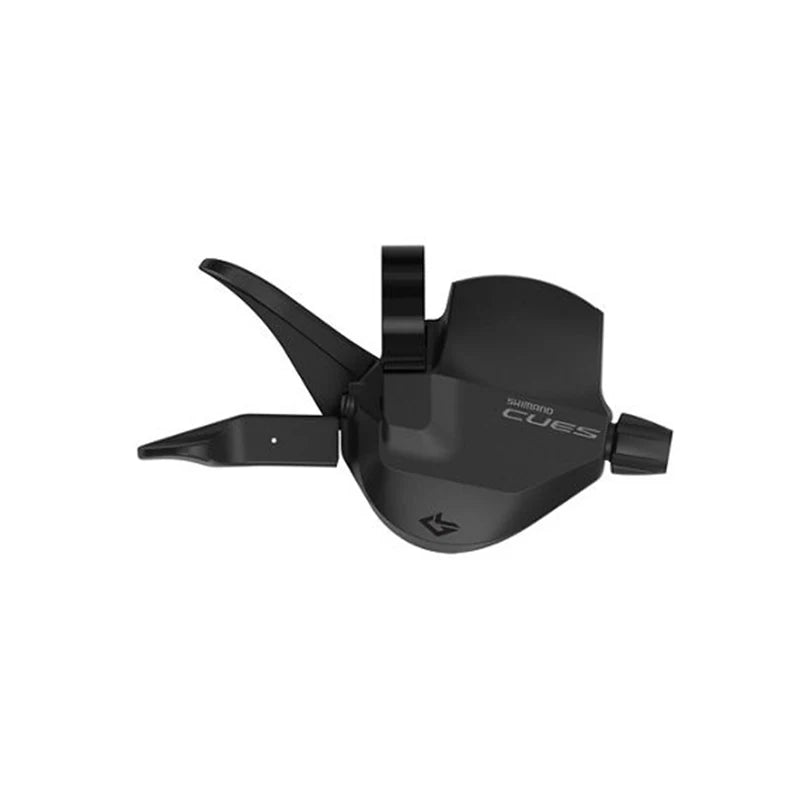

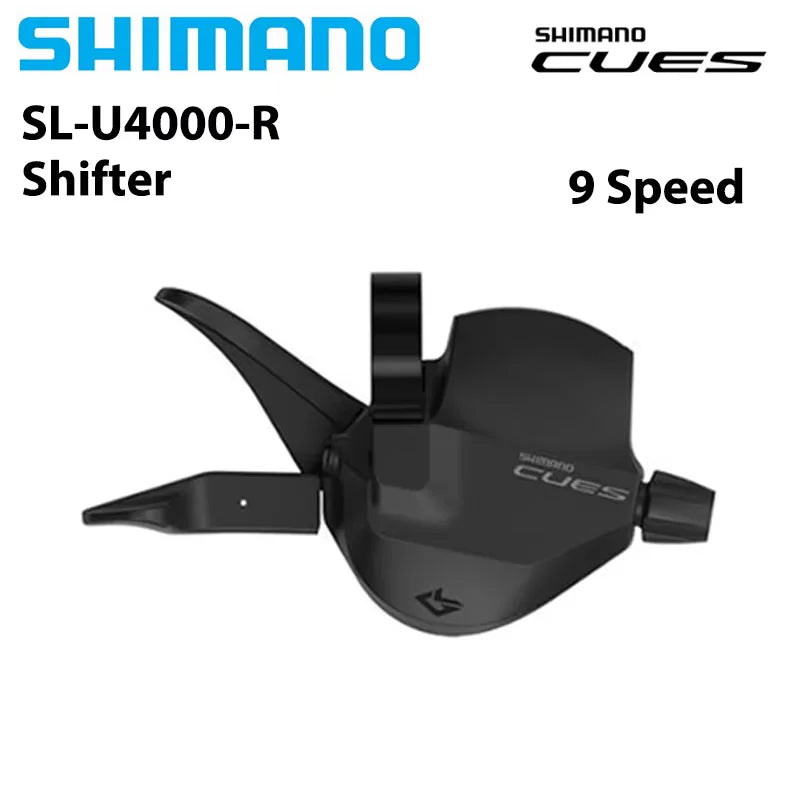

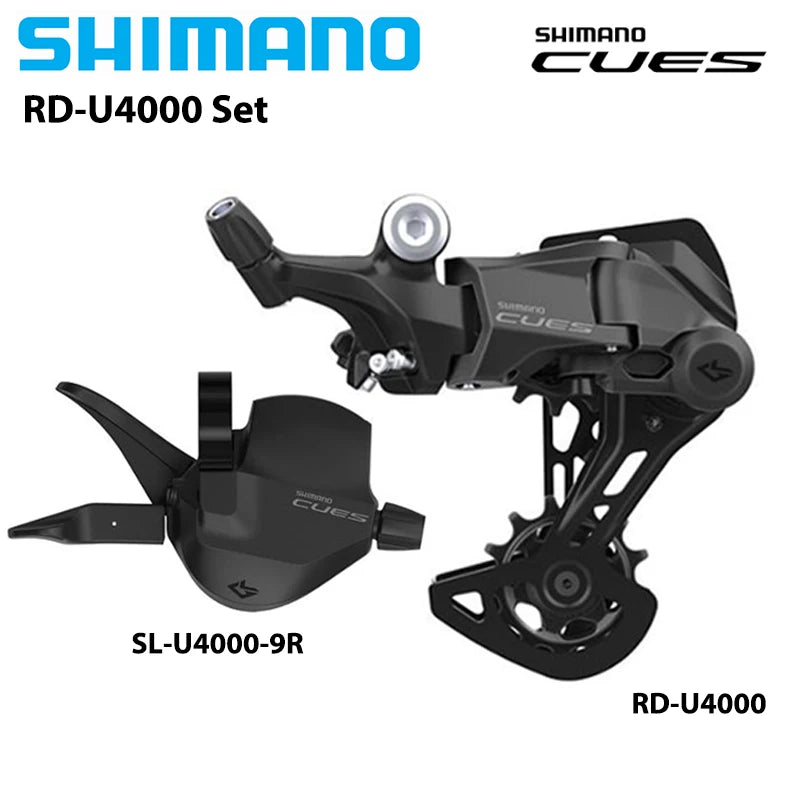

SHIMANO CUES RAPIDFIRE PLUS Shifter Clamp Band 9-speed

SL-U4000-9R NEW

Refined lever shape and light operation for easy shifting

This lever's new shape and light operation provide riders with a comfortable, easy-to-use interface.

FEATURES

Quick lever access and light operation

RAPIDFIRE PLUS

》Easily-visible gear position indicator option improves shifting control

OPTICAL GEAR DISPLAY

Note:Only compatible with LINKGLIDE shifting system

PRODUCT SPECIFICATIONS

MODEL NO SL-U4000-9R

SERIES CUES U4000 Series

Color Series color

Shifter type RAPIDFIRE PLUS

Rear speeds 9

Compatible rear derailleur type LINKGLIDE system 9s

Mount type|Clamp band ✔

Shift lever cable adjust ✔

Max. multiple shifts (Main lever/rear) 2

OPTICAL GEAR DISPLAY|with ✔

Shift lever cable|Inner cable|OPTISLICK ✔

Shift lever cable|Inner cable|Steel ✔

Recommended shifting lever outer casing OT-SP41

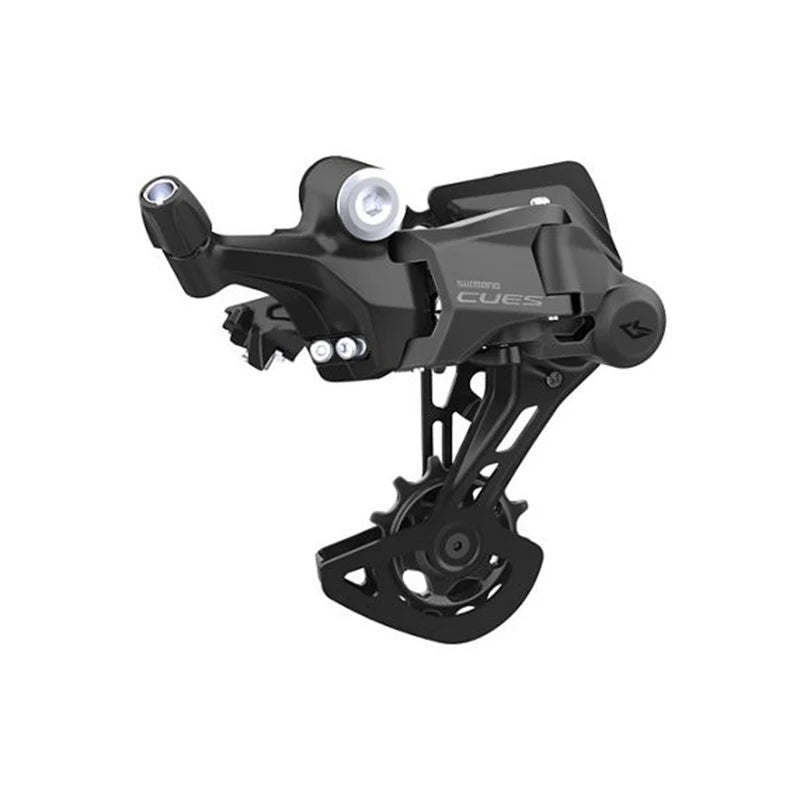

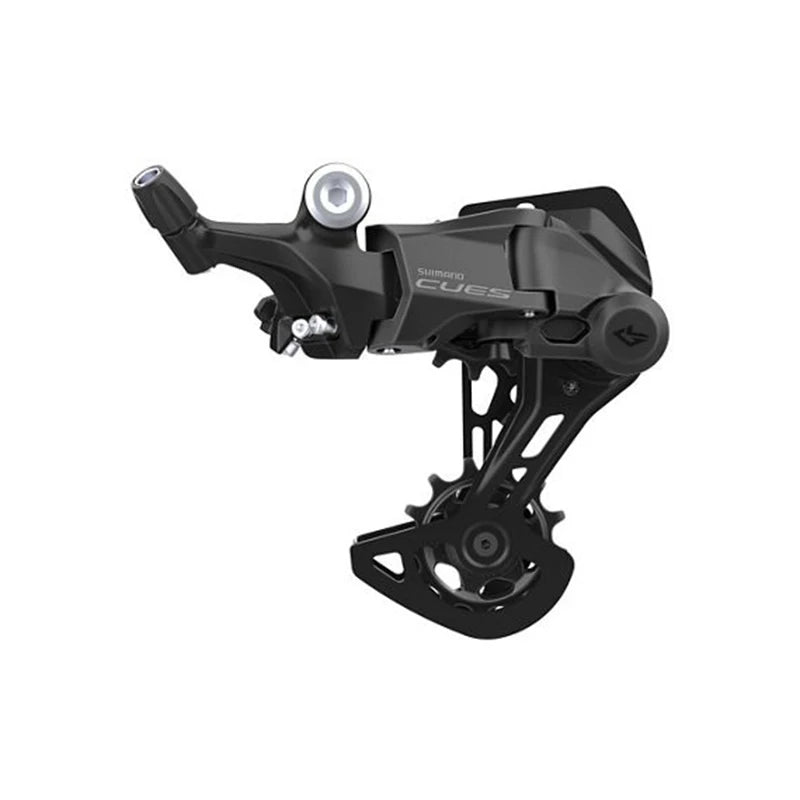

SHIMANO CUES SHADOW RD Rear Derailleur 9-speed

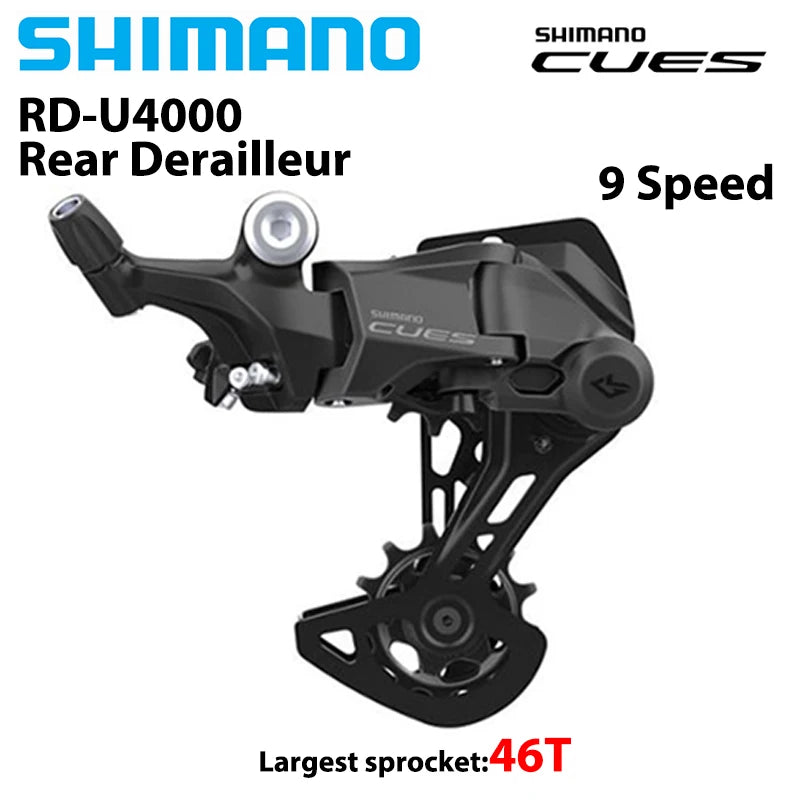

RD-U4000 NEW

Expand your trail-riding comfort zone with smooth operation and dependable performance

This 1x9-speed rear derailleur's smooth operation and dependability will help inspire riders to expand their trail-riding comfort zone. Its low-profile design and chain stabilization will give them the confidence to choose rougher routes.



FEATURES

Stable drivetrain performance on trails, gravel, and city streets

》Optimized geometry and spring tension reduce chain drop

》Low-profile design is optimized for rough terrain

》Total capacity: 35T

》Max low sprocket: 46T Min low sprocket: 41T

Designed and tested to provide enduring e-biking performance

E-BIKE RATED

Note:Only compatible with LINKGLIDE shifting system

PRODUCT SPECIFICATIONS

MODEL NO RD-U4000

SERIES CUES U4000 Series

Color Series color

Remarks E-bike rated

Rear speeds 9

Compatible chain LINKGLIDE, HG 11-speed

Top-normal spring type|SHIMANO SHADOW RD ✔

Mount|Direct attachment (Conventional) ✔

Cable adjuster ✔

Max. front difference 0T

Total capacity 35T

Low sprocket|Max. 46T

Low sprocket|Min. 41T

Top sprocket|Max. 11T

Top sprocket|Min. 11T

Fluoric coated link bushings 1

Pulley|Teeth 13/13T

Pulley|Sunken type pulley bolt ✔

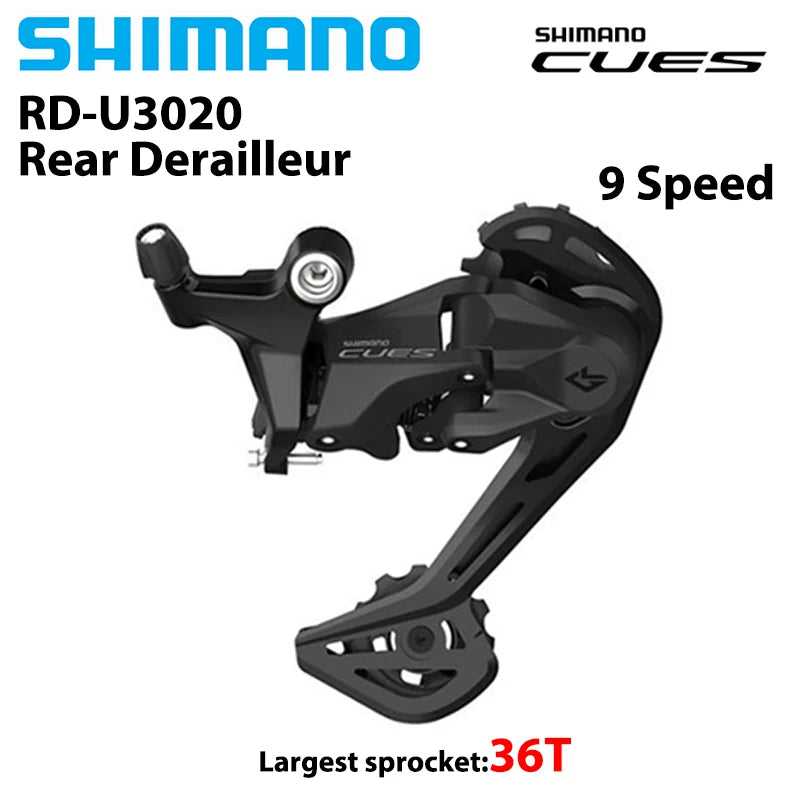

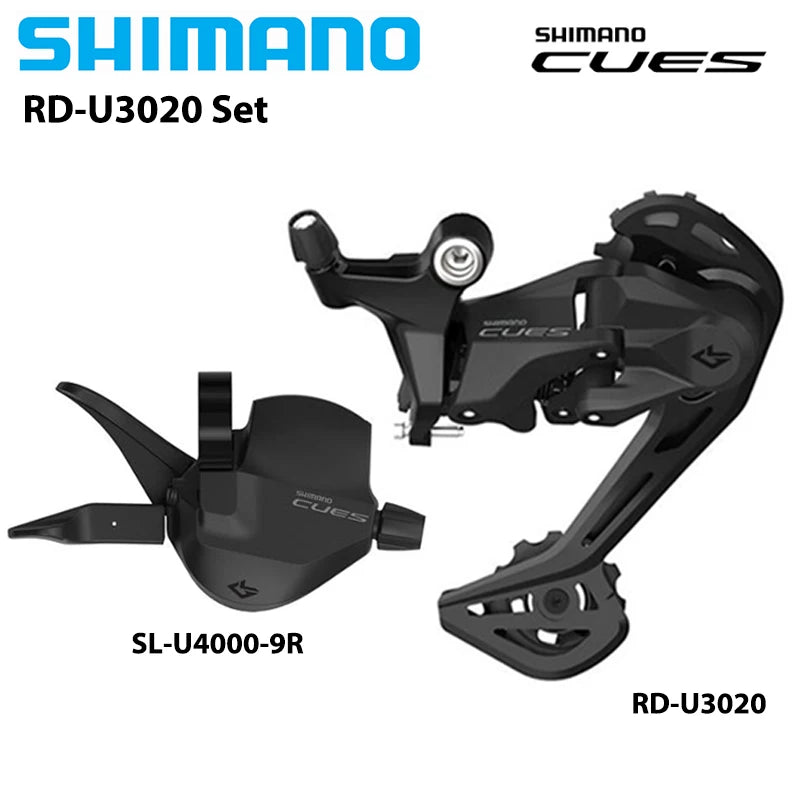

SHIMANO CUES SHADOW RD Rear Derailleur 9-speed

RD-U3020 NEW

Keep moving around town and the countryside with smooth and decisive rear shifting



Make cycling an essential part of your fitness lifestyle with this 9-speed rear derailleur. Designed for daily riding dependability, its smooth and decisive rear shifting will keep you moving around town and into the countryside.



FEATURES

Stable drivetrain performance on trails, gravel, and city streets

》Low-profile design protects rear derailleur from obstacles in a wide variety of riding scenes

》Total capacity: 41T

》Max low sprocket: 36T (2x9-speed)



Only compatible with LINKGLIDE shifting system



PRODUCT SPECIFICATIONS

MODEL NO RD-U3020

SERIES CUES U4000 Series

Color Series color

Rear speeds 9

Compatible chain LINKGLIDE, HG 11-speed

Top-normal spring type|SHIMANO SHADOW RD ✔

Mount|Direct attachment (Conventional) ✔

Cable adjuster ✔

Max. front difference 16T

Total capacity 41T

Low sprocket|Max. 36T

Low sprocket|Min. 36T

Top sprocket|Max. 11T

Top sprocket|Min. 11T

Pulley|Teeth 11/11T

Pulley|Sunken type pulley bolt ✔



TECHNOLOGIES

linkglide

shimano_shadow_rd

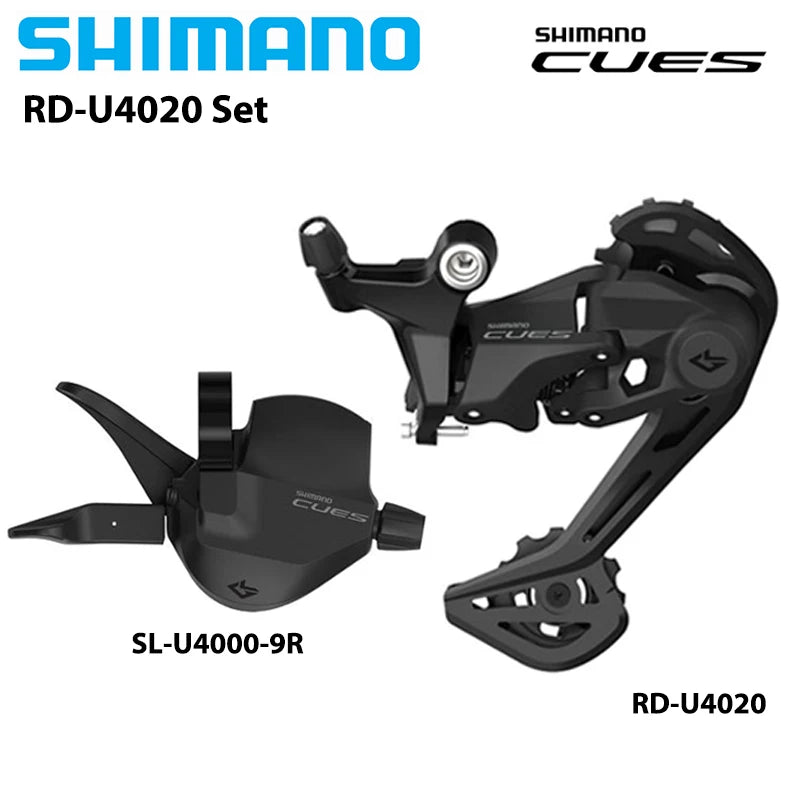

SHIMANO CUES SHADOW RD Rear Derailleur 9-speed

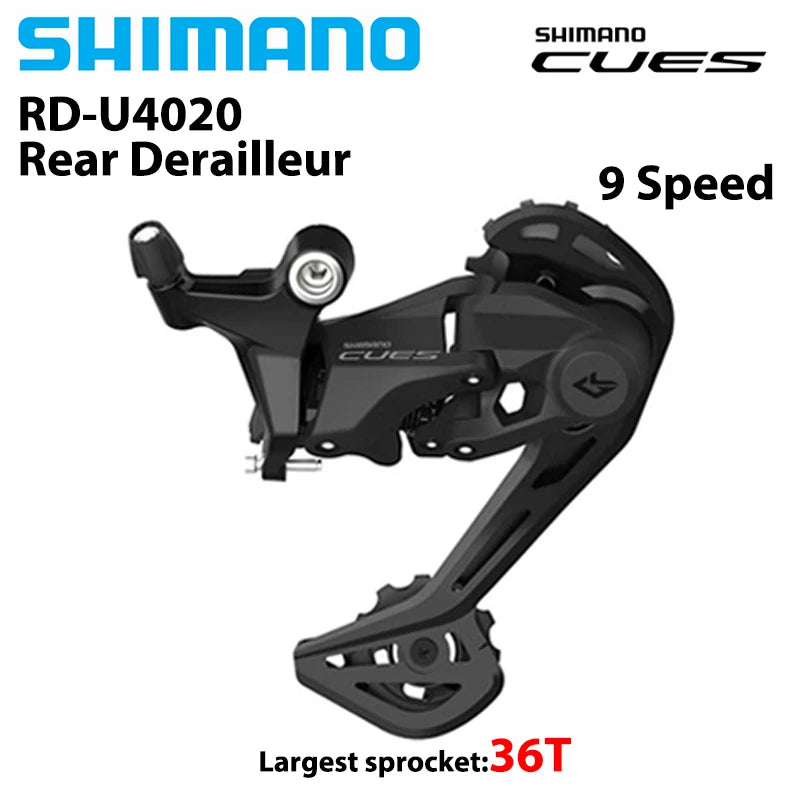

RD-U4020 NEW

Stay active with smooth and decisive rear shifting rated for e-bikes



Make cycling an essential part of your fitness lifestyle with this 2x9-speed rear derailleur. Designed for daily riding dependability and rated for e-bikes, its smooth and decisive rear shifting will keep you moving around town and throughout the countryside.



FEATURES

Stable drivetrain performance on trails, gravel, and city streets

》Low-profile design protects rear derailleur from obstacles in a wide variety of riding scenes

》Total capacity: 41T

》Max low sprocket: 36T (2x9-speed)

Designed and tested to provide enduring e-biking performance

E-BIKE RATED



Only compatible with LINKGLIDE shifting system



PRODUCT SPECIFICATIONS

MODEL NO RD-U4020

SERIES CUES U4000 Series

Color Series color

Remarks E-bike rated

Rear speeds 9

Compatible chain LINKGLIDE, HG 11-speed

Top-normal spring type|SHIMANO SHADOW RD ✔

Mount|Direct attachment (Conventional) ✔

Cable adjuster ✔

Max. front difference 16T

Total capacity 41T

Low sprocket|Max. 36T

Low sprocket|Min. 36T

Top sprocket|Max. 11T

Top sprocket|Min. 11T

Fluoric coated link bushings 1

Pulley|Teeth 11/11T

Pulley|Sunken type pulley bolt ✔



TECHNOLOGIES

linkglide

shimano_shadow_rd
