SPECIFICATIONS

Brand Name: SHIMANO

Choice: yes

Components: Derailleurs

Derailleur Groupset Type: Mechanical Derailleur system

Gears: 12 Speed

High-concerned chemical: None

Material: Alloy

Model Number: M6100

Origin: Jp(origin)

Total Capacity: 51T

Type: Rear Derailleur

Shimano Deore M6100 12S

Note:There are 5 options for you to choose showed on the pictures.Please check carefully before purchasing.

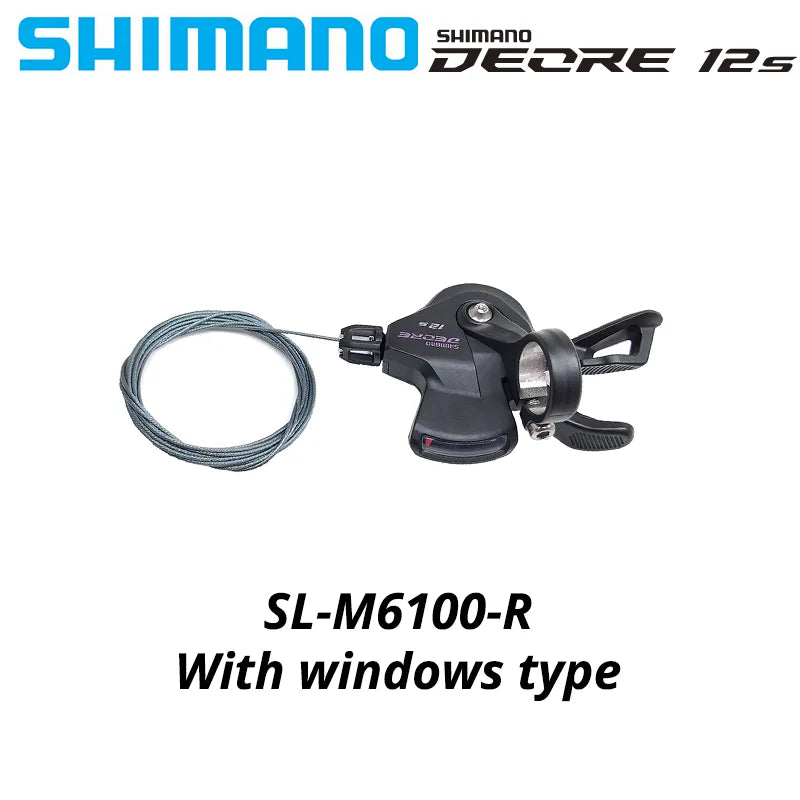

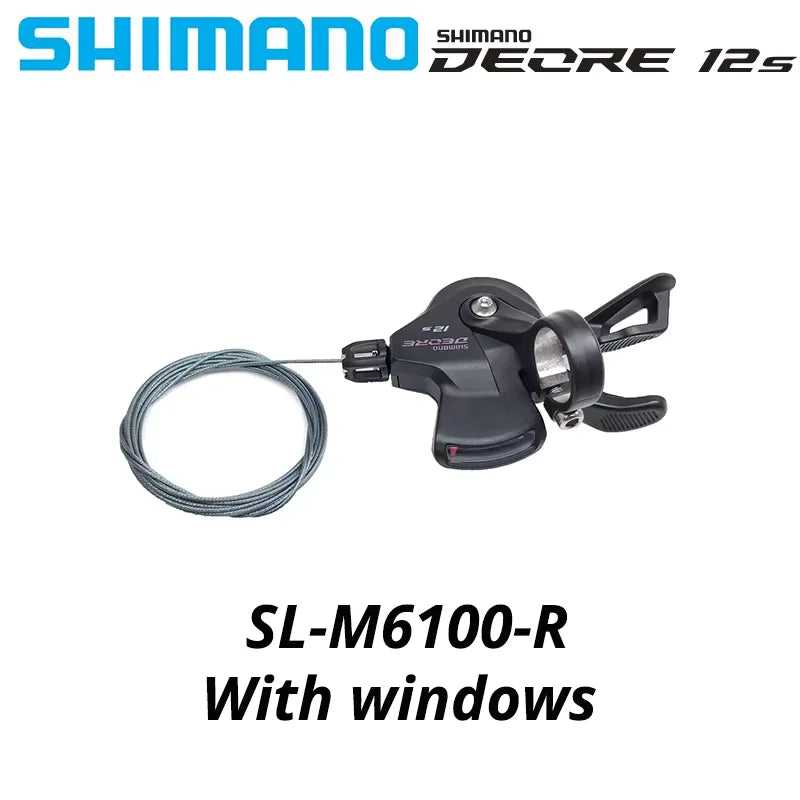

Option 1：SL-M6100 W，M6100 shifter lever with windows

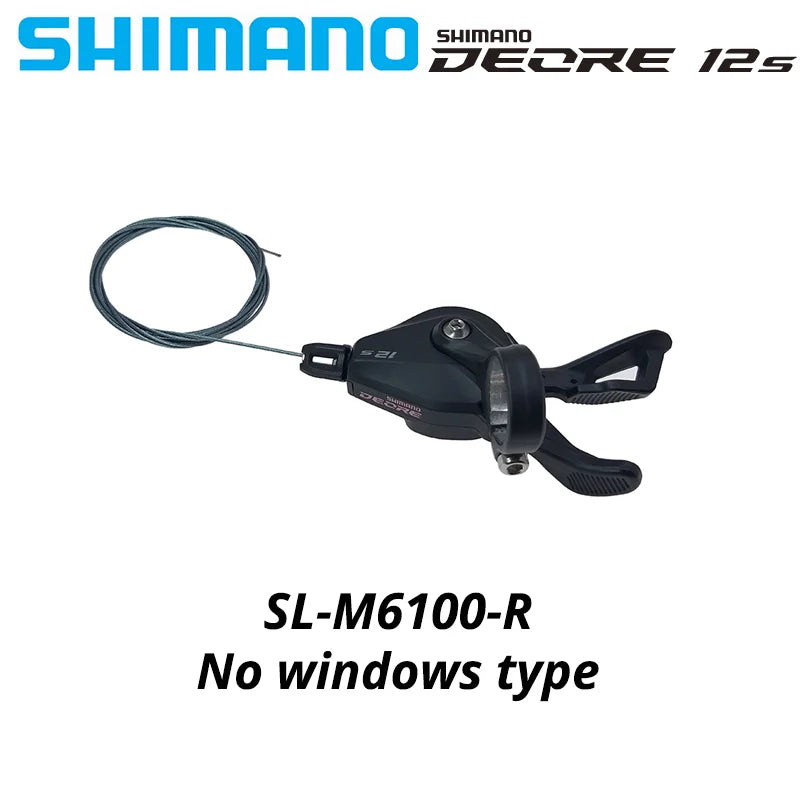

Option 2：SL-M6100 N，M6100 shifter lever without windows

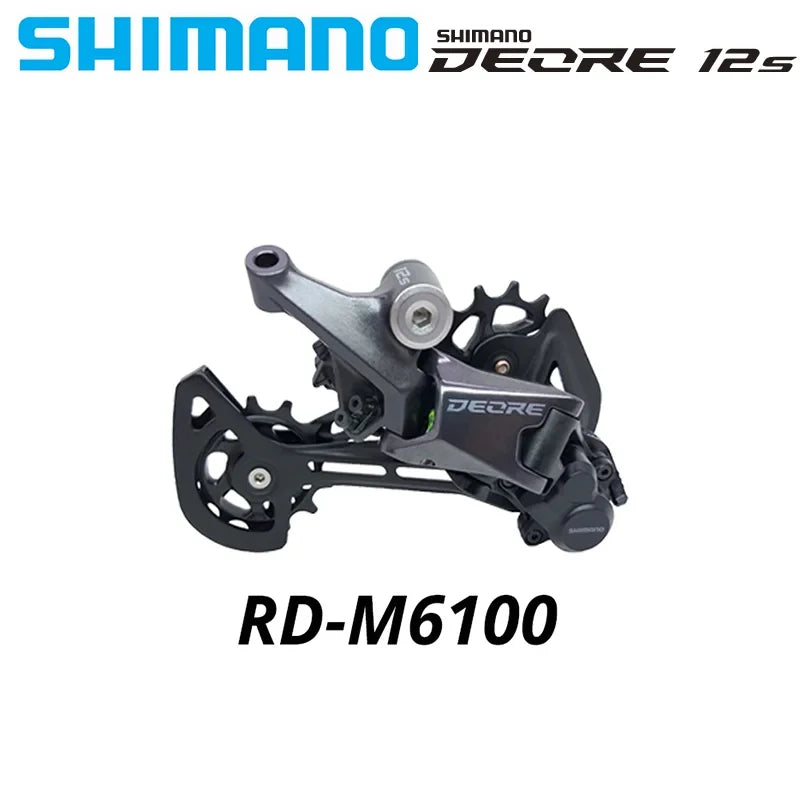

Option 3：RD-M6100-SGS，M6100 Rear Derailleur

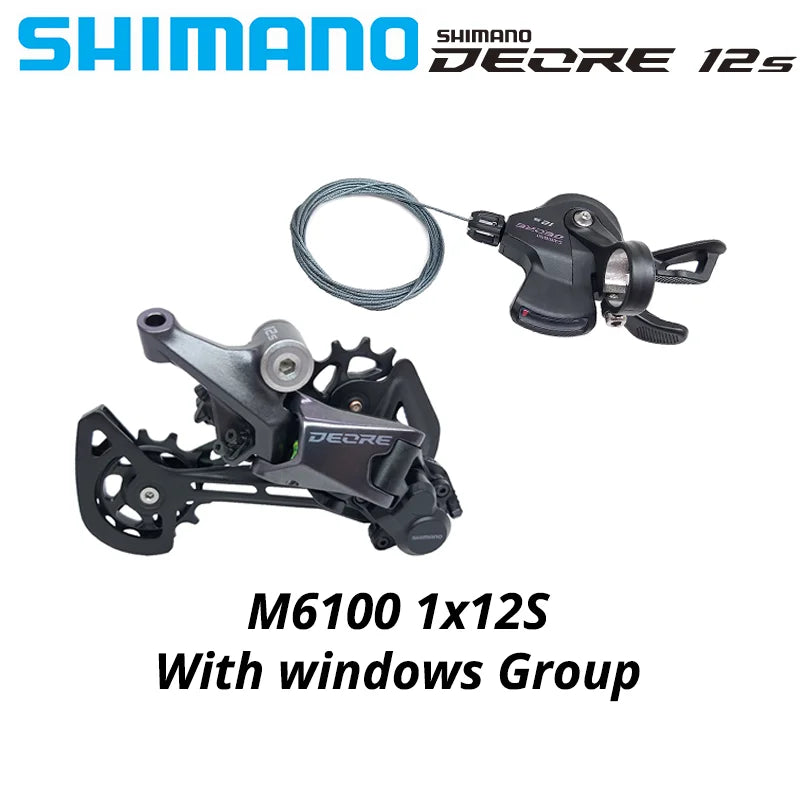

Option 4：Windows Group (M6100 Shifter Lever with RD-M6100-SGS Rear Derailleur)

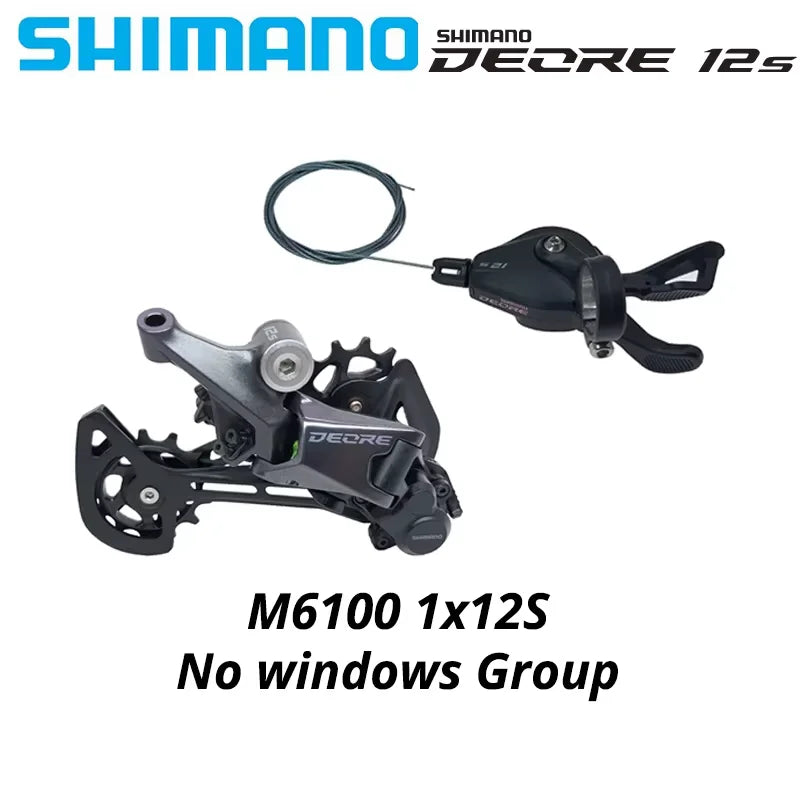

Option5：No Windows Group (M6100 Shifter Lever with RD-M6100-SGS Rear Derailleur)

RD-M6100-SGS supports 1X12Speed and 51T Cassette.



SHIMANO DEORE RAPIDFIRE PLUS Shifting Lever Clamp Band 12-speed

SL-M6100-R

SHIMANO DEORE - RAPIDFIRE PLUS - Right Shift Lever - Clamp Band - 12-speed



SHIMANO's RAPIDFIRE PLUS DEORE shift lever delivers light and responsive shifting for improved control out on the trail.



FEATURES

Quick and easy shifting

Quicker lever access and light operation

Shifts max. 3 gears at a time (Main lever)

Easily-visible gear position indicator option improves shifting control



PRODUCT SPECIFICATIONS

MODEL NO SL-M6100-R

SERIES DEORE M6100 Series

Color Series color

Shifter type RAPIDFIRE PLUS

Rear speeds 12

Compatible rear derailleur type MTB 12-speed

Mount type|Clamp band ✔

Shift lever cable adjust ✔

Max. multiple shifts (main lever/rear) 3

Release function|2-WAY RELEASE ✔

OPTICAL GEAR DISPLAY|With ✔

OPTICAL GEAR DISPLAY|Without ✔

Shift lever cable|Inner cable|OPTISLICK ✔

Shift lever cable|Inner cable|Stainless ✔

Recommended shift lever outer casing OT-SP41



TECHNOLOGIES

RapidfirePlus

2way_release

optical_gear_display

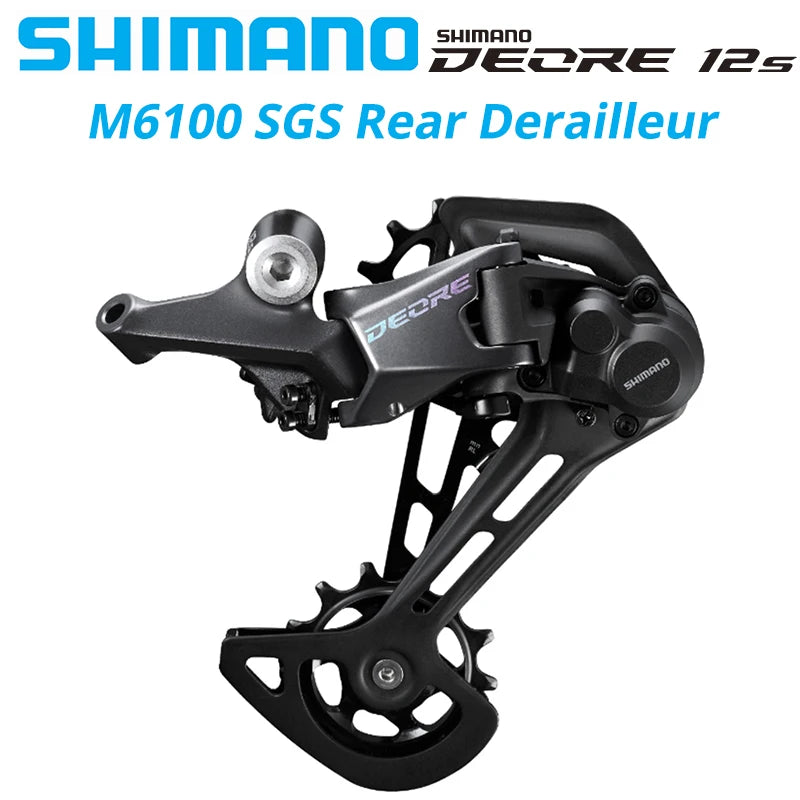

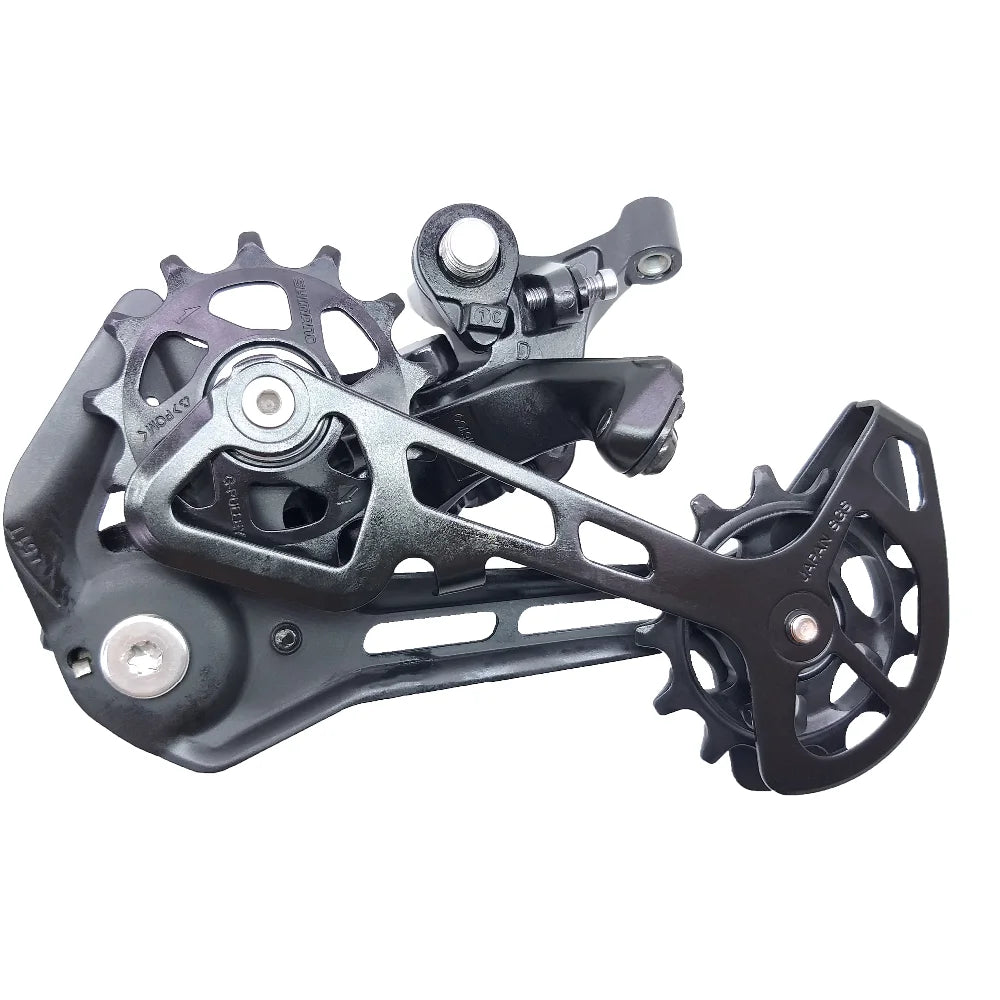

SHIMANO DEORE Rear Derailleur SHIMANO SHADOW RD+ 1x12-speed

RD-M6100-SGS

SHIMANO DEORE - Rear Derailleur - SHIMANO SHADOW RD+ - 1x12-speed



The all-new SHIMANO DEORE M6100 rear derailleurs deliver advanced shifting performance with decreased tension in the low gear position. Larger 13T pulleys increase efficiency and chain management while compatibility with SHIMANO's new 12-speed cassettes boosts range.



FEATURES

1x12-speed SHIMANO SHADOW RD+ rear derailleur

Fast and precise shifting for modern mountain biking

Silent drivetrain in all gear positions

Decreased rear derailleur and chain tension in low gear

Bigger 13T pulley

Stable drivetrain in rough terrain

Low-profile design avoids damage from rocks

Chain stabilizer reduces chain drop, slap and noise



PRODUCT SPECIFICATIONS

MODEL NO RD-M6100-SGS

SERIES DEORE M6100 Series

Color Series color

Rear speeds 12

Compatible chain HG 12-speed

Top-normal spring type|SHIMANO SHADOW RD+ ✔

Mount|Direct attachment (conventional) ✔

Max. front difference 0T

Total capacity 41T

Low sprocket|Max. 51T

Low sprocket|Min. 51T

Top sprocket|Max. 10T

Top sprocket|Min. 10T

Fluoric coated link bushings 7

Pulley|Teeth 13T

Pulley|Sunken type pulley screw ✔

B-axle|Hollow axle ✔



TECHNOLOGIES

shimano_shadow_rd_plus
