SPECIFICATIONS

Brand Name: SHIMANO

Choice: yes

Components: Derailleurs

Derailleur Groupset Type: Mechanical Derailleur system

Gears: 11 Speed

Hign-concerned Chemical: None

Material: Alloy

Model Number: M5120/M4120

Origin: ID(Origin)

Total Capacity: 46T

Type: Rear Derailleur

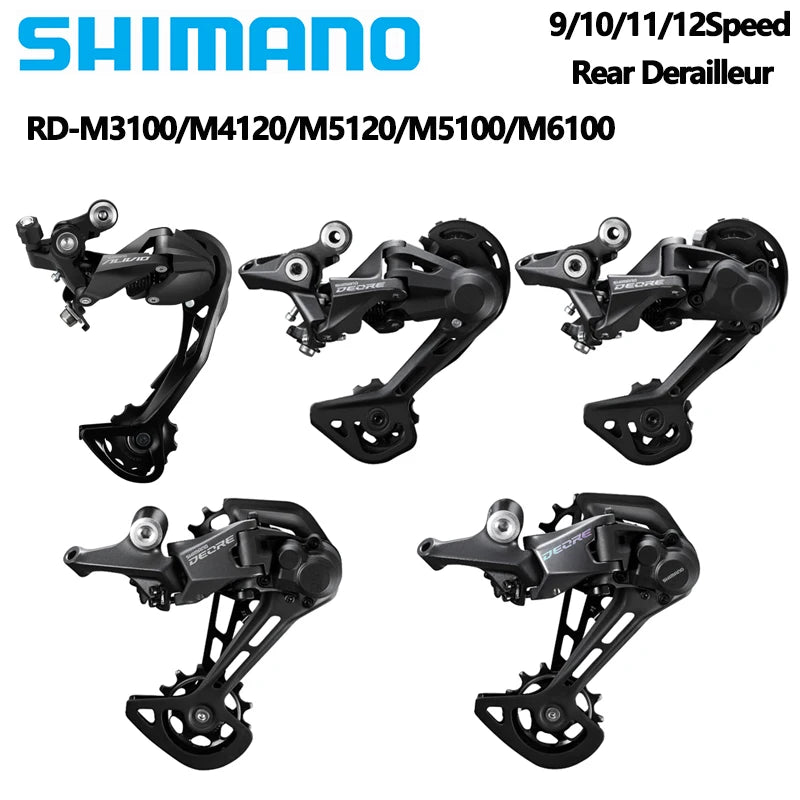

Note:RD-M3100-SGS and RD-M4120-SGS do not have Lock,RD-M5120,RD-M5100 and RD-M6100 have lock

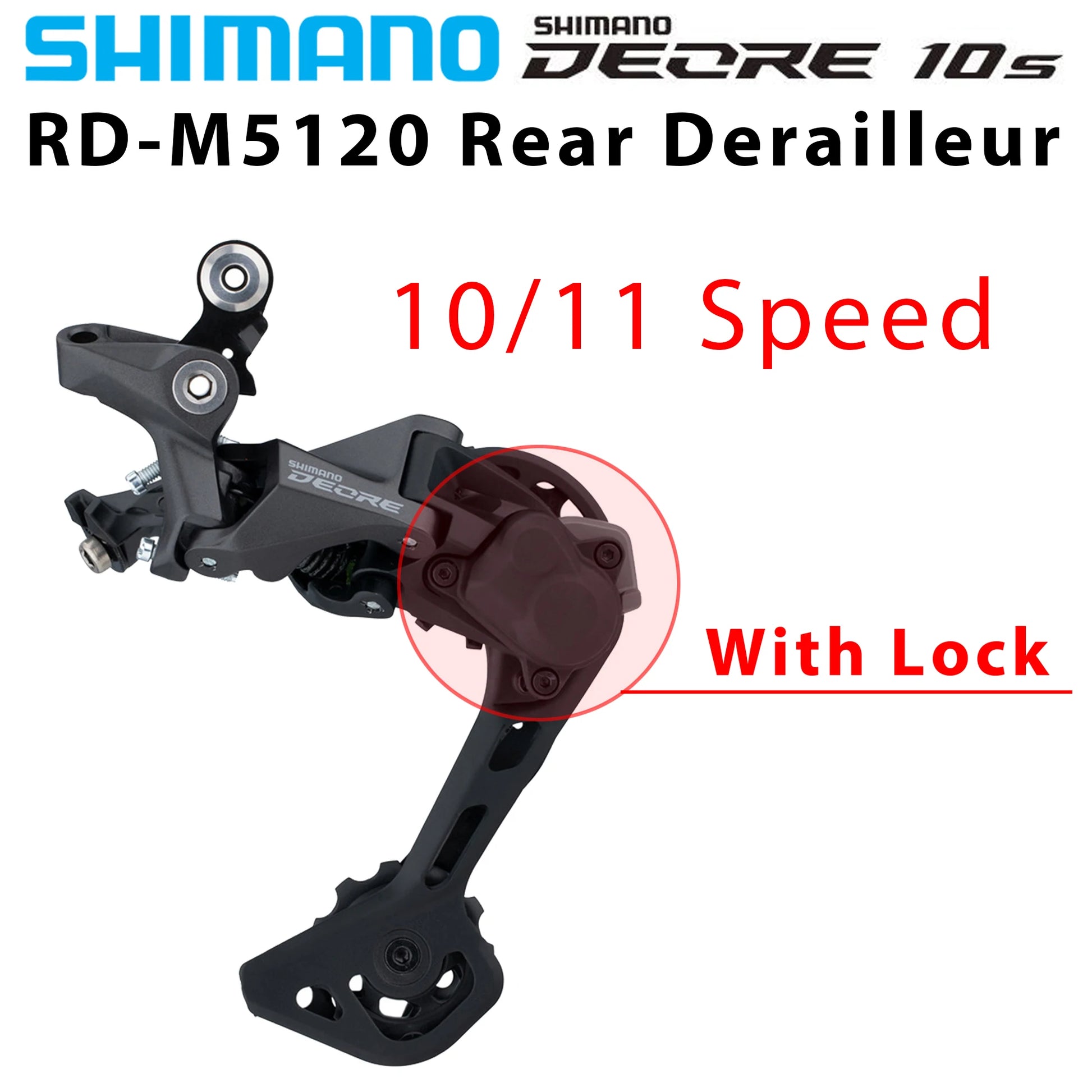

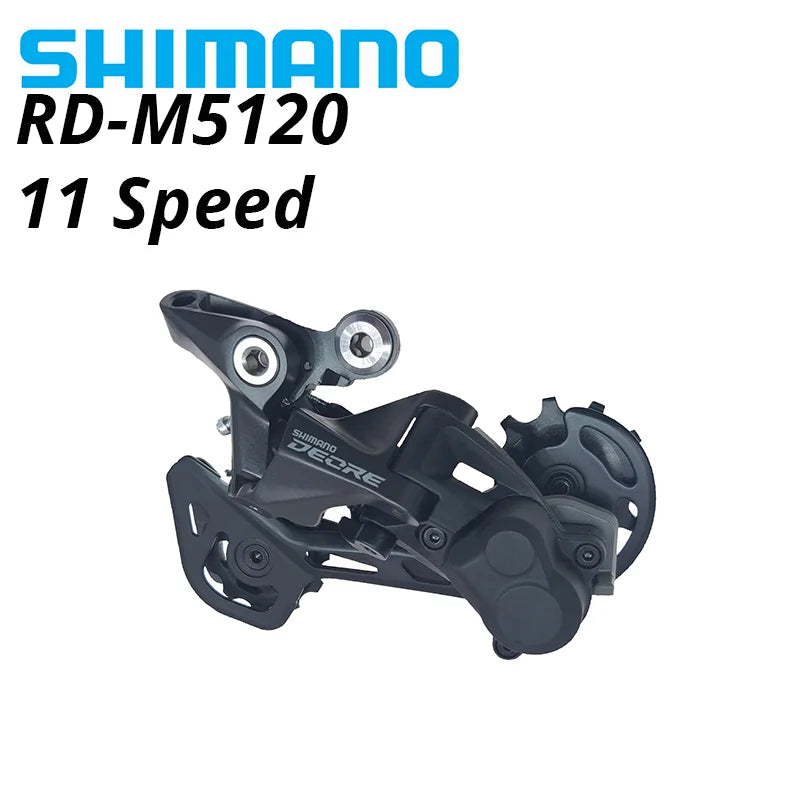

SHIMANO DEORE  RD-M5120 SGS

RD-M5120-SGS NEW

SHIMANO DEORE - Rear Derailleur - SHIMANO SHADOW RD+ - 2x11, 1x10, 2x10-speed

Utilizing the SHIMANO SHADOW RD+ design, the SHIMANO DEORE M5120 rear derailleur delivers consistent MTB shifting performance over rough terrain. The low profile design avoids damage from rocks whiles SHIMANO's chain stabilizing technology reduces chain drop and makes for a quiet drivetrain in all gear positions.

• Stable drivetrain on the trail

• Low-profile design avoids damage from rocks

• Chain stabilizer reduces chain drop, slap and noise

• Silent drivetrain in all gear positions

• Decreased rear derailleur and chain tension in low gear

• Max. low sprocket

• 42T (2x11/10-speed), 46T (1x10-speed)

•

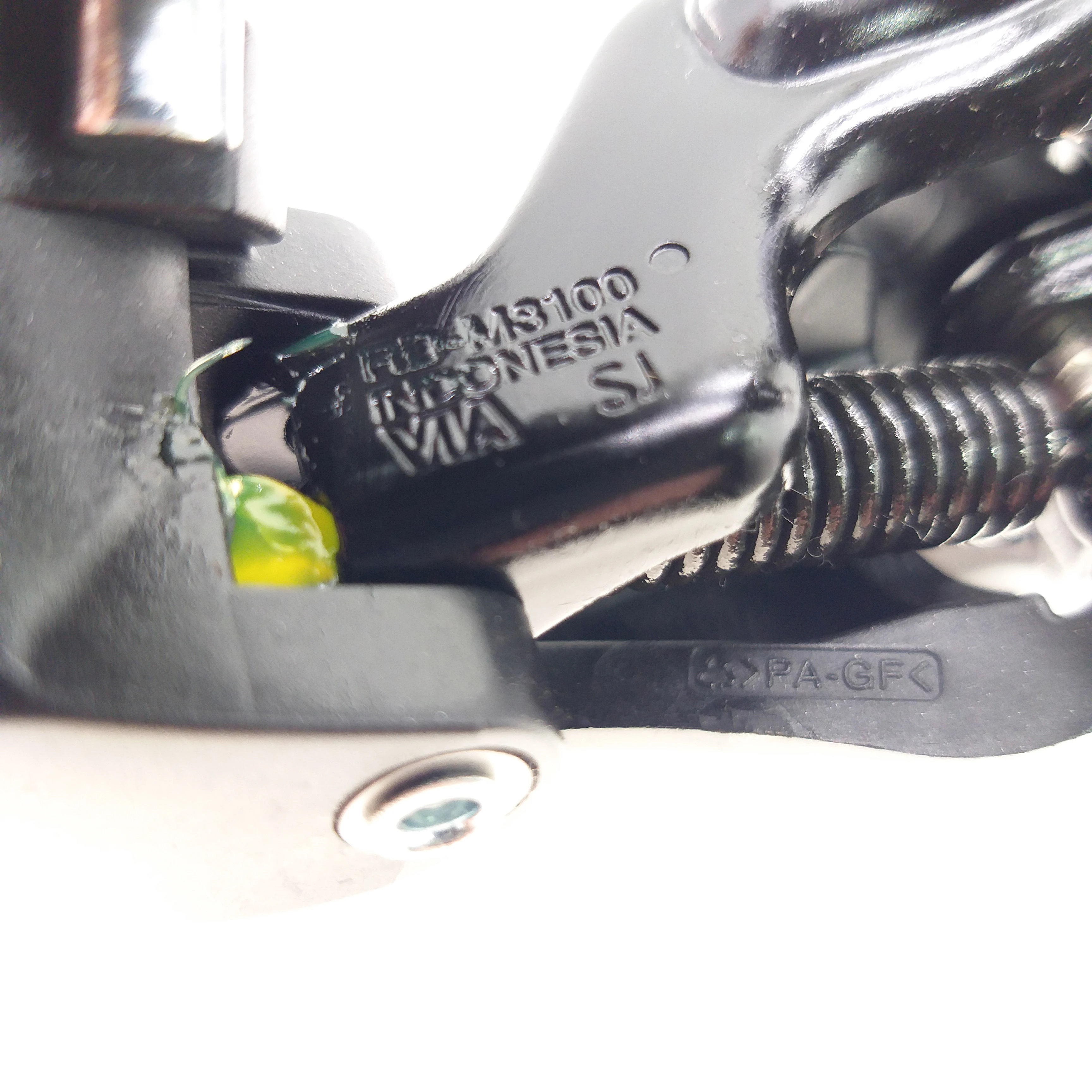

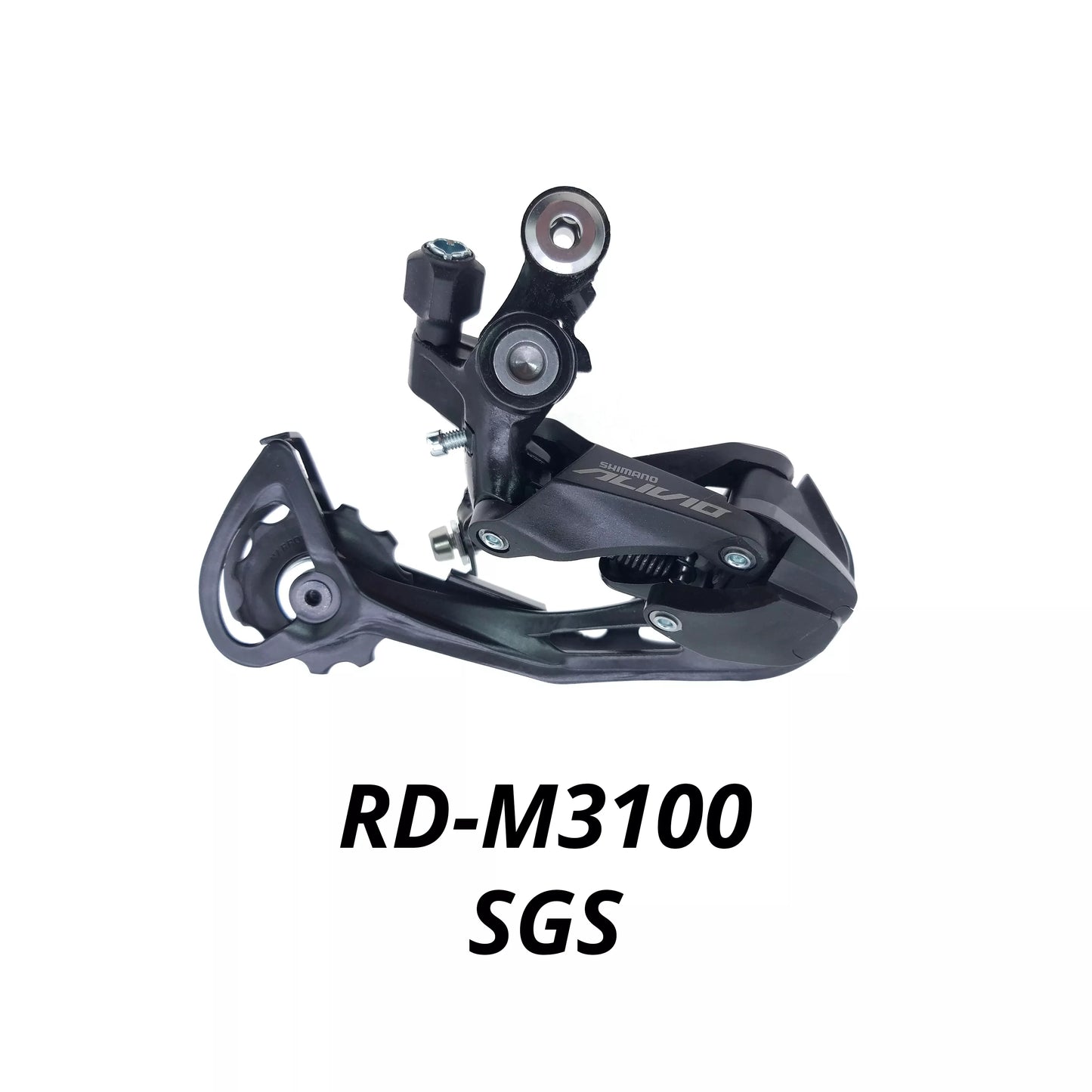

RD-M3100-SGS NEW

SHIMANO ALIVIO - Rear Derailleur - SHIMANO SHADOW RD - 9-speed



The SHIMANO ALIVIO M3100 rear derailleur delivers a low profile design that lets you ride aggressively with fewer interruptions thanks to its SHIMANO SHADOW design.



Low-profile design

Total capacity: 45T

Max. low sprocket: 36T

Adjustment barrel

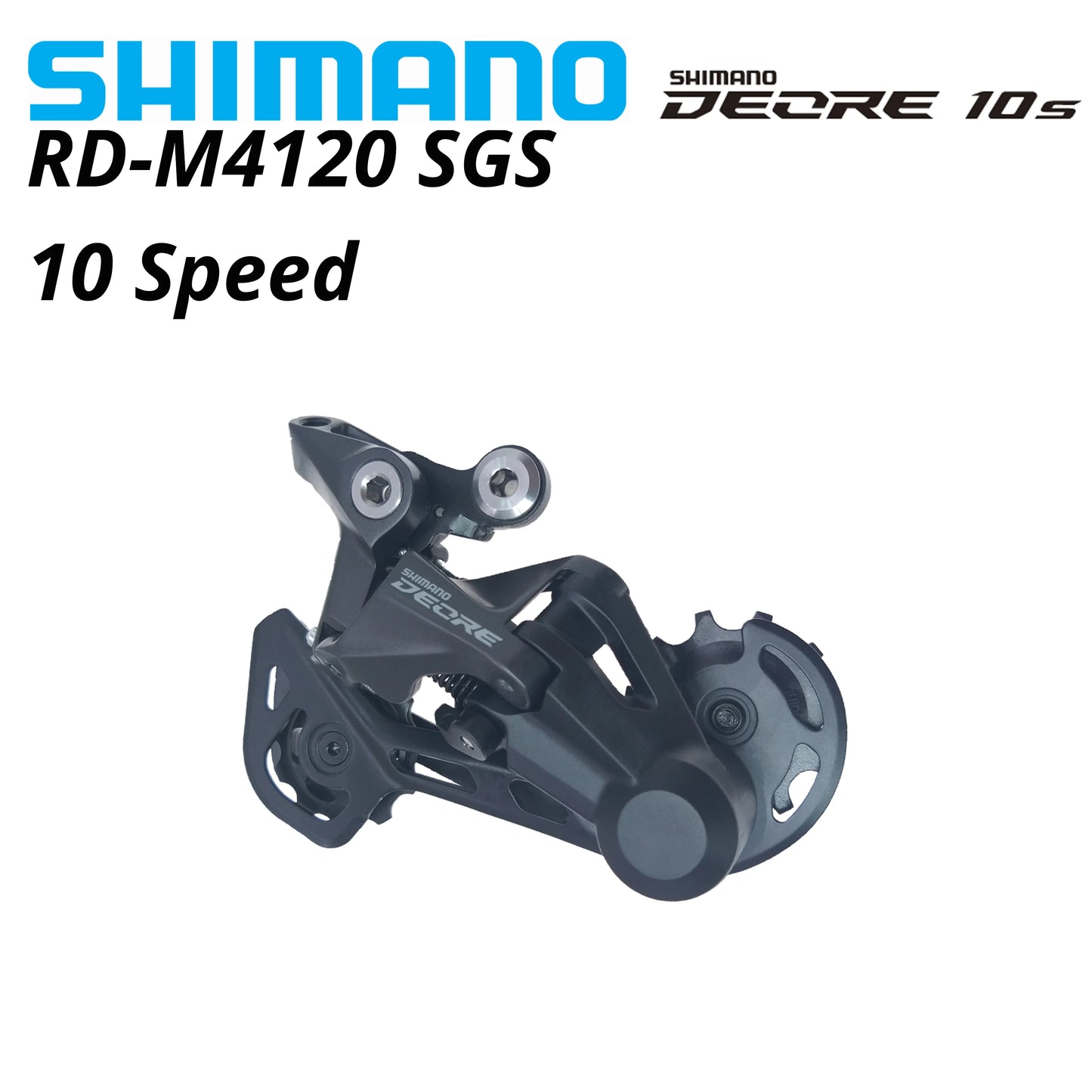

RD-M4120-SGS

SHIMANO DEORE - Rear Derailleur - SHIMANO SHADOW RD - 2x10/11-speed



Using a low profile SHIMANO SHADOW RD design, the SHIMANO DEORE M4120 derailleur is perfect for 2x10 and 2x11-speed MTB riding.



For 2X11 and 2x10-speed

Low-profile design avoids damage from rocks





PRODUCT SPECIFICATIONS

MODEL NO	RD-M4120-SGS
SERIES	DEORE M4100 Series
Color	Series color
Compatible chain	HG-X11 11-speed HG-X 10-speed

Total capacity	41T
B-axle_Hollow axle	✔
B-axle 2_Hollow axle	✔
Mount_Direct attachment (Conventional)	✔
Mount_Direct Mount	✔
Fluoric coated link bushings	3
Low sprocket_Max.	42T
Low sprocket_Min.	42T
Max. front difference	10T
Pulley_Sunken type pulley bolt	✔
Pulley_Teeth	11T
Pulley cage	SGS
Top-normal spring type_SHIMANO SHADOW RD	✔
Top sprocket_Max.	11T
Top sprocket_Min.	11T
Rear speeds	11/10

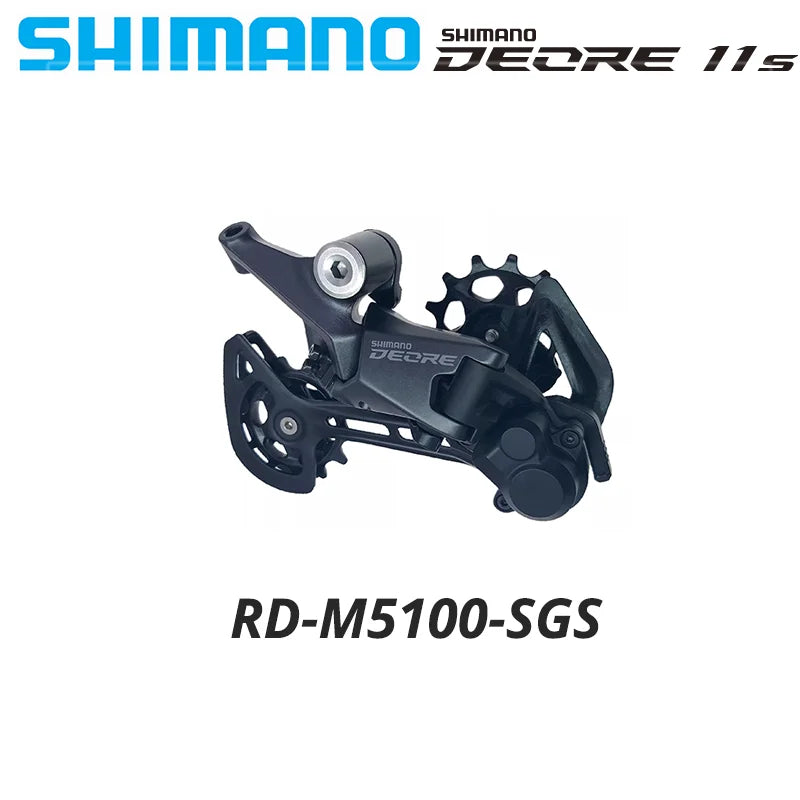

RD-M5100-SGS

SHIMANO DEORE - Rear Derailleur - SHIMANO SHADOW RD+ - 1x11-speed

Utilizing the SHIMANO SHADOW RD+ design, the SHIMANO DEORE M5100 rear derailleur delivers

consistent MTB shifting performance over rough terrain. The low profile design avoids damage

from rocks whiles SHIMANO's chain stabilizing technology reduces chain drop and makes for a

quiet drivetrain in all gear positions.

FEATURES

1x11-speed SHIMANO SHADOW RD+ rear derailleur

Stable drivetrain on the trail

》Low-profile design avoids damage from rocks

》Chain stabilizer reduces chain drop, slap and noise

Silent drivetrain in all gear positions

》Decreased rear derailleur and chain tension in low gear

》Bigger 13T pulley



PRODUCT SPECIFICATIONS

MODEL NO	RD-M5100-SGS
SERIES	DEORE M5100 Series
Color	Series color
Compatible chain	LINKGLIDE, HG 11-speed

Total capacity	40T
B-axle_Hollow axle	✔
Mount_Direct attachment (Conventional)	✔
Fluoric coated link bushings	7
Low sprocket_Max.	51T
Low sprocket_Min.	51T
Max. front difference	0T
Pulley_Sunken type pulley bolt	✔
Pulley_Teeth	13T
Pulley cage	SGS
Top-normal spring type_SHIMANO SHADOW RD+	✔
Top sprocket_Max.	11T

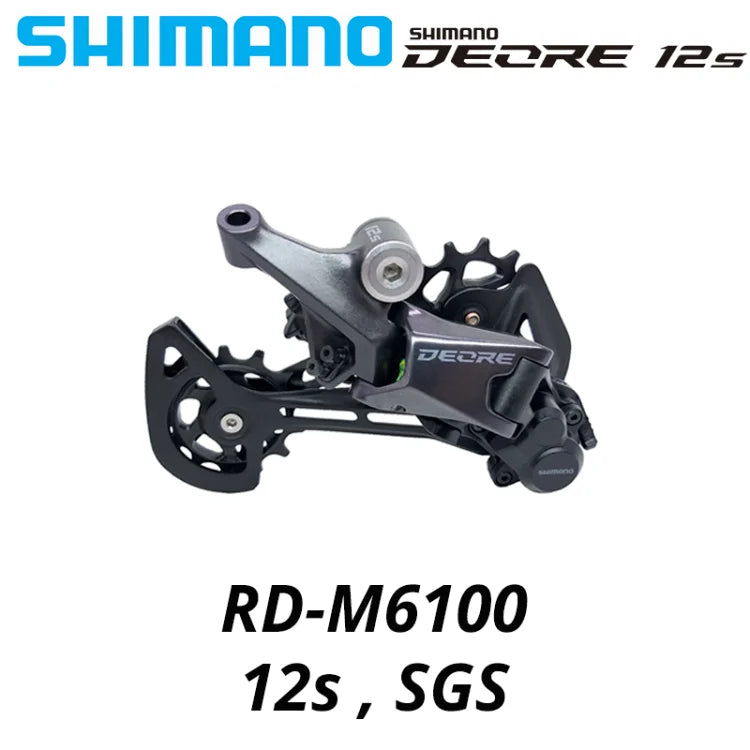

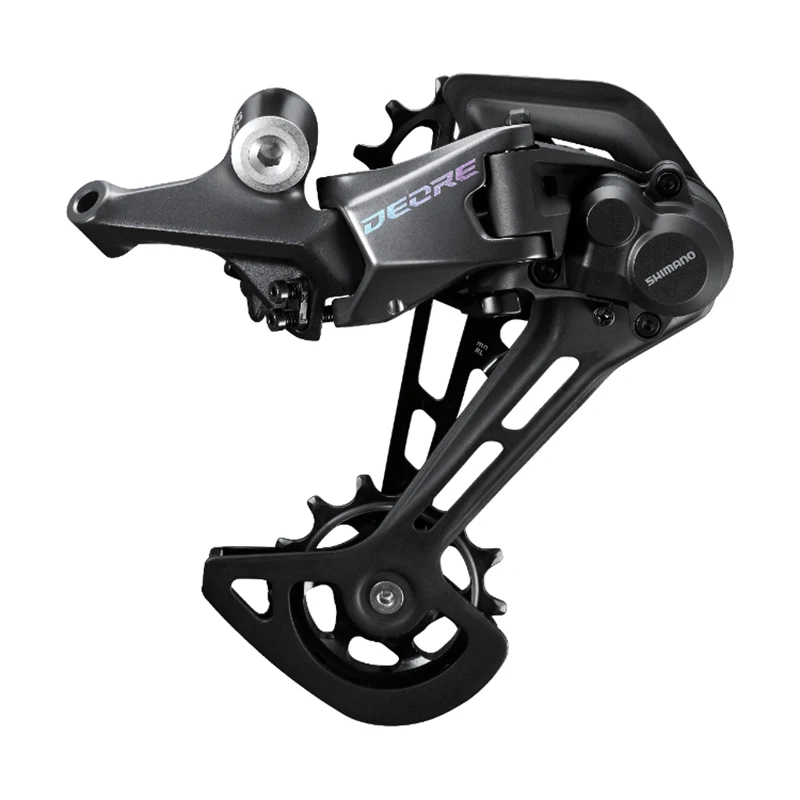

RD-M6100-SGS

SHIMANO DEORE - Rear Derailleur - SHIMANO SHADOW RD+ - 1x12-speed



The all-new SHIMANO DEORE M6100 rear derailleurs deliver advanced shifting performance with decreased tension in the low gear position. Larger 13T pulleys increase efficiency and chain management while compatibility with SHIMANO's new 12-speed cassettes boosts range.



1x12-speed SHIMANO SHADOW RD+ rear derailleur

Fast and precise shifting for modern mountain biking

Silent drivetrain in all gear positions

Decreased rear derailleur and chain tension in low gear

Bigger 13T pulley

Stable drivetrain in rough terrain

Low-profile design avoids damage from rocks

Chain stabilizer reduces chain drop, slap and noise
