SPECIFICATIONS

Brand Name: SHIMANO

Choice: yes

Components: Derailleurs

Derailleur Groupset Type: Mechanical Derailleur system

Gears: 12 Speed

High-concerned chemical: None

Material: Alloy

Model Number: M7100

Origin: Jp(origin)

Total Capacity: 51T

Type: Rear Derailleur



Shimano Deore SLX M7100

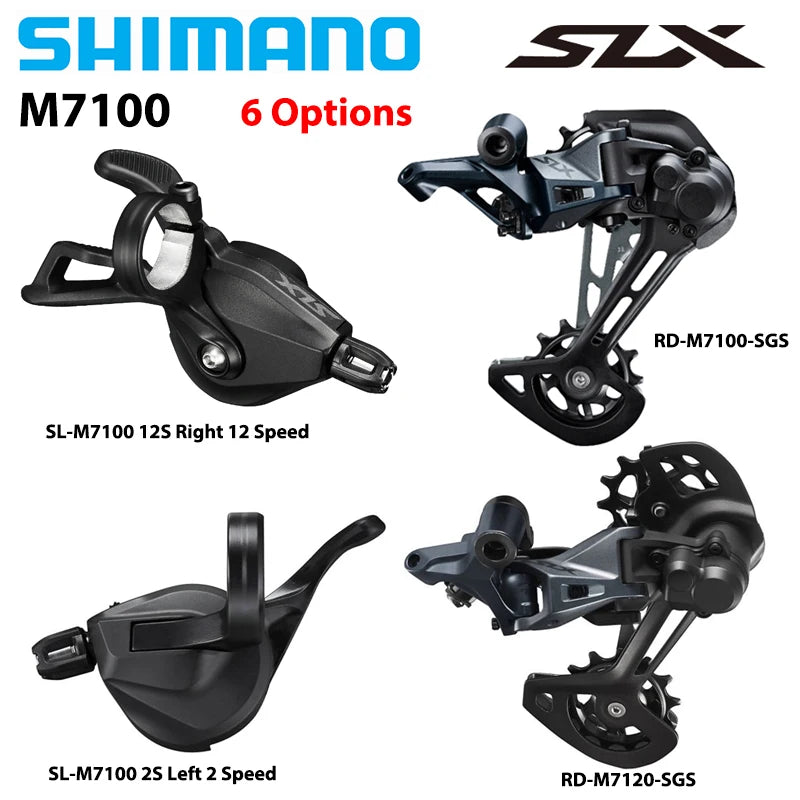

Note:There are 6 options for you to choose showed on the pictures.Please check carefully before purchasing.

Option 1：SL-M7100 2S Left 2 Speed Shifter Lever

Option 2：SL-M7100 12S Right 12 Speed Shifter Lever

Option 3：RD-M7100-SGS Rear Derailleur

Option 4：RD-M7120-SGS Rear Derailleur

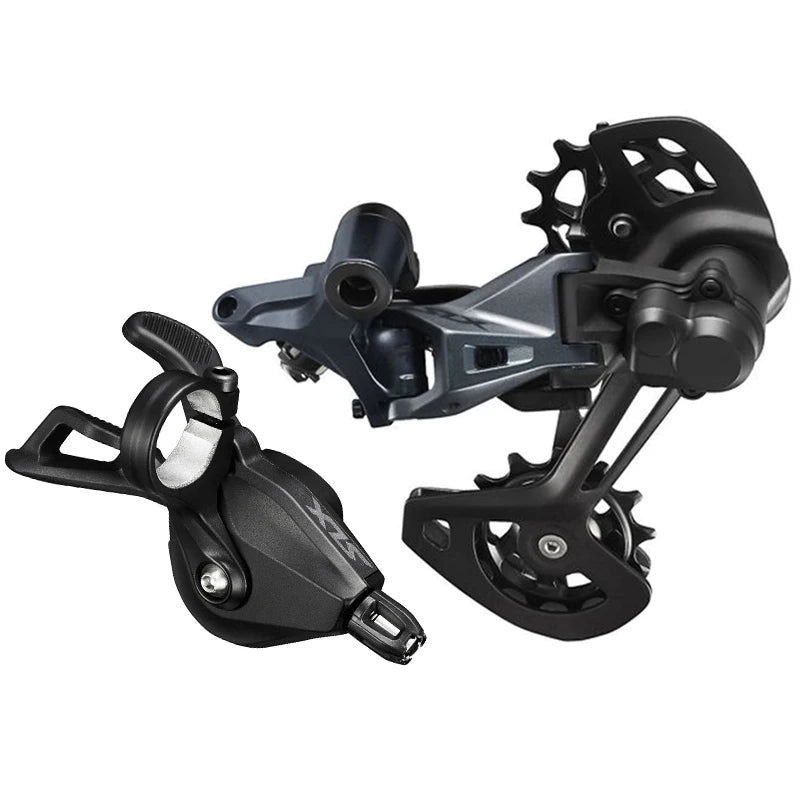

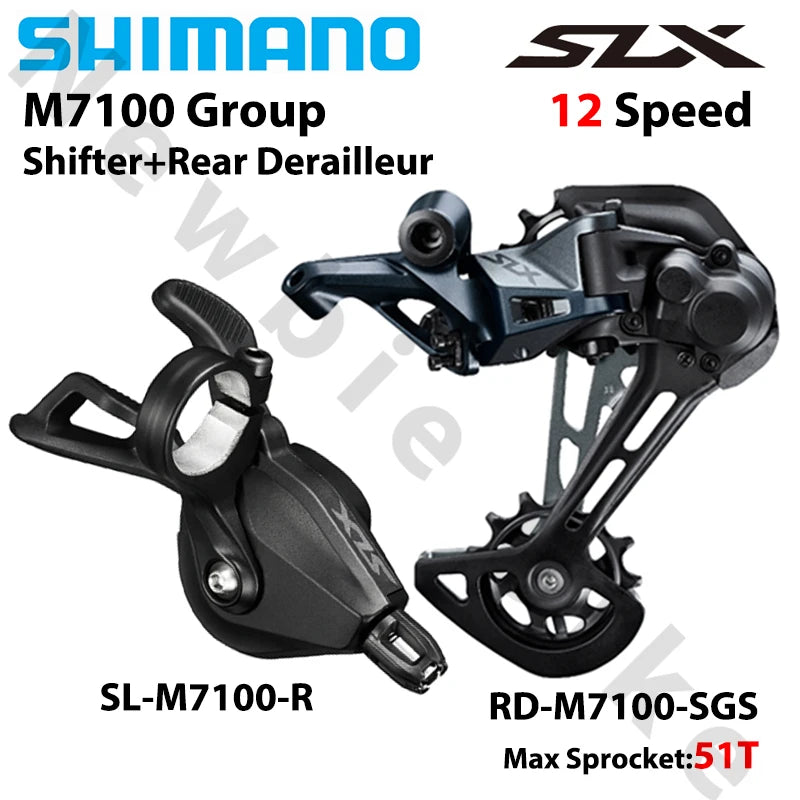

Option 5：M7100 Group (Right 12 Speed Shifter Lever with RD-M7100-SGS Rear Derailleur)

Option 6：M7120 Group (Right 12 Speed Shifter Lever with RD-M7120-SGS Rear Derailleur)

RD-M7120-SGS supports 2X12Speed and 45T Cassette.RD-M7100-SGS supports 1X12Speed and 51T Cassette.

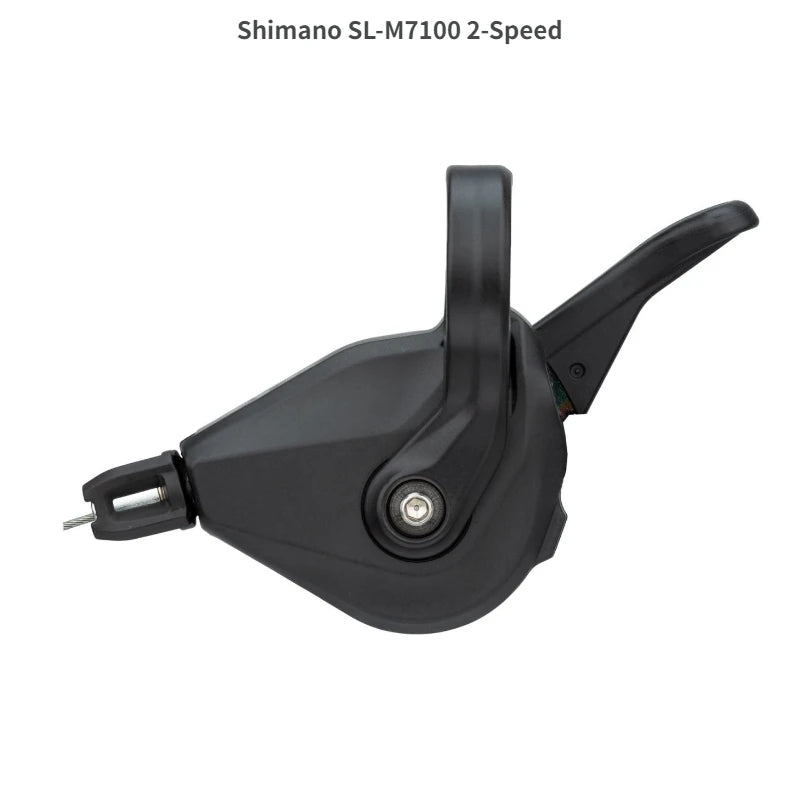

SLX Left Shift Lever 2x12-speed

SL-M7100-L

SLX - RAPIDFIRE PLUS MONO - Left Shift Lever - Clamp Band - 2x12-speed



With quick lever access and a light and responsive lever action, RAPIDFIRE PLUS SLX shift lever delivers smooth control out on the trail. The new I-SPEC EV lever offers a wide range of adjustments including increased lever slide range.



FEATURES

Easy and accessible front shifting improves efficiency and control

Shift both up and down with a single lever

RAPIDFIRE PLUS MONO

Instantaneous push and pull movements

2-WAY RELEASE

20% quicker lever access (vs SL-M7000-L)

Lightweight and compact design boosts enjoyment on and off the trail



PRODUCT SPECIFICATIONS

MODEL NO SL-M7100-L

SERIES SLX M7100 Series

Color Series color

Average weight 77 ( /pc)

Shifter type RAPIDFIRE PLUS MONO

Front speeds 2

Mount type|Clamp band ✔

Shift lever cable adjust ✔

Release function|INSTANT RELEASE ✔

Release function|2-WAY RELEASE ✔

Release function|Adjustable lever ✔

OPTICAL GEAR DISPLAY|Without ✔

Shift lever cable|Inner cable|OPTISLICK ✔

Shift lever cable|Inner cable|Stainless ✔

Recommended shift lever outer casing OT-SP41



TECHNOLOGIES

2way_release

instant_release

RapidfirePlusMONO

sis_shimano_index_system

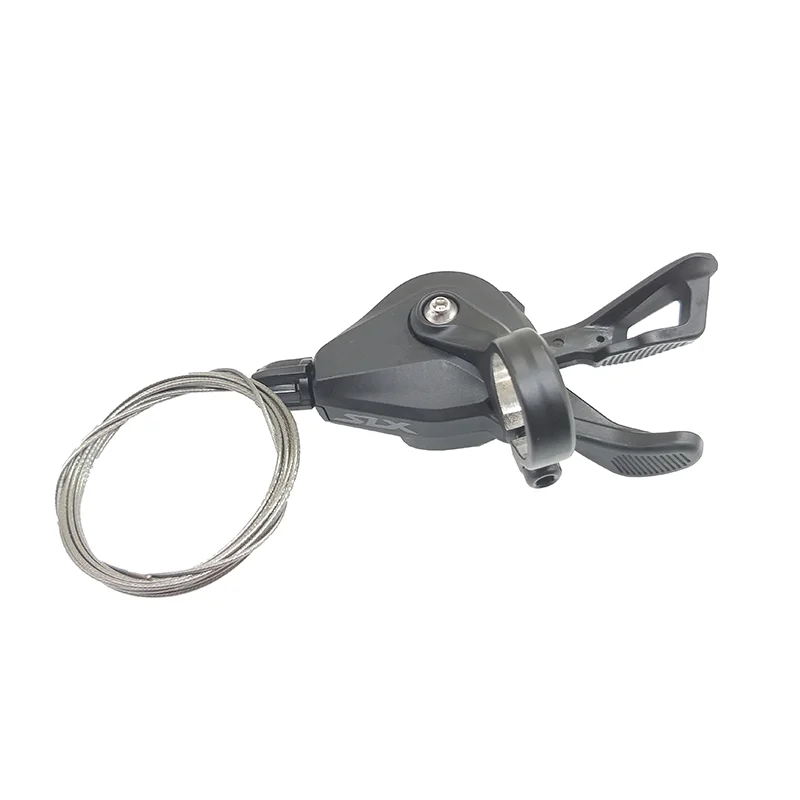

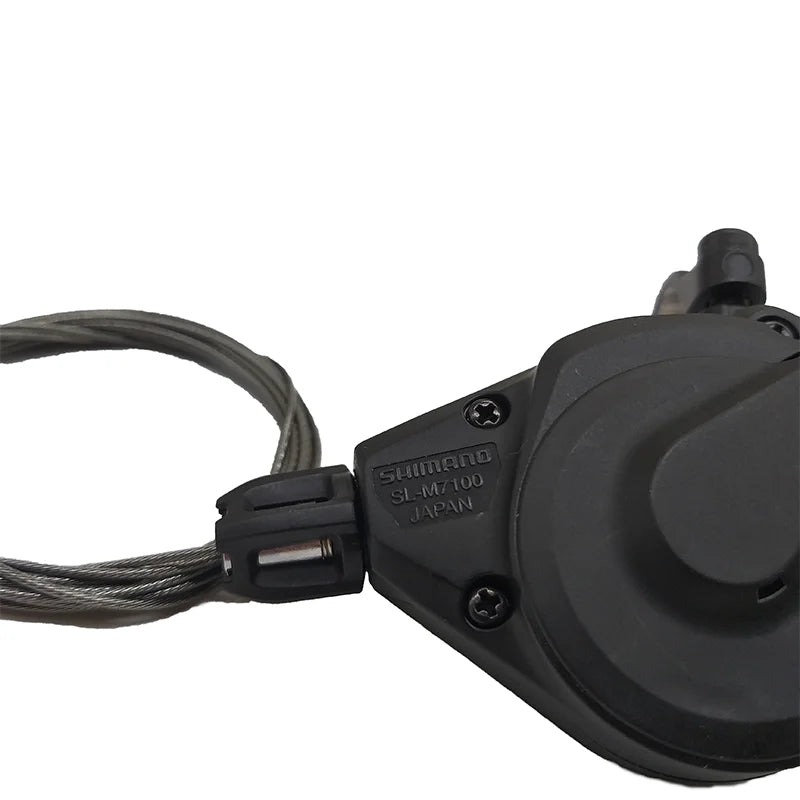

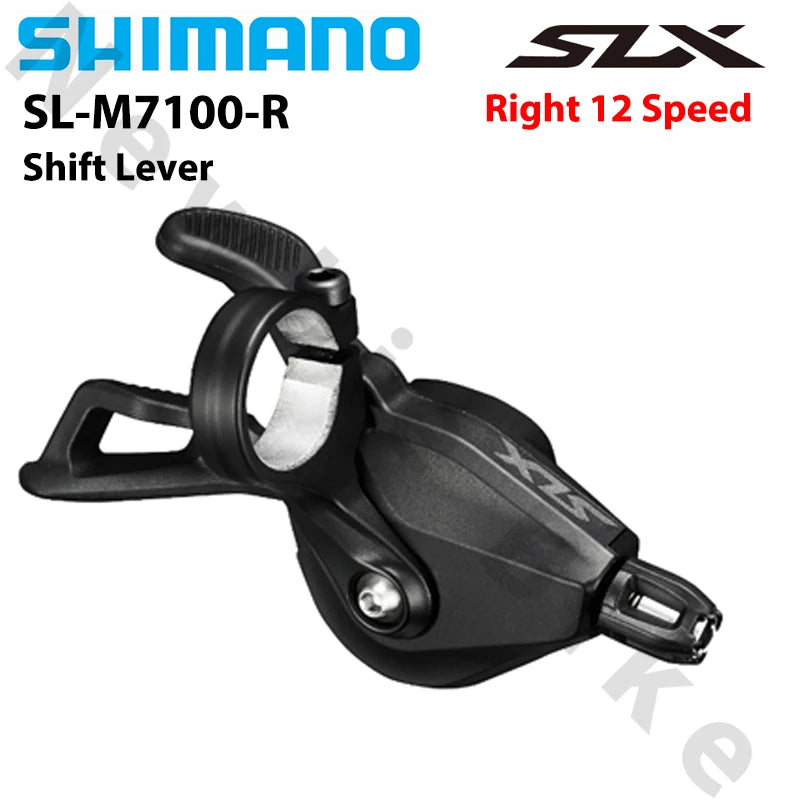

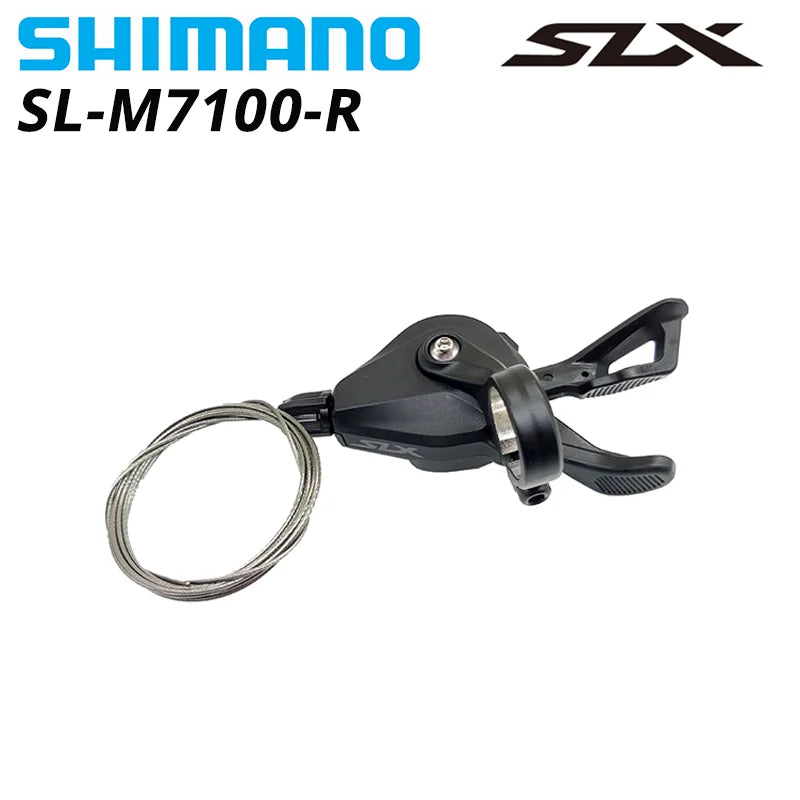

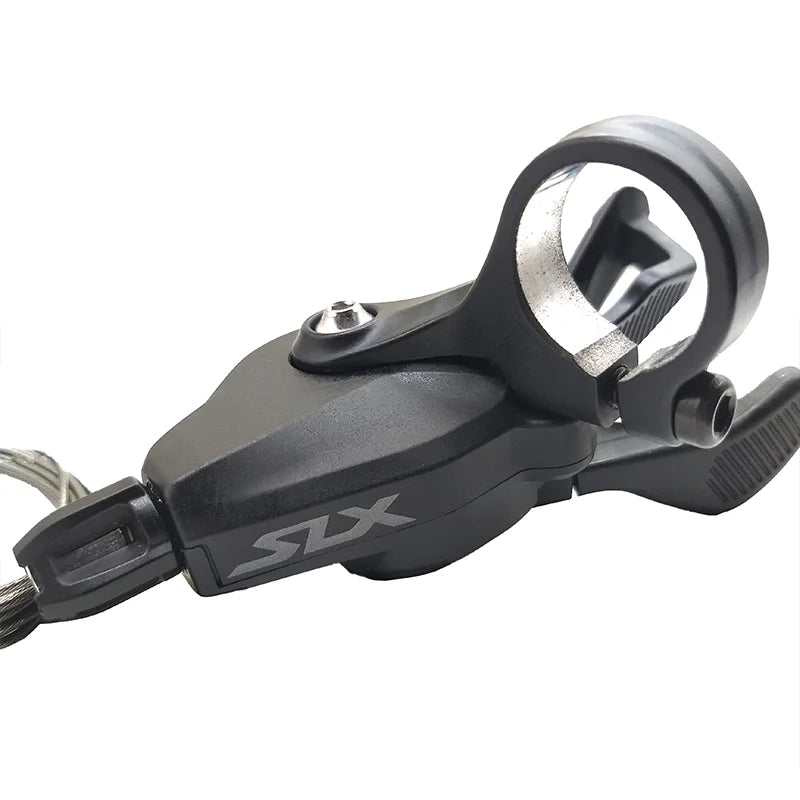

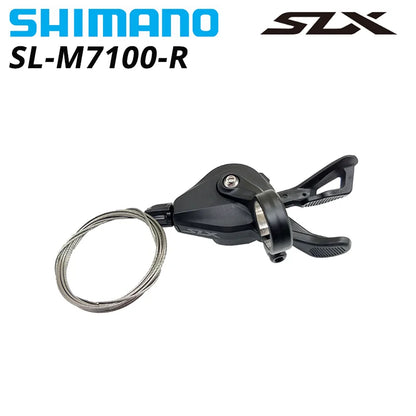

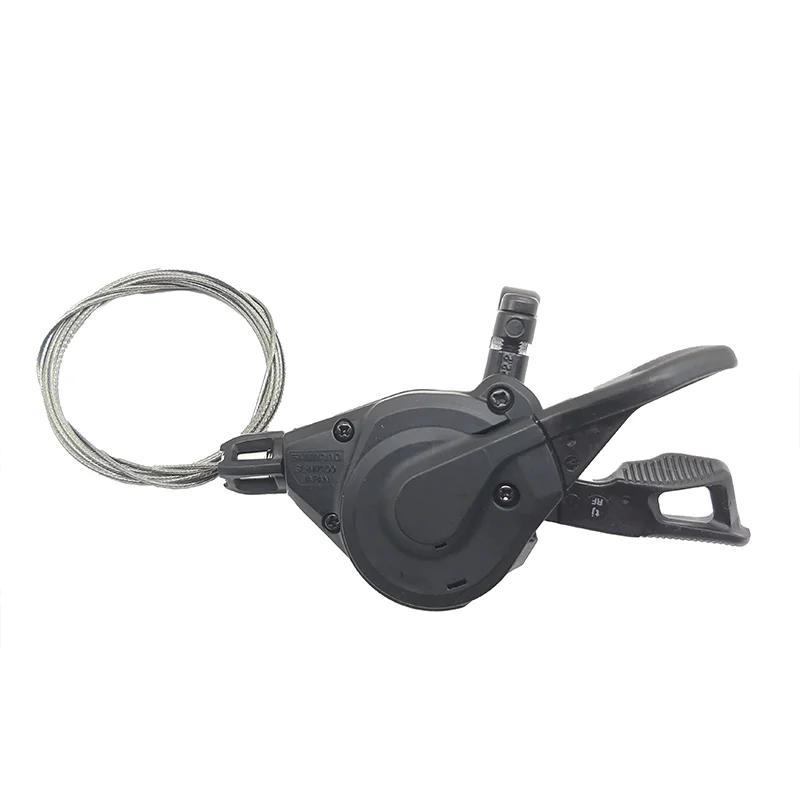

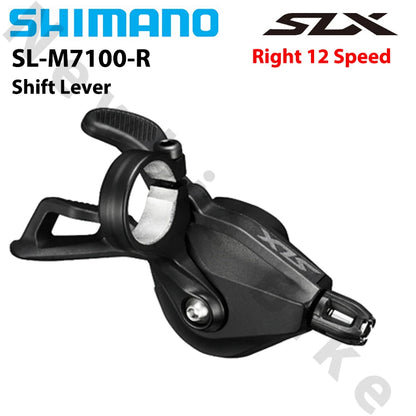

SLX Right Shift Lever 12-speed

SL-M7100-R

SLX - RAPIDFIRE PLUS - Right Shift Lever - Clamp Band - 12-speed



With quick lever access and a light and responsive lever action, RAPIDFIRE PLUS SLX shift lever delivers smooth control out on the trail. The new I-SPEC EV lever offers a wide range of adjustments including increased lever slide range.



FEATURES

Quicker lever access and light operation force improves concentration and enjoyment

Quicker lever access and light operation

RAPIDFIRE PLUS

Instantaneous push and pull movements

2-WAY RELEASE

-35% shifting operation force (vs SL-M7000-R) 20% quicker main lever access (vs SL-M7000-R)



PRODUCT SPECIFICATIONS

MODEL NO SL-M7100-R

SERIES SLX M7100 Series

Color Series color

Average weight 117 ( /pc)

Shifter type RAPIDFIRE PLUS

Rear speeds 12

Compatible rear derailleur type 12-speed

Mount type|Clamp band ✔

Shift lever cable adjust ✔

Max. multiple shifts (main lever/rear) 3

Release function|2-WAY RELEASE ✔

OPTICAL GEAR DISPLAY|Without ✔

Shift lever cable|Inner cable|OPTISLICK ✔

Shift lever cable|Inner cable|Stainless ✔

Recommended shift lever outer casing OT-SP41



TECHNOLOGIES

RapidfirePlus

2way_release

sis_shimano_index_system

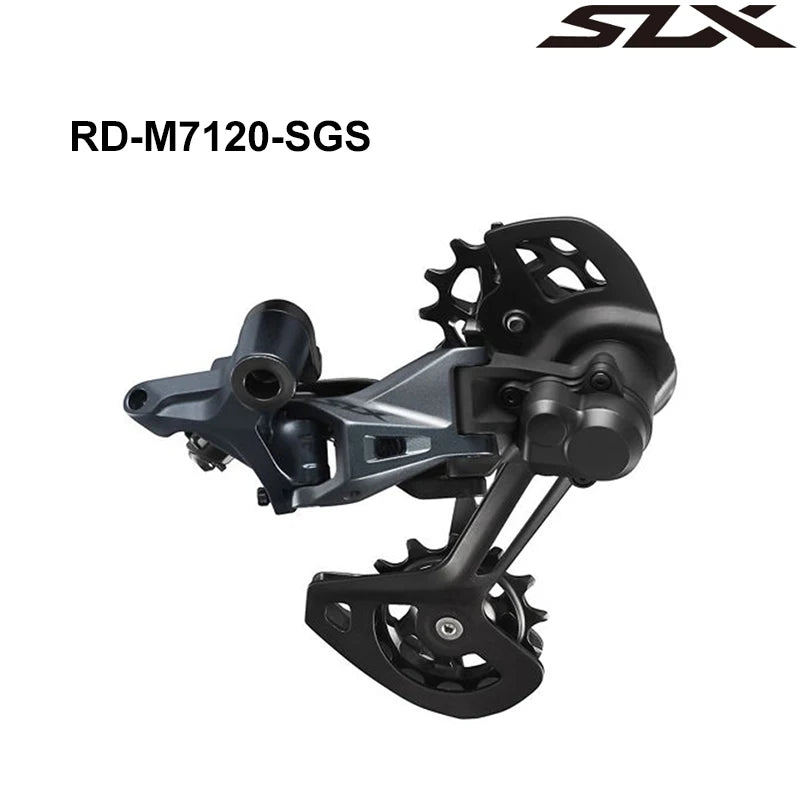

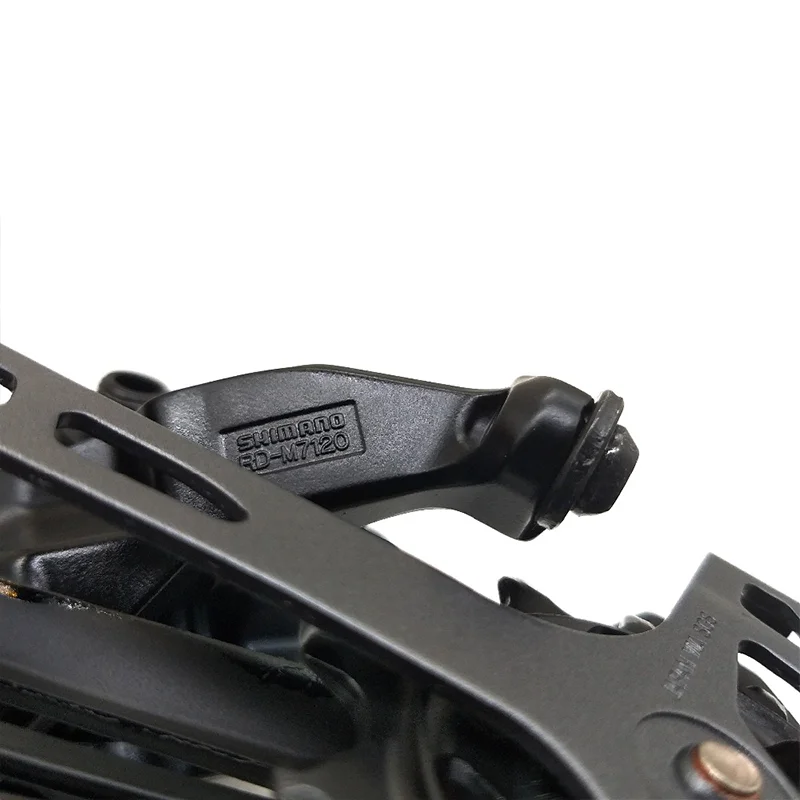

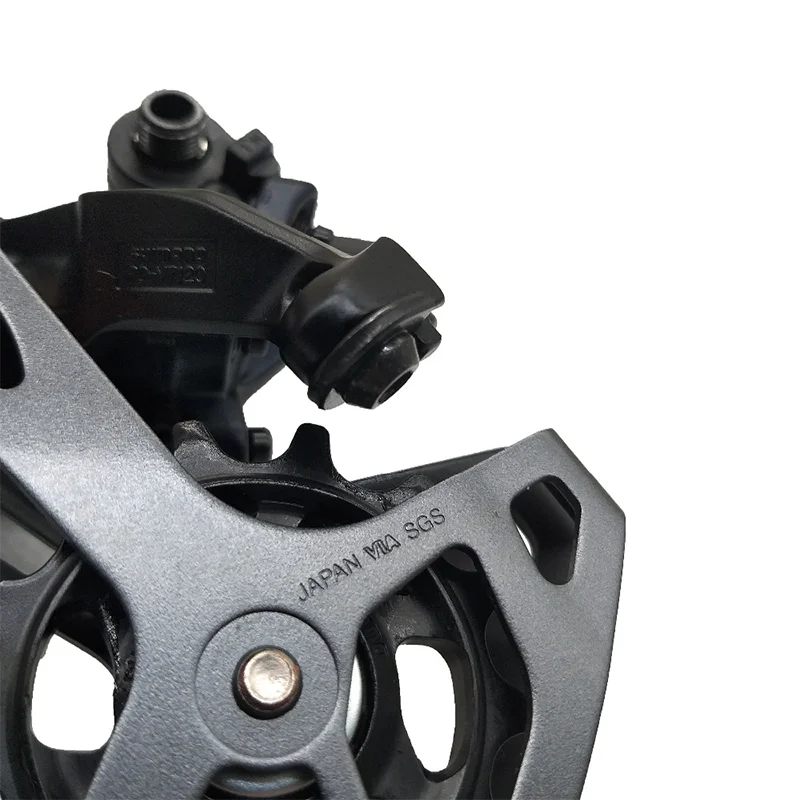

SLX Rear Derailleur 2x12-speed

RD-M7120-SGS

SLX - Rear Derailleur - SHIMANO SHADOW RD+ - 2x12-speed



The SLX M7100 series of derailleurs deliver advanced shifting performance with decreased tension in the low gear position and an added bumper on the pulley cage. Larger 13T pulleys increase efficiency and chain management while compatibility with SHIMANO's new 12-speed cassettes boosts range.



FEATURES

Advanced shifting performance provides the confidence to enjoy any trail

Fast and shockless shifting

HYPERGLIDE+

Extra wide range with front double 36-26T & close step 12-speed drivetrain with low sprocket combination -10-45T

Silent drivetrain in all gear positions

Decreased rear derailleur and chain tension in low gear

New bumper added to rear derailleur pulley cage

Bump Stopper

Bigger 13T pulley

Stable drivetrain on rough terrain

Low-profile design

SHIMANO SHADOW RD+



PRODUCT SPECIFICATIONS

MODEL NO RD-M7120-SGS

SERIES SLX M7100 Series

Color Series color

Average weight 307

Rear speeds 12 (front double)

Compatible chain HG 12-speed

Top-normal spring type|SHIMANO SHADOW RD+ ✔

Mount|Direct attachment (conventional) ✔

Max. front difference 10T

Total capacity 45T

Low sprocket|Max. 45T

Low sprocket|Min. 45T

Top sprocket|Max. 10T

Top sprocket|Min. 10T

Fluoric coated link bushings 7

Pulley|Teeth 13T

Pulley|Sunken type pulley screw ✔

B-axle|Hollow axle ✔



TECHNOLOGIES

shimano_shadow_rd_plus

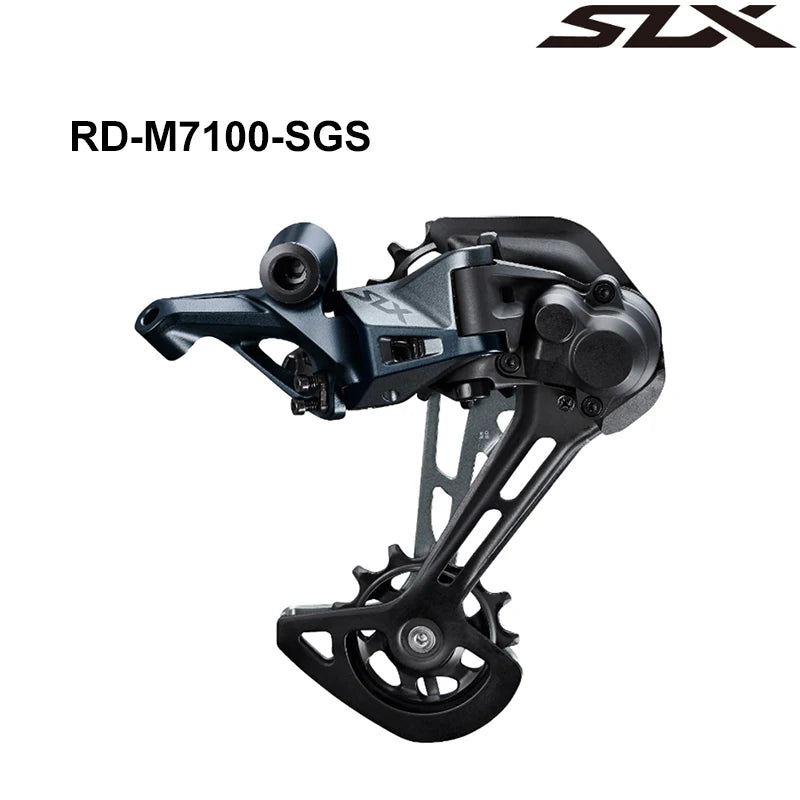

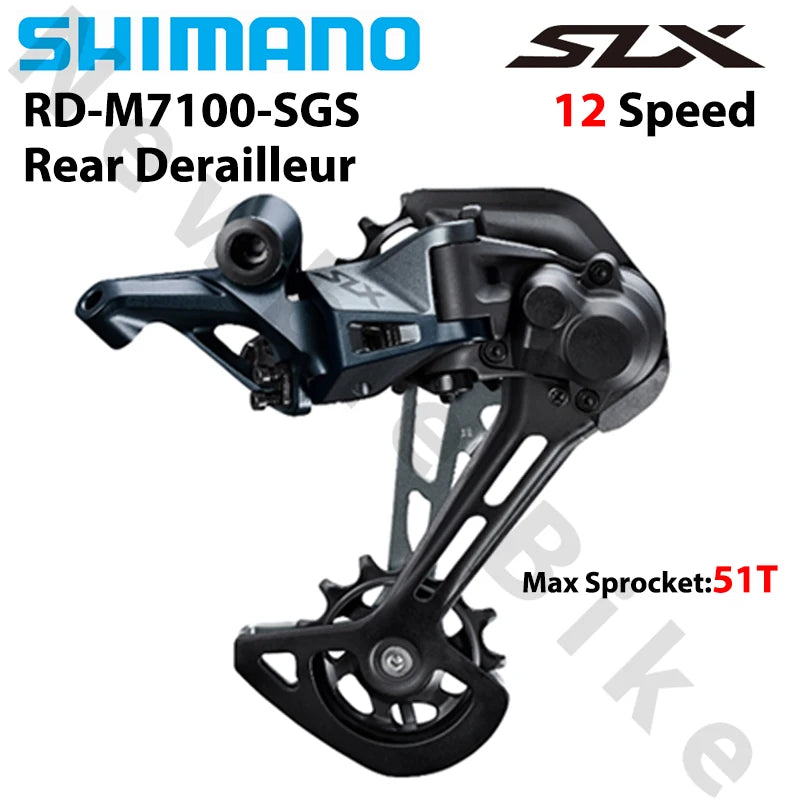

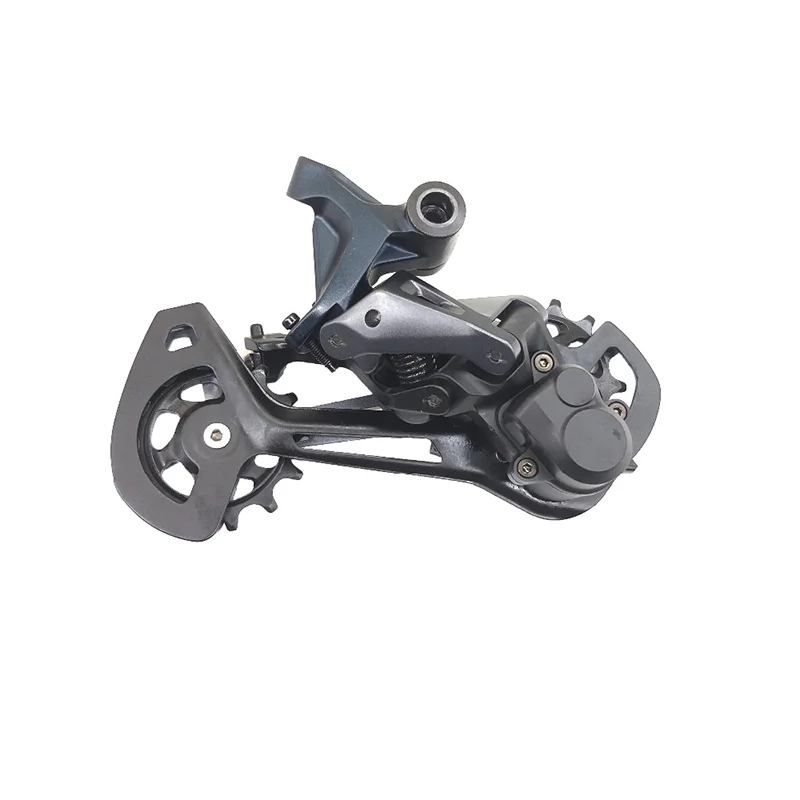

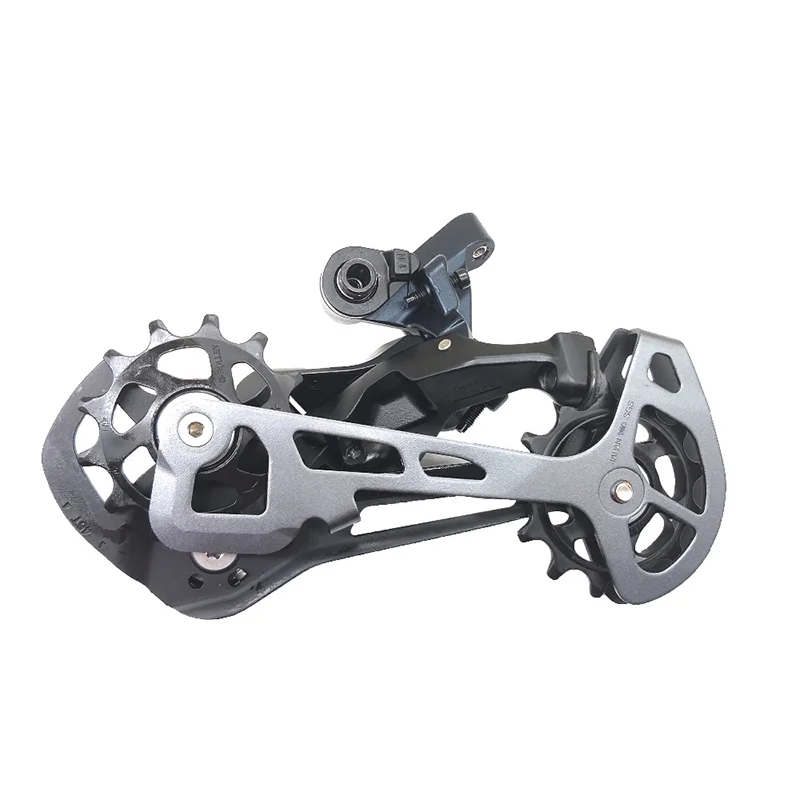

SLX Rear Derailleur 1x12-speed

RD-M7100-SGS

SLX - Rear Derailleur - SHIMANO SHADOW RD+ - 1x12-speed



The SLX M7100 series of derailleurs deliver advanced shifting performance with decreased tension in the low gear position and an added bumper on the pulley cage. Larger 13T pulleys increase efficiency and chain management while compatibility with SHIMANO's new 12-speed cassettes boosts range.



FEATURES

Advanced shifting performance provides the confidence to enjoy any trail

Fast and shockless shifting

HYPERGLIDE+

Extra wide range 12-speed drivetrain -10-51T (12-speed)

Silent drivetrain in all gear positions

Decreased rear derailleur and chain tension in low gear

Bumper structure at rear derailleur pulley cage reduces impact shock by absorbing chain impact on aggressive terrain

Bigger 13T pulley

Stable drivetrain on rough terrain

Low-profile design

SHIMANO SHADOW RD+



PRODUCT SPECIFICATIONS

MODEL NO RD-M7100-SGS

SERIES SLX M7100 Series

Color Series color

Average weight 313

Remarks w/Bumper on pully cage

Rear speeds 12

Compatible chain HG 12-speed

Top-normal spring type|SHIMANO SHADOW RD+ ✔

Mount|Direct attachment (conventional) ✔

Max. front difference 0T

Total capacity 41T

Low sprocket|Max. 51T

Low sprocket|Min. 51T

Top sprocket|Max. 10T

Top sprocket|Min. 10T

Fluoric coated link bushings 7

Pulley|Teeth 13T

Pulley|Sunken type pulley screw ✔

B-axle|Hollow axle ✔



TECHNOLOGIES

shimano_shadow_rd_plus
