SPECIFICATIONS

Brand Name: SHIMANO

Choice: yes

Components: Derailleurs

Derailleur Groupset Type: Mechanical Derailleur system

Gears: 12 Speed

High-concerned chemical: None

Material: Alloy

Model Number: M7100

Origin: Jp(origin)

Total Capacity: 52T

Type: Rear Derailleur

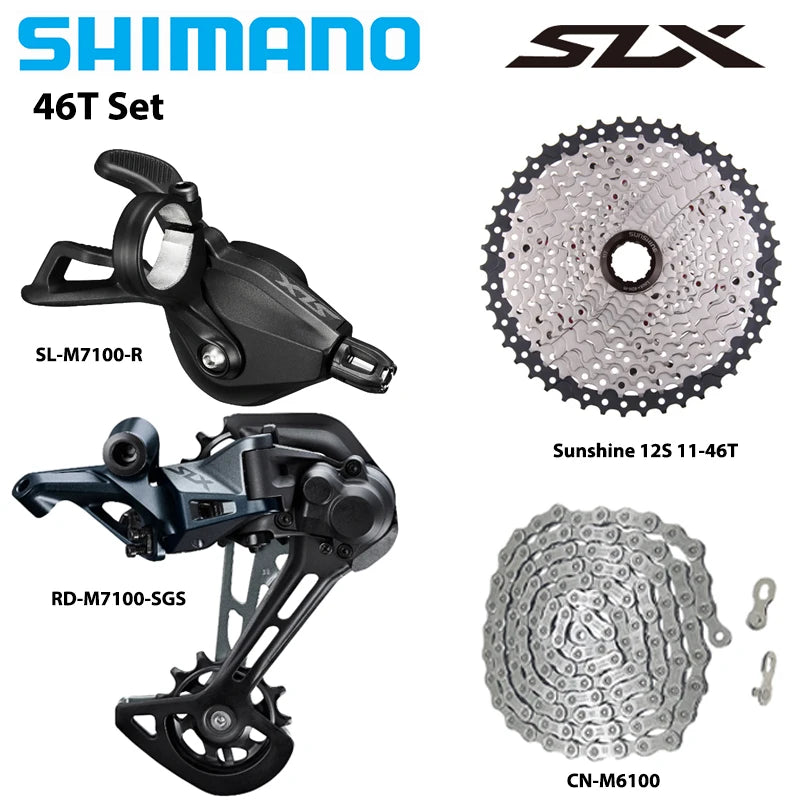

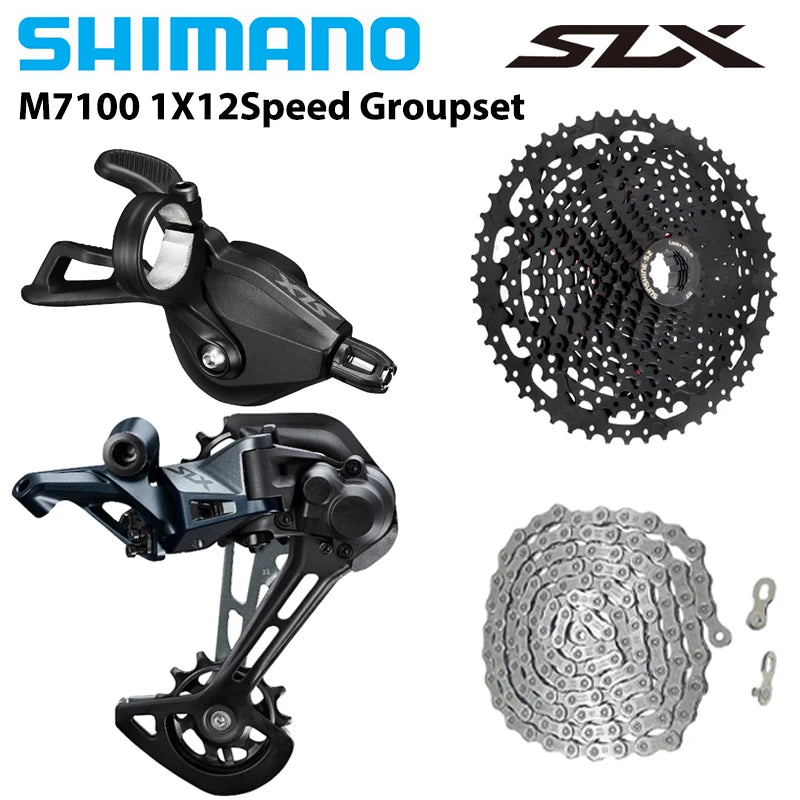

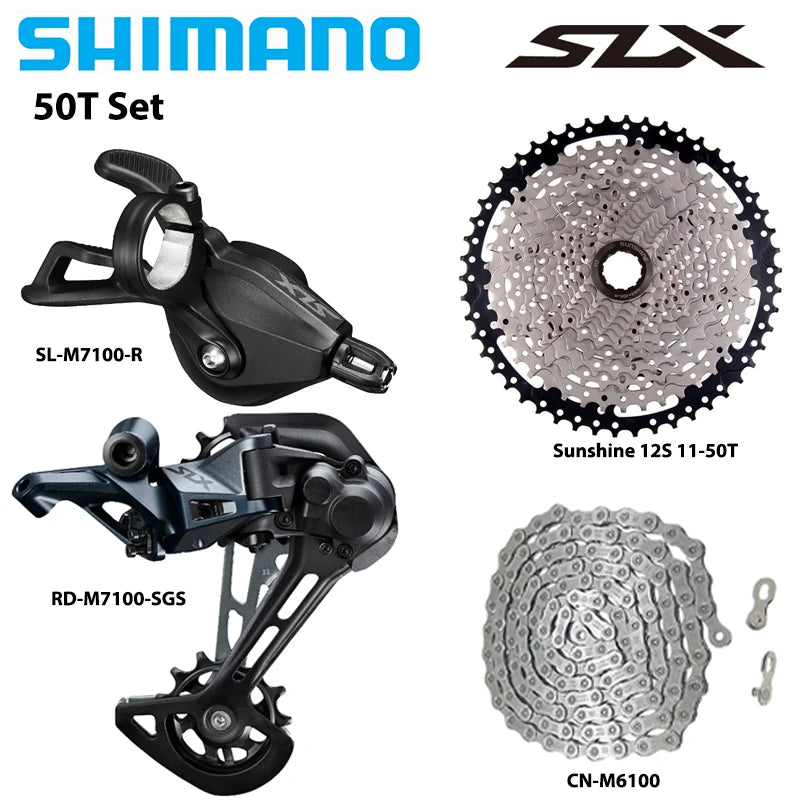

Shimano SLX M7100 12S Group

Group Includes:

1.SHIMANO SL-M7100-R 12 Speed No Windows

2.SHIMANO RD-M7100-SGS 12 Speed Rear Derailleur

3.SHIMANO CN-M6100 12 Speed Chain with quick link

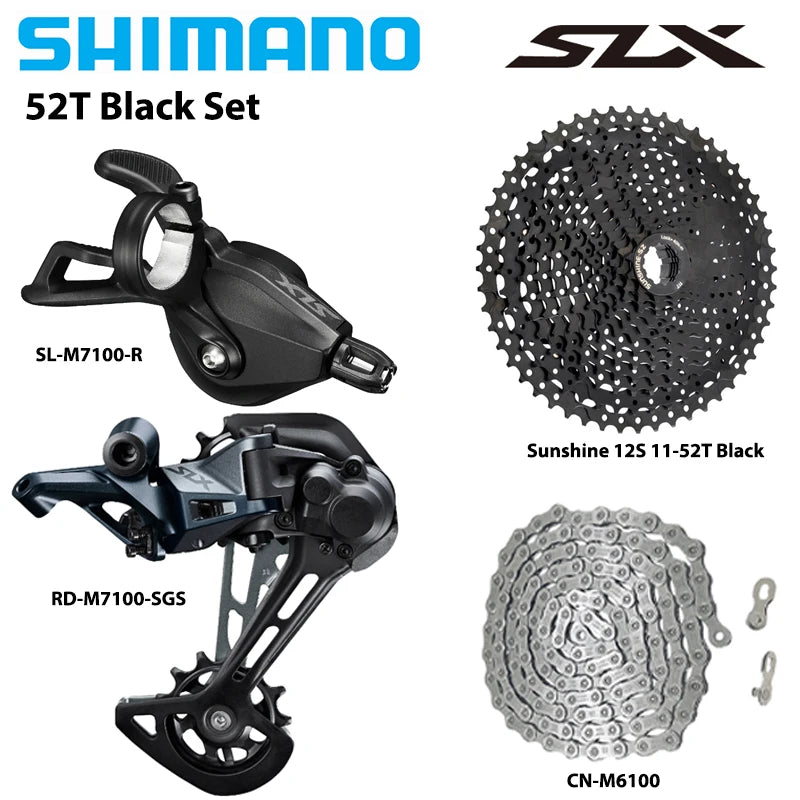

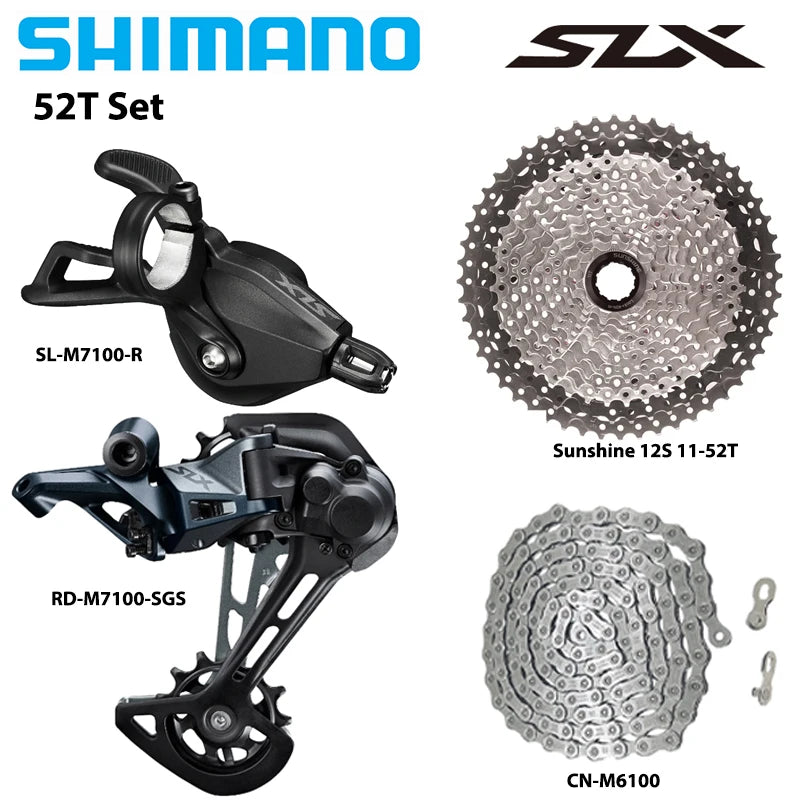

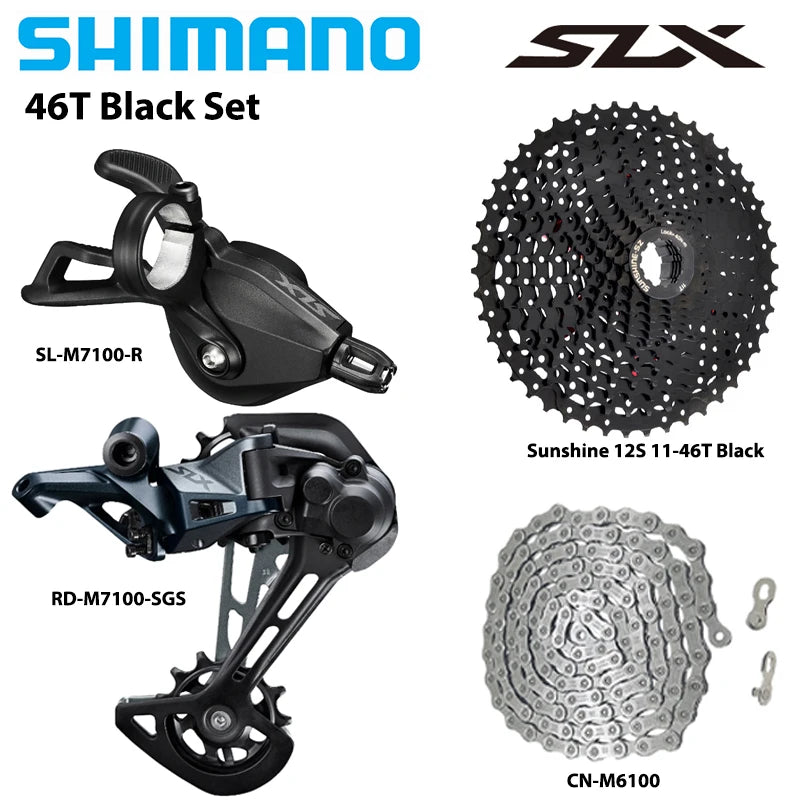

4.SUNSHINE Cassette 12 Speed 11-46T/50T/52T Black/Black-Silver(HG type cassette,need HG Freehub)

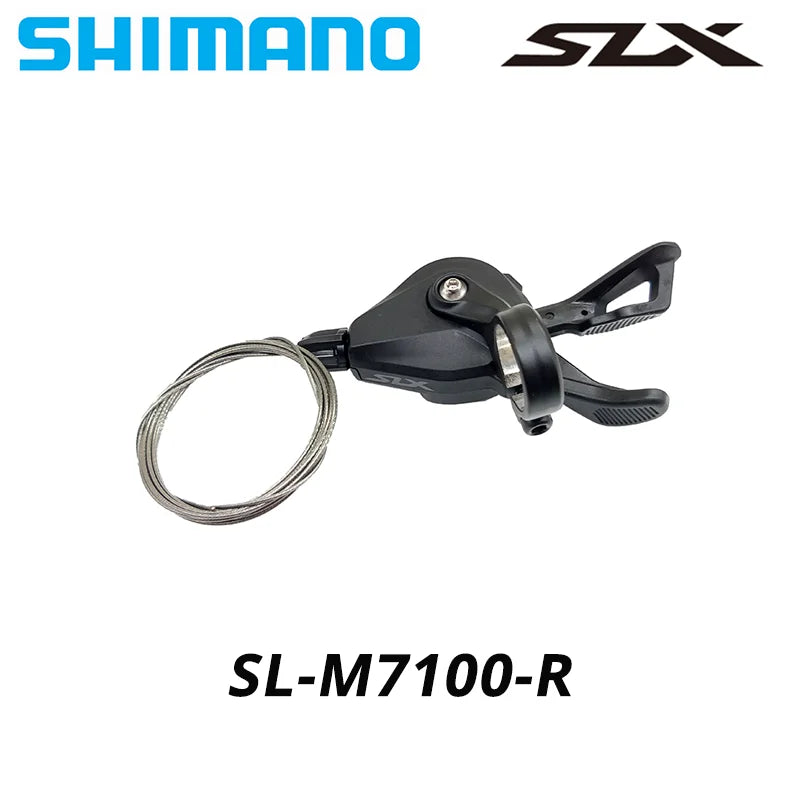

SLX Right Shift Lever 12-speed

SL-M7100-R

SLX - RAPIDFIRE PLUS - Right Shift Lever - Clamp Band - 12-speed



With quick lever access and a light and responsive lever action, RAPIDFIRE PLUS SLX shift lever delivers smooth control out on the trail. The new I-SPEC EV lever offers a wide range of adjustments including increased lever slide range.



FEATURES

Quicker lever access and light operation force improves concentration and enjoyment

Quicker lever access and light operation

RAPIDFIRE PLUS

Instantaneous push and pull movements

2-WAY RELEASE

-35% shifting operation force (vs SL-M7000-R) 20% quicker main lever access (vs SL-M7000-R)



PRODUCT SPECIFICATIONS

MODEL NO SL-M7100-R

SERIES SLX M7100 Series

Color Series color

Average weight 117 ( /pc)

Shifter type RAPIDFIRE PLUS

Rear speeds 12

Compatible rear derailleur type 12-speed

Mount type|Clamp band ✔

Shift lever cable adjust ✔

Max. multiple shifts (main lever/rear) 3

Release function|2-WAY RELEASE ✔

OPTICAL GEAR DISPLAY|Without ✔

Shift lever cable|Inner cable|OPTISLICK ✔

Shift lever cable|Inner cable|Stainless ✔

Recommended shift lever outer casing OT-SP41



TECHNOLOGIES

RapidfirePlus

2way_release

sis_shimano_index_system

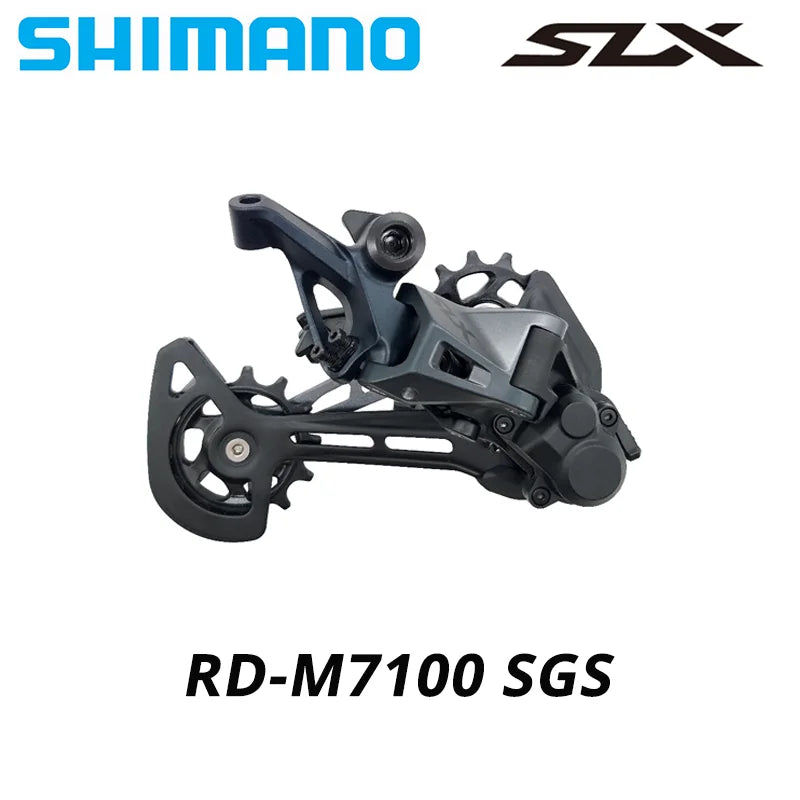

SLX Rear Derailleur 1x12-speed

RD-M7100-SGS

SLX - Rear Derailleur - SHIMANO SHADOW RD+ - 1x12-speed



The SLX M7100 series of derailleurs deliver advanced shifting performance with decreased tension in the low gear position and an added bumper on the pulley cage. Larger 13T pulleys increase efficiency and chain management while compatibility with SHIMANO's new 12-speed cassettes boosts range.



FEATURES

Advanced shifting performance provides the confidence to enjoy any trail

Fast and shockless shifting

HYPERGLIDE+

Extra wide range 12-speed drivetrain -10-51T (12-speed)

Silent drivetrain in all gear positions

Decreased rear derailleur and chain tension in low gear

Bumper structure at rear derailleur pulley cage reduces impact shock by absorbing chain impact on aggressive terrain

Bigger 13T pulley

Stable drivetrain on rough terrain

Low-profile design

SHIMANO SHADOW RD+



PRODUCT SPECIFICATIONS

MODEL NO RD-M7100-SGS

SERIES SLX M7100 Series

Color Series color

Average weight 313

Remarks w/Bumper on pully cage

Rear speeds 12

Compatible chain HG 12-speed

Top-normal spring type|SHIMANO SHADOW RD+ ✔

Mount|Direct attachment (conventional) ✔

Max. front difference 0T

Total capacity 41T

Low sprocket|Max. 51T

Low sprocket|Min. 51T

Top sprocket|Max. 10T

Top sprocket|Min. 10T

Fluoric coated link bushings 7

Pulley|Teeth 13T

Pulley|Sunken type pulley screw ✔

B-axle|Hollow axle ✔



TECHNOLOGIES

shimano_shadow_rd_plus

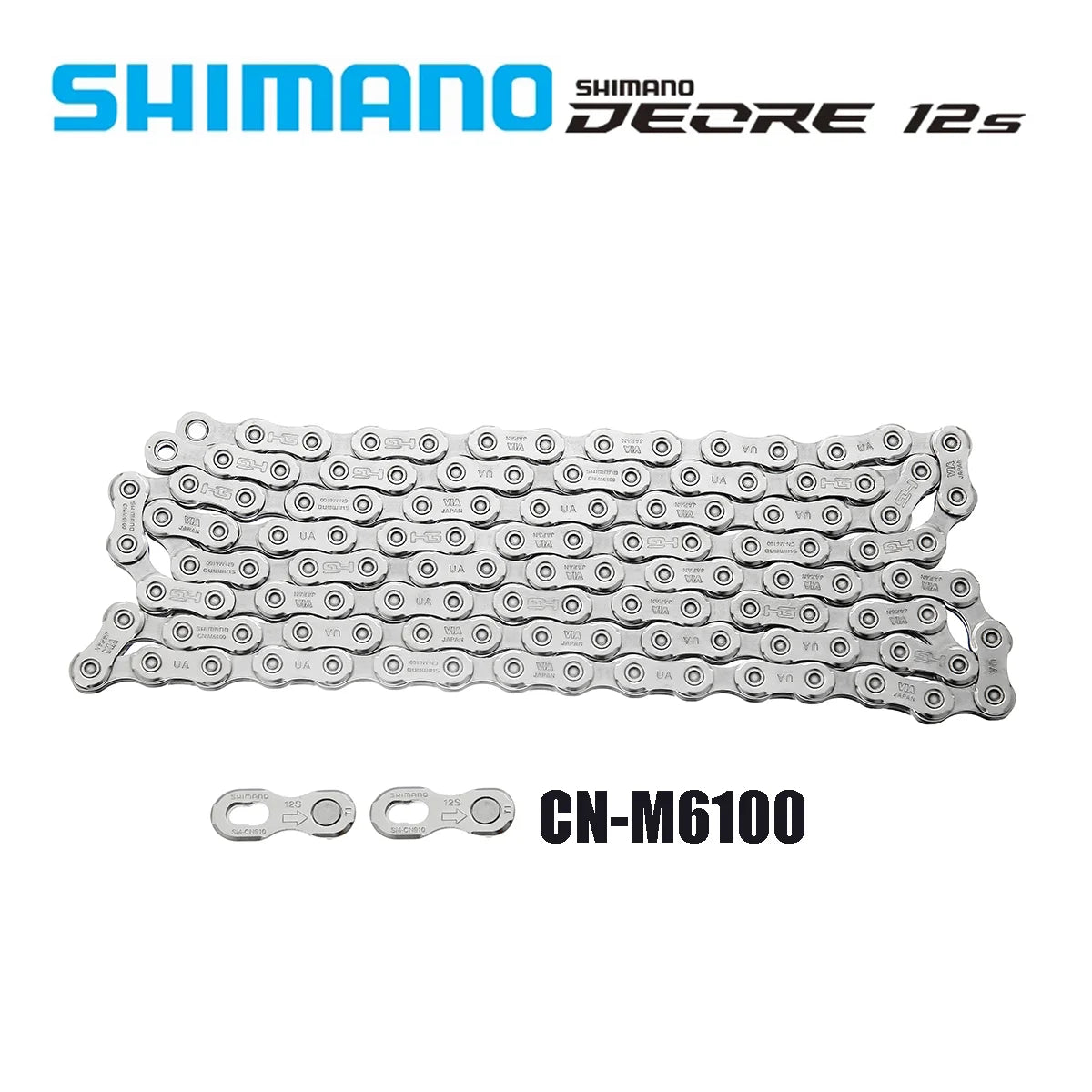

HG 12-speed Chain

CN-M6100

SHIMANO DEORE - 12-speed - HG - MTB Chain



The M6100 chain provides smooth shifting and enhanced chain retention thanks to an extended portion of the inner plate. The new chain features QUICK-LINK assembly and is optimized for HYPERGLIDE+ cassettes and DYNAMIC CHAIN ENGAGEMENT+ chainrings.

FEATURES

Proprietary design ensures smooth shifting and strength

》Extended inner plate improves chain engagement and retention

》Shorter shift times and less pedaling shock

》Optimized to work with HYPERGLIDE+ cassette sprockets and DYNAMIC CHAIN ENGAGEMENT+ chainrings

PRODUCT SPECIFICATIONS

MODEL NO CN-M6100

SERIES DEORE M6100 Series

Average weight 252

Remarks QUICK-LINK

Type HG 12-speed

E-BIKE rear derailleur system compatible ✔

Pin link plate Gray

Roller link plate Brown

Chromizing treatment roller link pin ✔

TECHNOLOGIES

hg

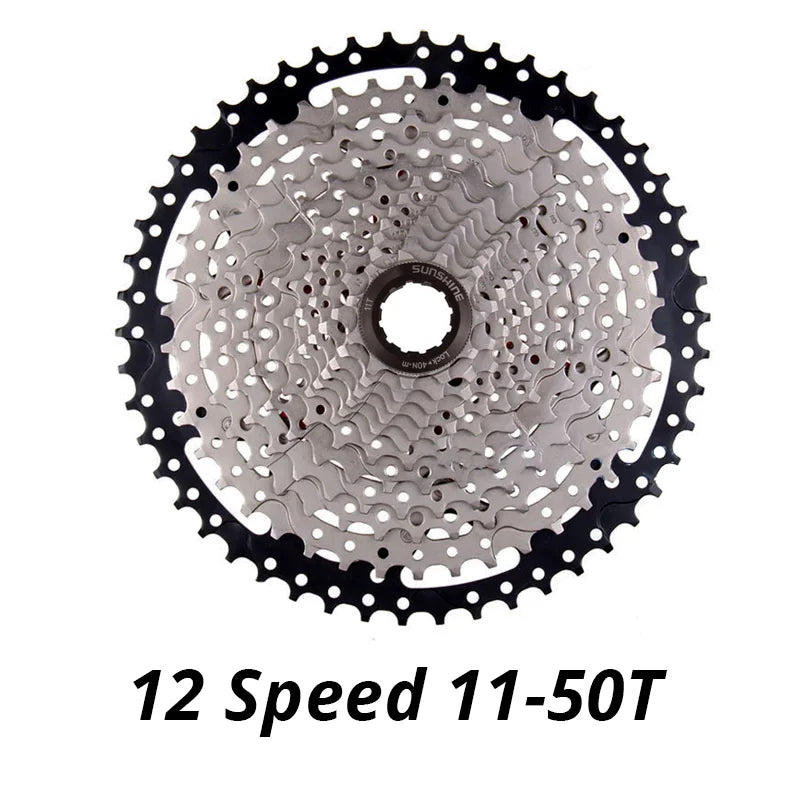

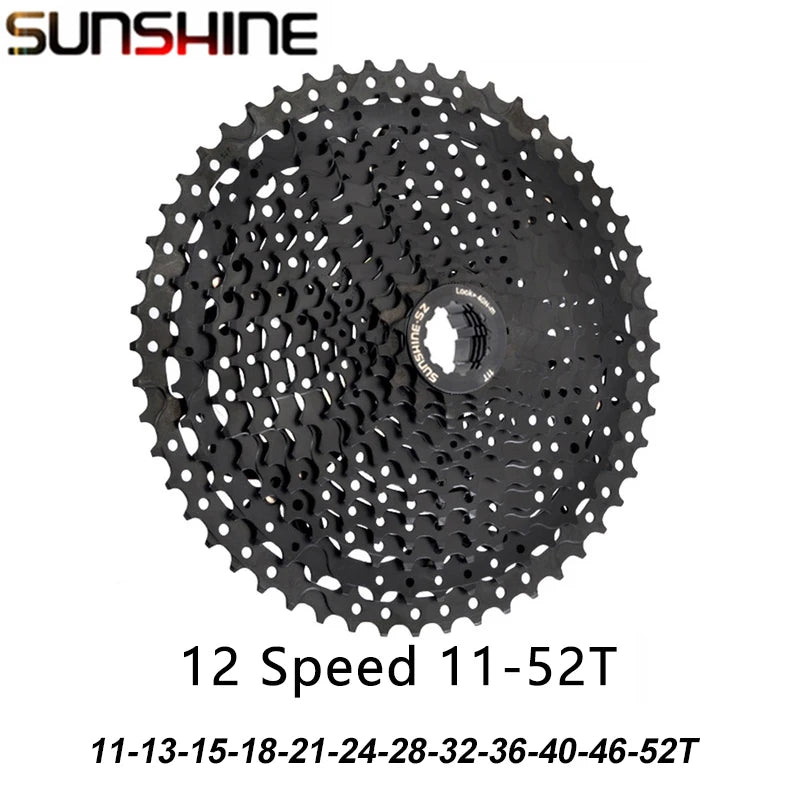

SUNSHINE-SZ 12 SPEED CASSETTE

bicycle flywheel

SIS positioning flywheel

Perfectly run SRAM/SHIMANO/SENSAH shifting systems

Alloy stainless steel material, good quality and beautiful price

It's a better choice for your bike
