540 Brushed Motor 13T 17T 21T 23T 27T 35T 45T 60A ESC for 1/10 RC Car

Welcome

Thank you for viewing this item. Please check the details below to make sure it is suitable for your needs before ordering.

Product Overview

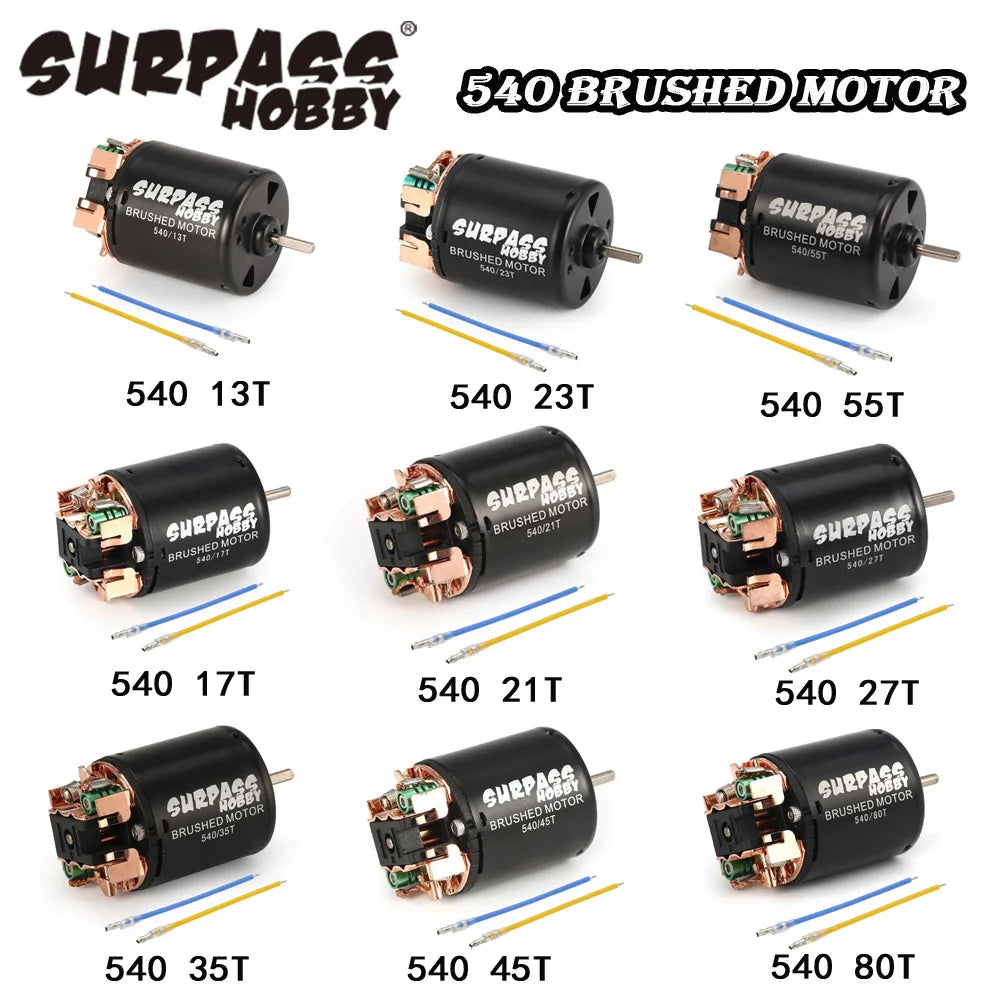

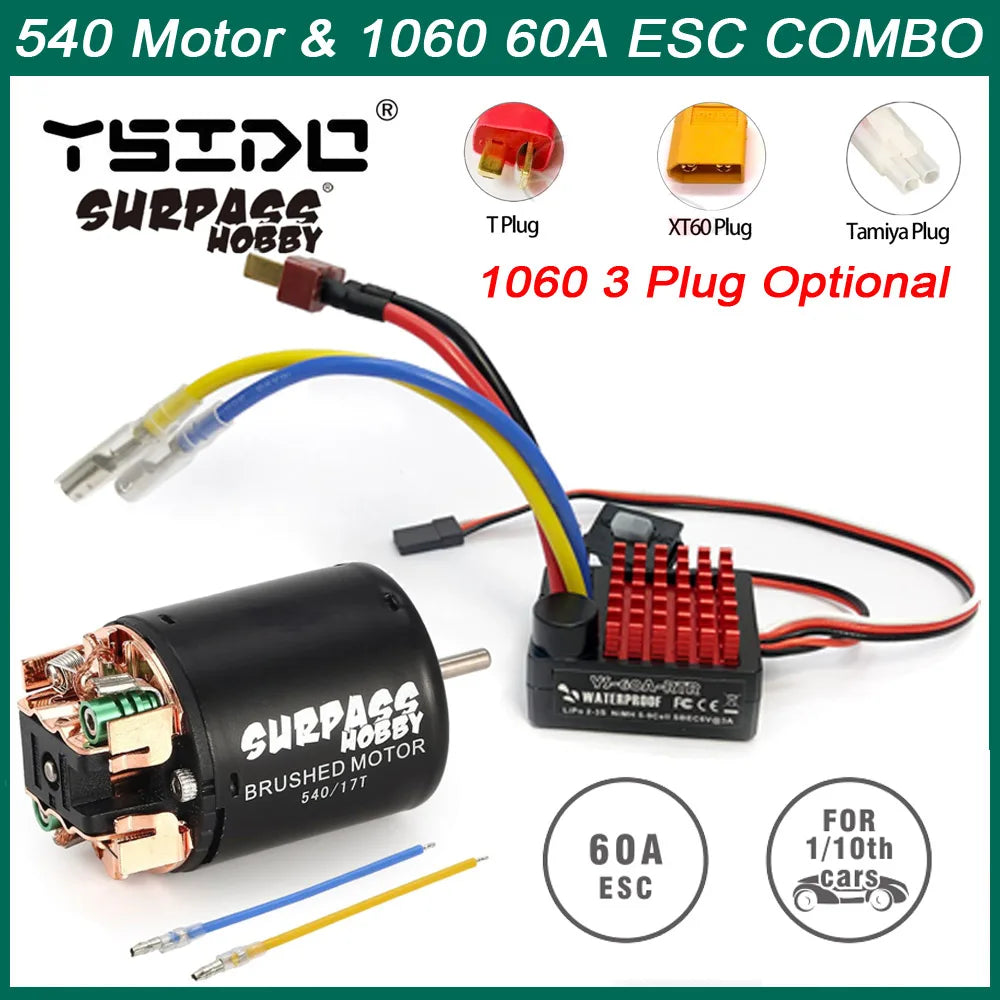

The SURPASS HOBBY Combo 540 Brushed Motor is designed for 1/10 RC off-road racing cars and trucks. It features various turn options, including 13T, 17T, 21T, 23T, 27T, 35T, 45T, 55T, and 80T, paired with a 60A ESC for optimal performance.

Key Features

• Compatible with 60A brushed ESC.
• High RPM and powerful performance suitable for most 1/10 RC off-road cars.
• CNC machined billet T6 aluminum heatsink for improved heat resistance.
• Supports 7.4V input voltage for enhanced efficiency.
• Designed for longer runtime and extended motor life.

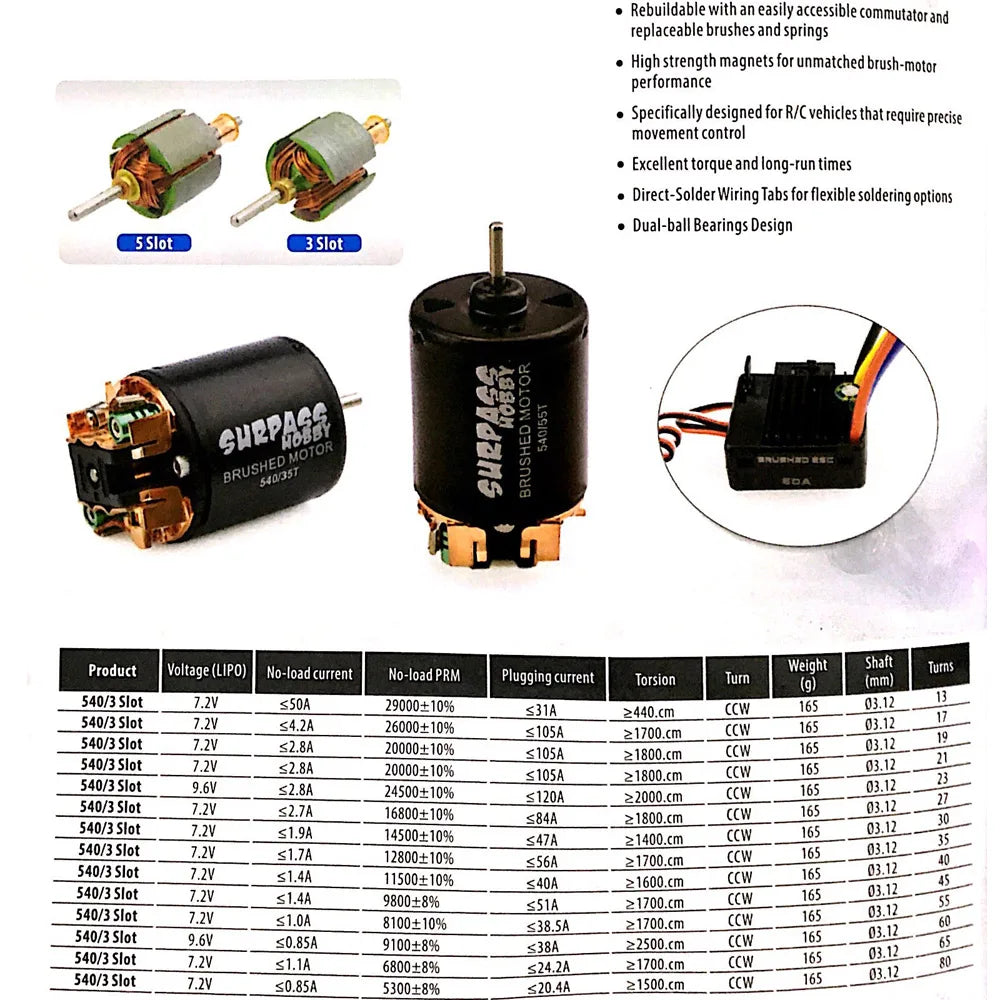

Specifications

Material	Metal
Model Number	540
Outside Diameter	36MM
Total Length	57MM (without motor shaft)
Motor Shaft Length	12MM
Motor Shaft Diameter	3.175MM
No Load Current	1.4A
Max Voltage	7.2V
Max Current	0.85A
RPM	5400 (80T), 8000 (55T), 10000 (45T), 12000 (35T), 16800 (27T), 20000 (21T)
Torsion	1800g.cm (80T), 1700g.cm (55T, 45T)
Screw Hole	4 * M3

Package Includes

• 1 x selected option only

Please choose the required variant before ordering.

Available options may include: 23T 60A XT60 Plug, 55T 60A Tamiya Plug, 45T 60A Tamiya Plug, 13T 60A XT60 Plug, 80T 60A Tamiya Plug, 27T 60A Tamiya Plug, 80T 60A T Plug, 55T 60A T Plug, 17T 60A Tamiya Plug, 13T 60A Tamiya Plug, 21T 60A XT60 Plug, 17T 60A XT60 Plug.

Delivery Information

Dispatch usually within 1–3 working days. Delivery usually takes around 4–5 working days after dispatch.

Returns

30-day returns accepted. Item must be returned in original condition. Please check the eBay returns section for full return details.

Notes

• Please check size, model and compatibility before ordering.
• Colours may vary slightly due to screen and lighting differences.
