SPECIFICATIONS

AM FM SW Radio: AM:522-1701KHZ

Battery Included: No

Bluetooth: No

Body Material: Plastic

Brand Name: Tecsun

Certification: CE

Channel search efficiency: ETM+ATS dual mode

Choice: yes

Dimensions (WxHxD): 187 x 90 x 30mm

Frequency Range: FM/AM/SW

Function: Built-In Speaker

High-concerned chemical: None

Model Number: PL-398MP

Origin: Mainland China

Package: Yes

Screen: Yes

Stereo Sound: Yes

Style: Portable

TF Card: Support

Type: AM / FM,AM / FM,MW,SW,LW

WIFI: No

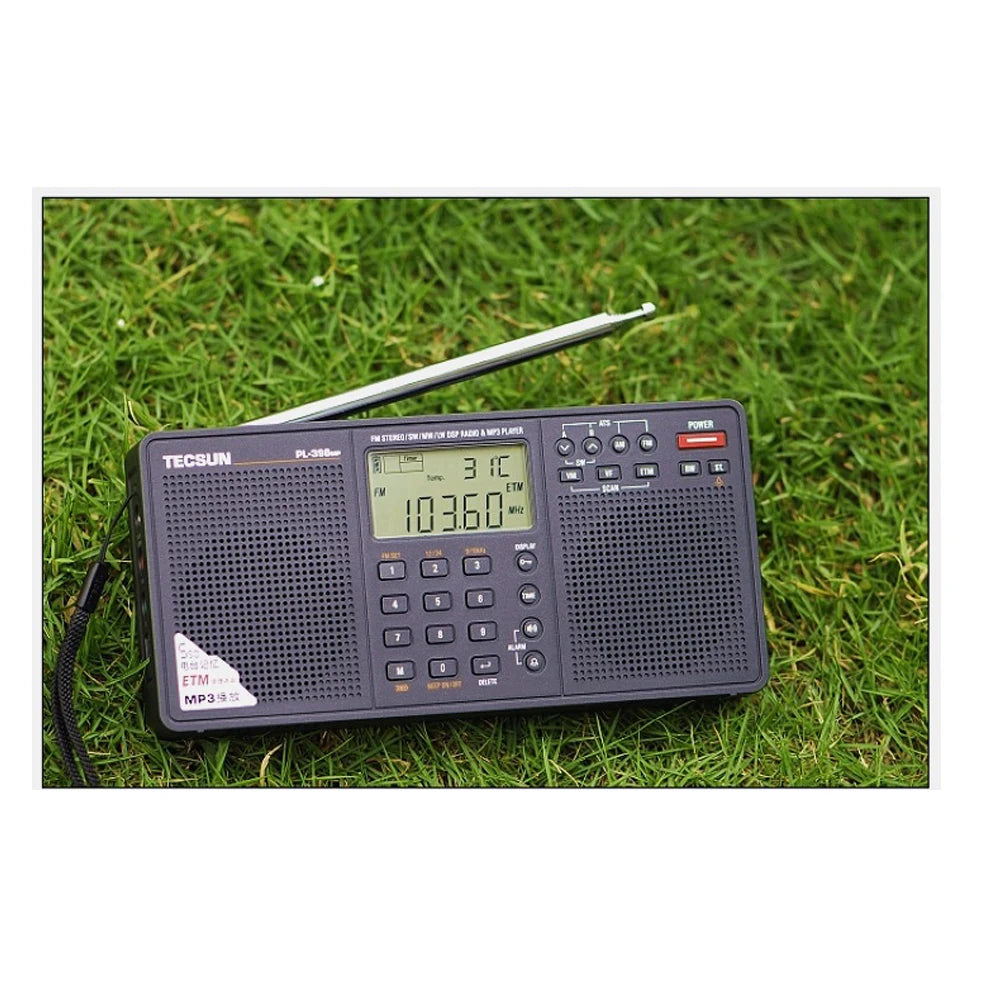

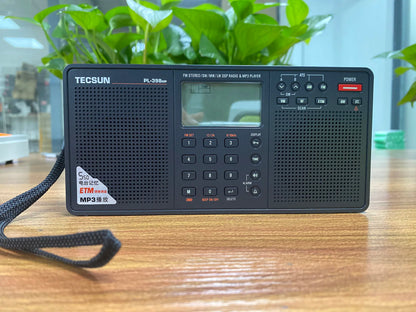

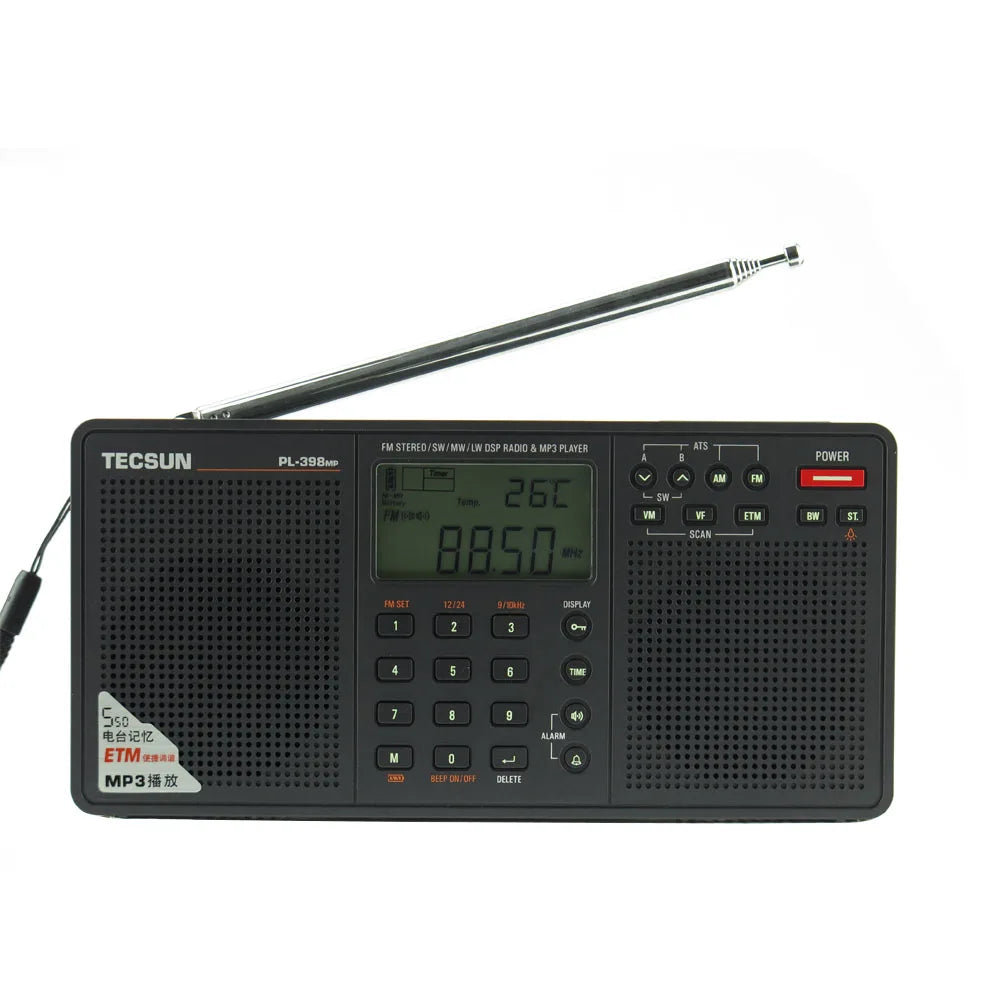

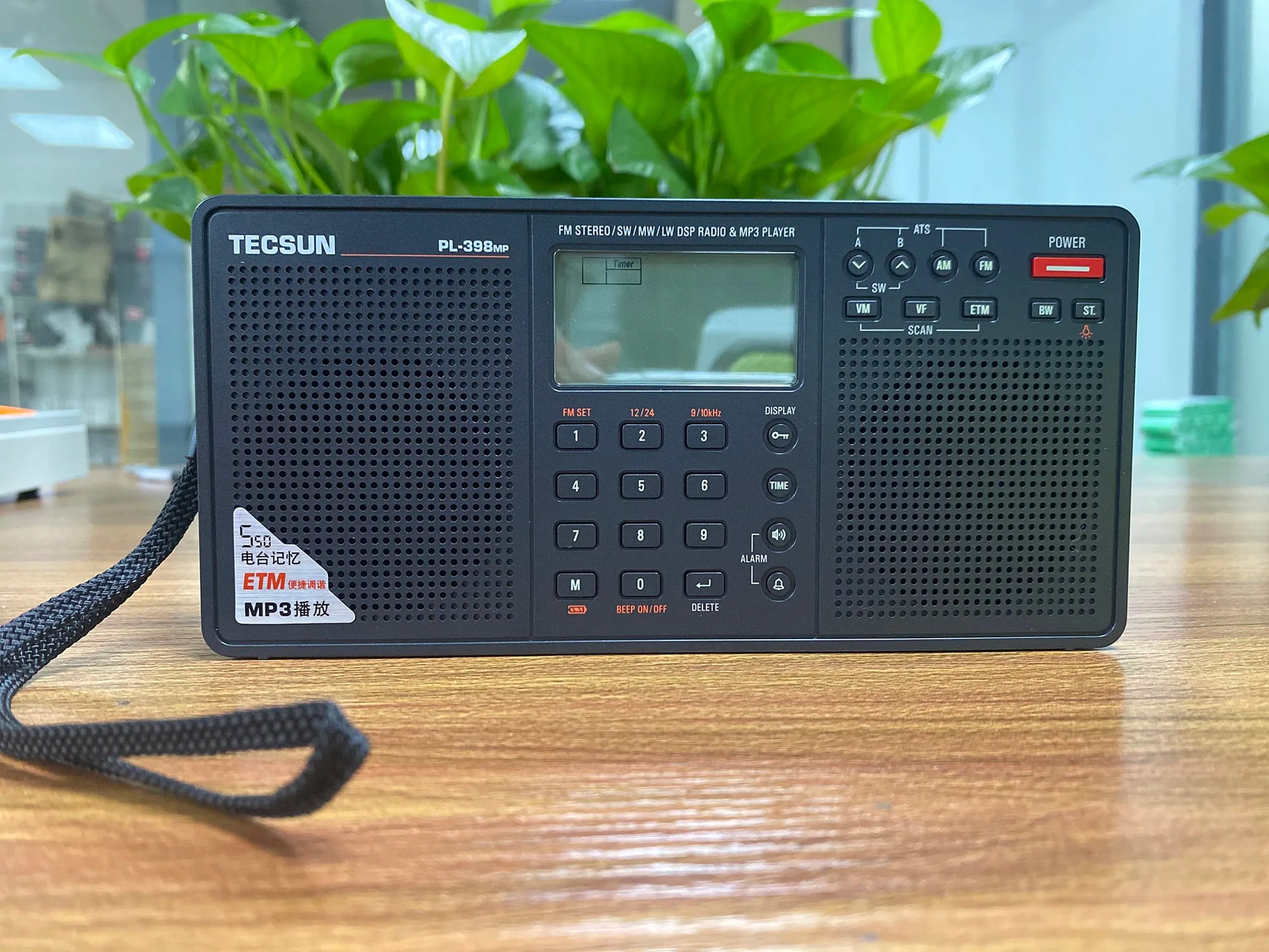

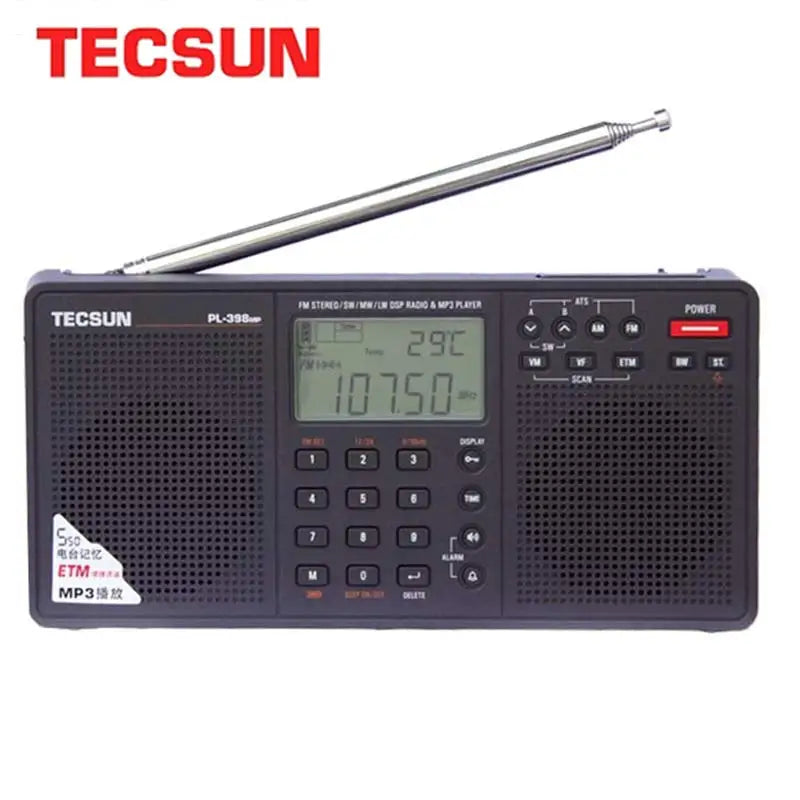

TECSUN PL-398MP FM Stereo/SW/MW/LW DSP World Band Radio MP3 Player



Description:

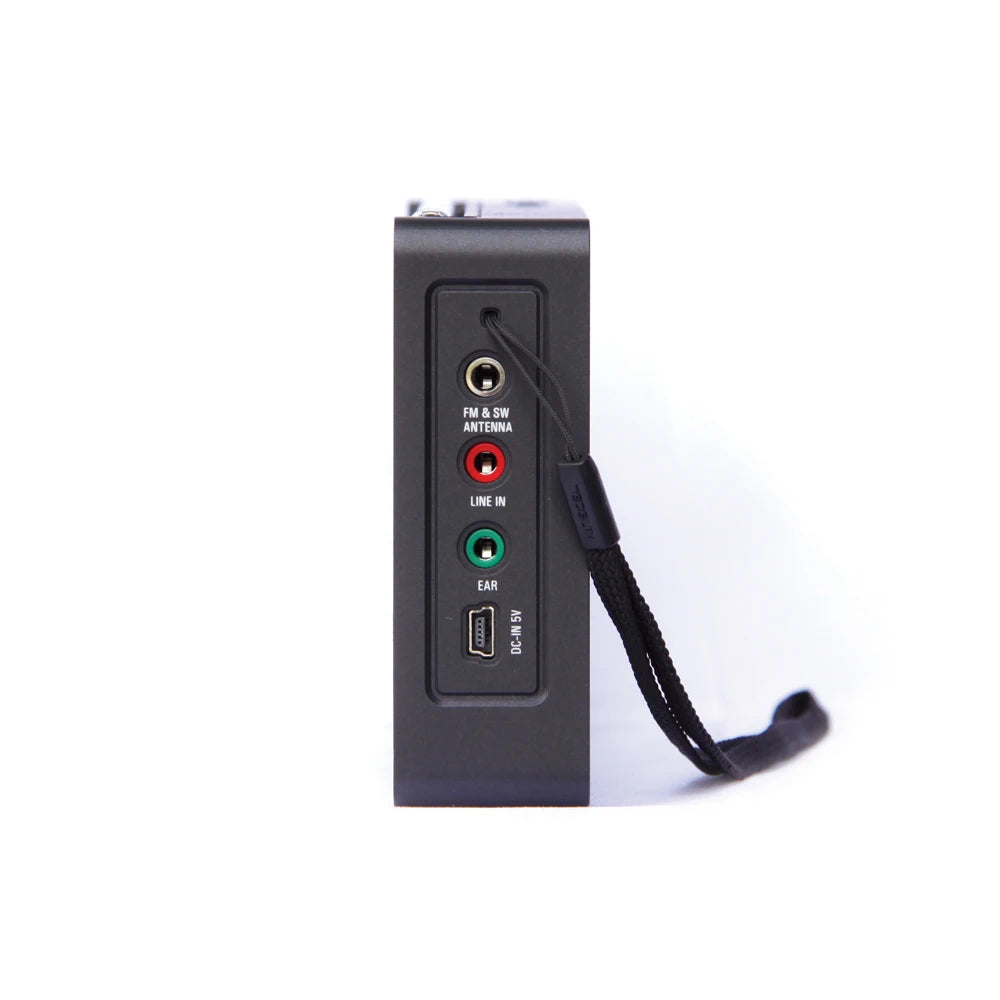

TECSUN PL-398MP is a multi-band stereo portable radio with MP3 playback function (SD card slot). It can listen to FM stereo, short wave, medium wave, long wave broadcast, play MP3 music, and has line input. It can be used as an active small speaker.



1. [Two-channel Dual Speaker Design]:

You can enjoy FM stereo programs without using headphones.

FM stereo, short wave (2300~21950KHz), medium wave, long wave full-band reception, FM receiving frequency range 64 ~ 108MHz, can listen to China, Europe and the United States day FM broadcast frequency, but also listen to part of the campus broadcast.



2. [Digital Signal Processing]:

The SILICON LABS si4734 digital signal processing (DSP) chip is used to digitally convert FM/AM broadcast signals and process them with modern software radio technology, which improves sensitivity, selectivity, signal-to-noise ratio and anti-interference ability.



3. [7 Options for Channel Selection]:

Easy Tuning (ETM), automatic search for radio frequency(ATS), automatic search for stored stations, manual search for station frequency (VF), manual search for stored stations (VM), direct input of frequency numbers, direct Enter the number of saved station addresses.



4. [Smart/Manual LCD and Keypad Backlight]:

The LCD displays information such as station frequency, signal strength/signal-to-noise ratio, temperature, time, and battery level. The buttons also have a backlight function for intelligent night lighting.



Main Parameters:

Speaker specifications: Diameter 57mm, 8Ω, 250mW paper tray speaker × 2.

Headphone specifications: Φ3.5mm/32Ω stereo headphones.



Output power (distortion 10%): ≥180mW×2

Weight:365g(Battery not included).

Dimension: 187(W)×90(H)×30(D) mm.

PL-398MPBasic Technical Indicators



Optional Frequency Coverage:

Standard: 87-108MHz (suitable for China, Europe and America).

Germany: 87.5-108MHz.

Russia: 64-108MHz (also suitable for receiving most campus broadcasts in China).

Japan: 76-108MHz.

FM:64-108MHz, intelligent stepping 0.01MHz/0.1MHz.

SW: 2300-21950KHz, intelligent stepping 1KHz/5KHz.

MW:522-1620KHz, intelligent stepping 1KHz/9KHz (suitable for Asia, Africa and Europe).

520-1710KHz, intelligent stepping 1KHz/10KHz (suitable for North America).

LW:153-513KHz, intelligent stepping 1KHz/9KHz.



Noise limit sensitivity:

FM: (S/N=30dB) better than 3uV.

SW: (S/N=26dB) better than 20uV.

MW: (S/N=26dB) better than 1mV/m.

LW: (S/N=26dB) better than 10mV/m.

Selectivity:

FM: >60dB (±150KHz).

SW: >60dB (BW=3KHz, ±5KHz).

MW: >60dB (BW=3KHz, ±9KHz).

LW: >60dB (BW=3KHz, ±9KHz).



Quiescent Current:

FM: <25mA.

SW: <30mA.

MW / LW: <30mA.

Shutdown <80uA.



Memory storage: 550 total.

FM: 100.   SW: 250

MW: 100.  LW: 100



Power supply:

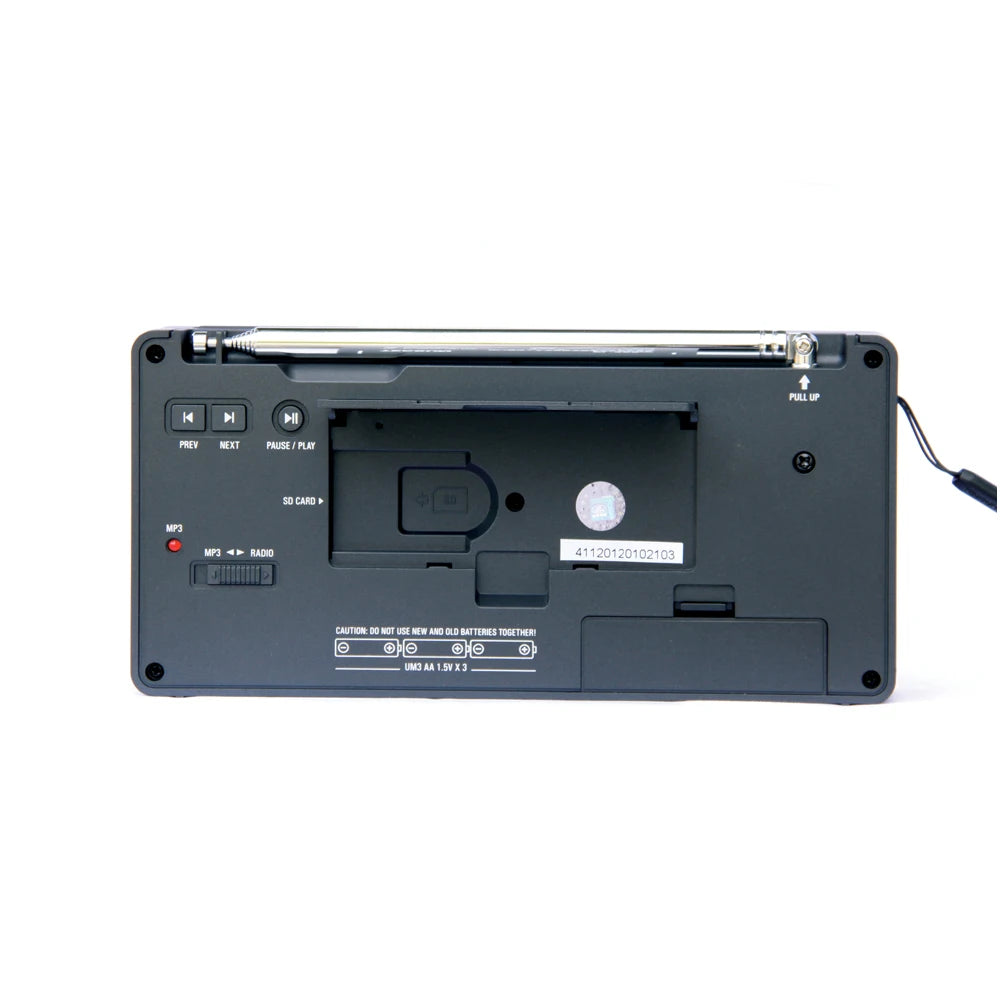

Powered by 3 R6 (No. 5) batteries, you can also use Ni-MH rechargeable batteries

Smart charging is possible via the power supply of the USB port.

External power supply (optional): USB specification DC 5V ≥250mA

Package list:

1 x TECSUN PL-398 Radio

1 x Stereo Earphone

1 x Audio Cable

1 x Carrying Pouch

1 x User Manual(English)
